Discover the secret to flawless distillation with this efficient, practical kit—built to satisfy demanding pros and give less experienced users an easy-to-use setup that delivers outstanding results.

hawkSTILL Aabratek 2.0 still with an innovative reservoir design (further improving distillation performance) is another model in our range featuring electric modules and a high‑output 60.3 mm column. This professional still includes a large‑capacity (60 L) boiler and an Aabratek LM reflux head (fitted with a precision needle valve and an efficient condenser), letting you easily control the distillation process. If you’re after a complete kit made from high‑quality stainless steel with efficient, user‑friendly modules—and you expect an excellent final result—check out hawkSTILL!


👉 This version includes:

  • Neoprene insulation for the Convex 60 L still boiler with an opening lid. Effective, quick to install and remove. Easy to clean.
  • Bead‑blasted Aabratek head with a deep satin‑matte finish.
  • hawkSTILL WiFi — an advanced module for precise temperature and process control, enabling remote monitoring, run logging, and automatic heater control via the free Browin Control app (Wi‑Fi / Bluetooth).


Technical data:

  • Tank capacity: 60 L
  • Maximum working liquid volume: 50 L
  • Column diameter: 60.3 mm
  • Tri‑Clamp connections
  • Material: stainless steel
  • Power: electric
  • Heater power: 2000 W + 1500 W
  • Water consumption: approx. 20–25 L/h
  • Collection rate: up to 1.5 L/h
  • Neoprene insulation (quick to fit and remove)
  • hawkSTILL WiFi — remote process control, data logging, and heater control. Technical specs:
  • Number of probes: 3
  • Connectivity: 2.4 GHz Wi‑Fi
  • Bluetooth support: Browin Control app (Android/iOS)
  • Notifications: push, temperature alarms, time and system alerts
  • Functions: temperature measurement, run logging, heater control, temperature alarms, clock and stopwatch
  • Power supply: 230 V. Max. connected heater power 2 kW

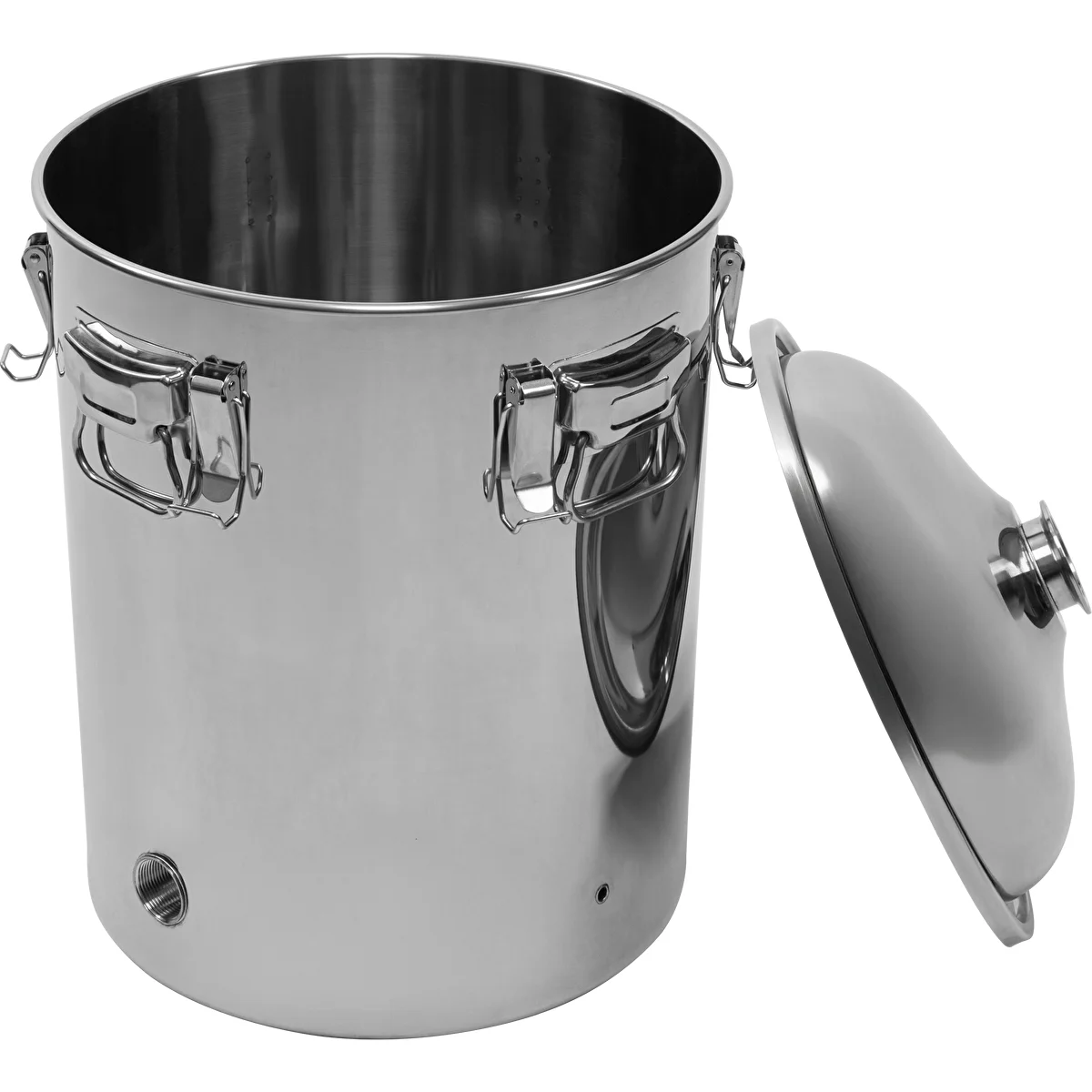

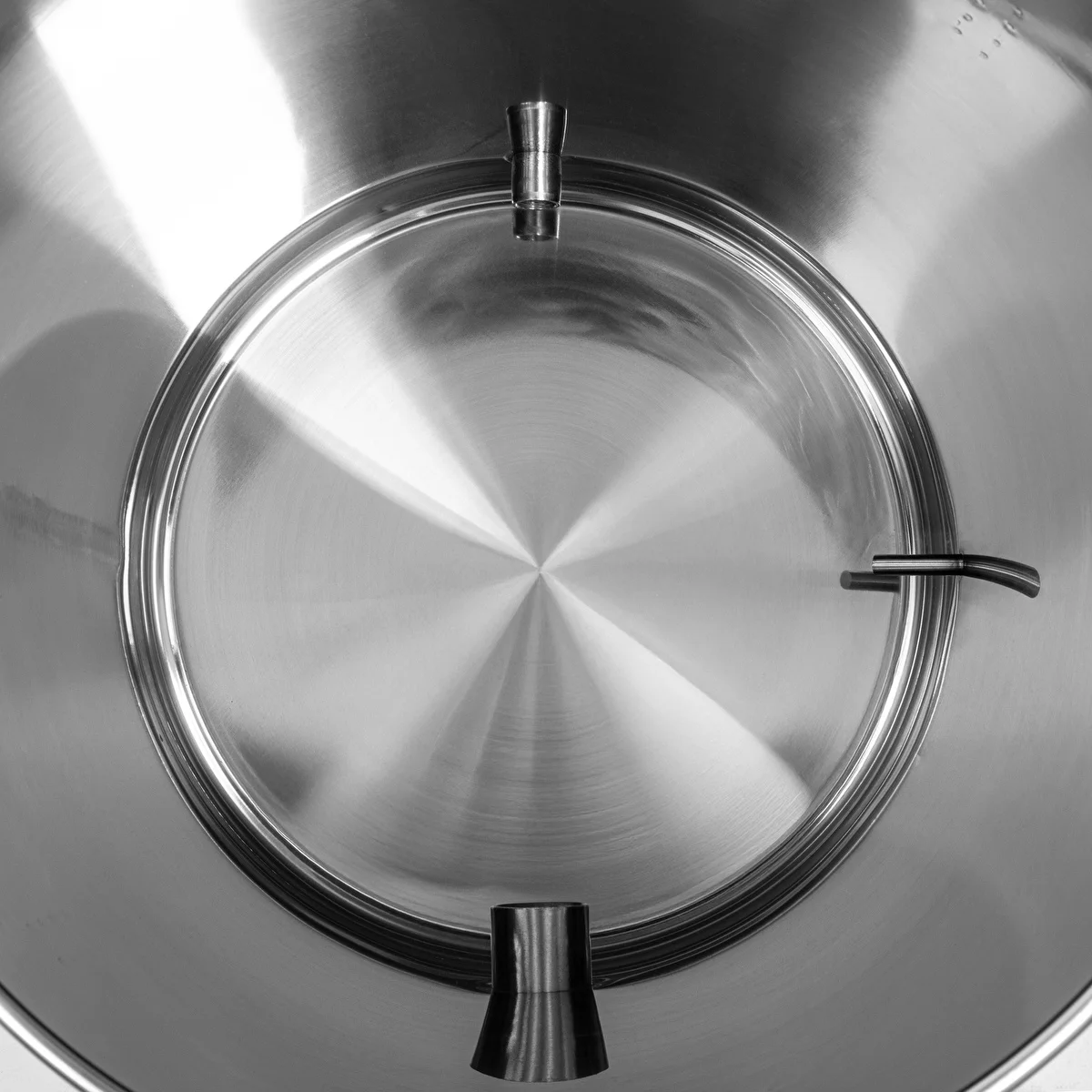

Convenient removable‑lid boiler

The hawkSTILL Aabratek 2.0 comes with a boiler with a removable lid, which makes everyday use much more comfortable. The wide opening gives you easy, thorough cleaning access.

The opening design also makes pouring liquids safely and comfortably easier—both before you start and after you finish the run. It’s a practical solution regular users who value hygiene and ergonomics will really appreciate.

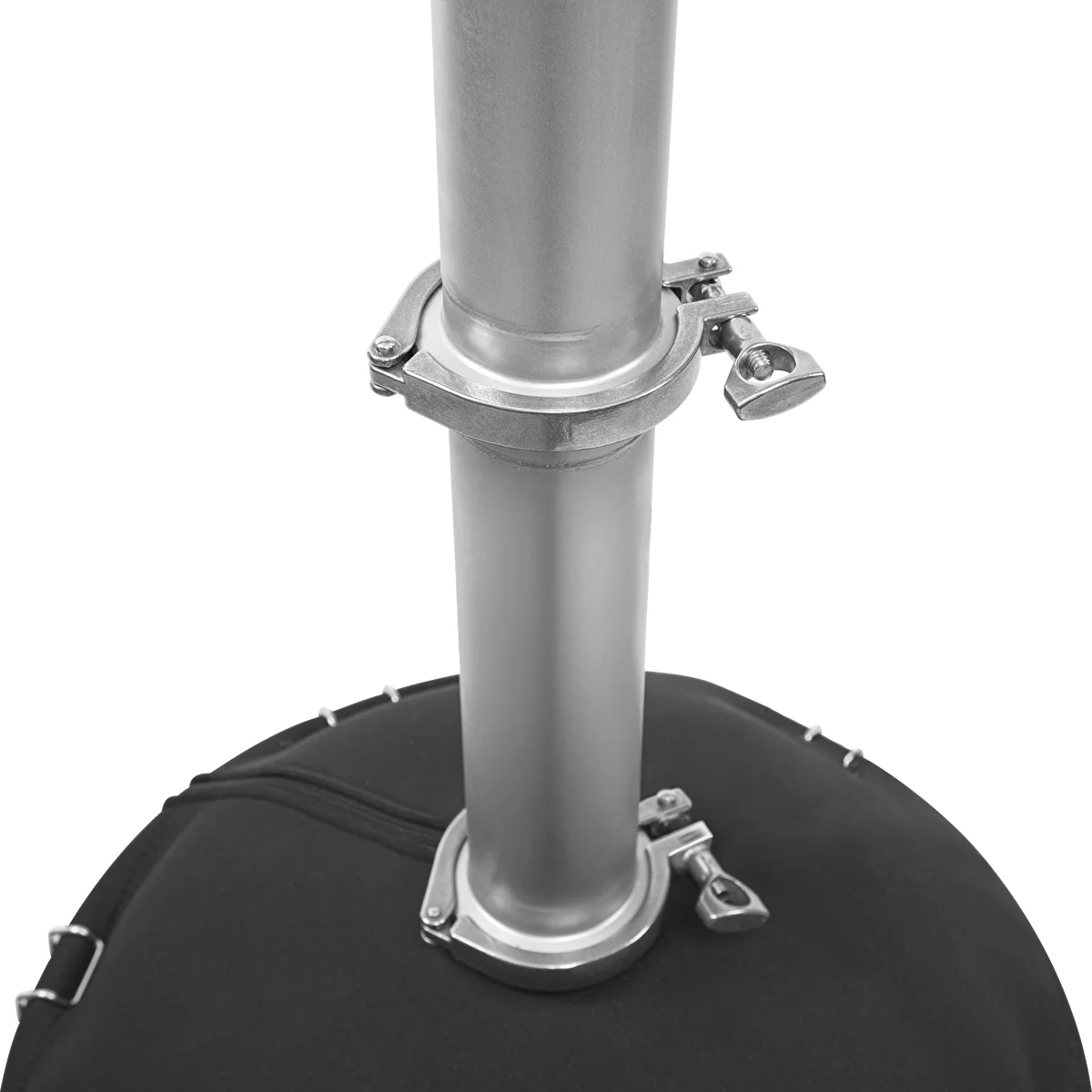

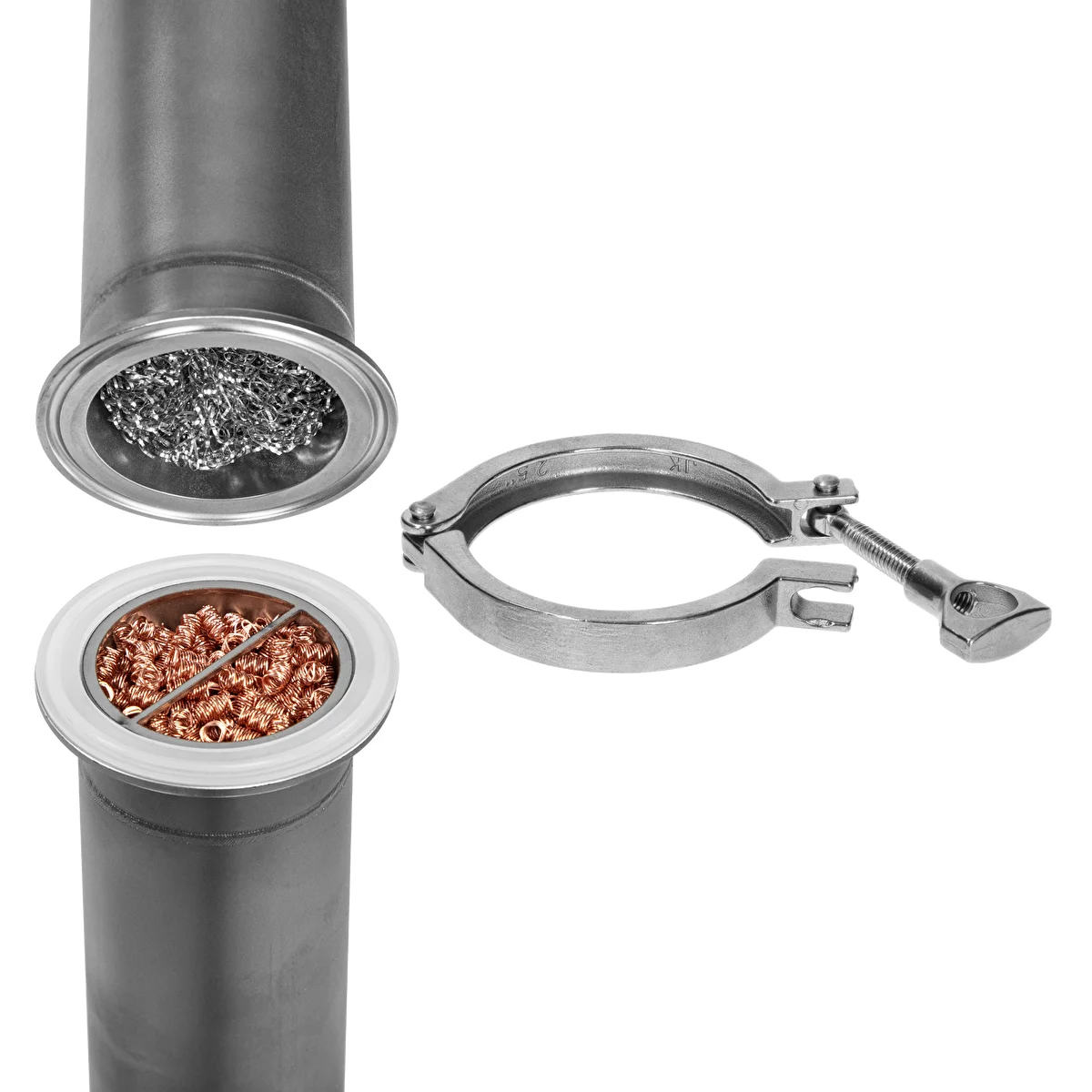

Tri‑Clamp connections

All column sections are joined with Tri‑Clamp fittings, making modification, expansion, and reconfiguration easy for different distillation goals. The powerful electric module ensures comfortable, controlled operation without external heat sources.

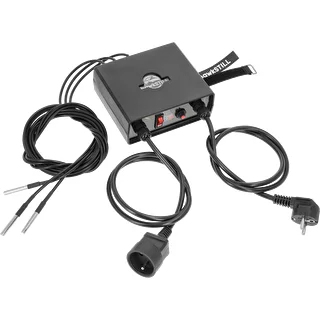

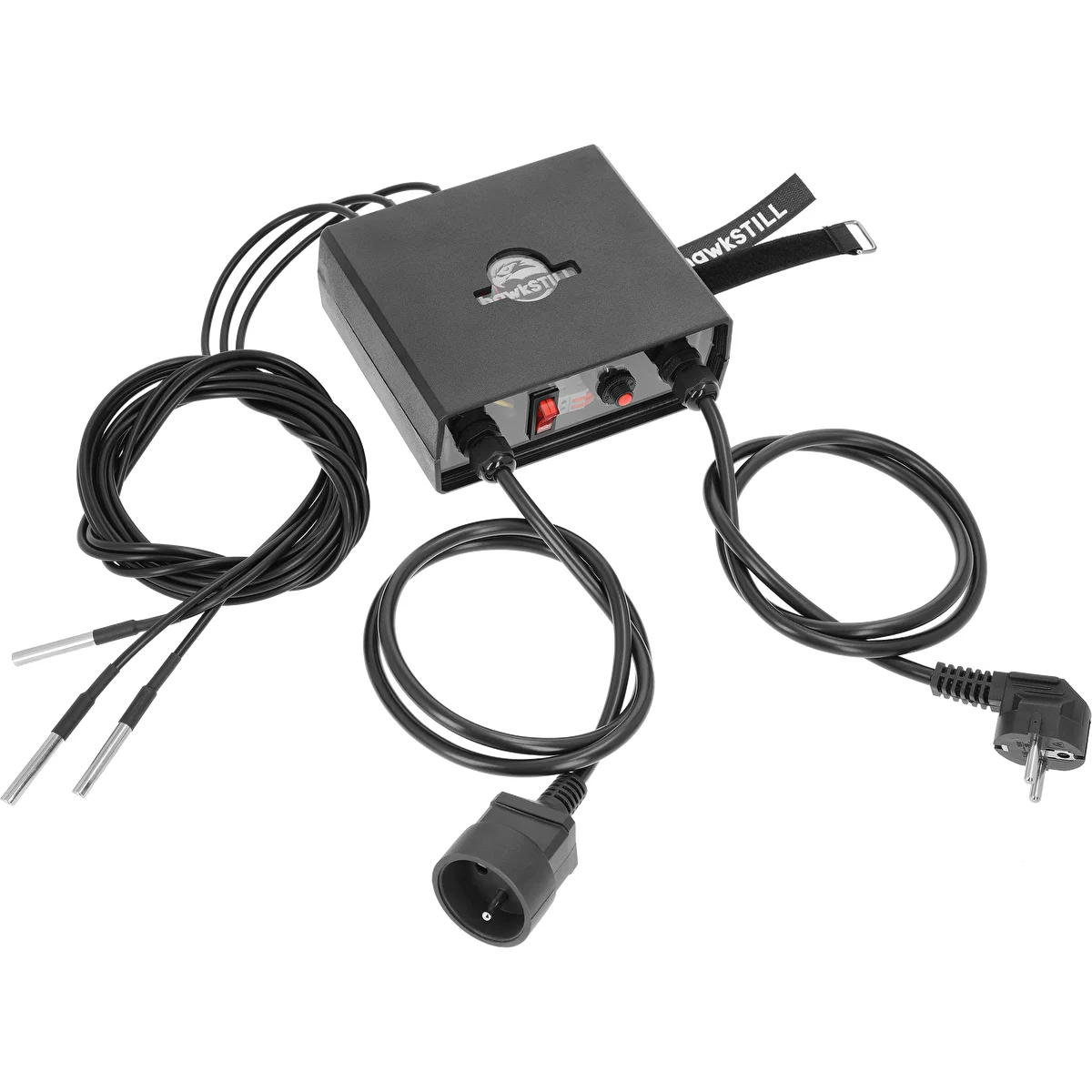

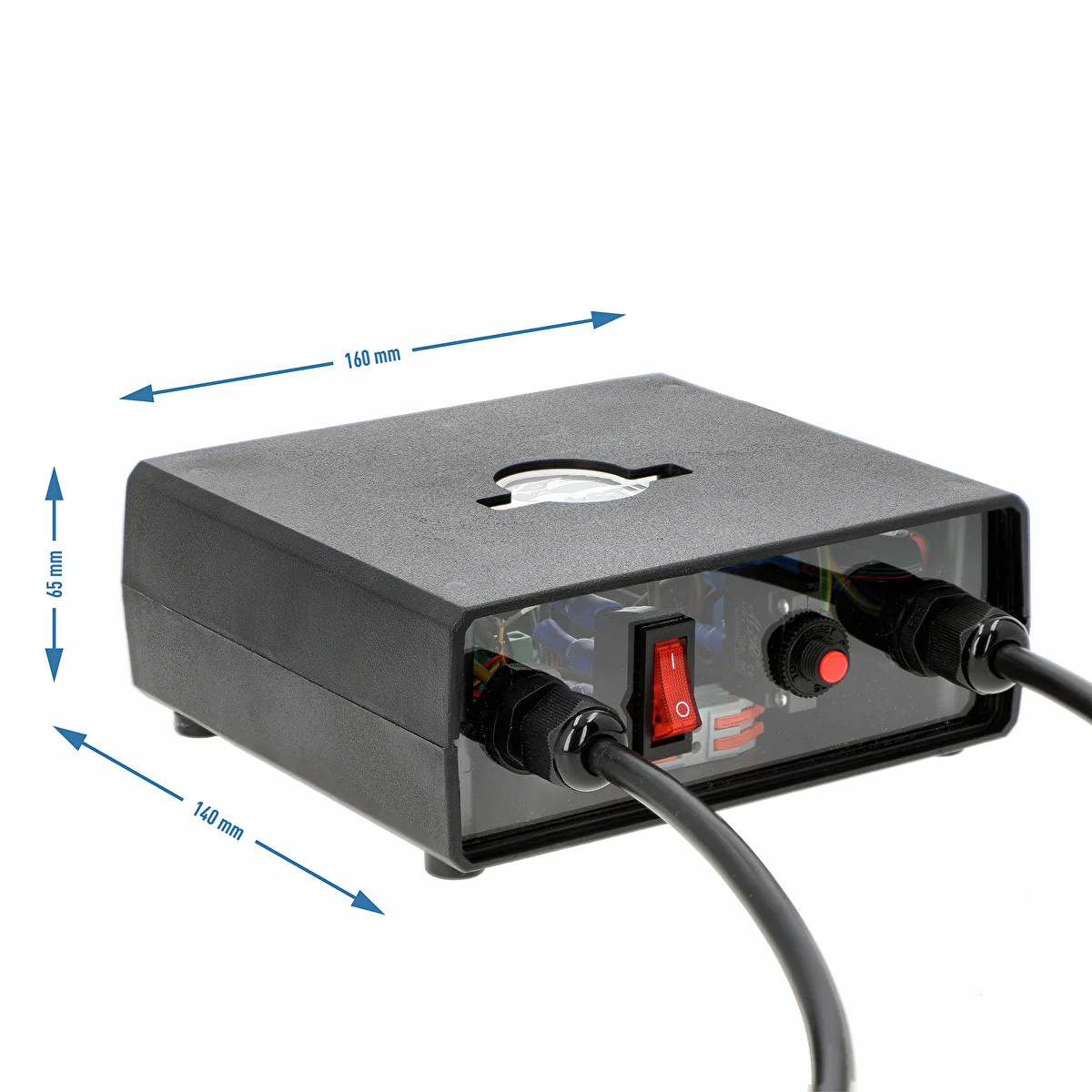

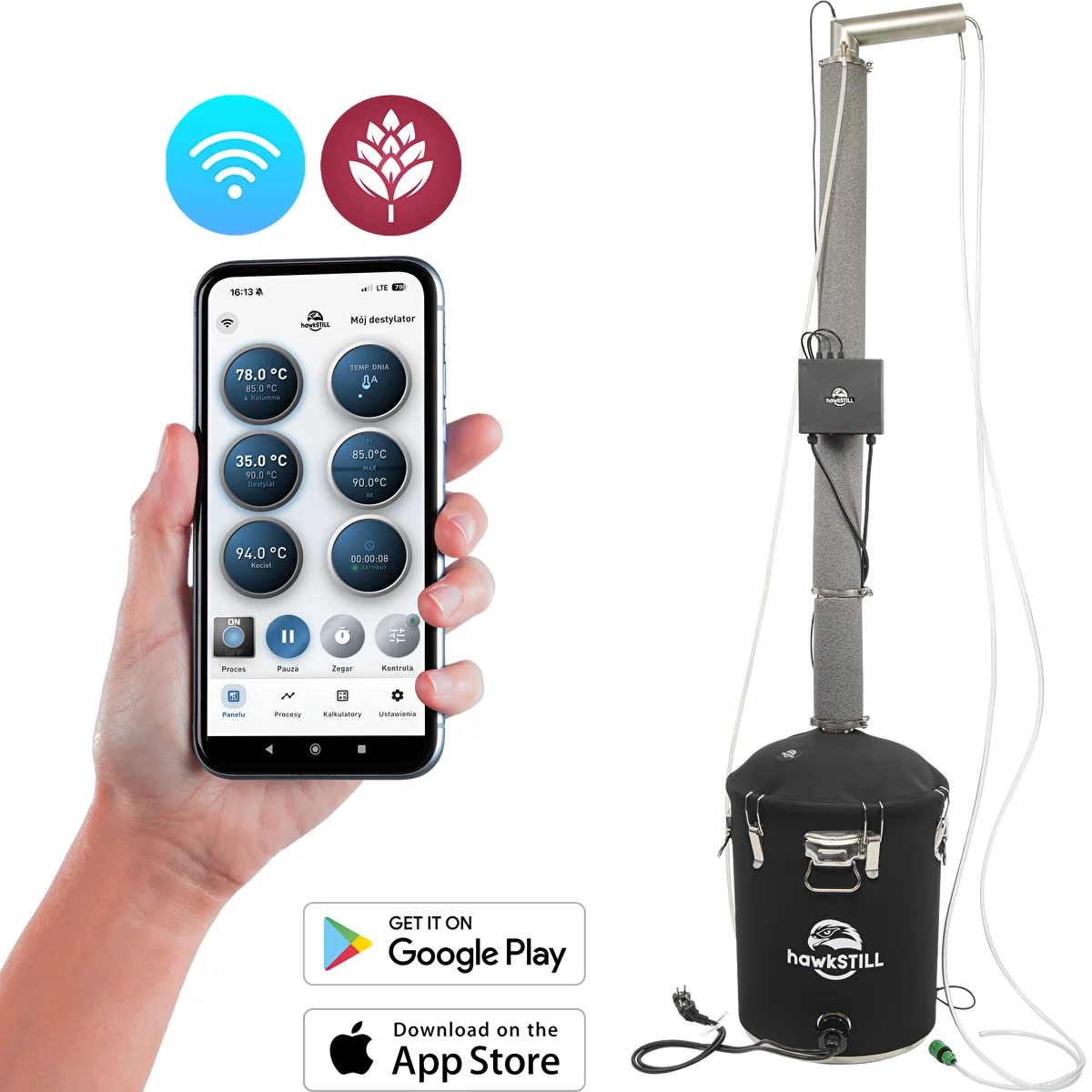

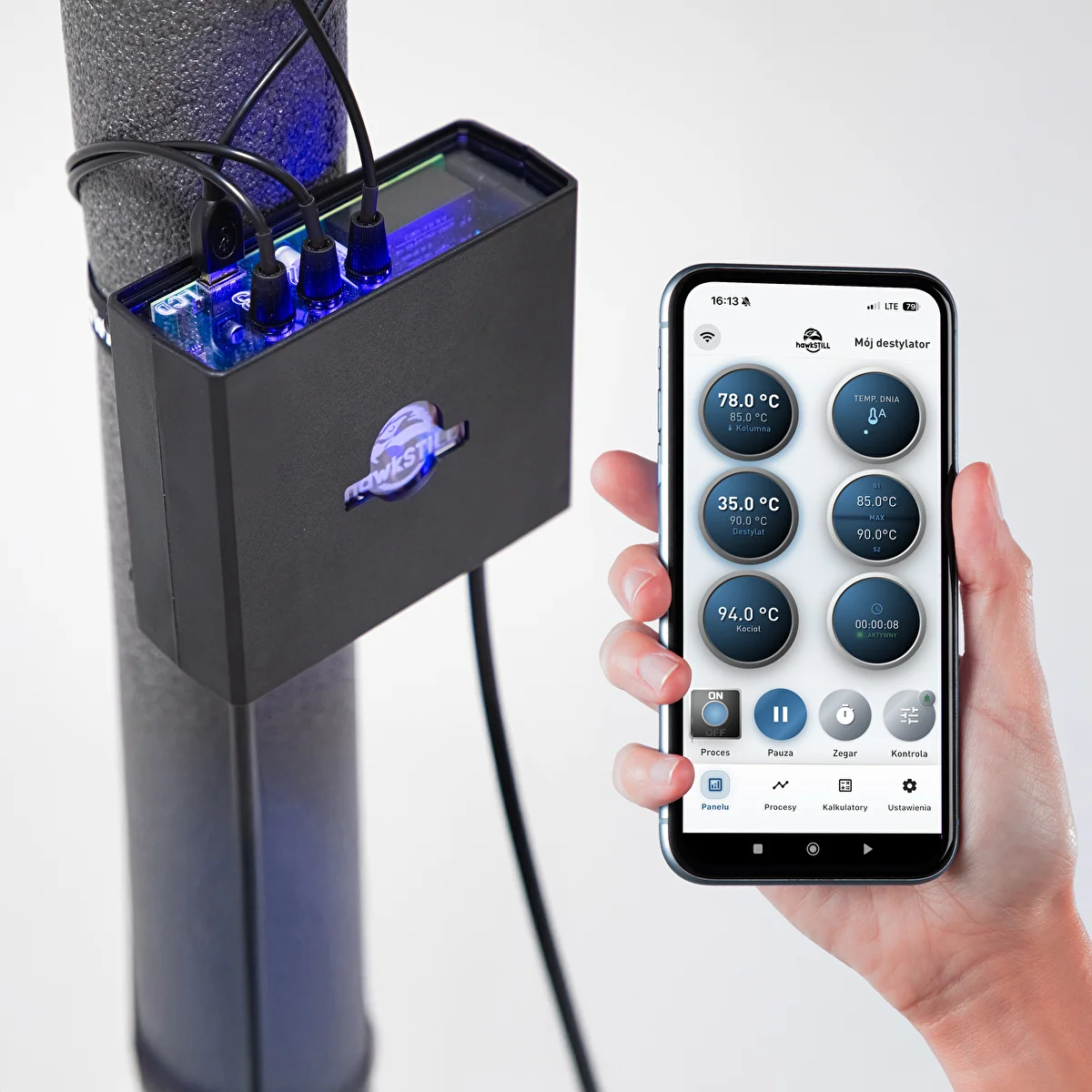

hawkSTILL WiFi — full process control

The integrated hawkSTILL WiFi system measures temperature at three points at once, enables remote monitoring, logs data as charts, and automatically controls the heater once preset temperature thresholds are reached. Operated via the free Browin Control app (Android / iOS), it gives you precise control and repeatable, professional results.

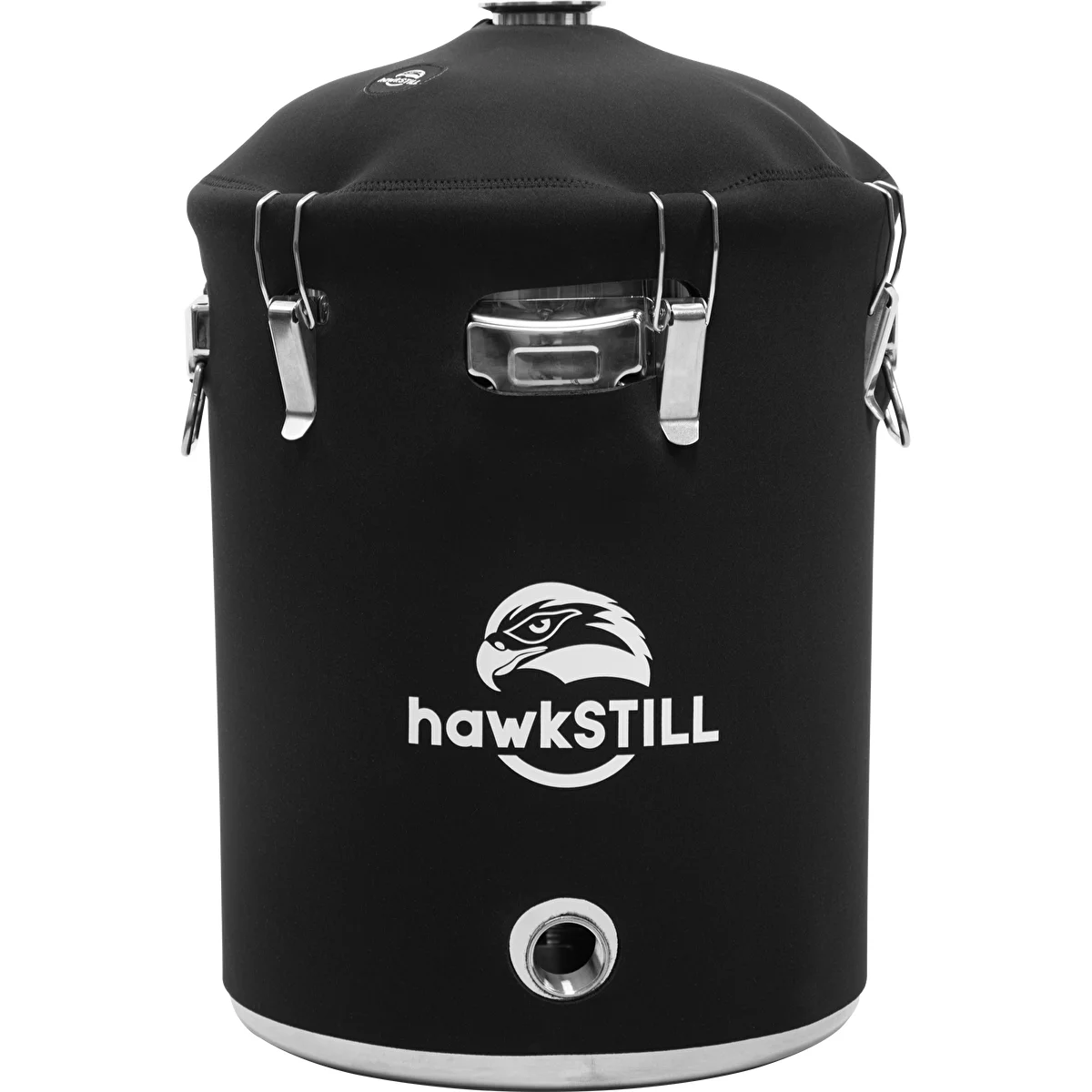

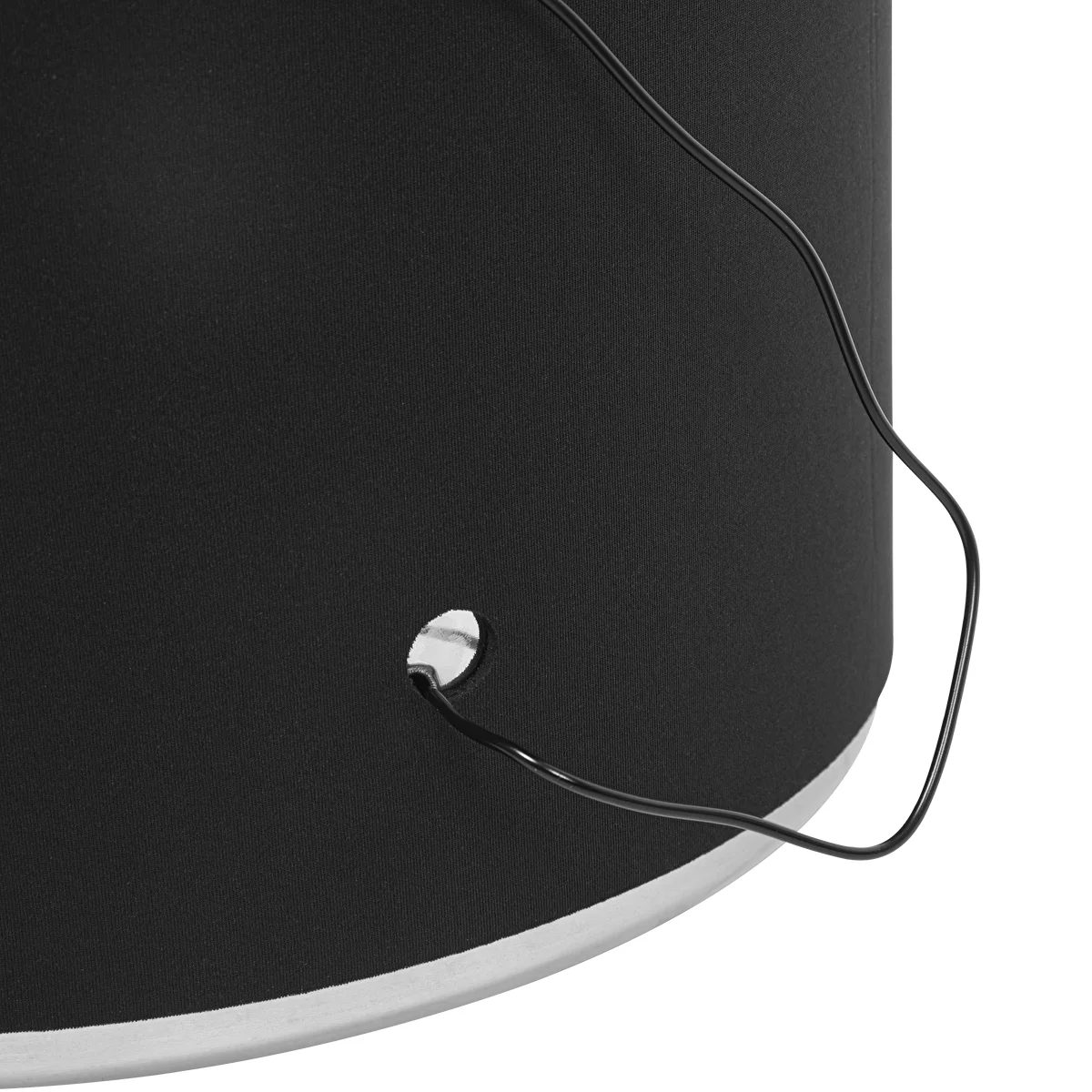

Neoprene insulation for the Convex 60 L still boiler

A dedicated solution—safety and comfort during distillation. Robust insulation made from flexible neoprene, designed specifically for the 60 L Convex boiler with a removable lid. Precision cutouts guarantee full access to the handles, spigot, and thermometer port without limiting functionality. Quick to install, remove, and clean.


Bead‑blasted head

A modern finishing method that precisely smooths the surface with high‑pressure glass microbeads. The result? A deep, satin‑matte finish that really makes a difference!


What sets our hawkSTILL Aabratek 2.0 still apart?

  • Aabratek head with an innovative reservoir design — Aabratek stills are some of the most precise systems, combining easy operation with superb end results. By introducing an innovative reservoir, we’ve improved the process on this type of unit even further!
  • High throughput — this modular still with a 60‑liter boiler and a properly sized column enables efficient distillation of larger volumes (we recommend not exceeding 90% of capacity).
  • Premium quality — a combination of stainless steel (AISI 304) and durable components, tight sealing, precise joints, and long‑term durability across the set.
  • 60.3 mm OD column — optimizes performance. The column is split into two modules: the catalyst packed with copper spring packing removes sulfur compounds, and the second section packed with stainless scrubbers helps you achieve higher proof and cleaner distillate.
  • Opening boiler with a domed (Convex) lid — the boiler seals with a domed lid that ensures safe handling of any potential foaming of the wash or mash, improves stability of the whole column, and benefits the entire process. The removable lid makes the boiler easier to use and clean.
  • Complete kit — the set includes the domed‑lid boiler, column, Aabratek‑type LM head, 1/2" drain ball valve, 3 digital thermometers with probes, 2 hoses, a water inlet adapter, 3 complete Tri‑Clamp sets with gaskets, stainless and copper packing (for the catalyst), PTFE sealing tape, mounting hardware, and instructions.


SET COMPONENTS:

  • Convex‑type 60 L boiler — AISI 304 stainless steel
  • Neoprene insulation for the boiler
  • Column connectors (3 pcs., 240 mm catalyst, 1000 mm column, head)
  • LM reflux — Aabratek head
  • Digital frame thermometer with probe (3 pcs.)
  • Column insulation, polyethylene (2 pcs.)
  • 5 m PVC hose — for water connection, with a quick‑coupler for easy connection to a faucet
  • 2 m silicone hose — for distillate take‑off, alcohol‑safe

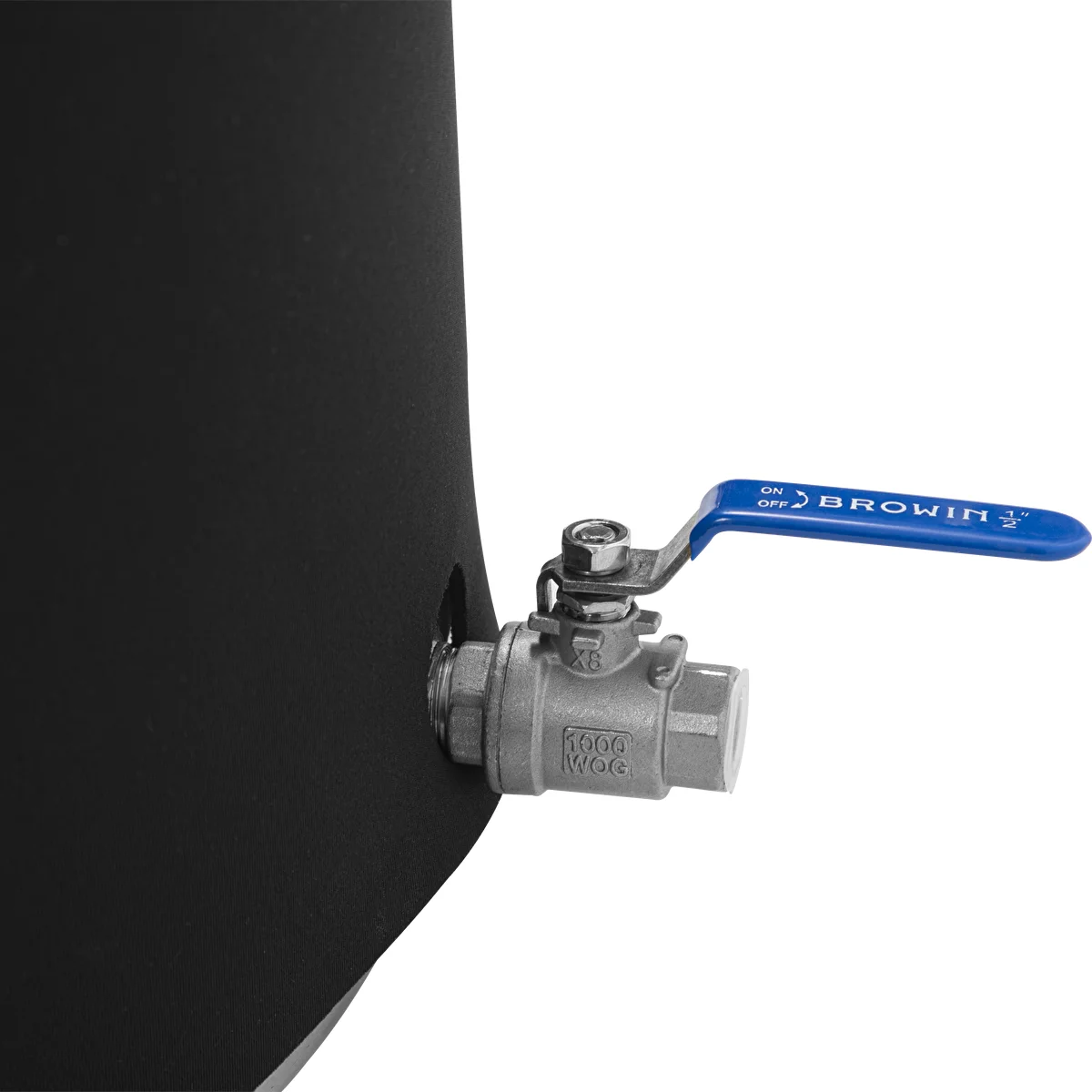

  • 1/2‑inch drain ball valve — for the 60 L boiler
  • Tri‑Clamp sets and gaskets (3 pcs.)
  • Stainless packing (24 pcs.)
  • Copper packing 0.5 L
  • PTFE sealing tape
  • User manual

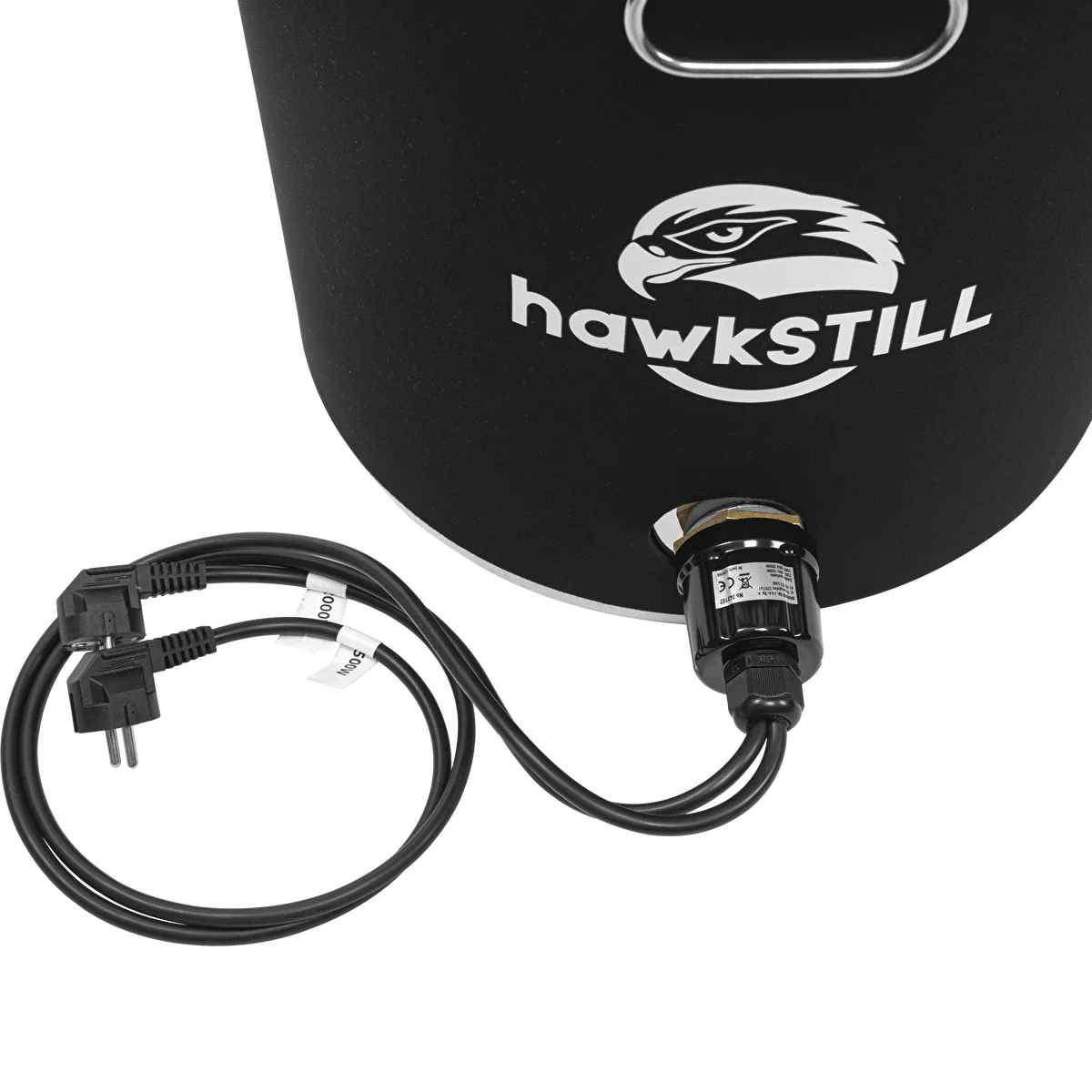

  • Heater with a total output of 3500 W, consisting of two elements powered by independent cords — one 2000 W and the other 1500 W
  • hawkSTILL WiFi — remote device with a free app for process supervision with heater shut‑off


Boiler:

  • 4 carrying handles
  • 6 toggle clamps
  • Lid with an integrated silicone gasket
  • Rigid domed lid with a port for column mounting
  • An opening in the tank wall for a thermometer probe and heater
  • Socket for a drain valve and a matching ball valve for installation

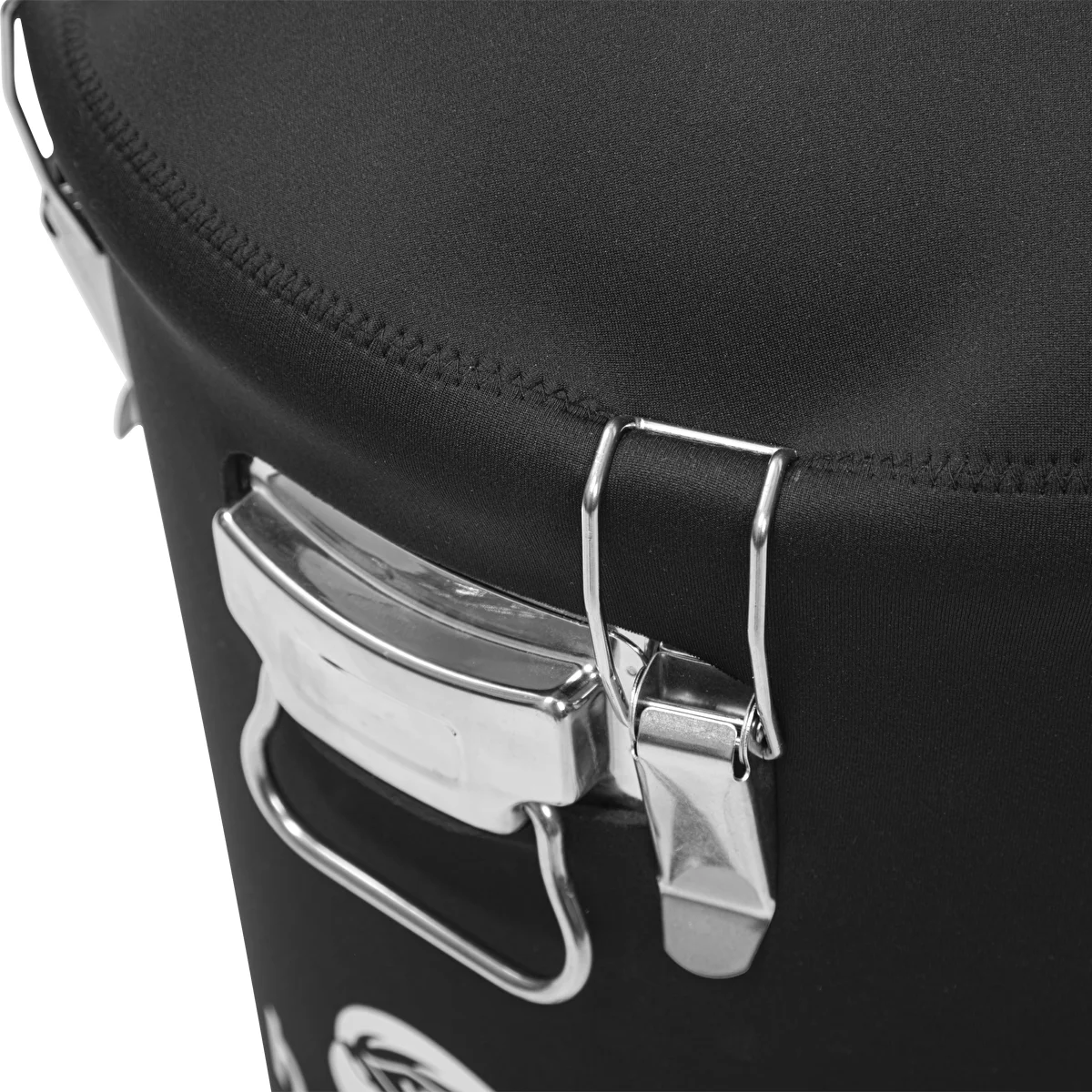

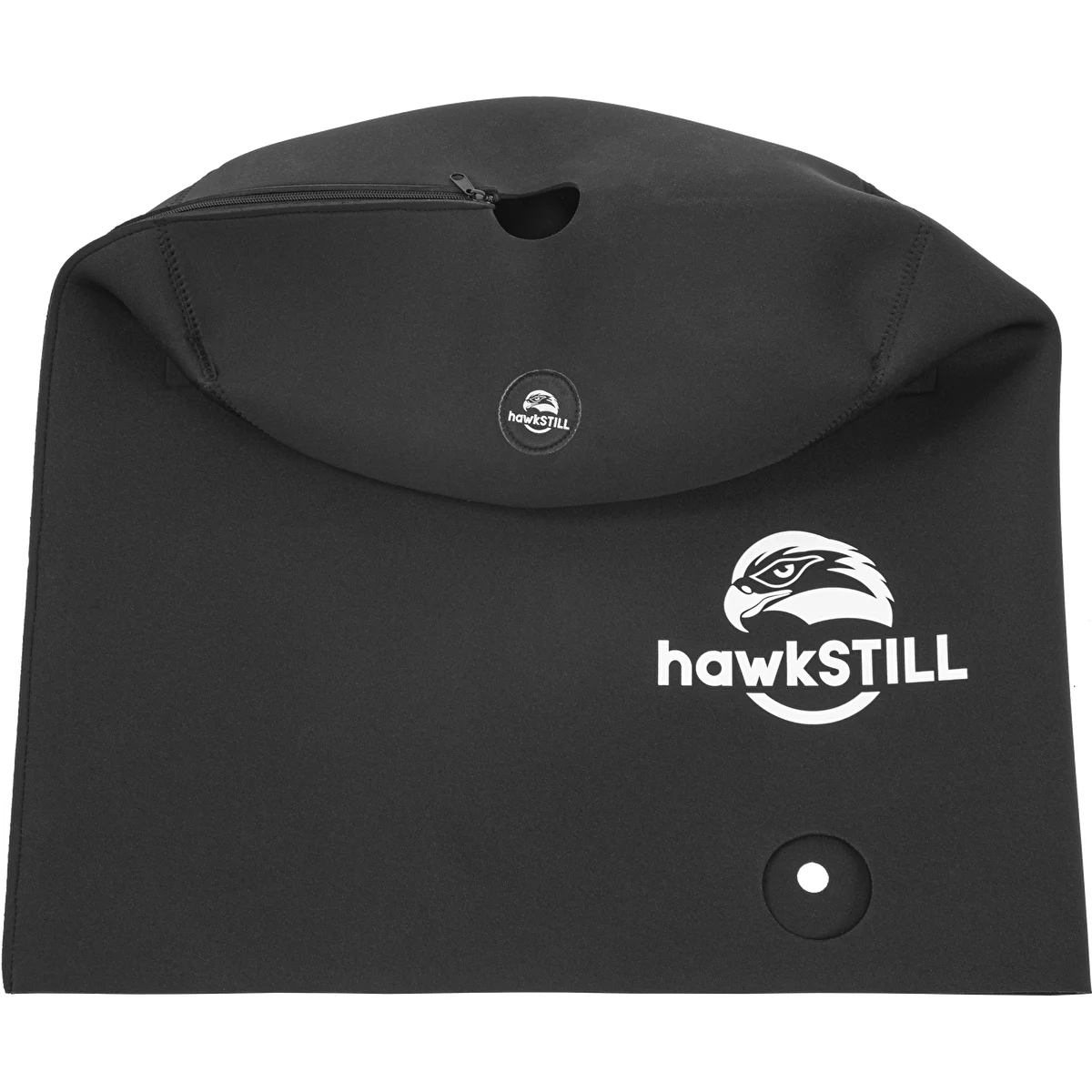

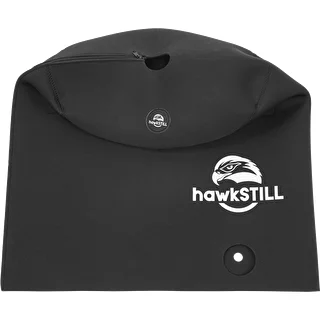

Neoprene insulation for the Convex 60 L still boiler

  • Made from durable, flexible neoprene
  • Precisely fitted to the Convex 60 L boiler with a removable lid
  • Cutouts for handles, spigot, and thermometer port

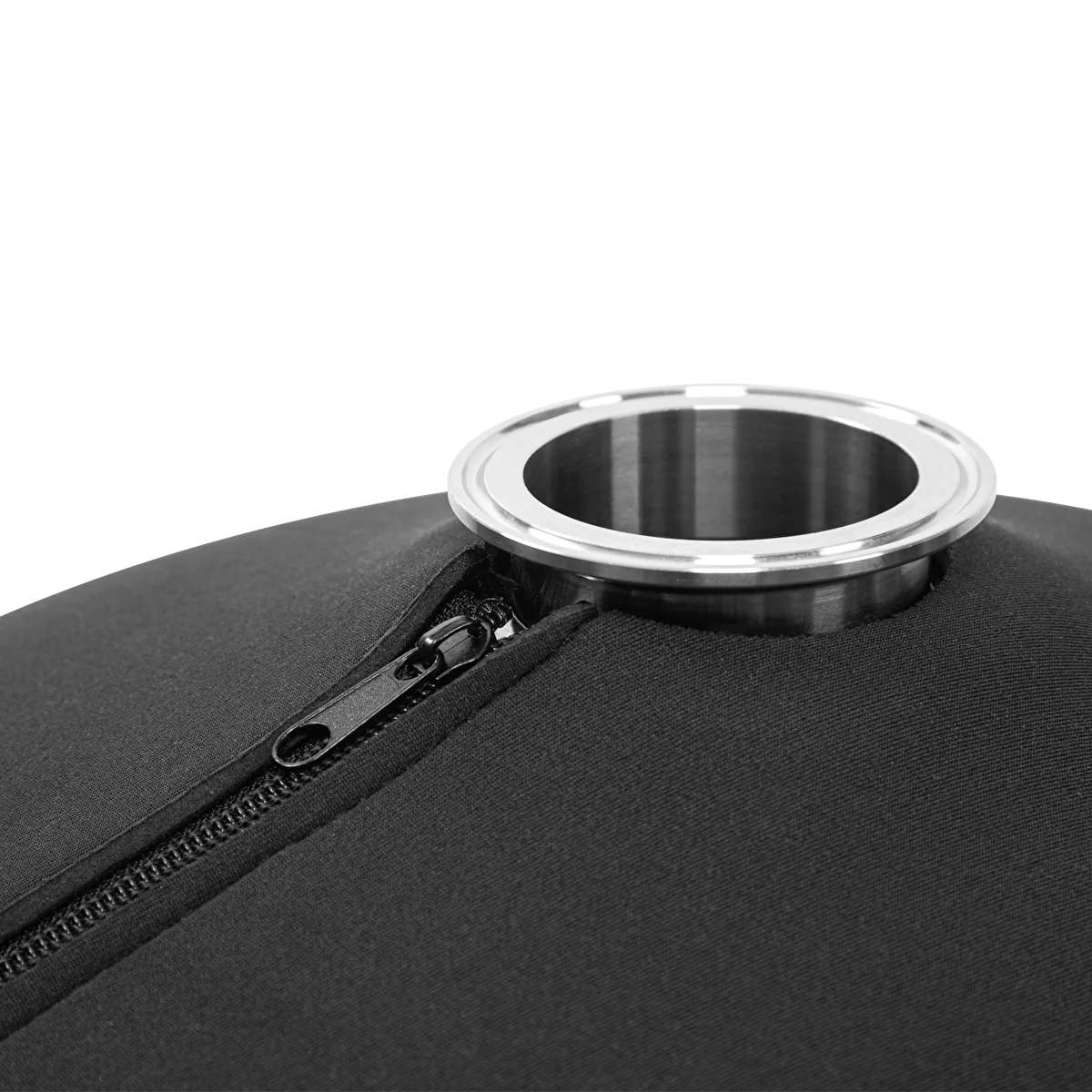

  • A zipper ensures easy installation and removal
  • Thermal insulation, mechanical protection, and safe handling


Catalyst:

  • Module height: 240 mm
  • Outer tube diameter: 60.3 mm
  • Terminated with Tri‑Clamp fittings
  • Can be packed
  • Copper packing recommended
  • Packing capacity: 0.6 L


Column module:

  • Height: 1040 mm
  • Outer tube diameter: 60.3 mm
  • Terminated with a Tri‑Clamp fitting
  • Packing section capacity: 2 L

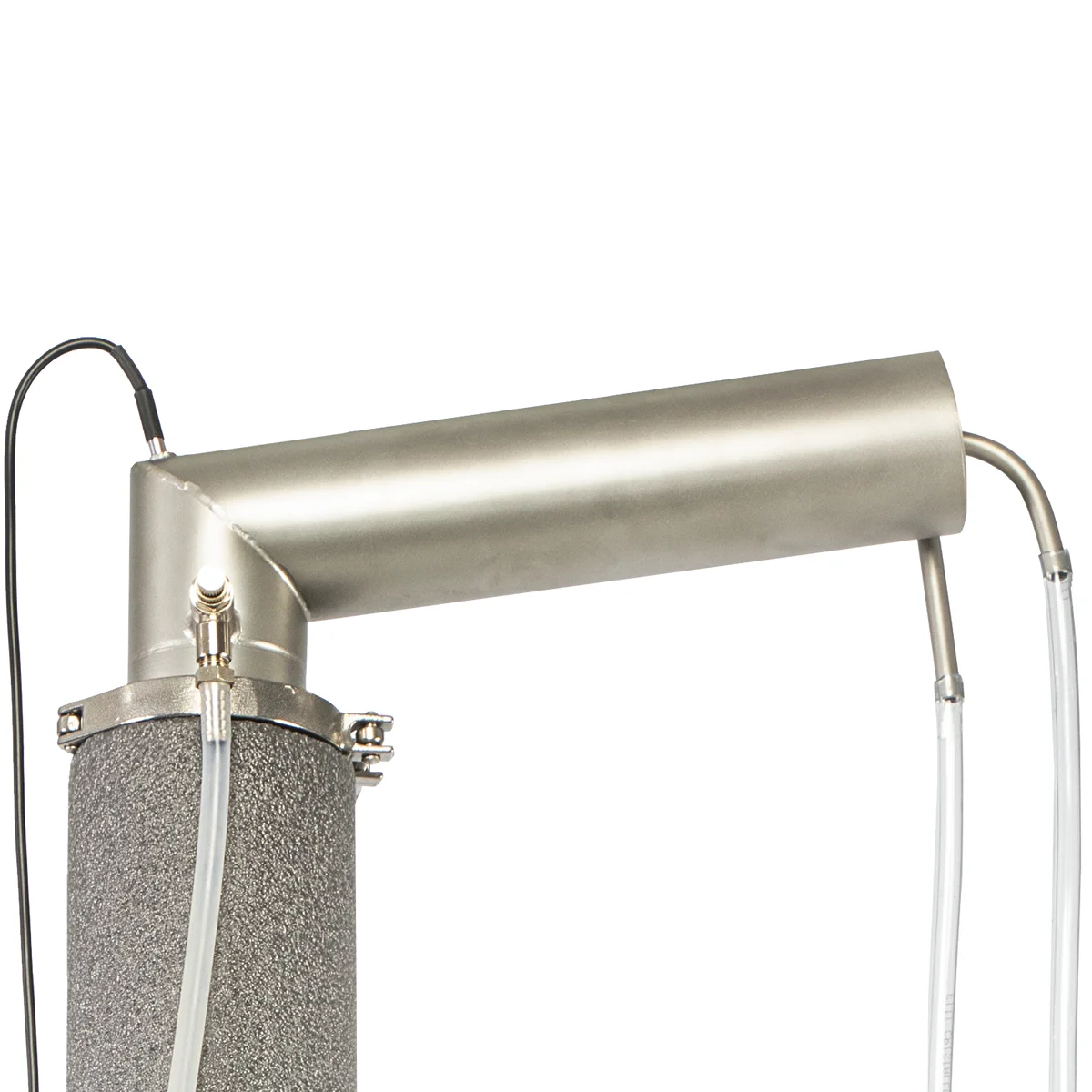

Head with condenser:

  • Cooling section height: 140 mm
  • Outer tube diameter: 60.3 mm
  • Connecting tube between column and head: 18 mm
  • Water connection — tube welded into the condenser: 10 mm
  • Thermometer port

There is a probe port at the top of the head so you can directly monitor vapor temperature throughout the run.


Still dimensions (assembled):

  • Height: 2053 cm
  • Width at the widest point: 603 mm


Important! Before use, be sure to read the instructions included with the product and the rules for operation, cleaning, and maintenance. Following the guidelines will ensure long, efficient, and safe operation of the still.
