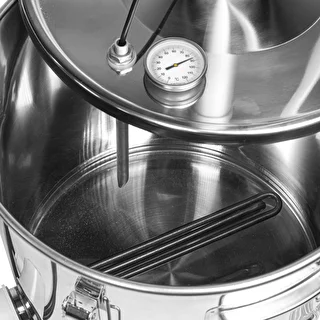

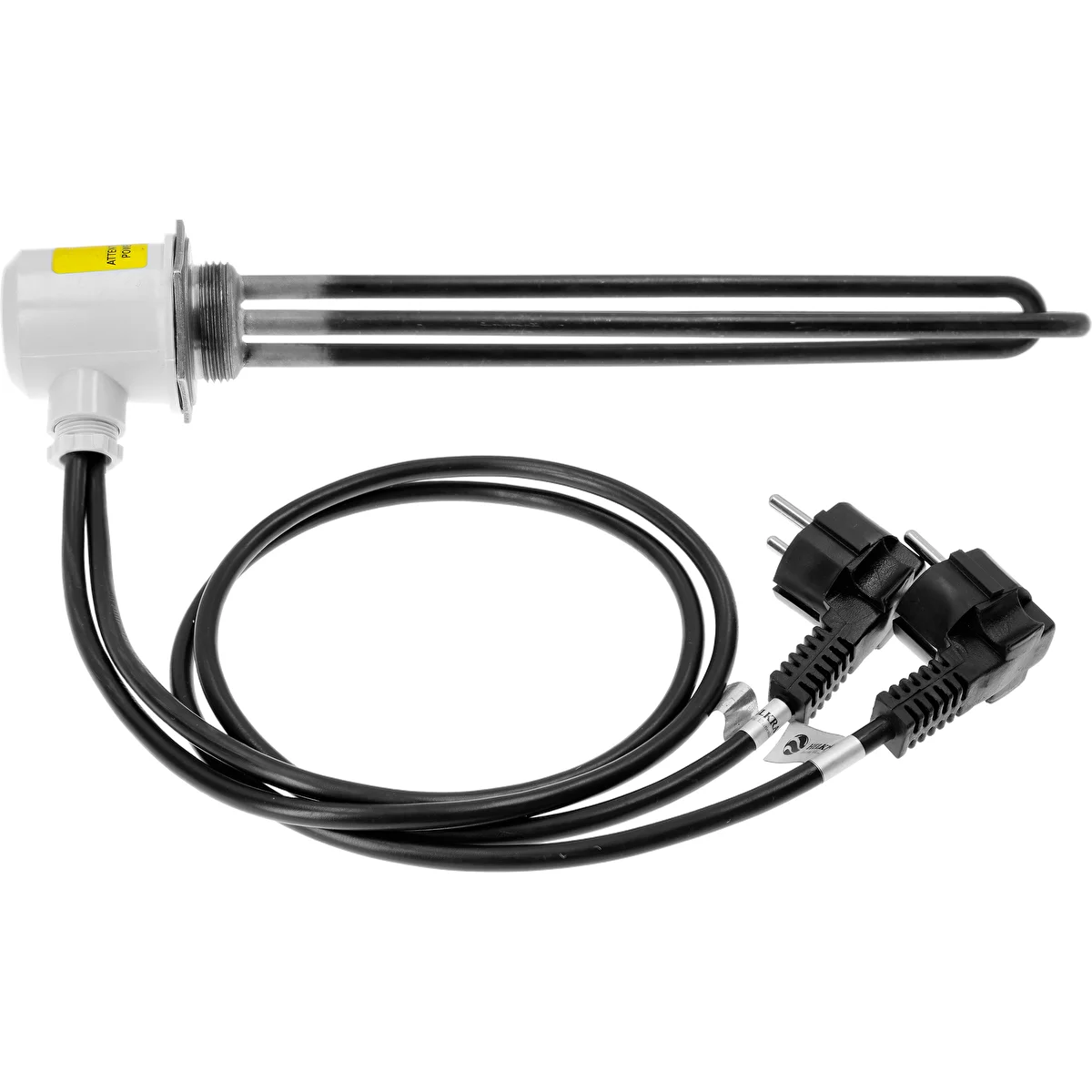

Heating elements are intended for heating liquids in open and closed metal containers with a capacity of up to 60 L. Use the device as intended.


Warning: Strictly avoid any possibility of the device operating "dry" (without liquid). Do not heat sticky, viscous liquids, especially mash containing spent grain.


For rapid heating, use full power - i.e., both heaters 1300 W and 2000 W (plug both plugs into sockets). After reaching the required temperature, leave only 1 heater on - depending on the type of liquid and the capacity of the tank, 1300 W or 2000 W.


DEVICE PARAMETERS:

  • supply voltage: 230 V ~ 50 Hz
  • rated power: 1300 W
  • rated power: 2000 W
  • thread: 1 ¼"

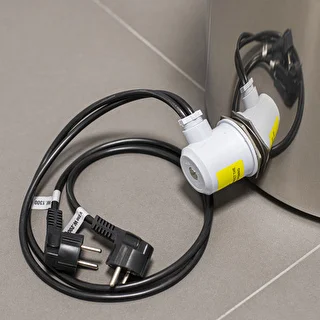

  • two flexible cords with plugs
  • both plugs with grounding (protective earth)
  • mounting - hexagonal flange
  • sealed cover with gasket screwed onto the heater


DIMENSIONS:

  • overall length 38 cm
  • length of the heating element (heating section) 30 cm
  • cord length 81 cm
