Electric modules with a digital controller - dragON set for garden smokehouses

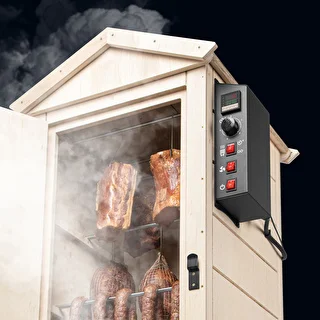

This set is the fulfillment of your dream to enhance the functionality of your stationary or portable garden smoker. Discover the benefits of dragON modules and take your smoking experience to a fully professional level, ensuring outstanding results. You will immediately appreciate the convenience of using your old smoker with new modules - and your smoker, now in an electric version, will reward you with delicious and perfectly prepared products!

What do you gain?

• Compatibility with various smokers - The universal dragON modules fit garden smokers (wooden, steel, or brick) with wall thicknesses ranging from 1.5 to 15 cm.
• Transforming a traditional smoker into a modern and comfortable one - With the modules from this set, you can professionally smoke using hot, warm, or cold methods, as well as dry, heat, or roast your products.
• Three modern and practical modules in one set - You get compatible heating modules along with a digital controller module.

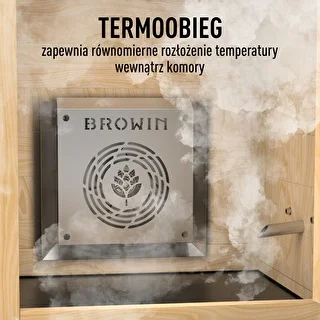

• Perfect heat distribution - The heating element with convection ensures ideal heat circulation within the smoking chamber, making the smoking process faster and more efficient.
• Precise control - With the digital control panel, you can conveniently manage all smoking processes according to your needs, without constant monitoring.
• Safety -The smoker's operation is overseen by a microprocessor controller with a thermostat, which will disconnect power in case of dangerous temperatures exceeding 110°C.
• High quality - The modules are designed and manufactured to ensure reliability and durability, even with long-term intensive use.

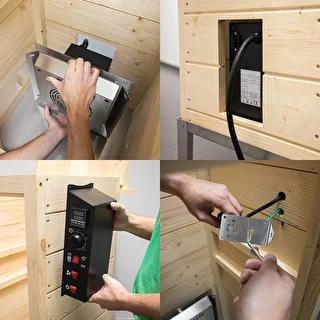

• Easy installation - If your smoker is compatible with dragON modules, you can quickly and effortlessly install them by following the instructions.
• Cost efficiency - No need to replace your smoker with a new one; simply upgrade it with the module set.

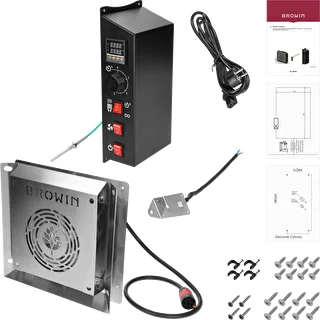

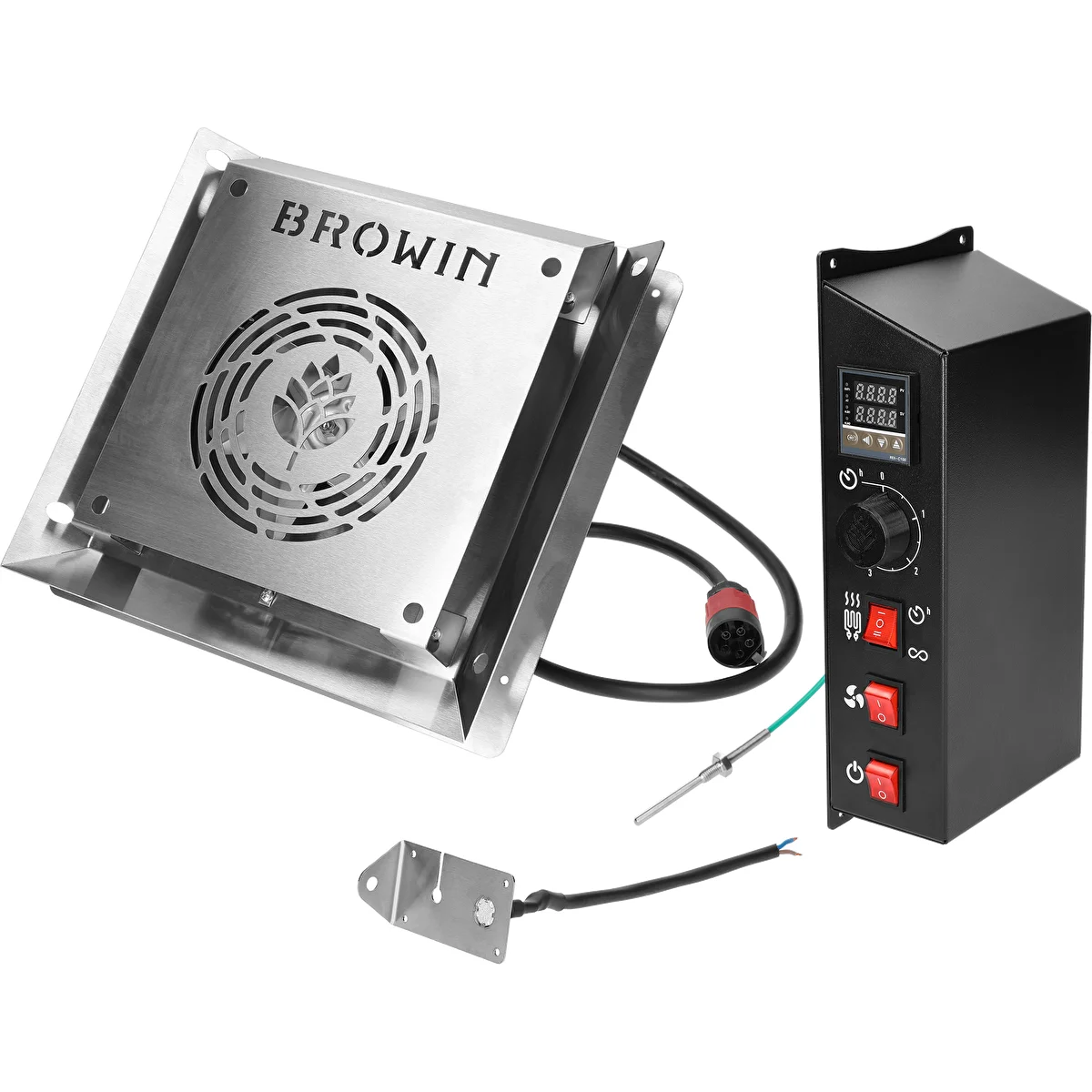

Set components:

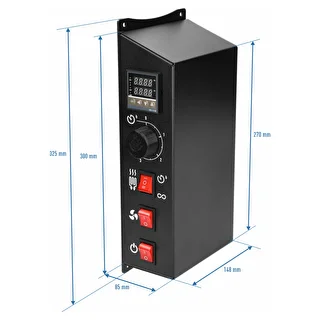

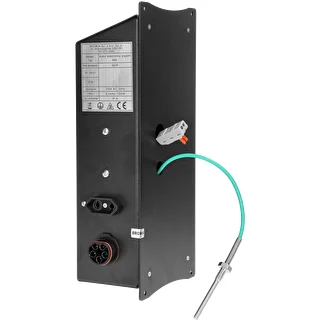

• Controller module

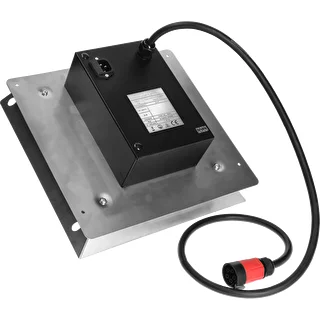

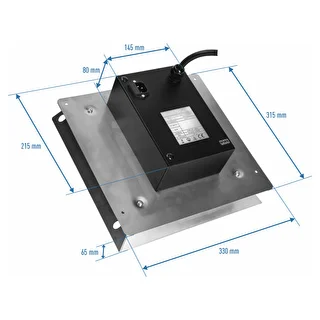

• Heating module with a fan
• Thermal and thermocouple module

After installing the controller module, heating module, and thermal module with a thermocouple according to the installation instructions, and then connecting the set to a power source, you can manage the operation of your smoker. Additionally, you can use the smoking option with a smoke generator from the dragON Jet series by connecting the generator pump hose to the controller socket.

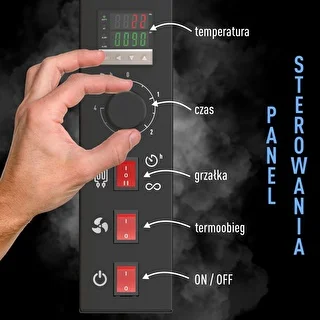

Conveniently use the features of the digital controller panel - monitor parameters and manage the process using:

• Controller with a display
• Timer
• Heating function switch
• Fan switch
• Main power switch

Set and monitor the temperature (within the range of 0-90°C), adjust the heating element's operating time (within 0-4 hours), choose between continuous or timed heating, use the fan function or turn it off as needed.

You will find detailed instructions in the manual included with the module set.

Smoke Responsibly and Safely

The smokehouse, in which the modules from the set are to be installed, should be placed outdoors under a shelter. This location should protect the smokehouse and its modules from exposure to weather conditions (such as rain, snow, or excessive sunlight) and provide electrical power with proper grounding.

WARNING! To ensure proper installation and safe operation of the modules along with the smoker, carefully read the instruction manual provided with the modules and follow all the given recommendations, including safety guidelines for working with electrical devices.

The components of the kit must be used exclusively according to their intended purpose. Any use of the devices that does not comply with their designated function may pose a risk to health and life.

The heating module operates at a dangerous voltage of 230V, which can be life-threatening.

When handling the heated device, always use protective gloves.

Never leave the device unattended.

With dragON modules (including the Jet series smoke generator), you can smoke using several options:

• Drying (without smoking smoke) - temperature ~ 60°C
• Cold smoking - temperature ~ 16-25°C
• Warm smoking - temperature ~ 30-55°C
• Hot smoking - temperature ~ 55-65°C
• Baking - temperature ~ 70-85°C

The temperatures provided are approximate; adjust the exact values according to the specific product

Choosing the Smoking Option. When selecting a specific smoking option, use the settings available on the controller according to the general guidelines provided, as well as the recommendations specified in the recipe for the particular product.

Operating the smoker without convection at the maximum temperature of 90°C, depending on weather conditions, is allowed for no more than 4 hours.

And once you've finished smoking, maintenance and cleaning will be easier

It is especially important to thoroughly clean the thermocouple and the thermal fuse after each use – preferably with Browin's specialized and highly effective Smoker Cleaning Fluid.

Electrical Power Supply:

• Voltage: 230 V 50 Hz
• Power: 1500 W

Protection: 10A / KSD301 - 110°C

Protection rating: IP31

Better gets even better when you already have it! 😉

So why wait? Turn your garden smoker into a modern electric device that will let you enjoy perfect smoking results every time. Install the modules and experience the difference – a transformation that will more than make up for your investment in this practical set!
