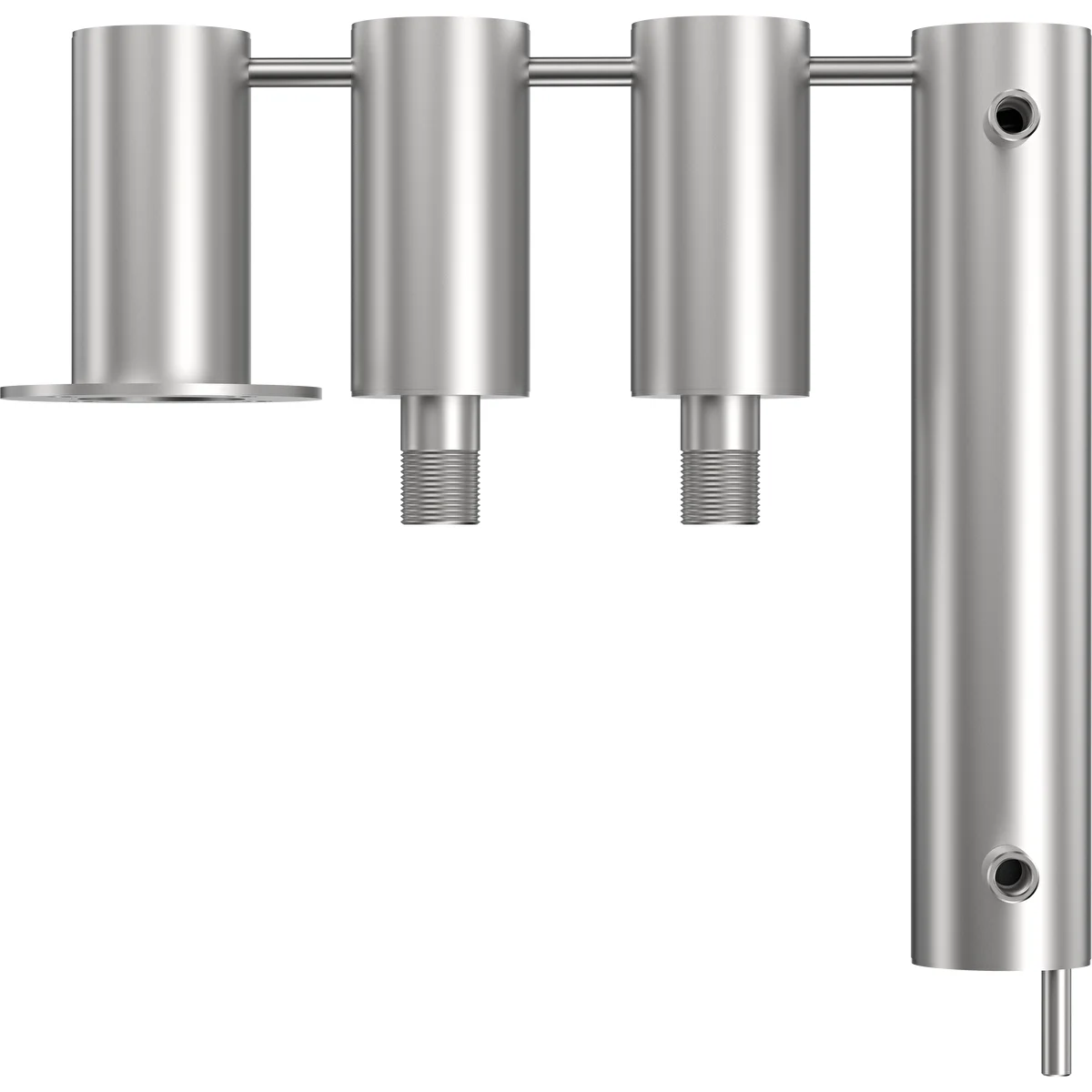

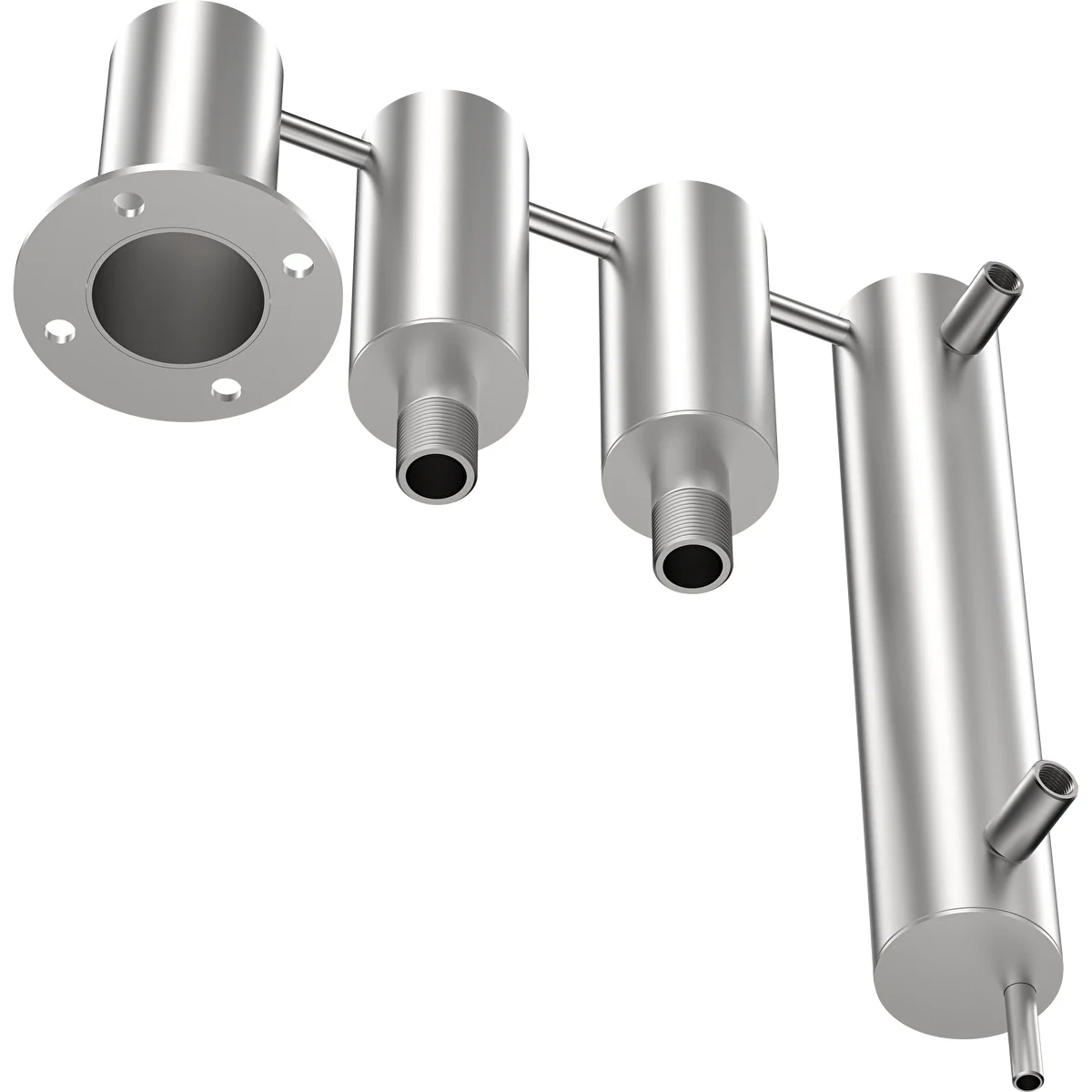

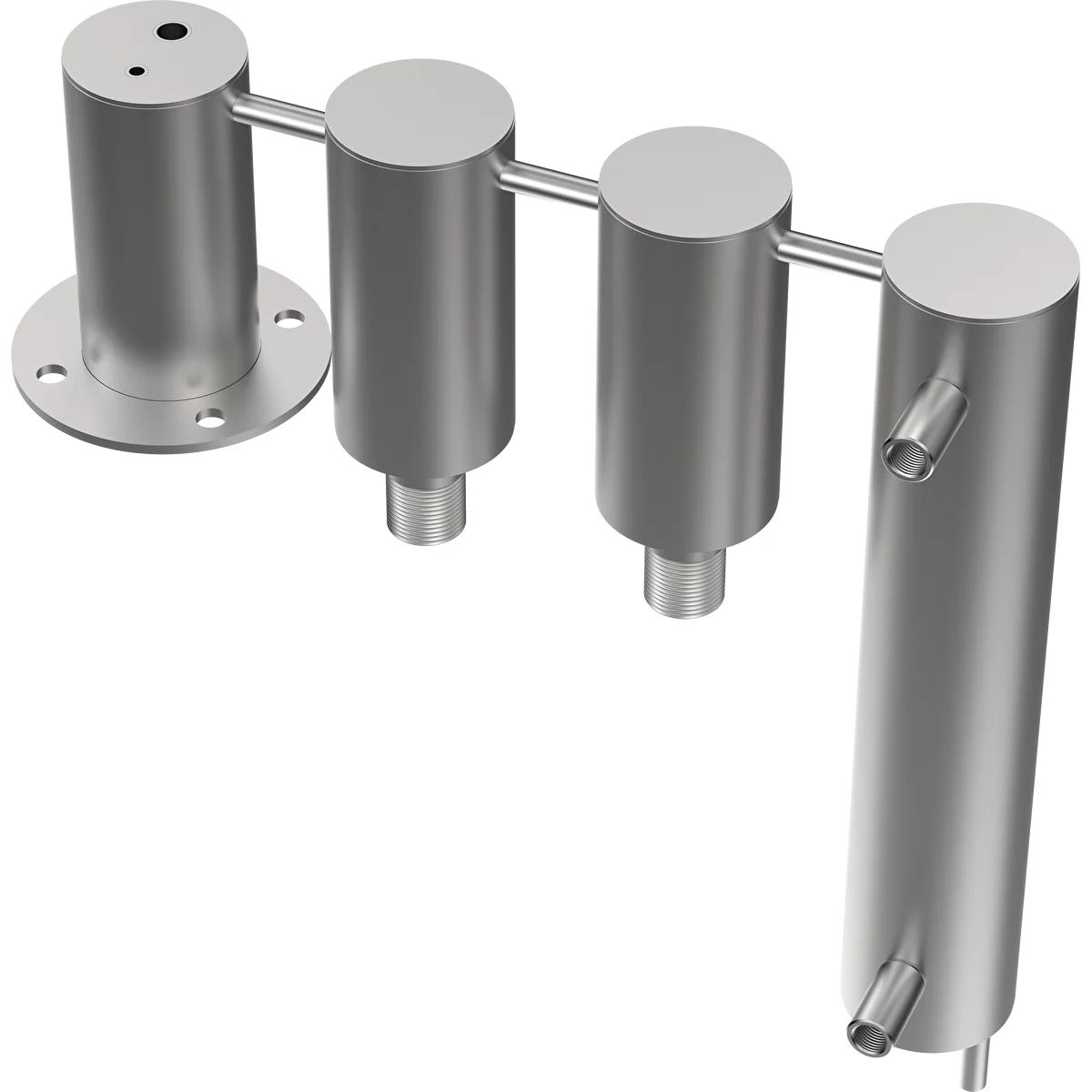

Head - cooler with 2 sedimentation tanks

Distiller module made of stainless steel, installed at the top of the distillation column. This product is fully compatible with other distillation modules included in the offer of BROWIN.

Sedimentation tank functions:

- securing against penetration by foam or batch transfers from the tank to the distillate collected.

- collecting heavier fractions that are undesirable in the final product.

Sedimentation tanks also constitute a space where the repeated simple distillation takes place. Such a solution enables obtaining purer distillate, while at the same time reducing the water consumption in the cooler.

The head, installed in a simple pot-still system, will ensure obtaining exquisite liquor, also flavoured, either fruit-based or grain-based.

The module will be perfect for building a distiller in the Cooling Management (CM) system, i.e. precise control over cooling, with application of reflux, cold fingers, or rectification. Thanks to the valves that enable very precise water flow adjustment and the efficient spiral cooler, it is possible to fully condensate the distillate vapours and cool it down to the collection temperature desired.

Structural characteristics:

•    external pipe diameter - 48 mm,

•  cooling section height - 280 mm,

•  2 sedimentation tanks,

•  water connection – threaded 1/8” coupler for a hose valve/connector,

• slot for a thermometer (220309).

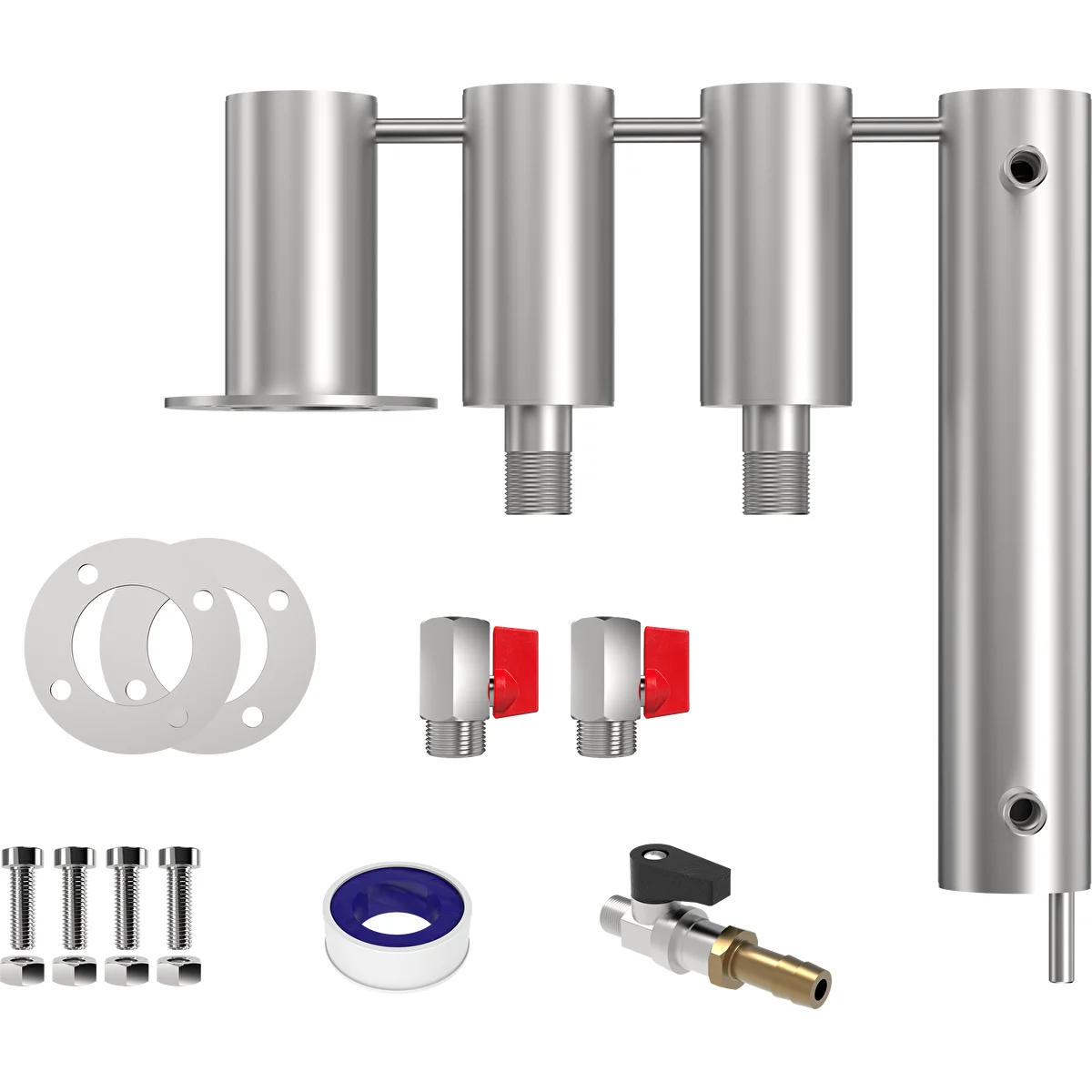

The set includes:

•    silicone gasket,

•    a complete set of bolts and nuts (4 pcs),

•  ball valve + stub pipe to be installed in the cooler (set),

•    ball valve to be installed in the sedimentation tank (2 pcs),

•    PTFE tape.

To be purchased separately:

•    polymerised PVC hose - 5 linear metres + quick connect fitting (353120)

•    silicone hose.

THE MODULAR DISTILLATION SYSTEM WAS MADE TO SATISFY THE NEEDS OF THE MOST DEMANDING CUSTOMERS. THANKS TO THE USE OF STANDARDIZED CONNECTIONS AND INNOVATIVE SYSTEM ELEMENTS, ANY KIND OF DISTILLER CAN BE CONFIGURED ON THIS BASE. ALL ELEMENTS ARE FULLY COMPATIBLE WITH OTHER DISTILLATION MODULES OFFERED BY BROWIN.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
