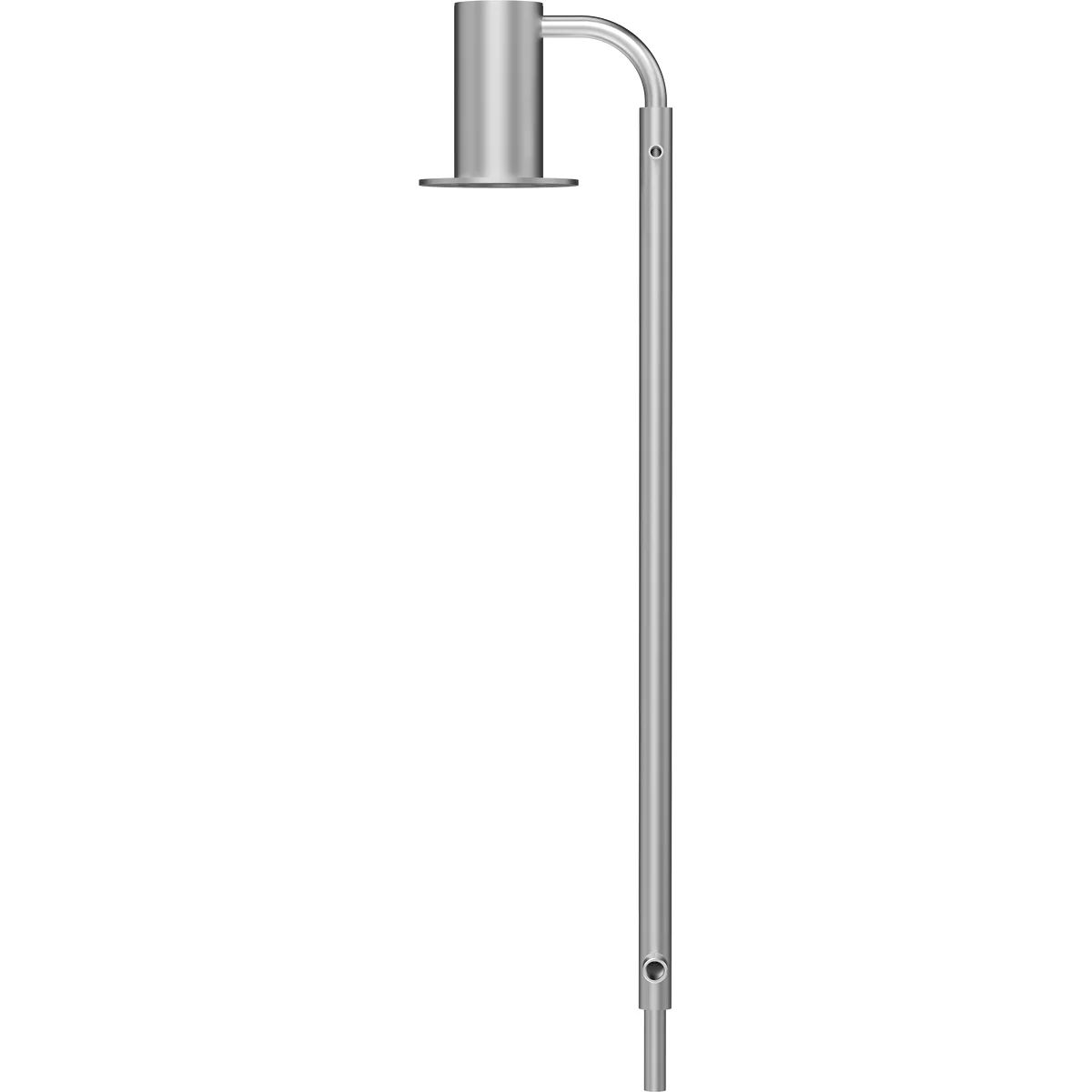

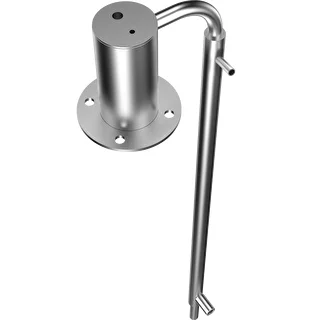

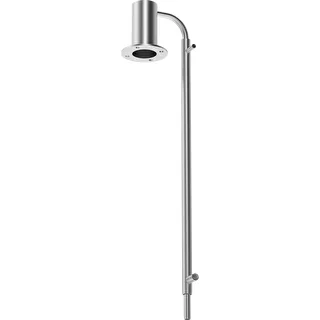

Head - Liebig cooler

Head - Liebig cooler – distiller module made of stainless steel, installed at the top of the distillation column. This product is fully compatible with other distillation modules included in the offer of BROWIN.

A classic Liebig cooler design.

The lower reception of OVM from the cooler allows quicker and more accurate reception of heads in the distillation process.

Structural characteristics:

•    external pipe diameter - 48 mm,

•    cooling section height - 590 mm,

•    water connection – threaded 1/8” coupler for a hose valve/connector,

•  slot for a thermometer (220309).

The set includes:

• silicone gasket,

• a complete set of bolts and nuts (4 pcs),

• ball valve + stub pipe to be installed in the cooler (set).

NOTE: When choosing this module, add to the set the modules with combined height of more than 60 cm, e.g.: a 25 cm connector (341201) and a 50 cm connector (341202).

To be purchased separately:

• polymerised PVC hose - 5 linear metres + quick connect fitting (353120)

• silicone hose for receiving distillate - 55 +180°C.

THE MODULAR DISTILLATION SYSTEM WAS MADE TO SATISFY THE NEEDS OF THE MOST DEMANDING CUSTOMERS. THANKS TO THE USE OF STANDARDIZED CONNECTIONS AND INNOVATIVE SYSTEM ELEMENTS, ANY KIND OF DISTILLER CAN BE CONFIGURED ON THIS BASE. ALL ELEMENTS ARE FULLY COMPATIBLE WITH OTHER DISTILLATION MODULES OFFERED BY BROWIN.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
