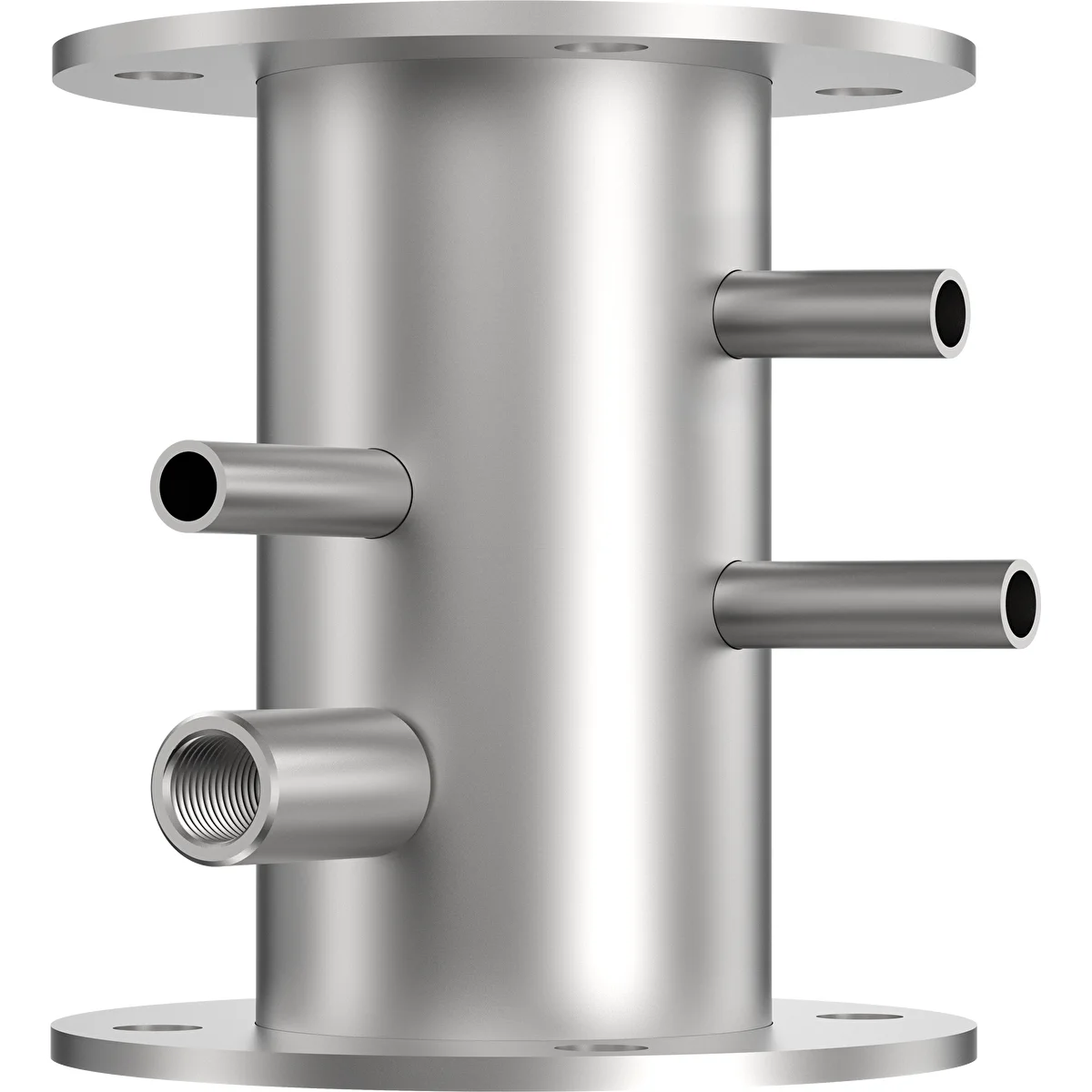

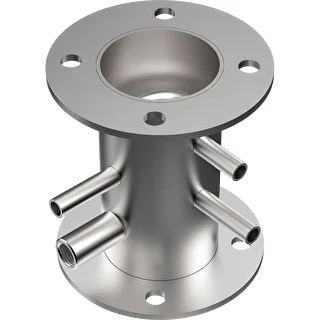

Reflux - double spiral module, made of stainless steel, performing the function of a dephlegmator – installed right below the distillation column head. This product is fully compatible with other distillation modules included in the offer of BROWIN.

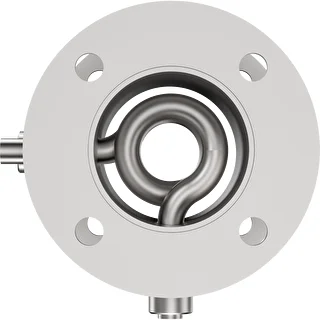

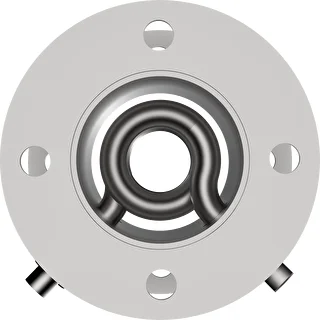

The module consists of two cooling mini-spirals.
By adjusting the water flow through the reflux, some of the vapours imbued with the most volatile ingredient are let into the main cooler. What becomes condensed in the “reflux” chamber is led to filling for repeated evaporation. With equipment that is set up properly, this enables collecting very pure distillate, having the desired flavour.
Structural characteristics:
• external pipe diameter - 48 mm,
• ending with a screw connector,
• 2 cooling mini-spirals, made of 8 mm pipe,
• cooling section height - 100 mm,
• water connection – threaded 1/8” coupler for a hose valve/connector,

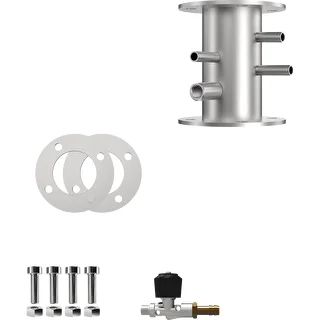

The set includes:
• silicone gaskets (2 pcs),
• a complete set of bolts and nuts (4 pcs),
• a plug connector and a throttle check valve.
To be purchased separately:
• polymerised PVC hose (353120).

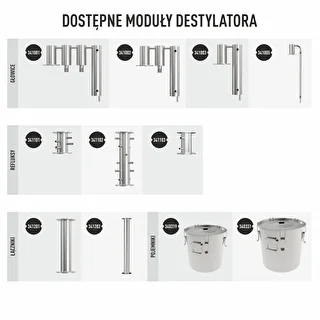

THE MODULAR DISTILLATION SYSTEM WAS MADE TO SATISFY THE NEEDS OF THE MOST DEMANDING CUSTOMERS. THANKS TO THE USE OF STANDARDIZED CONNECTIONS AND INNOVATIVE SYSTEM ELEMENTS, ANY KIND OF DISTILLER CAN BE CONFIGURED ON THIS BASE. ALL ELEMENTS ARE FULLY COMPATIBLE WITH OTHER DISTILLATION MODULES OFFERED BY BROWIN.
