Reflux - Shotgun

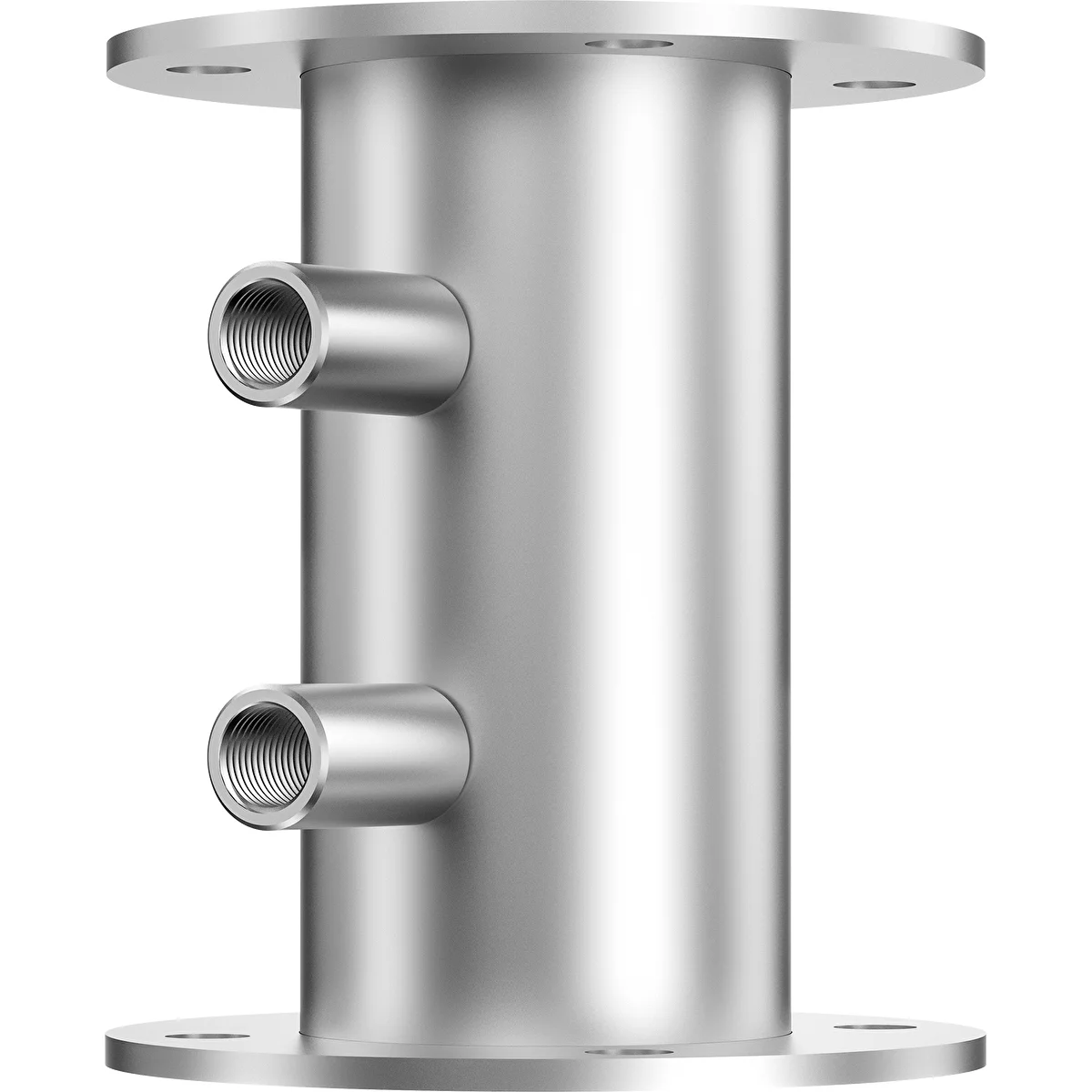

Reflux - Shotgun module, made of stainless steel, performing the function of a dephlegmator – installed right below the distillation column head. This product is fully compatible with other distillation modules included in the offer of BROWIN.

Classic “Shotgun” design. The application of this module enables controlling the reflux in the column, which has a direct impact on the flavour and aroma of the distillate.

Thanks to precise adjustment of water flow through the dephlegmator it is possible to extract the flavours desired and adjust the alcohol content in the final product.

Structural characteristics:

•    external pipe diameter - 48 mm,

•    ending with a screw connector,

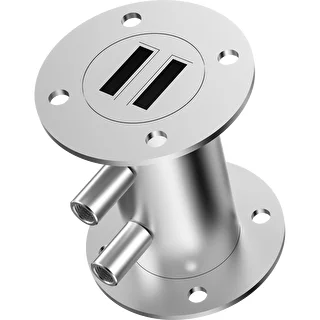

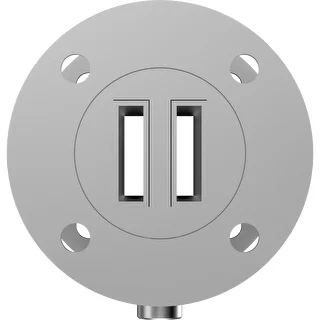

•    2 internal “Shotgun” passages for distillate vapours, with dimensions of 30 x 10 mm,

•    cooling section height - 100 mm,

•    water connection – threaded 1/8” coupler for a throttling and non-return valve with spigot.

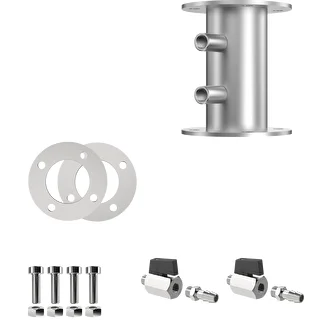

The set includes:

• silicone gasket,

• a complete set of bolts and nuts (4 pcs),

• throttling valve with connection (2pcs).

To be purchased separately:

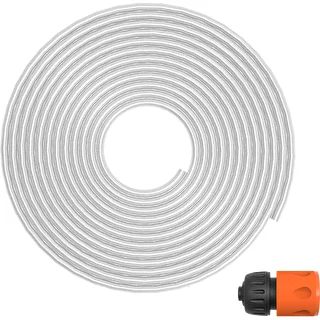

• polymerised PVC hose (353120).

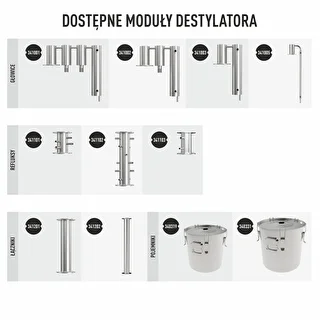

THE MODULAR DISTILLATION SYSTEM WAS MADE TO SATISFY THE NEEDS OF THE MOST DEMANDING CUSTOMERS. THANKS TO THE USE OF STANDARDIZED CONNECTIONS AND INNOVATIVE SYSTEM ELEMENTS, ANY KIND OF DISTILLER CAN BE CONFIGURED ON THIS BASE. ALL ELEMENTS ARE FULLY COMPATIBLE WITH OTHER DISTILLATION MODULES OFFERED BY BROWIN.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
