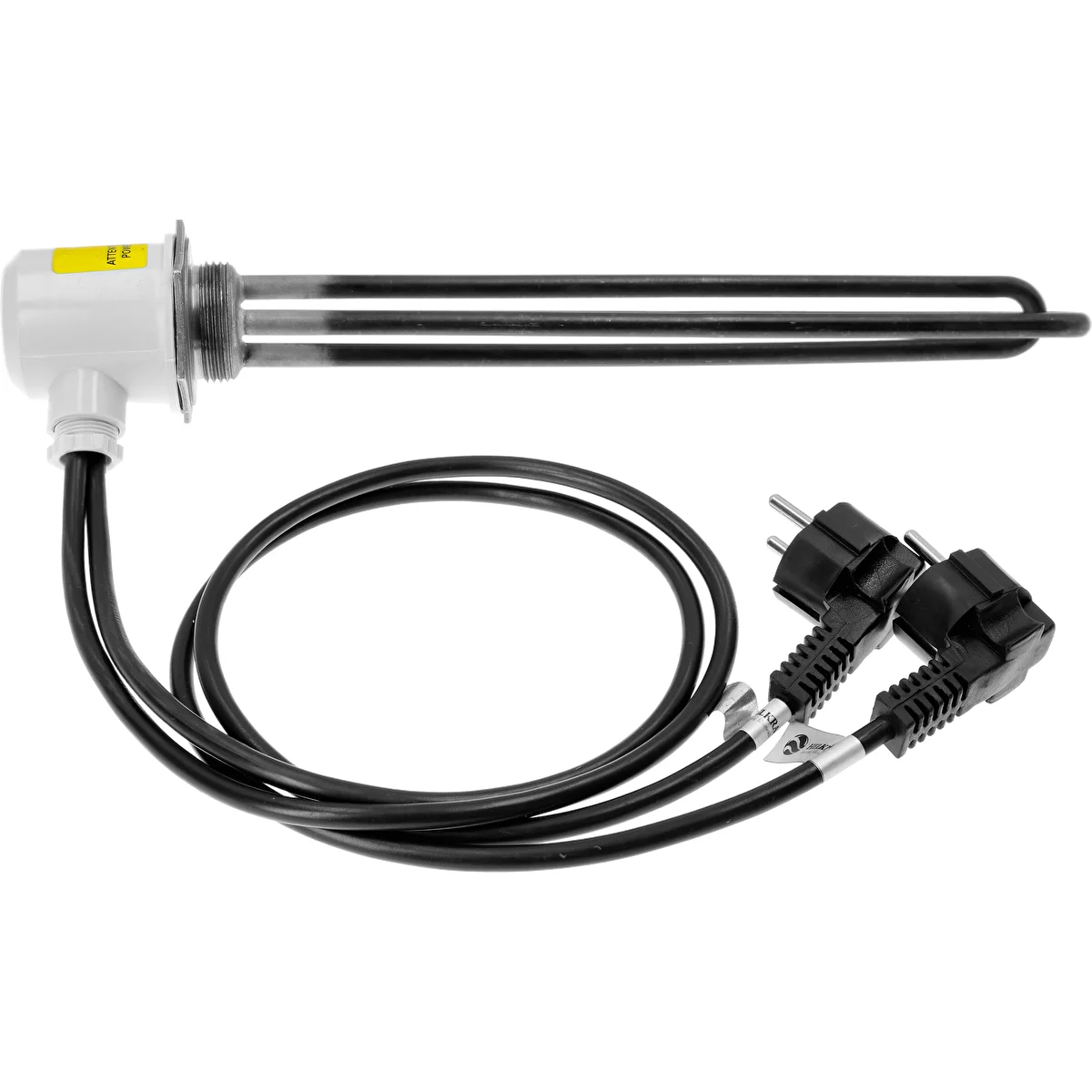

Electric heater for distillers

The heaters are designed for heating liquids in open and closed metal containers with a capacity of up to 60 L. Use the device as intended.

Warning: Never allow the device to operate “dry” (without liquid). Do not use it to heat sticky, viscous liquids, especially mash with spent grain.

For rapid heating, use full power—that is, both heating elements 1500W and 2000W (plug both plugs into outlets). After reaching the desired temperature, leave only one heater on—1500W or 2000W—depending on the type of liquid and the capacity of the tank.

DEVICE PARAMETERS:

• supply voltage: 230V ~ 50Hz
• rated power: 1500W
• rated power: 2000W
• thread: 1 ¼"
• two stranded cords with plugs
• both plugs with grounding (protective earth)
• mounting – hexagonal flange
• sealed cover with gasket screwed onto the heater

DIMENSIONS:

• overall length 38 cm
• length of the heating element (heating section) 30 cm
• cord length 81 cm

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
