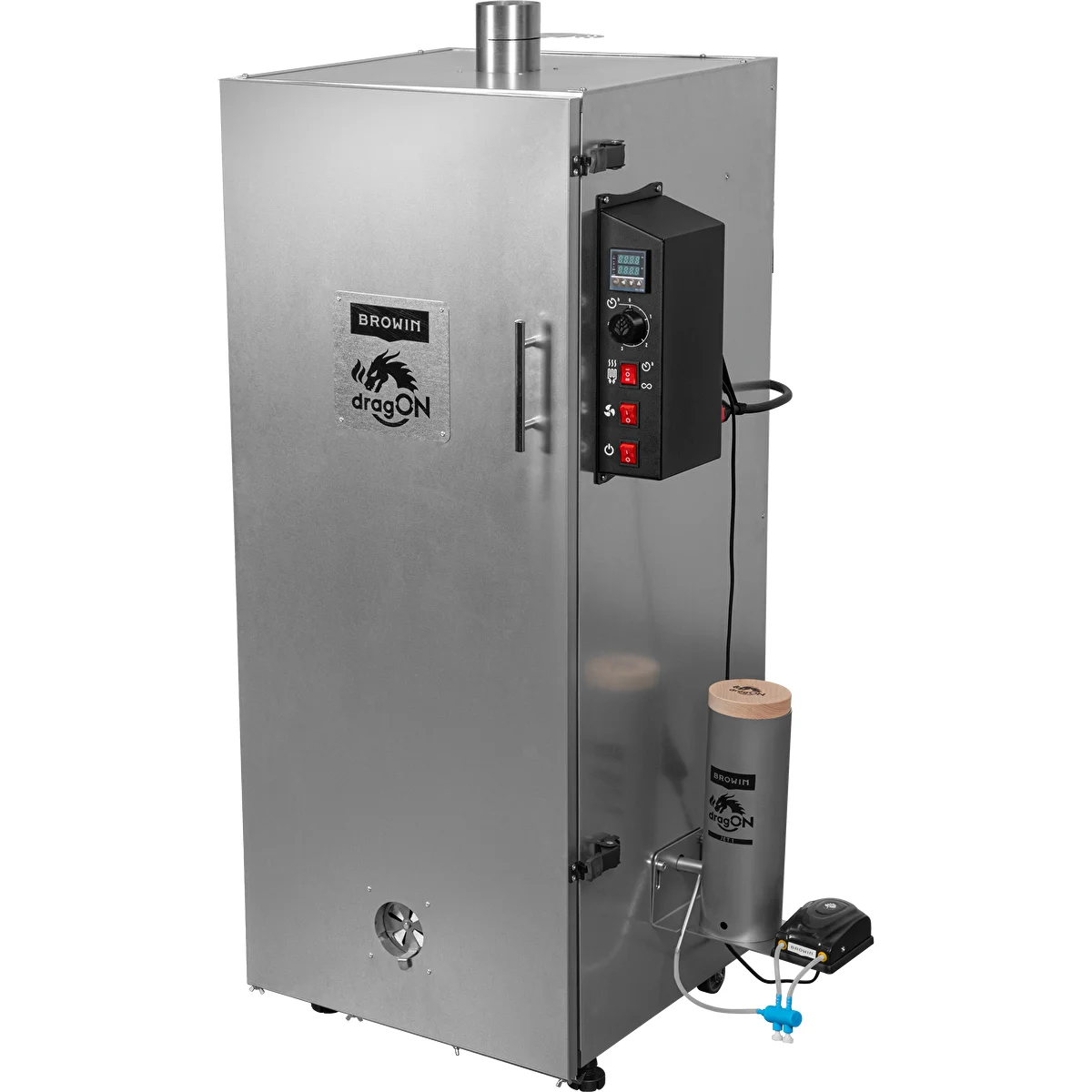

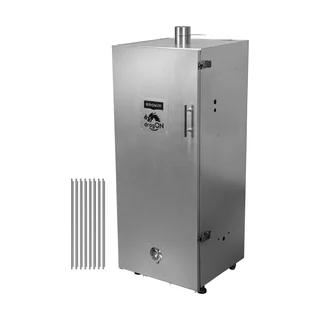

dragON 220 L Steel Smoker – with Digital Controller

dragON steel smoker lets you enjoy the taste of superb smoked foods and the full potential of this modern 220 L large-capacity smoker, equipped with innovative modules and the option to manage smoking through a digital control panel.

• Smoking versatility - dry, cold-smoke, warm-smoke, hot-smoke, gently heat or finish with a bake - all tailored to your needs (heater operating range from +1°C to +90°C).

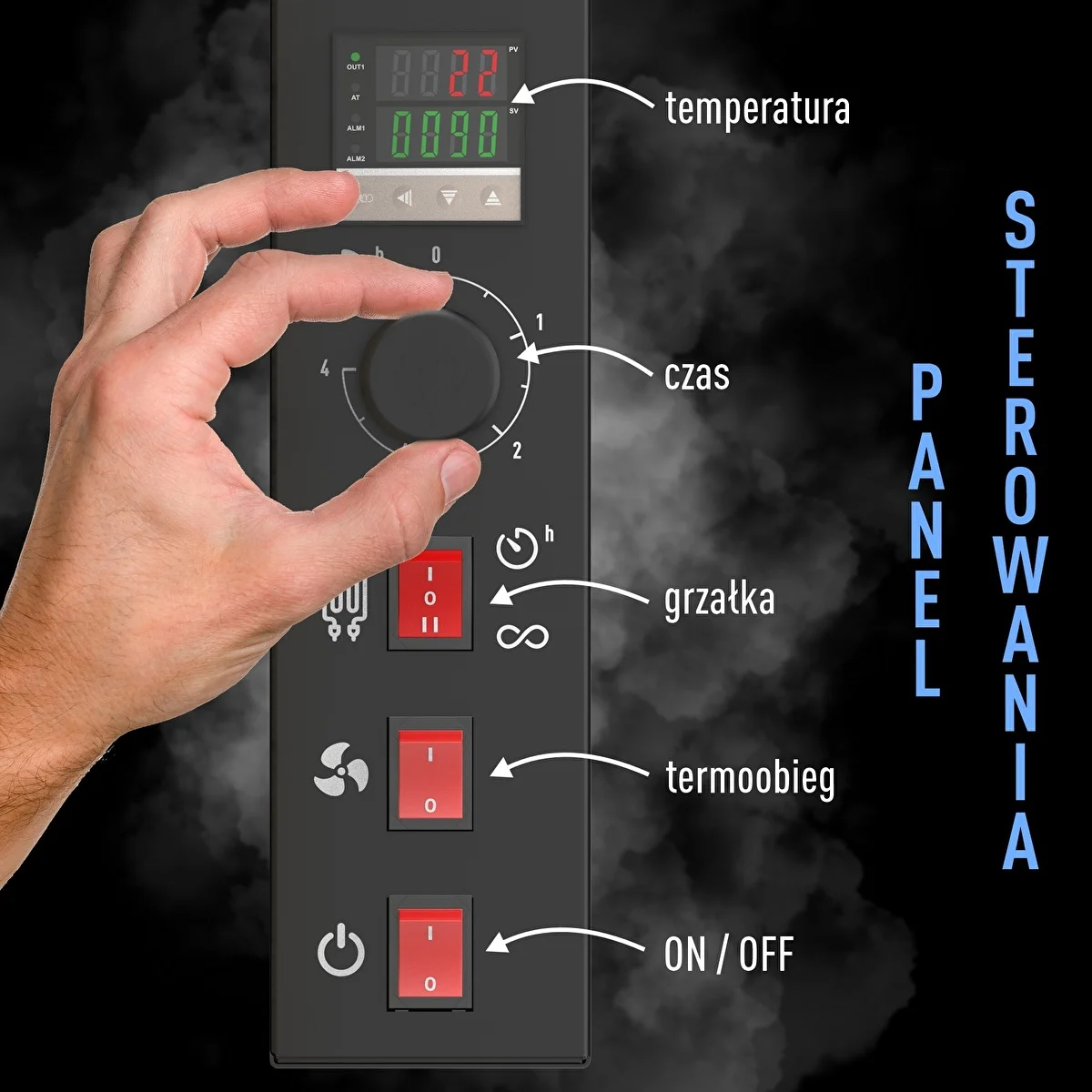

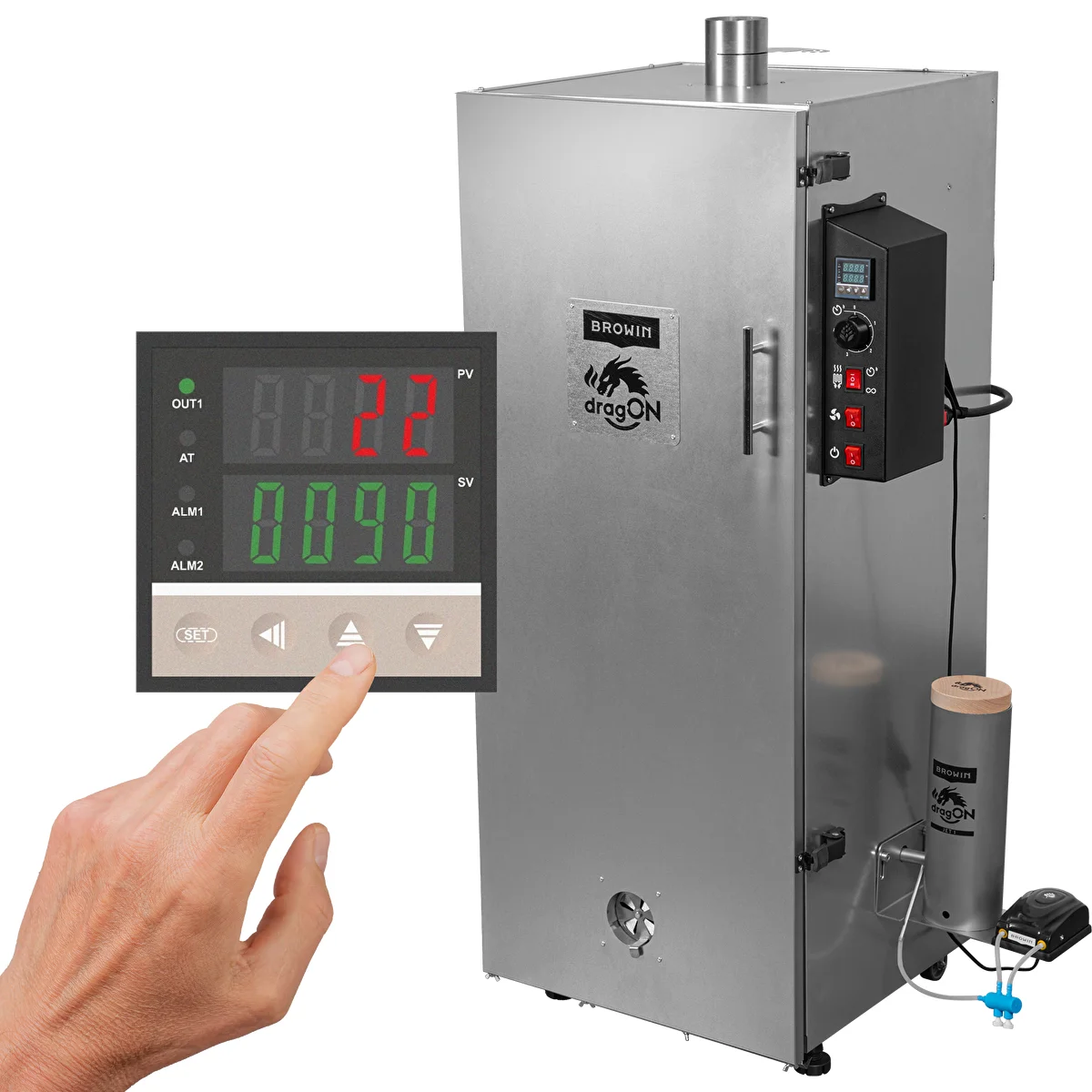

• Convenience and control - with the digital control panel you can manage the smoking process precisely and effortlessly. Easily adjust the temperature, set the time, and turn on the convection fan.

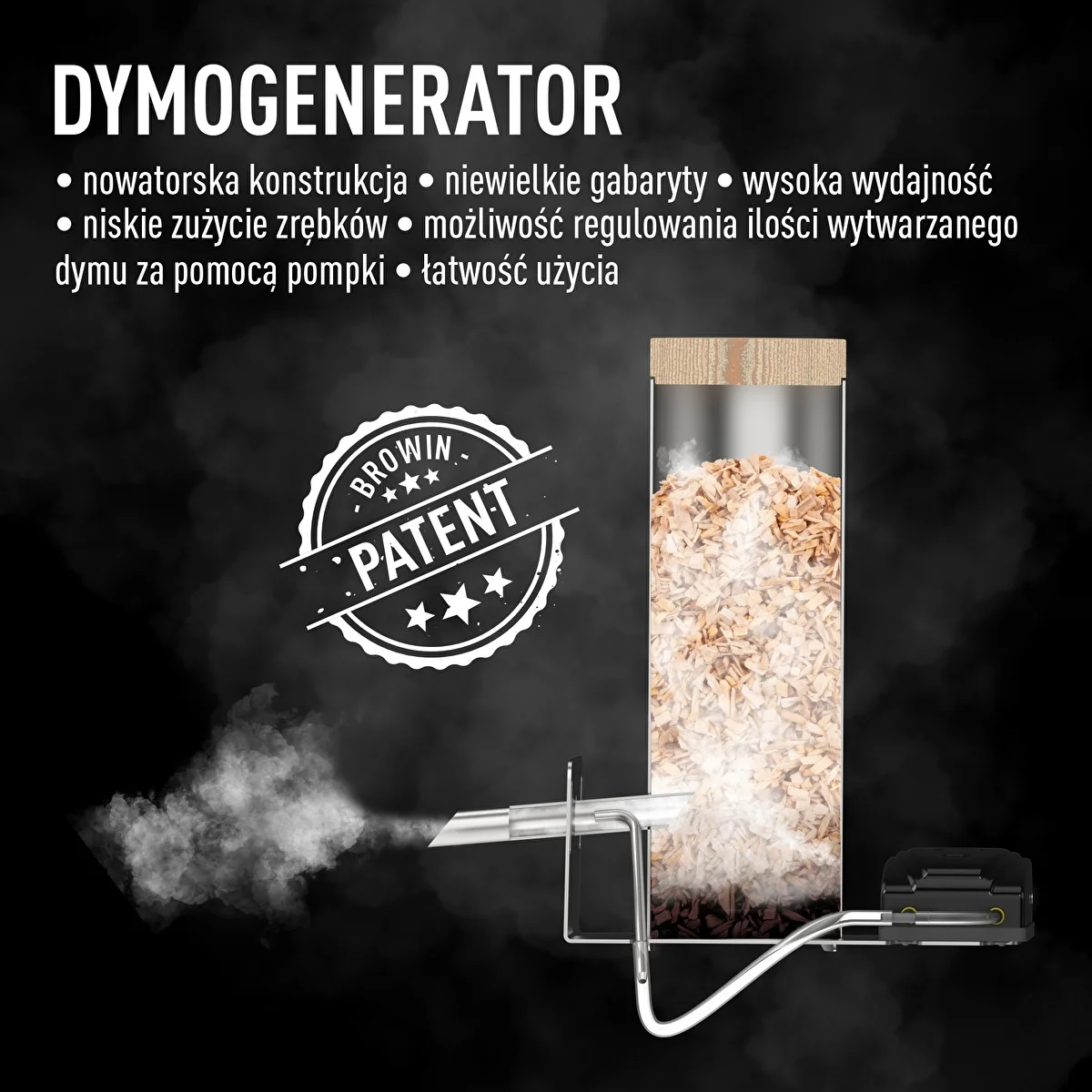

• Perfect results every time - the unique dragON Jet 1 smoke generator and convection fan ensure even smoking on every level of the chamber, no matter how much you load. The patented design of the smoke generator prevents chips from hanging up, and the smoke is always at just the right intensity.

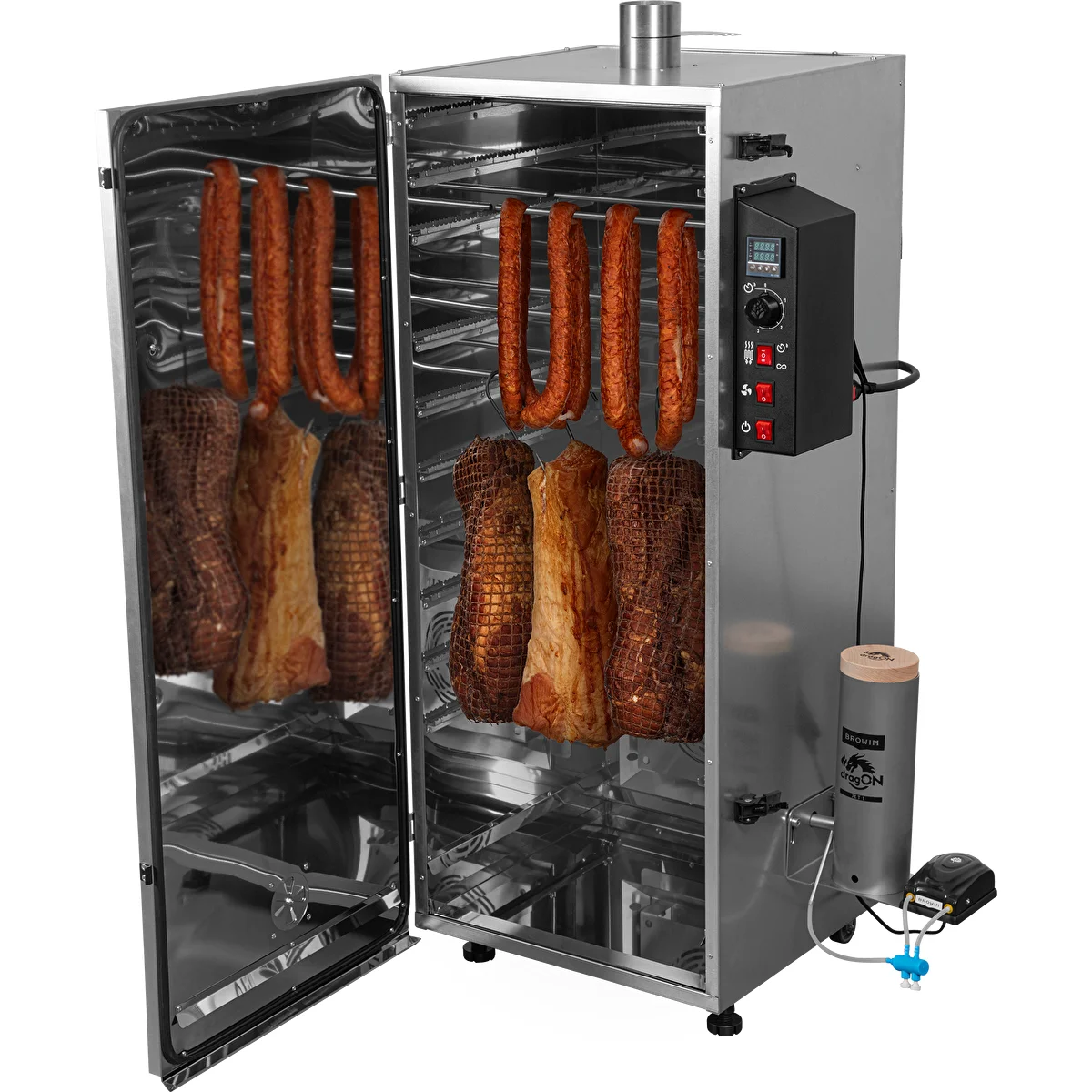

• Generous capacity and flexibility - the 220 L smoker holds 20–25 kg of product. The chamber height makes it easy to smoke long sausages or fish.

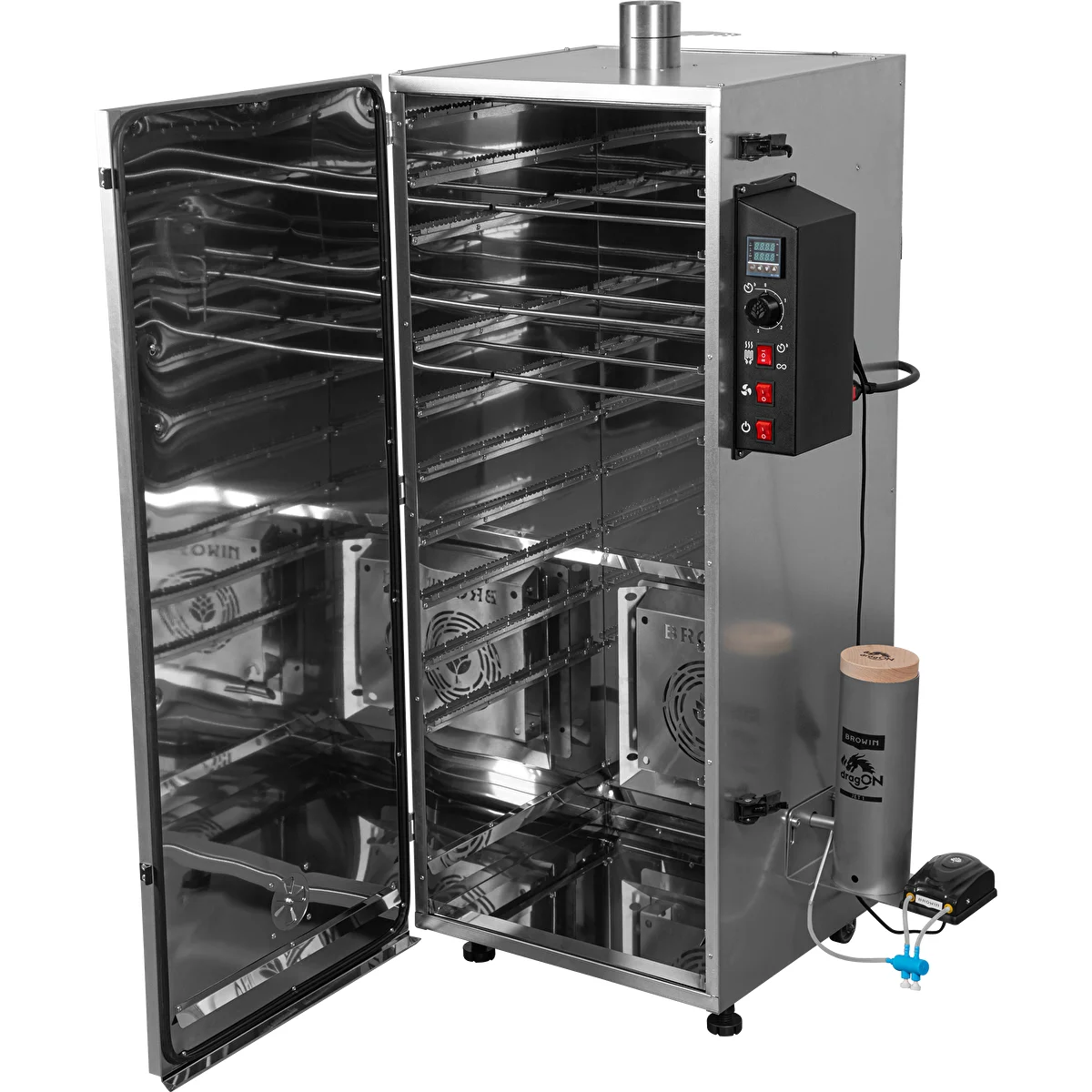

• Smart design and high quality - insulated with mineral wool; outer wall - galvanized steel sheet, interior - stainless steel, 10 smoking levels; comb-style rails - special recesses prevent the bars from shifting; adjustable door tightness and air intake.

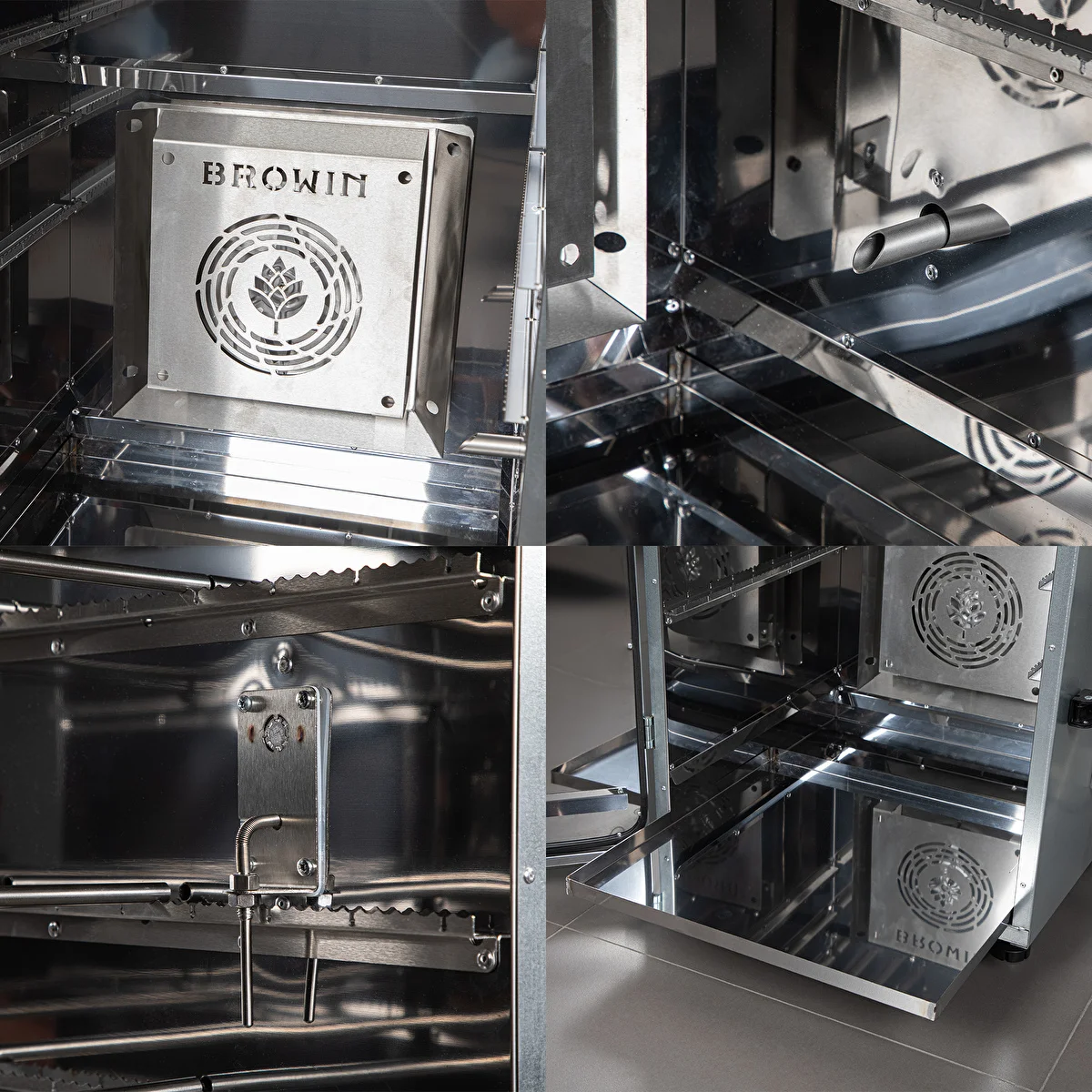

• Cleaner, healthier smoking - internal drip guards protect the heater and fan (an innovative solution with vertical mounting on the back wall) from dripping juices, and guide them into an easy-to-remove drip tray. The gasket in the door and the drip channel further prevent drips from reaching the floor.

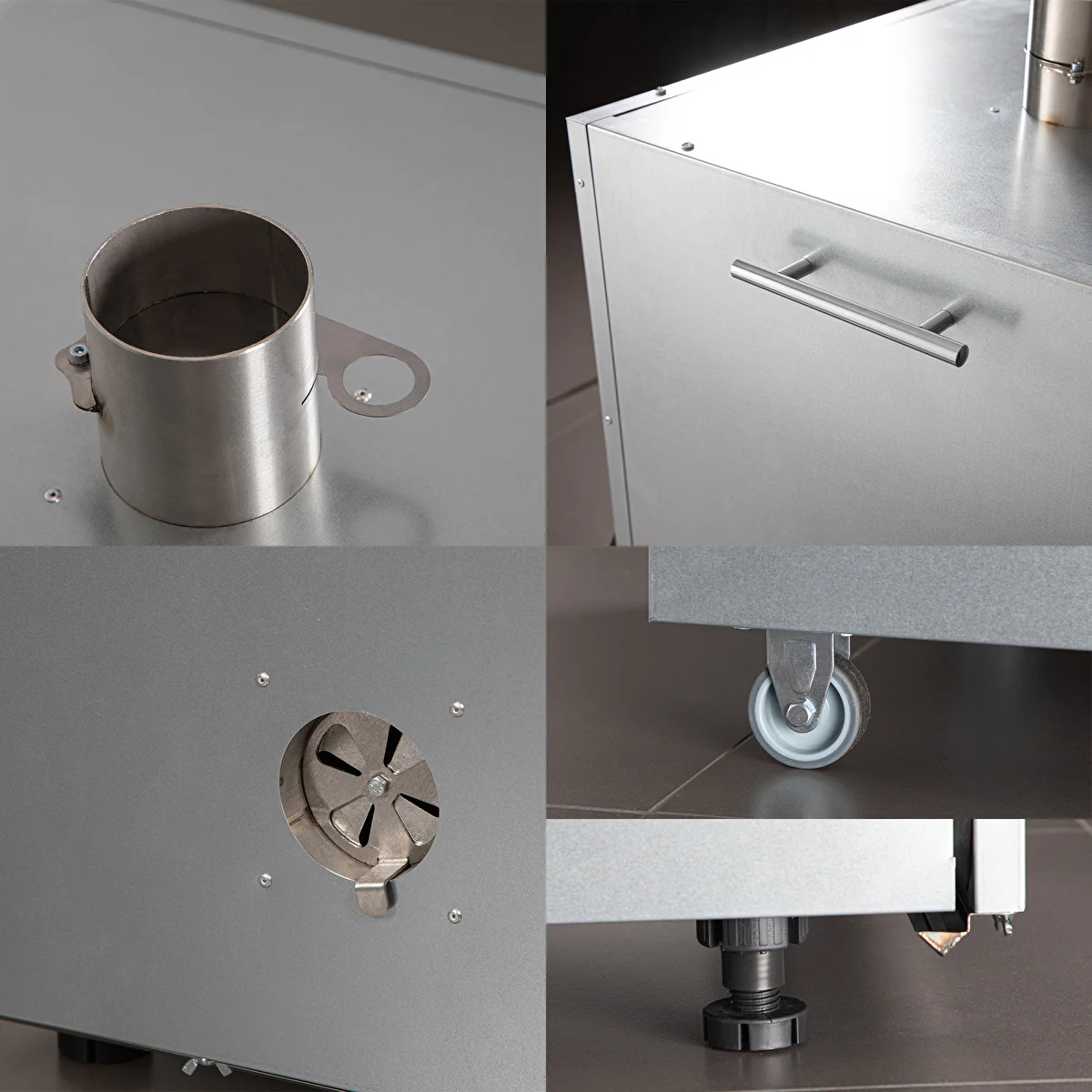

• Fully equipped - bars, hooks, chimney (Ø 80) with a damper to regulate smoke flow and the option to connect an additional exhaust pipe to the chimney outlet.
• Mobility and stability - 2 wheels and 2 leveling feet, plus a rear handle for easier repositioning of the smoker.

The door gasket lets you feed a wired probe into the smoking chamber, connect it to the controller, and measure the internal temperature of the product.

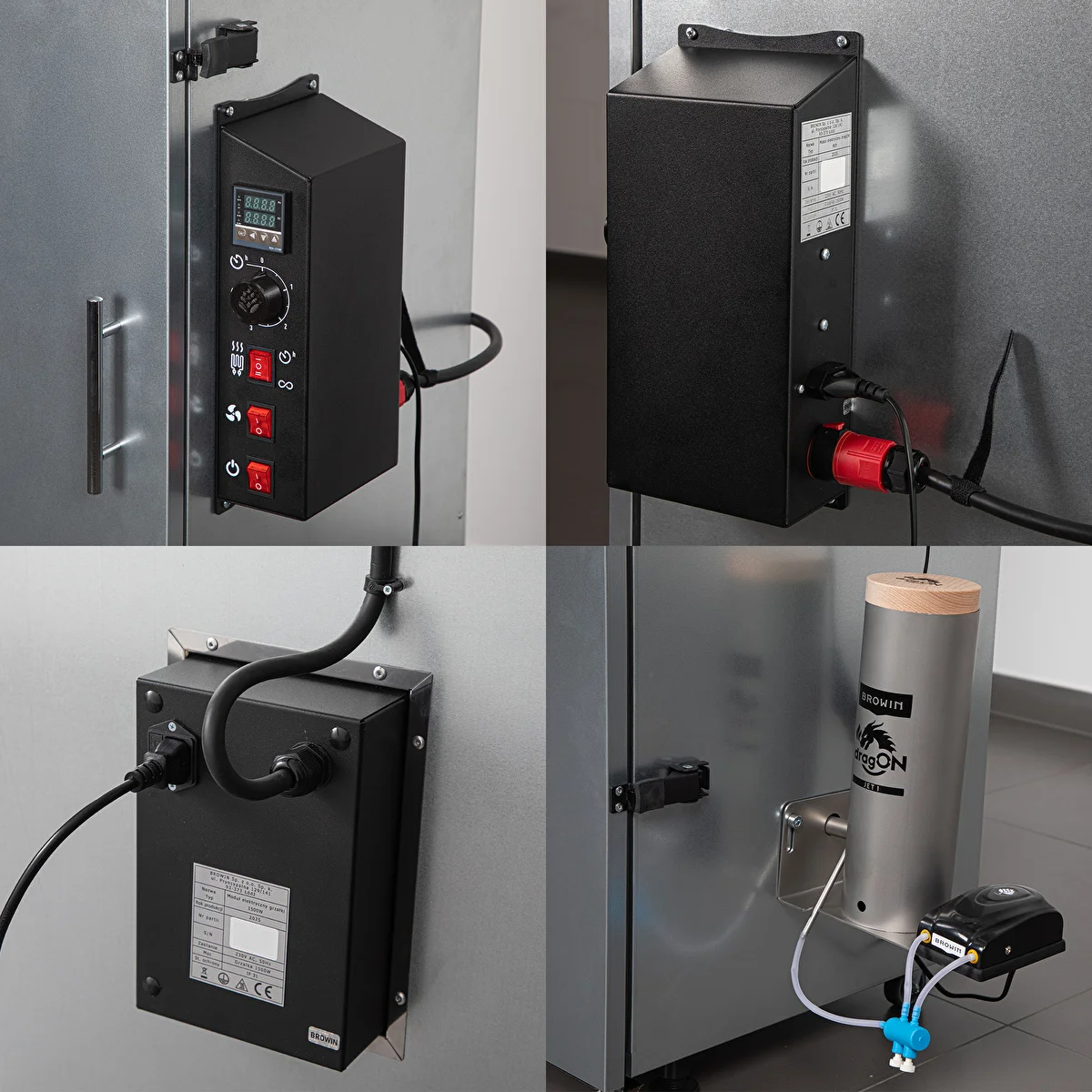

The smoker comes with dedicated dragON modules included:

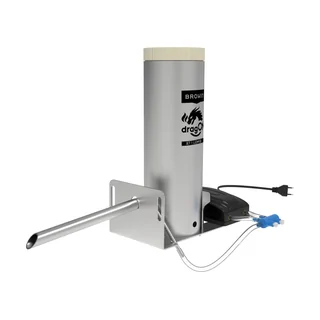

• dragON Jet 1 smoke generator module

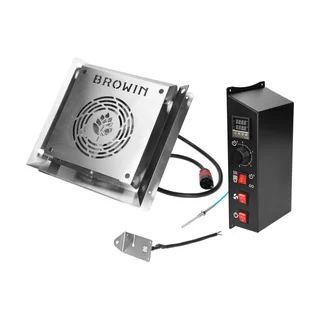

• Heating element module with thermal module and thermocouple
• Digital controller module

Safety!

Before you start using the smoker with its modules, read all warnings and safety instructions for assembly and operation. Failure to follow these guidelines may result in electric shock, fire, and/or serious injury.

Safety guidelines for working with electrical devices are provided in the manuals included with the modules.

Note: do not connect any devices other than the pump to the controller socket intended for the pump.

You can also use the smoker without plugging it in, for example using the chamber to age cured meats.

Set contents:

• steel smoking chamber with door, 2 latches, chimney with damper
• digital controller module, side box with display made of powder-coated steel, main cable connecting to the heating module
• heating module - heater with fan, rear box of powder-coated steel, power cord
• thermal module and thermocouple
• dragON Jet 1 smoke generator (BROWIN patent) - with a pump with adjustable smoke flow rate
• 2 wheels (rear of the smoker) and 2 adjustable feet (front)
• steel bars for hanging products (8 pcs.)
• smoking hooks (5 pcs.)
• mounting hardware
• assembly and user manuals

Smoker capacity: 220 L

Load: 20–25 kg

Heater power: 1500 W

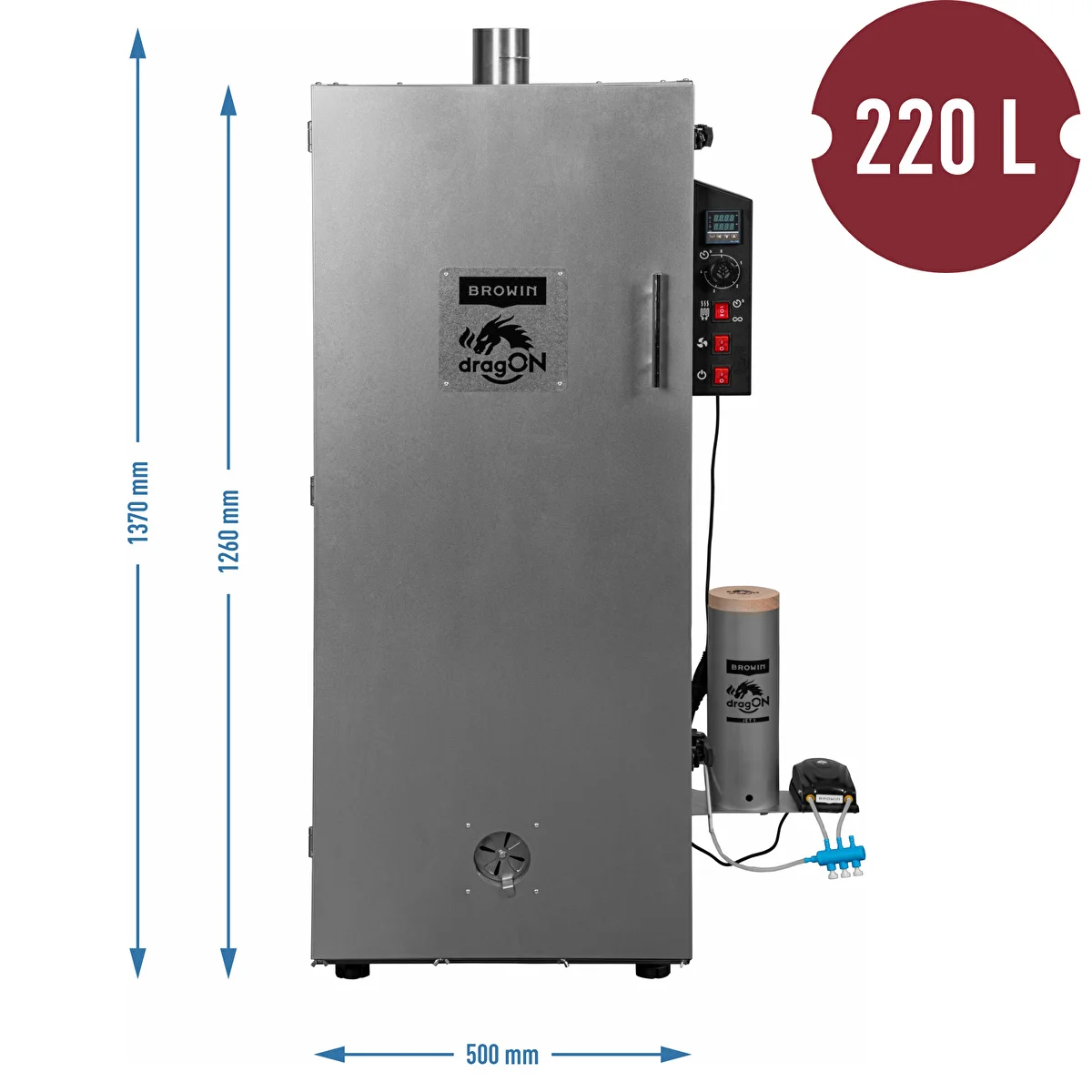

Dimensions:

• height with chimney: 137 cm
• height without chimney: 126 cm
• base width: 50 cm
