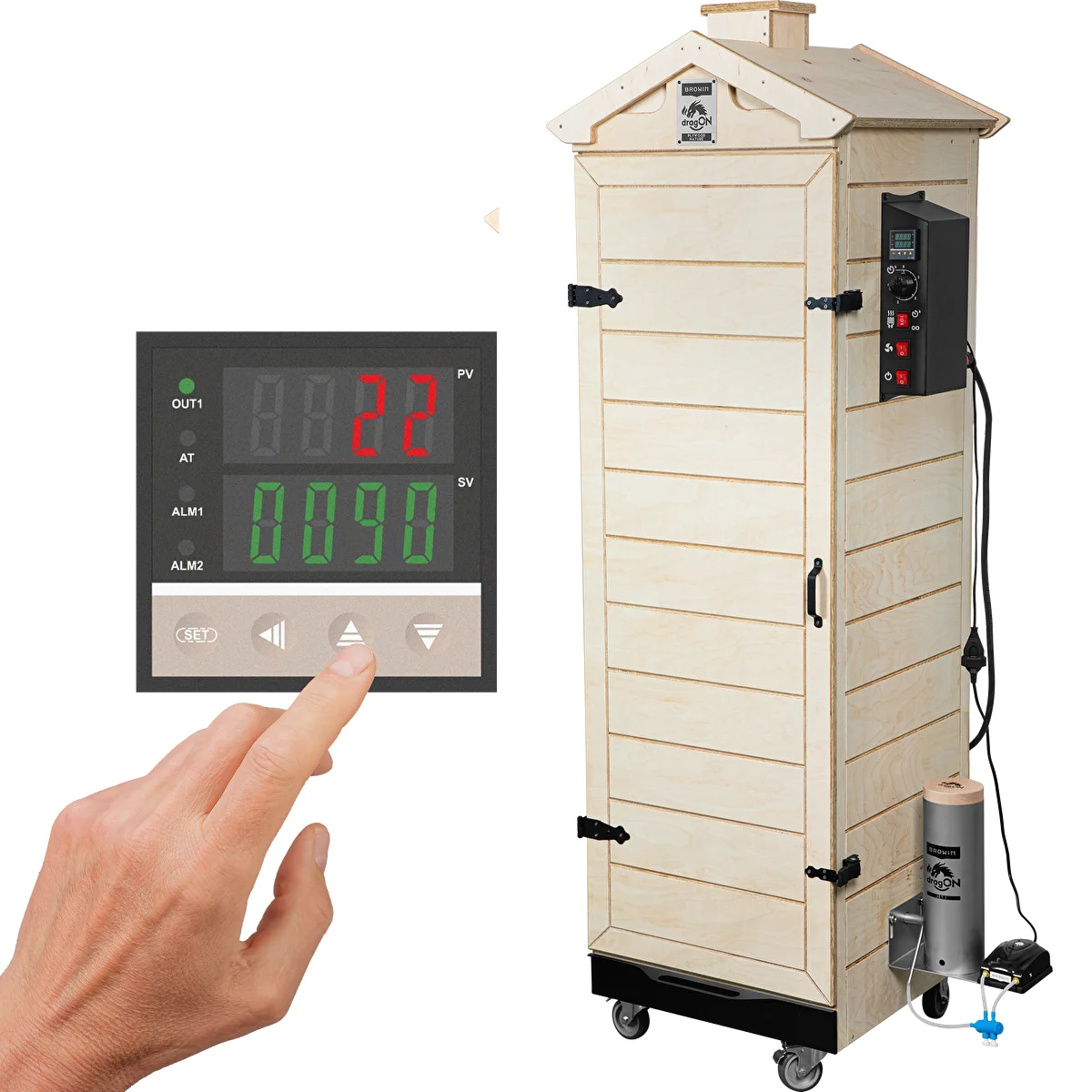

dragON PLYWOOD NATURE smoker – frameless, modular, with digital controller, 320L

The dragON PLYWOOD NATURE smoker brings the taste of tradition in harmony with nature and full capabilities thanks to its large capacity (as much as 320 L!) and the use of modern modules with the option to manage smoking via a digital controller.

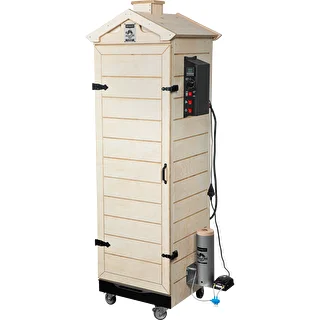

The frameless, mobile dragON PLYWOOD NATURE 320 L smoker is an innovative unit made of high-quality hardwood plywood (FSC certified), food-safe, with a patented, efficient dragON Jet smoke generator, as well as heating modules and a digital controller.

Using this smoker, you will appreciate its professional capabilities, ease of use, large capacity, durability, as well as the quality and aesthetics of workmanship. It is the perfect equipment that will turn making your own smoked products into a true passion.

Why choose the dragON PLYWOOD NATURE 320 L smoker with modules and a digital controller?

• Smoking versatility – dry, cold-smoke, warm-smoke, hot-smoke, reheat or roast - all tailored to your needs (heating element operating range from +1°C to +90°C).

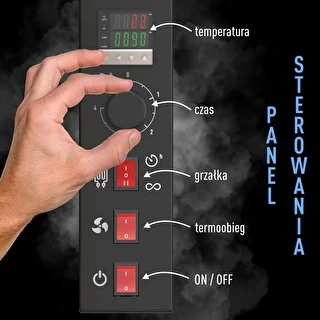

• Convenience and control – thanks to the digital control panel you can manage the smoking process and monitor the set parameters on the display. Using the controller, you can easily adjust the temperature, set the time and turn on convection.
• Perfect results every time – the unique dragON Jet 1 smoke generator and convection ensure uniform smoking at every level of the chamber, regardless of the amount of product. The special design of the smoke generator prevents wood chips from bridging, and the smoke always has ideal intensity.

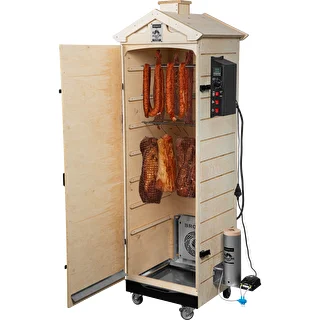

• Very large capacity and freedom of choice – the smoker has a capacity of 320 L and 8 levels – it holds (for medium-sized products) approx. 24 hams or 27 portions of pork loin or bacon, or 60 tenderloins or trout, or 54 sausage rings. The chamber height (148.5 cm) allows for smoking long sausages or fish.
• For intensive, long-term use – plywood with eco-friendly FSC certification offers better resistance than solid wood, is more durable and easier to keep clean. Thanks to this certified plywood, the smoker is more stable, airtight, resistant to moisture, temperature and pests, and does not warp or crack, which significantly extends its service life.
• ·Food safety – confirmed by a food-grade certificate and tests from an independent laboratory.
• Complete set – along with this modular kit you receive steel bars, hooks and smoking wood chips.

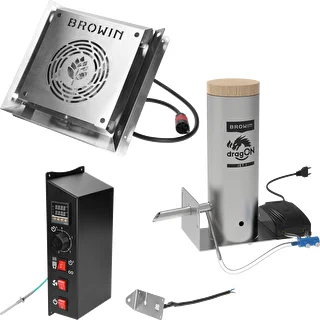

Included with the smoker you will find dedicated dragON modules:

·       dragON Jet 1 smoke generator module

·       Heater module with thermal cutout and thermocouple module

·       Digital controller module

You will appreciate these advantages of the smoker in practice:

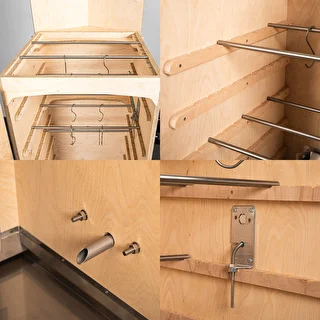

· No frame (no top crosspiece) – this solution (precise joining of the walls without using a structural frame) provides very convenient, unobstructed access to the smoking chamber (with the door and roof open). The door opening is as wide as the chamber, ensuring convenient insertion of racks and bars.

· Convection – heat is perfectly distributed throughout the chamber space, which makes the smoking process much faster and more efficient.

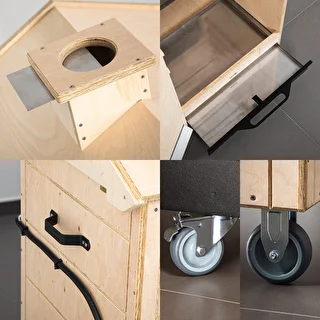

· Stainless steel drip tray and additional ventilation – the tray is easy to remove and clean; and by pulling it out appropriately you can additionally regulate the amount of air in the smoking chamber.

· Stainless steel drip rails – they ensure better drainage of condensate into the drip tray.

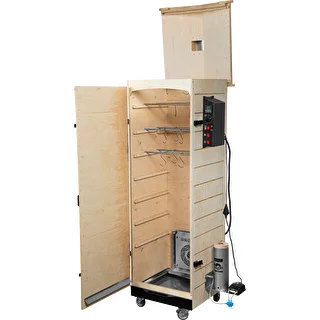

· Opening roof with a chimney and damper – opening the roof provides easy access to the interior of the smoker, and the chimney with a steel damper ensures a proper, adjustable smoke exhaust. Option to connect an additional exhaust pipe to the flue outlet (Ø 80 mm).

· 3 latches/locks on the door – they provide better tightness and allow you to regulate air circulation in the chamber.

· Mobility – 4 wheels for convenient transport and positioning of the smoker.

· Toothed crosspieces – they prevent the crossbars from shifting.

Aesthetics and personalization – the smoker is easy to oil and decorate, so it will fit perfectly with the style of your garden or allotment.

What sets the patented dragON Jet 1 smoke generator apart?

Thanks to its unique design, it provides an even smoke flow, helps minimize deposit build-up, eliminates the problem of wood chips bridging, works flawlessly regardless of chip gradation, and also allows for an easy and quick connection to the smoker.

Safety!

Before you start using the smoker with modules, read all warnings and safety instructions for assembly and use of the set. Failure to follow these recommendations may cause electric shock, fire and/or serious bodily injury.

Safety guidelines for working with electrical devices can be found in the manuals included with the modules.

Note: do not connect any other devices to the controller socket intended for the pump.

You can also use the smoker without connecting to power, using the smoking chamber, for example, to age cured meats.

Set components:

·       smoker chamber with doors, with 3 latches, with an opening roof, chimney and steel damper

·       4 wheels

·       PID controller module, powder-coated steel side box, main cable connecting to the heating module

·       heating module – heating element with fan, powder-coated steel rear box, power cord

·       thermal cutout and thermocouple module

·       dragON Jet 1 smoke generator (BROWIN patent) – with a pump with adjustable smoke flow rate

·       mounting hardware

·       steel bars for hanging products (8 pcs.)

·       smoking hooks (5 pcs.)

·       smoking wood chips (1 pack)

·       assembly and user manuals

Smoker capacity: 320 L

Heater power: 1500 W

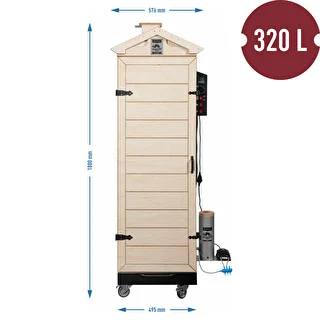

Dimensions:

·       overall height: 180 cm

·       smoking chamber height: 148.5 cm

·       base width: 49.5 cm

·       roof width: 57.6 cm

·       side width: 49.5 cm

Looking for a special gift? This top-tier smoker is it!
