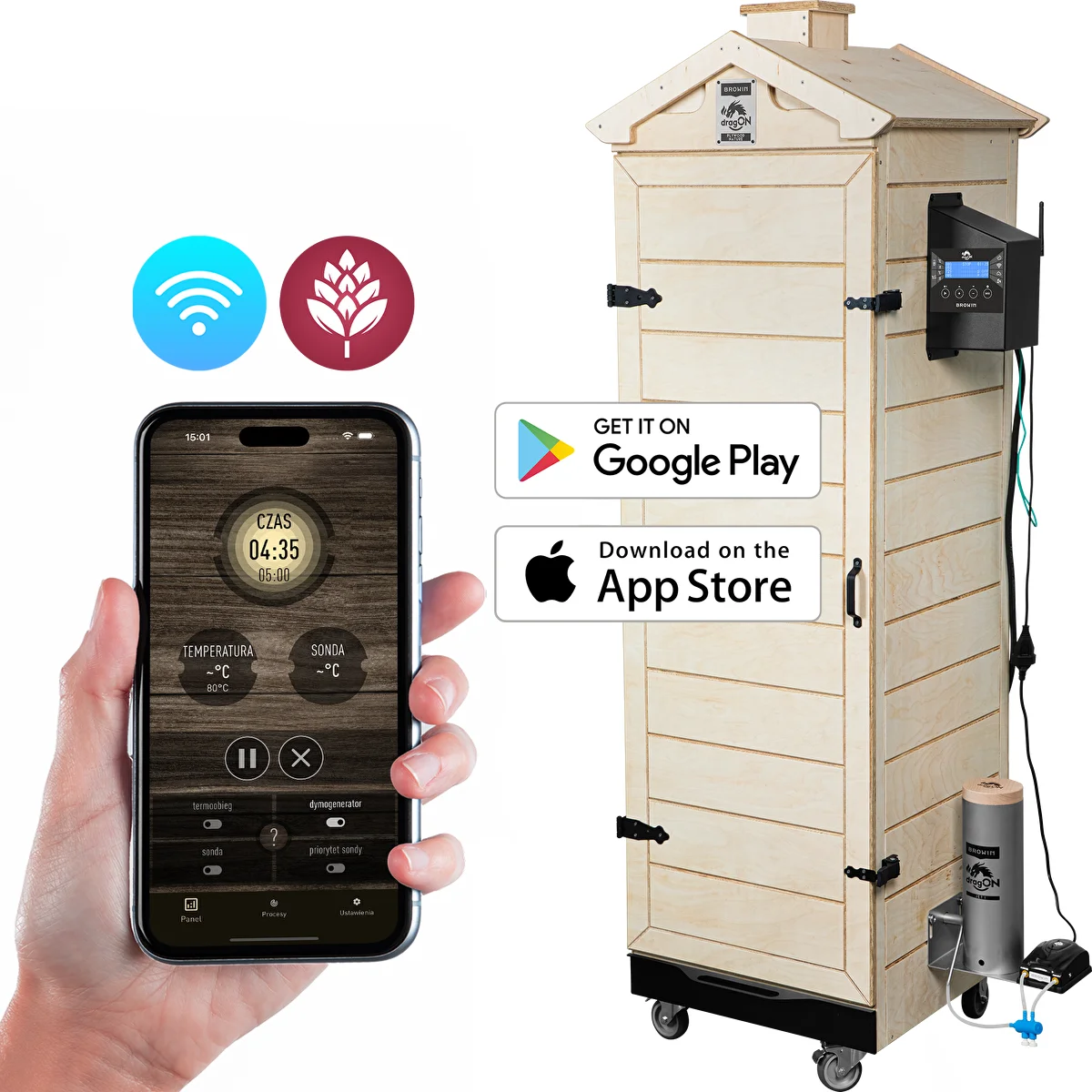

dragON PLYWOOD NATURE Smoker – frameless, modular, with Wi‑Fi controller, 320 L

The dragON PLYWOOD NATURE smoker brings traditional flavor in harmony with nature, plus total flexibility thanks to its generous capacity (a full 320 L!) and modern modules with Wi‑Fi smoking control.

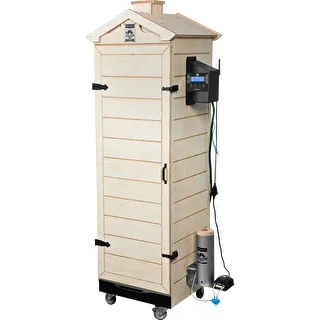

 The frameless, mobile dragON PLYWOOD NATURE 320 L is an innovative smoker made from high‑quality FSC‑certified hardwood plywood, food‑contact safe, fitted with the patented, high‑efficiency dragON Jet smoke generator, heating modules, and a Wi‑Fi controller.

With this smoker, you’ll appreciate its professional performance, ease of use, large capacity, durability, and the quality and clean look of its build. It’s the ideal piece of kit to turn making your own smoked specialties into a true passion.

Why choose the dragON PLYWOOD NATURE 320 L smoker with modules and a Wi‑Fi controller?

• Smoking versatility – dry, cold‑smoke, warm‑smoke, hot‑smoke, reheat or finish/bake – all tailored to your needs (heating element operating range from +1°C to +90°C).

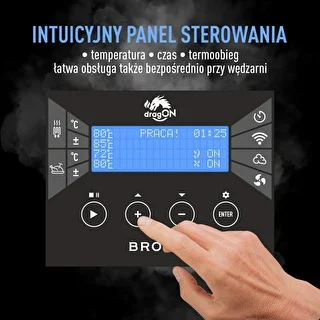

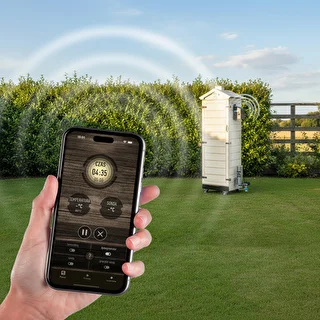

• Convenience and control – with the Wi‑Fi control panel you can manage the smoking process both right at the smoker and via the dedicated app on your smartphone. Monitoring and setting your smoking parameters has never been easier! Effortlessly adjust the temperature, set the time, and switch on the convection fan.
• Perfect results every time – the unique dragON Jet 1 smoke generator and convection ensure even smoking on every level of the chamber, no matter how full it is. The generator’s special design prevents chip bridging, and the smoke intensity is always spot‑on.
• Extra‑large capacity and freedom of choice – the smoker offers 320 L of space and 8 levels – it will hold (for medium‑sized products) approx. 24 hams or 27 pork loins or slabs of bacon, or 60 tenderloins or trout, or 54 rings of sausage. The chamber height (148.5 cm) lets you smoke long sausages or fish.
• Built for heavy use over the long haul – FSC‑certified plywood offers better resistance than solid wood, is more durable, and easier to keep clean. Thanks to this certified plywood, the smoker is more stable, airtight, moisture‑, heat‑, and pest‑resistant, won’t warp or crack, which significantly extends its lifespan.
• Food‑safe – confirmed by a food‑contact certificate and independent laboratory testing.
• Complete kit – with this modular set you get steel hanging bars, hooks, and smoking wood chips.

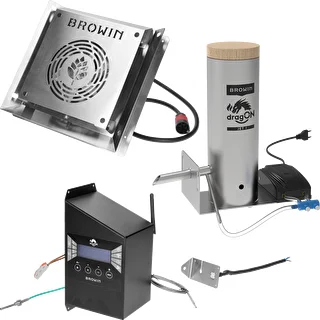

Included with the smoker are dragON dedicated modules:

• dragON Jet 1 smoke generator module
• Heating element module with thermal cutoff and thermocouple module
• Wi‑Fi controller module

You’ll appreciate these advantages in everyday use:

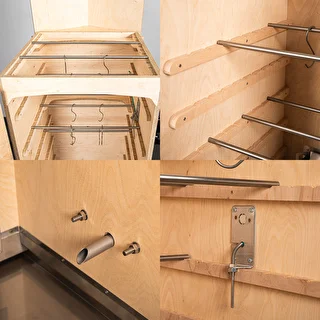

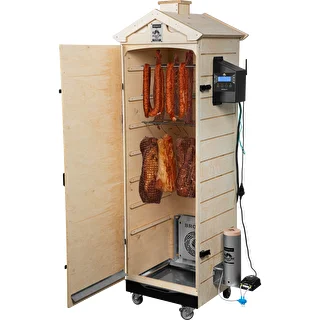

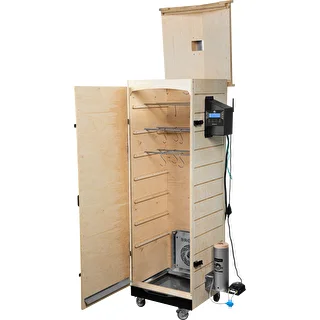

• No frame (no top crossbar) – this design (precisely joining the walls without a structural frame) provides very convenient, unobstructed access to the smoking chamber (with the doors and roof open). A door opening as wide as the chamber makes it easy to slide in racks and bars.
• Convection – heat is perfectly distributed throughout the chamber, making the smoking process much faster and more efficient.
• Stainless‑steel drip drawer and extra ventilation – the drawer is easy to remove and wash; and when partially pulled out, it also lets you fine‑tune the airflow in the smoking chamber.
• Stainless‑steel drip edges – they channel condensate straight into the drip drawer.

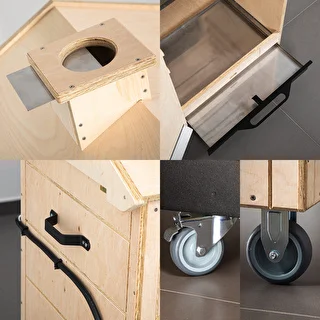

• Opening roof with chimney and damper – opening the roof gives easy access inside, while the chimney with a steel damper ensures a properly adjustable smoke outlet. You can connect an additional exhaust pipe to the chimney outlet (Ø 80 mm).
• 3 door latches/locks – improve sealing and let you adjust airflow in the chamber.
• Mobility – 4 casters for easy transport and positioning of the smoker.
• Comb‑style crosspieces – prevent the hanging bars from shifting.

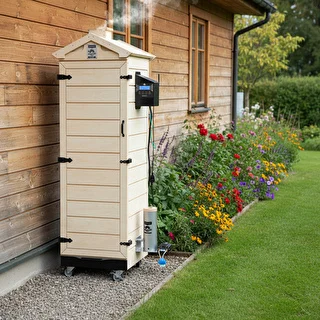

Looks and personalization – the smoker is easy to oil and decorate, so it can match the style of your garden or plot perfectly.

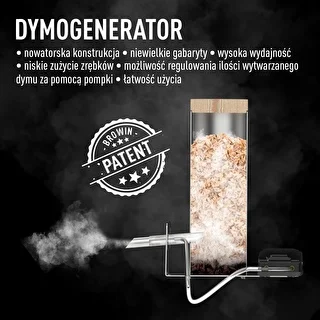

What sets the patented dragON Jet 1 smoke generator apart?

Its unique design delivers an even smoke flow, minimizes buildup, eliminates chip bridging, works flawlessly regardless of chip size, and also connects to the smoker quickly and easily.

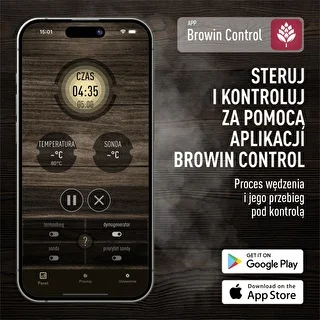

App Browin Control (Android/iOS):

• Set and control temperature and smoking time.
• Manage the convection fan and temperature probe — remotely or on site.
• Enjoy simple operation and time savings.

Before first use, oil the exterior of the smoker – we recommend applying 100% linseed oil or 100% tung oil to protect the wood and increase its durability.

Safety first!

Before using the smoker with modules, read all warnings and safety instructions for assembling and operating the set. Failure to follow these guidelines may result in electric shock, fire, and/or serious injury.

Safety guidelines for working with electrical devices are provided in the manuals included with the modules.

Note: never connect any other devices to the controller socket intended for the pump.

You can also use the smoker without power, for example using the chamber to mature or dry‑age cured meats.

Set components:

• smoking chamber with door, 3 latches, opening roof, chimney, and steel damper
• 4 casters
• Wi‑Fi controller module, side control box with display, powder‑coated steel, main cable linking to the heating module
• heating module — heating element with fan, rear powder‑coated steel box, power cord
• thermal cutoff and thermocouple module
• dragON Jet 1 smoke generator (BROWIN patent) — with a pump with adjustable smoke flow rate
• mounting hardware
• steel hanging bars for products (8 pcs.)
• smoker hooks (5 pcs.)
• smoking wood chips (1 pack)
• assembly and user manuals

Smoker capacity: 320 L

Load: 25-30 kg

Heating element power: 2700 W

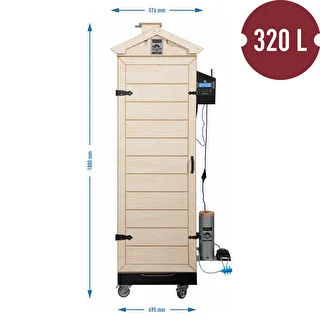

Dimensions:

• overall height: 180 cm
• smoking chamber height: 148.5 cm
• base width: 49.5 cm
• roof width: 57.6 cm
• side width: 49.5 cm

Looking for a standout gift? This top‑of‑the‑line smoker is the one!
