Distiller hawkSTILL 1.0 CONVEX 60L-ELECTRIC PERUN

Immerse yourself in the world of perfect distillation with our practical Convex-type kit, offering not only exceptional quality and unique style, but also the ability to expand or swap components as your needs evolve.

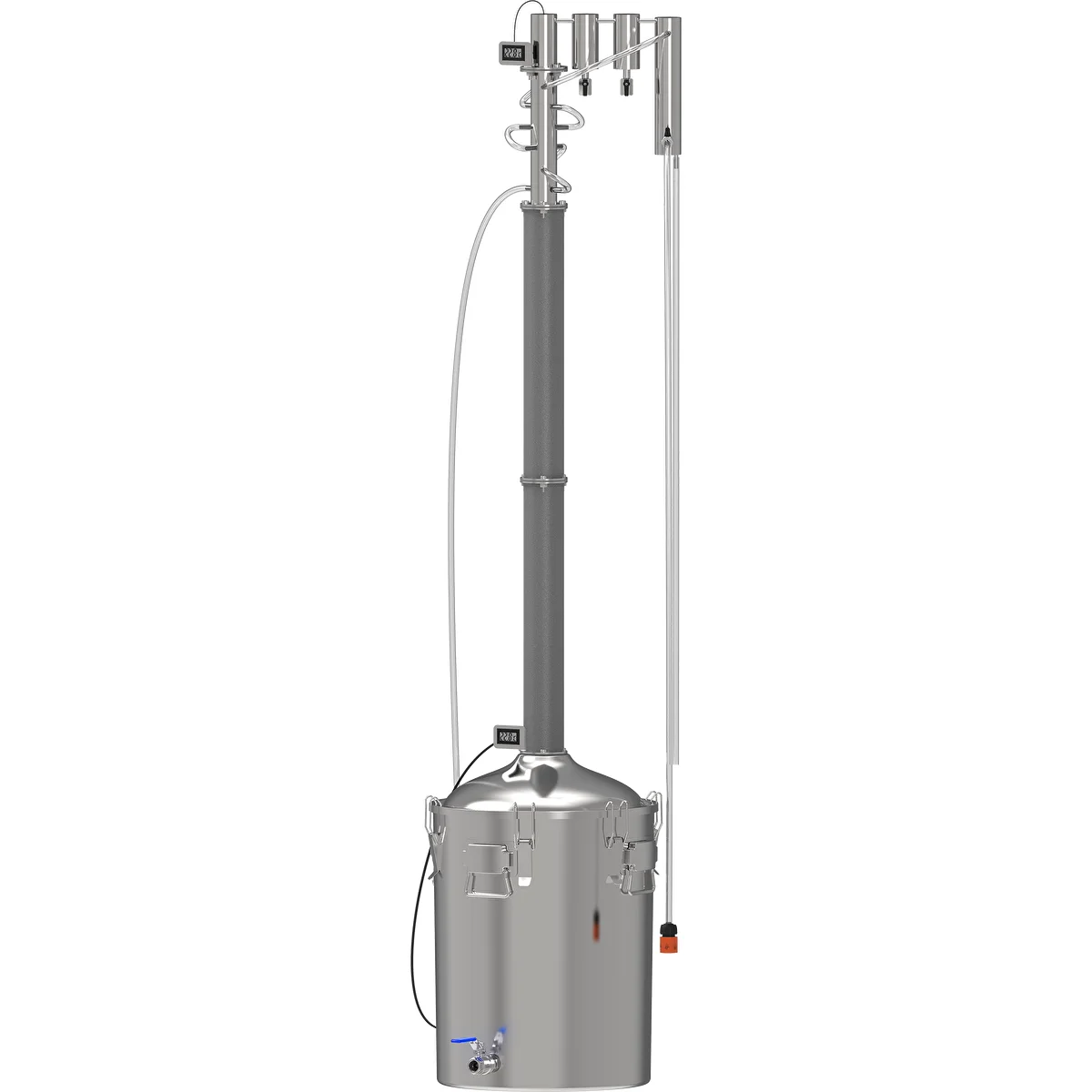

The Convex Perun XXL 60 L modular still is a professional electric still with a large-capacity boiler (60 L), “Cold Fingers” reflux, and a head with two settling chambers and a condenser. A complete kit made of high-quality stainless steel (INOX).

To be used with a heating element with a total power of 3500 W.

Among other things, the product is distinguished by the following features:

•  High quality - stainless steel and durable plastic components, tightness, precision of connections, efficiency, and durability.
• Convex-type boiler with a domed lid - this tight lid allows any potential foaming of the wash or mash to occur safely, increases the stability of the entire column, and positively affects the whole distillation process.
• “Cold Fingers” reflux - acts as a dephlegmator; thanks to precise water flow control, it excellently pre-purifies the distillate vapors.
• Head with two settling chambers and a condenser - the settling chambers are intended to collect heavier fractions, which are undesirable in the final product.
• High throughput - the boiler allows distillation of a large amount of liquid (it is recommended not to exceed 90% of capacity).
• Complete kit - the set includes a boiler with a domed lid, a column with reflux, a condenser and 2 settling chambers, 2 electronic thermometers with batteries, valves, 2 hoses, a connector for connecting the water supply, mounting hardware, and a manual.
• Expandable - the boiler and lid are compatible with other distillation modules available in the BROWIN range.

The functionality of the kit is also emphasized by the following components:

• 2 column connectors - act as a rectifier and, thanks to packing, increase the purity of the distillate.
• Column insulation - reduces heat loss and allows the process to be run at lower ambient temperatures.

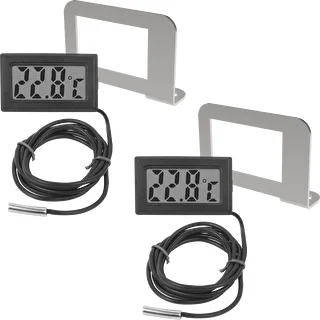

• 2 framed electronic thermometers - ensure precise temperature measurements during distillation, and are connected via probes—one to the boiler, the other to the upper part of the head.
• Heating element with a total power of 3500 W (1500 and 2000 W) - ensures appropriate temperature parameters.

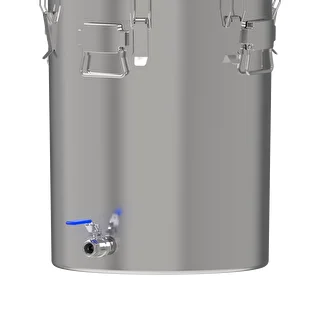

• In the XXL 60 L set, the boiler is equipped with a practical drain tap.

The modular distillation system was created to meet the needs of the most demanding customers. Thanks to standardized connections and innovative system components, you can configure any type of still based on them. All elements are fully compatible with the other distillation modules in the Browin range.

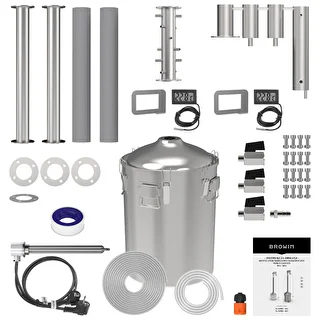

KIT COMPONENTS:

• Convex-type 60 L boiler
• column connector (2 pcs., each length 500 mm)
• “Cold Fingers” reflux
• head with 2 settling chambers and a condenser
• framed electronic thermometer with probe (2 pcs.)
• column insulation, polyethylene (2 pcs.)
• 5 m PVC hose - for water connection, with a quick connector enabling easy connection to a tap
• 1.5 m silicone hose - for collecting the distillate, safe for contact with alcohol
• straight threaded connector
• 1/8 inch ball valve (3 pcs.)
• 1/2 inch drain ball valve
• set of mounting screws and nuts (16 pcs.)
• silicone gaskets (4 pcs.)

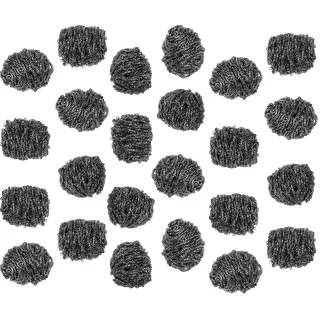

• stainless steel packing (24 pcs.)
• PTFE sealing tape
• user manual

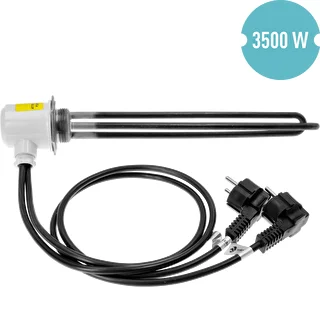

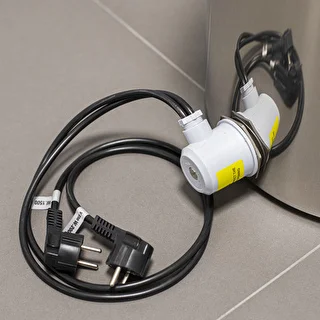

• heating element with a total power of 3500 W, consisting of two heaters powered by independent leads—one 2000 W and the other 1500 W

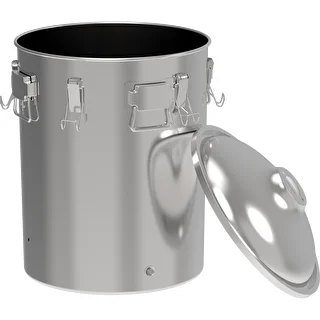

Boiler:

• 2 carrying handles
• 5 latch clamps
• lid with an integrated silicone gasket
• rigid domed lid with an opening for mounting the column
• opening in the boiler wall for the thermometer probe and the heating element
• boss for a drain valve and a matching ball valve for installation

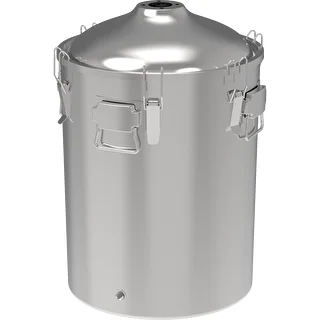

The new conical shape of the boiler lid allows any potential foaming of the wash or mash without the risk of contaminating the column and its packing. The dome shape also increases the stability of the entire column, even with tall stills, which in turn enhances the stability of the whole distillation process. The new lid form is inspired by classic "swan neck" alembics, which is a pleasing visual detail.

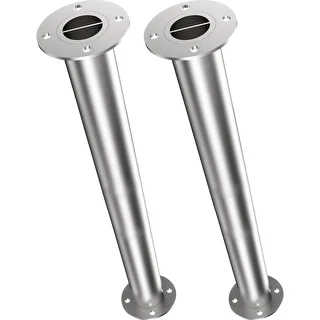

2 column connectors:

• module height: 500 mm
• outer diameter of the module tube: 48 mm

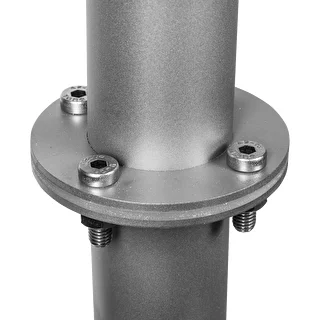

• screw couplings
• can be used with packing

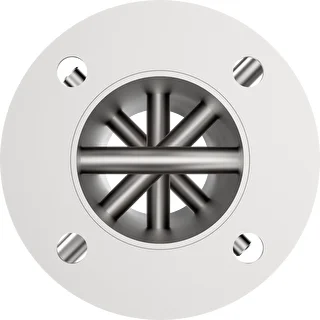

Column connector — a still module installed to increase the height of the distillation column and filled with stainless scrubbers, thereby significantly improving the purity of the obtained distillate. The connector can also function as a catalytic filter while continuously purifying the distillate. This is possible because it has a crosspiece at the bottom that allows a support mesh to be placed in the module, enabling the column to be filled with copper prismatic springs. Available in the Browin range.

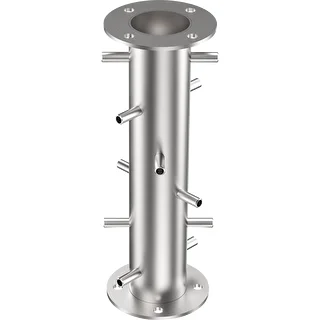

“Cold Fingers” reflux:

• cooling section height: 250 mm
• outer tube diameter: 48 mm
• screw coupling
• 6 “cold fingers” (made from 8 mm tubing)

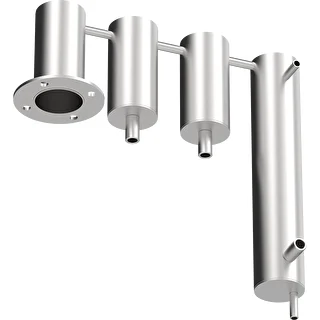

Head with settling chambers and condenser:

• cooling section height: 250 mm
• outer tube diameter: 48 mm
• 2 settling chambers
• water connection
• thermometer port

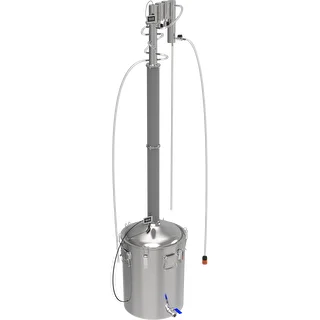

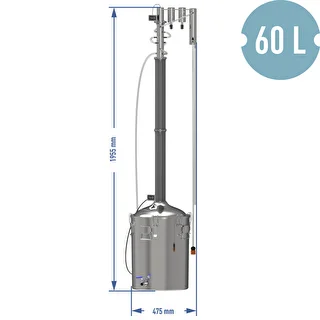

Still dimensions:

• height: 1950 mm
• front width: 570 mm
• side width: 480 mm

Attention! Before use, you must read the instructions included with the product and the rules for its operation, cleaning, and maintenance. Following the provided recommendations will ensure appropriately long, efficient, and safe use of the still.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
