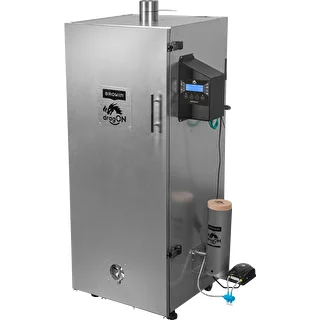

dragON steel smoker 220 L, IQ – with Wi-Fi controller

dragON IQ steel smoker will let you enjoy the taste of outstanding smoked products and the full range of capabilities offered by this modern smoker with a large 220 L capacity, equipped with innovative modules with the option to manage smoking via Wi‑Fi.

• Smoking versatility - dry, cold-smoke, warm-smoke, hot-smoke, heat or roast - all tailored to your needs (heater operating range from +1⁰C to +90°C).

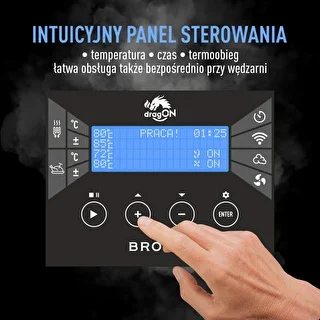

• Convenience and control - thanks to the control panel with Wi‑Fi you can manage the smoking process both directly at the smoker and via the dedicated app on your smartphone. Controlling and setting smoking parameters has never been easier! You can easily change the temperature, set the time, and switch on convection.

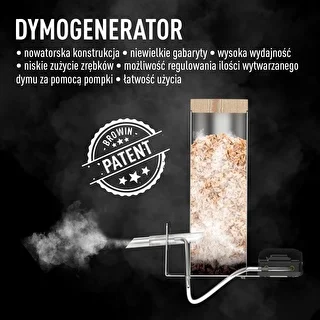

• Perfect results every time - the unique dragON Jet 1 smoke generator and convection ensure even smoking at every level of the smoking chamber, regardless of the amount of products. The special patented design of the smoke generator prevents wood chips from bridging, and the smoke always has ideal intensity.

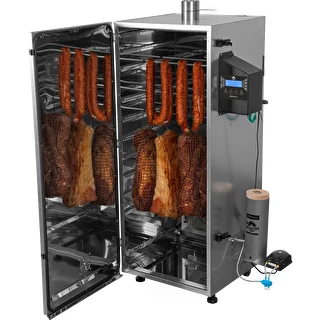

• Large capacity and flexibility - the smoker with a capacity of 220 L holds 20–25 kg of load. The chamber height allows smoking long sausages or fish.

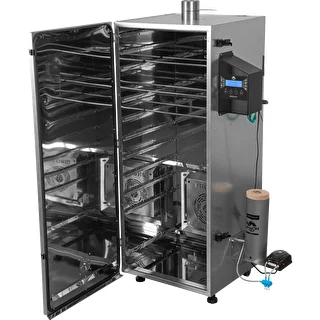

• Functional design and high quality - insulated with mineral wool; outer wall – galvanized sheet, inside – stainless steel sheet, 10 smoking levels; comb-profile rails – special recesses prevent the bars from moving; adjustable door tightness and air intake.

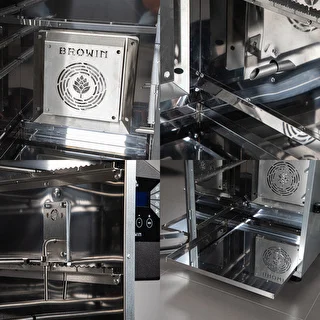

• Healthy smoking and easy cleaning - internal drip deflectors protect the heater and fan (an innovative solution with vertical mounting on the rear wall) from drippings and guide them to a conveniently removable drip tray. The door gasket and drip gutter additionally prevent drippings from falling onto the floor.

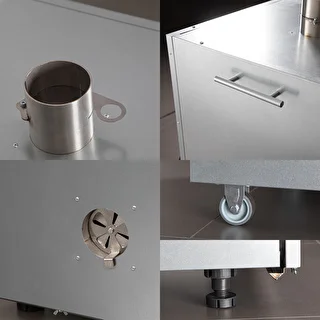

• Full equipment – bars, hooks, chimney (Ø 80) with a damper for smoke flow control and the option to connect an additional exhaust pipe to the chimney outlet.
• Mobility and stability - 2 wheels and 2 leveling feet, plus a rear handle for easier repositioning of the smoker.

The door gasket allows you to insert into the smoking chamber a wired probe connected to the controller and intended for measuring the internal temperature of the load.

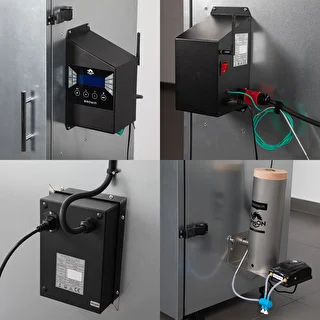

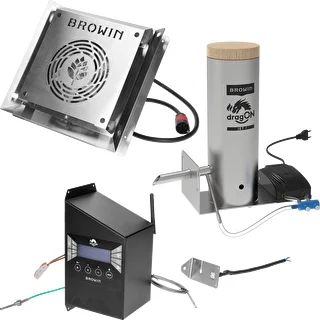

 The smoker set includes dragON dedicated modules:

• dragON Jet 1 smoke generator module
• Heating module with thermal protection and thermocouple module
• Wi‑Fi controller module

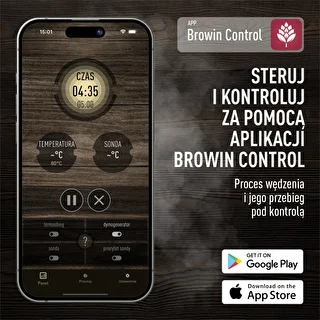

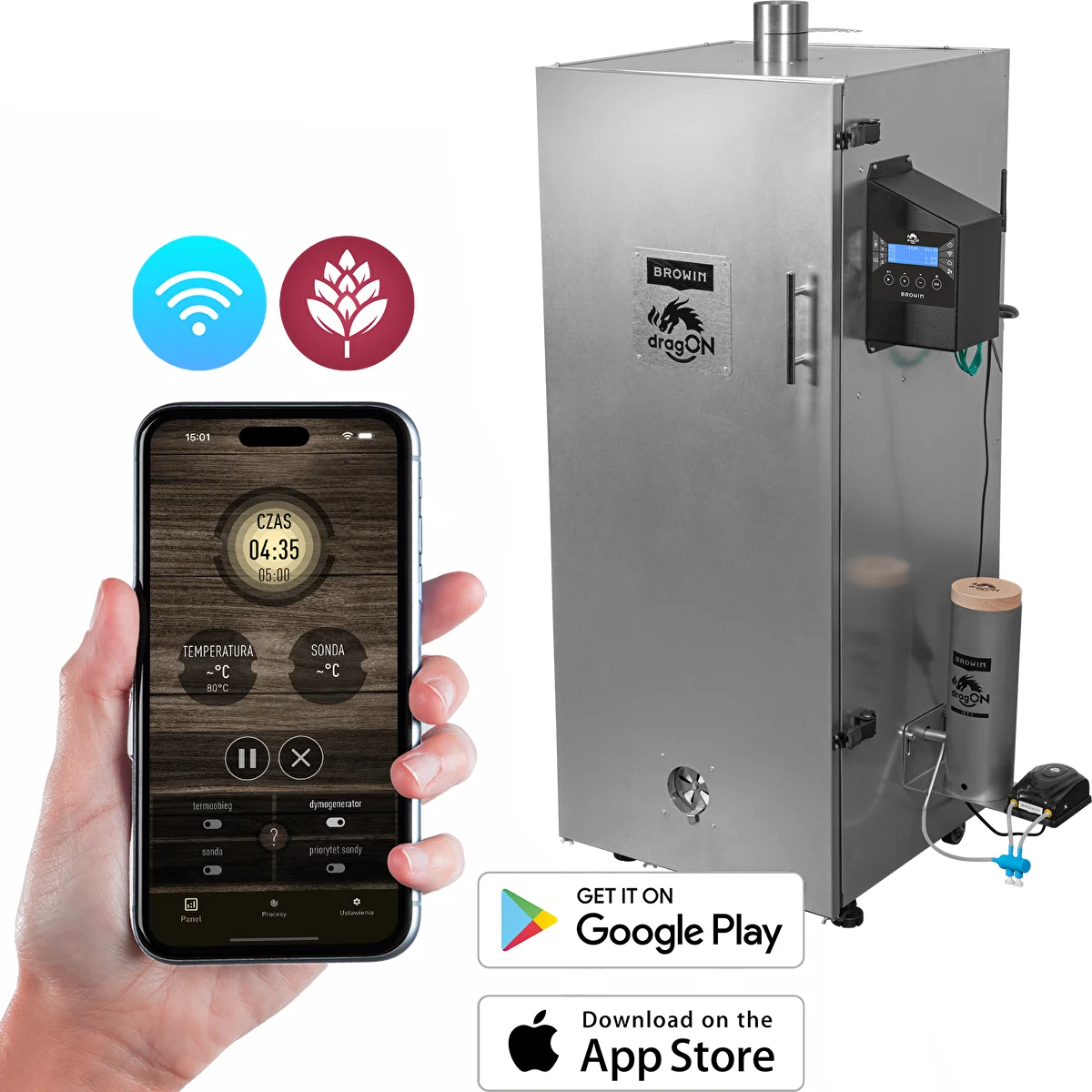

App Browin Control (Android/iOS):

• Set and monitor temperature and smoking time.
• Manage convection and the temperature probe – remotely or on site.
• Enjoy ease of use and time savings.

Safety!

Before you start using the smoker with modules, read all warnings and safety instructions for assembling and using the set. Failure to follow these recommendations may result in electric shock, fire, and/or serious bodily injury.

Safety guidelines for working with electrical devices can be found in the manuals included with the modules.

Note: do not connect any devices other than the pump to the socket on the controller intended for the pump connection.

You can also use the smoker without connecting power, using the smoking chamber, e.g. for aging cured meats.

Set components:

• steel smoking chamber with door, 2 latches, chimney with damper
• Wi‑Fi controller module, side housing with display, made of powder-coated steel, main cable connecting to the heating module
• heating module - heater with fan, rear housing made of powder-coated steel, power cord
• thermal protection and thermocouple module
• dragON Jet 1 smoke generator (BROWIN patent) - with a pump with adjustable smoke flow rate
• 2 wheels (rear of the smoker) and 2 adjustable feet (front)
• steel bars for hanging products (8 pcs.)
• smoker hooks (5 pcs.)
• mounting components
• assembly and user manuals

Smoker capacity: 220 L

Load: 20–25 kg

Heating element power: 1500 W

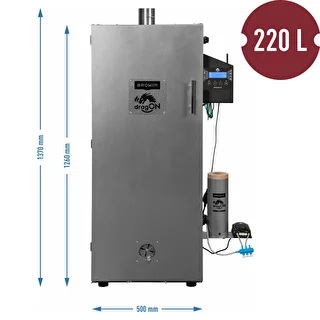

Dimensions:

• height with chimney: 137 cm
• height without chimney: 126 cm
• base width: 50 cm
