The dragON PLYWOOD NATURE smoker brings the taste of tradition in tune with nature, with full versatility thanks to its 200 L capacity and modern modules that let you manage smoking via a digital controller.

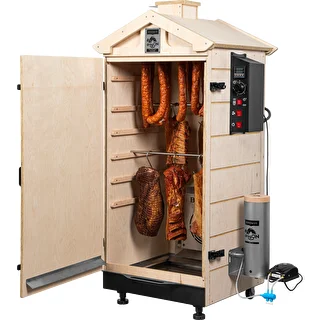

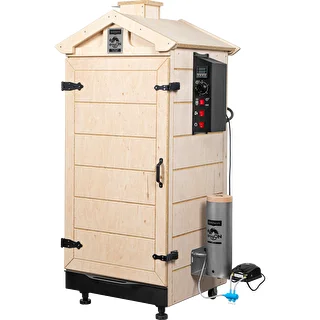

The frameless dragON PLYWOOD NATURE smoker is an innovative unit made from high-quality, food-safe hardwood plywood, fitted with the patented, high-efficiency dragON Jet smoke generator, heating modules, and a digital controller.

Using this smoker, you’ll appreciate its professional-grade capabilities, ease of use, durability, and the quality and aesthetics of its build. It’s the ideal piece of kit to turn crafting your own smoked specialties into a true passion.


Why choose the dragON PLYWOOD NATURE smoker with modules and a digital controller?


  • Smoking versatility — dry, cold-smoke, warm-smoke, hot-smoke, gently heat or finish — all tailored to your needs (heater operating range from +1°C to +90°C).

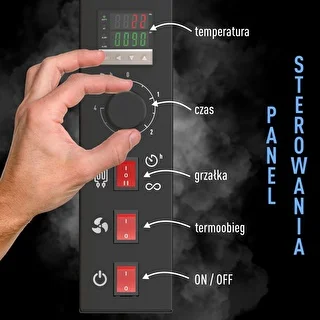

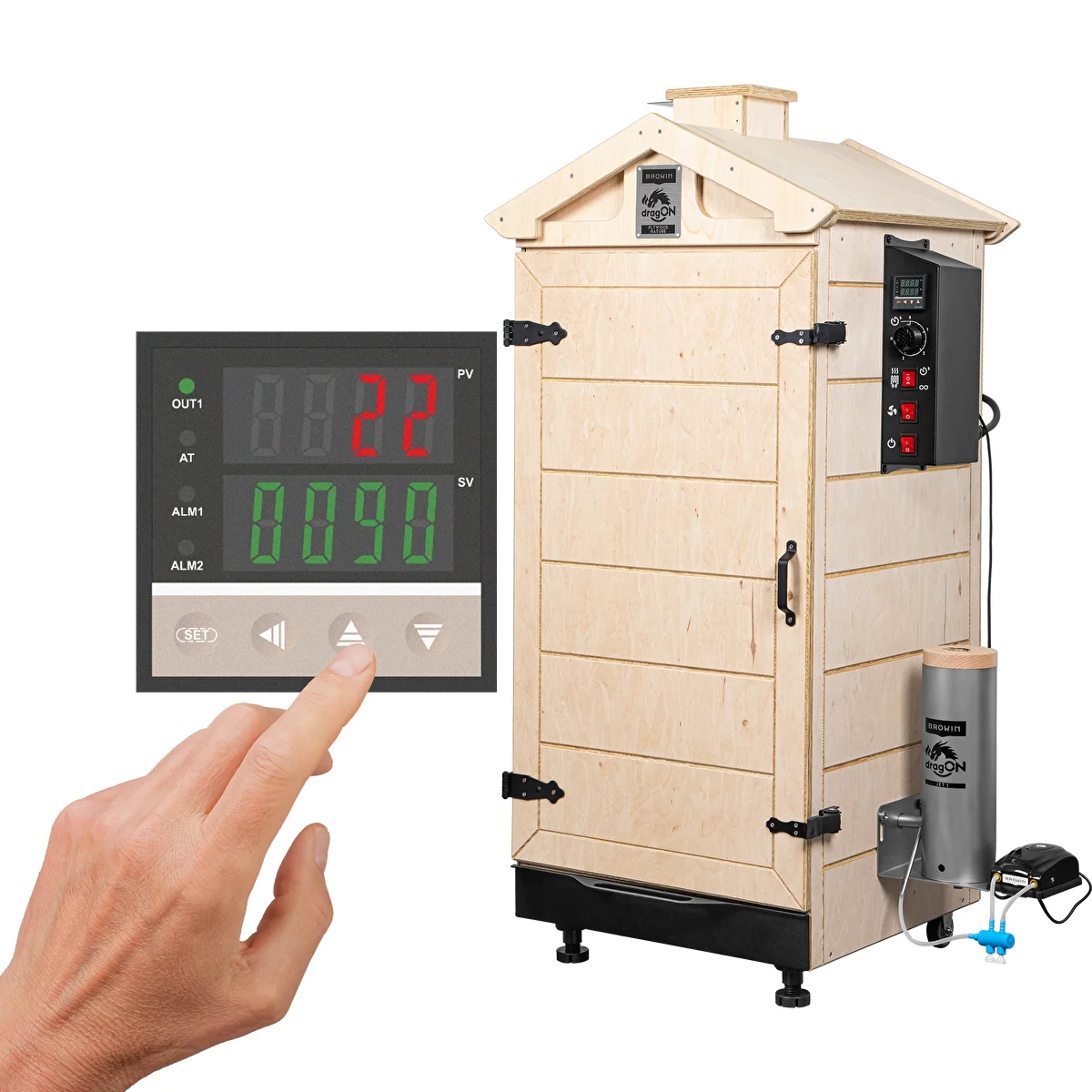

  • Convenience and control — with the digital control panel you manage the entire smoking process and monitor your set parameters on the display. Using the controller, you can adjust temperature, set the time, and switch on the convection fan with ease.
  • Perfect results every time — the unique dragON Jet 1 smoke generator and forced-air convection ensure even smoking on every level of the chamber, regardless of load size. The generator’s special design prevents chip bridging, and the smoke intensity is always spot on.

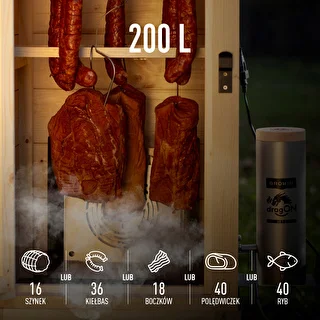

  • Generous capacity and flexibility — the 200 L smoker holds approximately 16 hams or 18 pork loins or slabs of bacon, or 40 tenderloins or trout, or 36 rings of sausage. The chamber height (100 cm) lets you smoke long sausages or whole fish.
  • Built for heavy use over the long haul — plywood offers better resistance than solid wood, is more durable, and easier to keep clean. Thanks to this certified plywood, the smoker is more stable, tight, moisture- and heat-resistant, pest-resistant, and won’t warp or crack, which greatly extends its lifespan.
  • Food-safe — confirmed by food-grade certification and independent lab testing.
  • Complete kit — this modular set includes steel hanging bars, hooks, and wood chips for smoking.
  • Looks and personalization — easy to oil and decorate so it fits the style of your garden or plot.

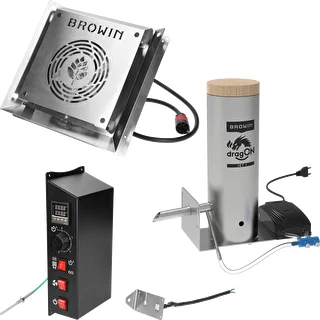

Included with the smoker you’ll find dedicated modules dragON:

  • dragON Jet 1 smoke generator module
  • Heater module with thermal cut-out and thermocouple module
  • Digital controller module


You’ll appreciate these advantages in everyday use:

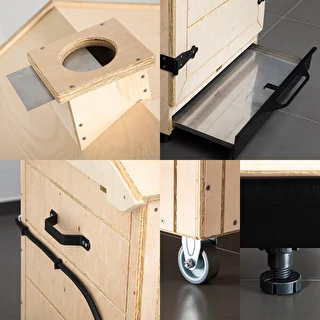

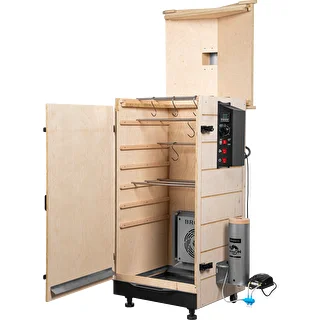

  • No frame (no upper crossbar) — this solution provides very comfortable, unobstructed access to the smoking chamber (with the door and roof open). The doorway spans the full chamber width, making it easy to slide in racks and bars.
  • Convection — heat is distributed perfectly throughout the entire chamber, making the process much faster and more efficient.
  • Hinged roof — makes access to the interior easier.
  • Two wheels and a sturdy handle — make transporting and positioning the smoker simple.
  • Adjustable feet — let you level the smoker for better stability.
  • Two door latches/locks — improve sealing and let you regulate airflow inside the chamber.
  • Drip tray drawer and additional ventilation — the stainless steel drawer is easy to remove and wash; pulling it out slightly also lets you fine-tune the airflow in the smoking chamber.
  • 7 levels — prepare a larger load for any smoking session.
  • Option to add an extra exhaust pipe to the chimney outlet (Ø 80 mm).
  • Damper — lets you regulate the smoke outlet from the chimney.

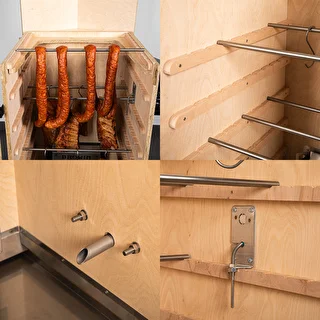

  • Comb-style crosspieces — prevent the hanging bars from shifting.
  • Stainless steel drip rails — channel condensate cleanly into the drip tray drawer.

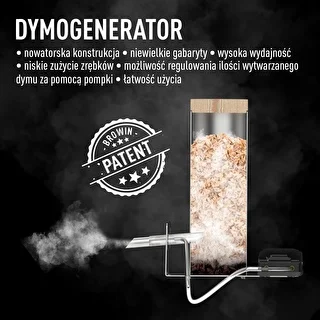

What sets the patented dragON Jet 1 smoke generator apart?

Its unique design ensures an even flow of smoke, minimizes build-up, eliminates chip bridging, works flawlessly regardless of chip grade, and lets you connect it to the smoker quickly and easily.


Before first use, seal the smoker on the outside — we recommend 100% linseed oil or 100% tung oil to protect the wood and extend its life.


Safety first!

Before using the smoker with modules, read all warnings and safety guidelines for installing and operating the set. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

Safety guidelines for working with electrical devices can be found in the manuals supplied with the modules.

Note: do not connect any other devices to the controller socket intended for the pump.


You can also use the smoker without connecting power, using the chamber for tasks like curing and aging charcuterie.


What’s included:

  • smoking chamber with door, 2 latches, hinged roof, chimney, trim strips, and steel damper
  • 2 wheels and 2 feet
  • PID controller module, powder-coated steel side box, main cable connecting to the heater module
  • heater module — heating element with fan, powder-coated steel rear box, power cord
  • thermal cut-out and thermocouple module
  • dragON Jet 1 smoke generator (BROWIN patent) — with a pump for adjustable smoke flow rate
  • mounting hardware
  • steel hanging bars (8 pcs)
  • smoking hooks (5 pcs)
  • smoking wood chips (1 pack)
  • assembly and user manuals


Smoker capacity: 200 L

Heater power: 1500 W

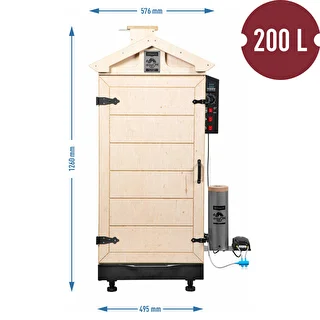

Dimensions:

  • height: 126 cm
  • base width: 49.5 cm
  • roof width: 57.6 cm
  • side width: 49.5 cm


Looking for an exceptional gift? This top-of-the-line smoker is it!
