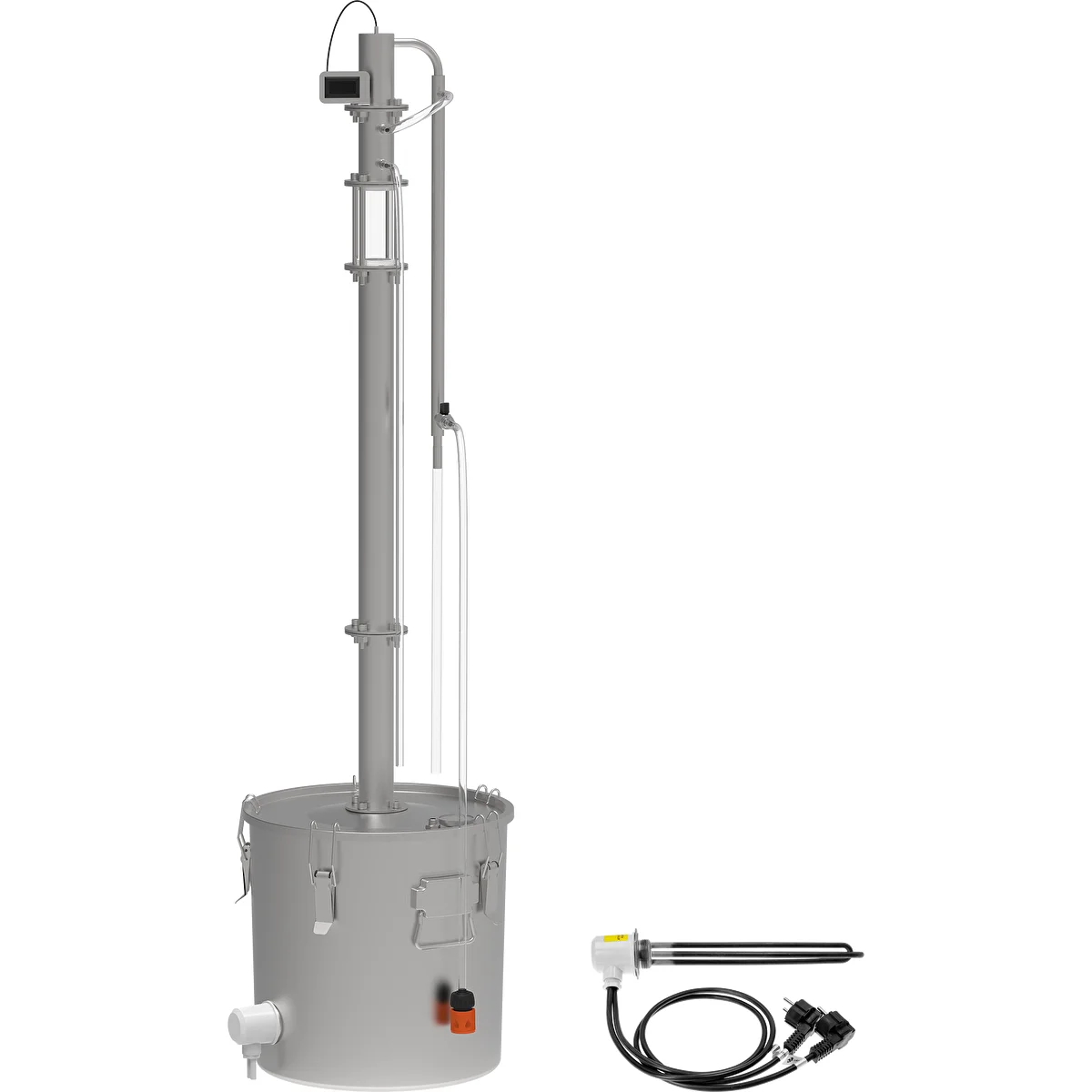

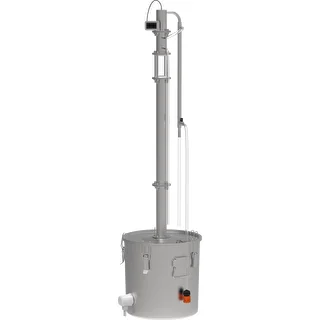

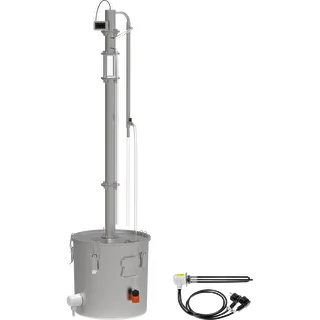

Modular still 30 L Frejr - electric

Frejr - the god of fertility and joy. With our distiller you will experience fertility and joy at the same time.

Frejr electric, modular distiller:

• Inspection glass 360^o - made of heat-resistant boro-silicon glass, allows visual control of the distillation process.
• Flavouring possibility - the viewfinder gives you the possibility to flavour the distillate during the process with any herbs or fruit peels.
• A complete, high-quality kit made of stainless steel – When you buy the Baldur 18 L modular distiller, you get a high-quality distillation set that will last for years.
• Column filling included in the price - the set includes copper prismatic springs and stainless steel filling; their use has a beneficial effect on the taste and aroma of the final product.

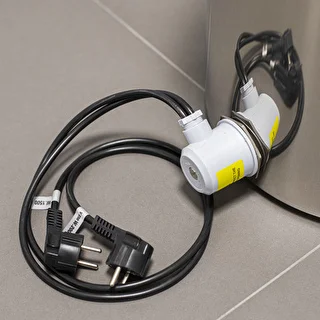

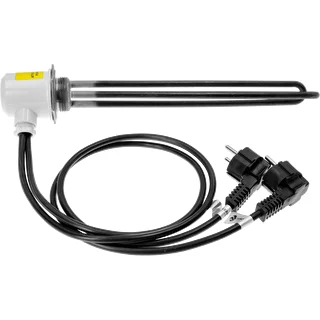

• Heater (2000 i 1500 W) included free of charge – the heater included with the kit features an improved design and is easy to use.

This modular distillation system was created in order to meet the requirements of the most demanding customers. Thanks to the applications of standardising connections and innovative system elements, this system can be used as a basis for configuring various types of stills. The modular assembly allows expansion or different arrangement of the system.

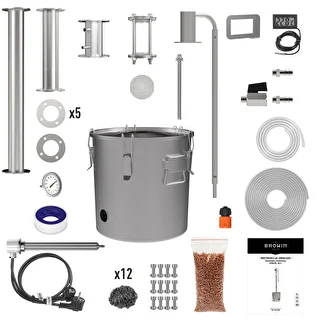

The kit includes:

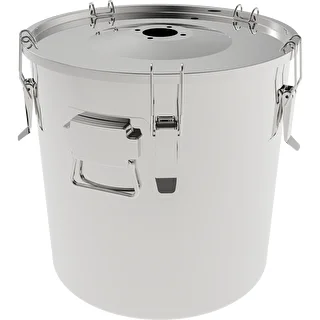

• Container - made of stainless steel.

Structural characteristics:

- capacity - 30 L

- 2 handles for moving around

- 5 clamping brackets

- cover with a built-in silicone gasket

- installation openings in the cover, intended for a thermometer, a probe and still modules

- opening intended for a heater in the container wall.

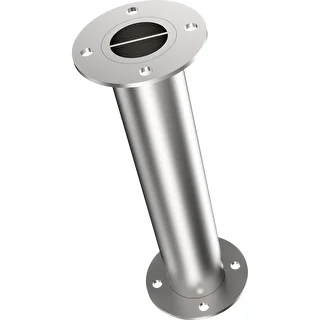

• 250 mm column connector – made of stainless steel.

The connector may perform the function of a catalytic filter, as it enables using a filling that increases the purity of the distillate obtained. The best effect is achieved when using prismatic copper springs. The task of the copper is to adsorb volatile sulphur compounds that provide the distillates with the smell of rotten eggs originating from hydrogen sulphide and have a negative impact on their flavour.

Structural characteristics:

- module height - 250 mm

- external diameter of the module pipe - 48 mm

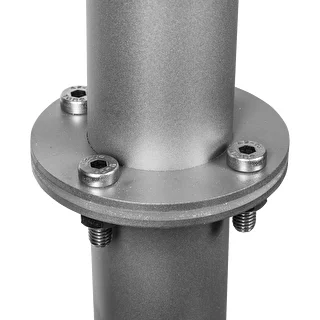

- ending with screw connectors

- possibility of using a filling.

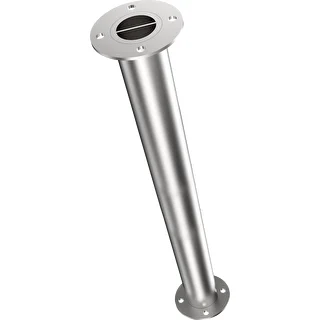

• 500 mm column connector – made of stainless steel.

The connector may perform the function of a rectifier, as it enables using a filling that increases the purity of the distillate obtained.

Structural characteristics:

- module height - 500 mm

- external diameter of the module pipe - 48 mm

- ending with screw connectors

- possibility of using a filling.

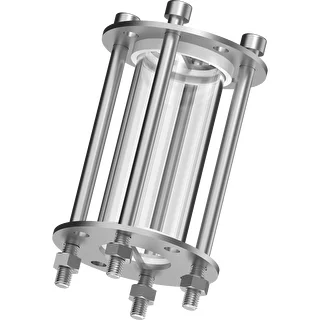

• Inspection glass - an element of still structure, with borosilicate tempered glass and lens gaskets (2 pcs) resistant to high temperature and alcohol.

The inspection glass over the filling enables inspecting the column and such an adjustment of reception valve that the column is nearly flooded, which ensures the highest effectiveness of the process.

The inspection glass can also be used for infusing your liquor with your favourite herbs or fruit, allowing you to produce homemade gin, for example.

Structural characteristics:

- module height - 100 mm

- external diameter - 46 cm

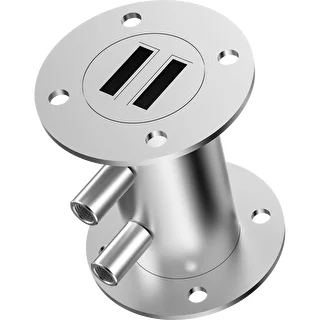

• Reflux – Shotgun - made of stainless steel

Classic “Shotgun” design. The application of this module enables controlling the reflux in the column, which has a direct impact on the flavour and aroma of the distillate.

Thanks to precise adjustment of water flow through the dephlegmator it is possible to extract the flavours desired and adjust the alcohol content in the final product.

Structural characteristics:

- cooling section height - 100 mm,

- external pipe diameter - 48 mm,

- ending with a screw connector,

- 2 internal “Shotgun” passages for distillate vapours, with dimensions of 30 x 10 mm,

- water connection – threaded 1/8” coupler for a hose valve/connector.

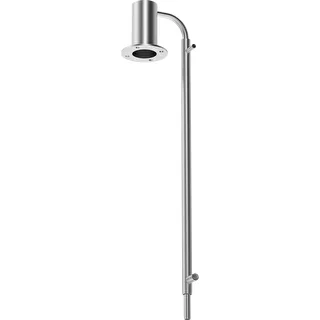

• Head - Liebig cooler - made of stainless steel.

Mounted on top of the distillation column. Classic Liebig cooler design.

The lowered cooler outlet allows for faster and more accurate collection of pre-gons in the distillation process. The kit enables high cooler performance with low water consumption.

Structural characteristics:

- cooling section height - 590 mm,

- external pipe diameter - 48 mm,

- ending with a screw connector,

- Liebig cooler made of 12 mm pipe (internal) and 18 mm pipe (external),

- water connection – threaded 1/8” coupler for a hose valve/connector,

•   slot for a needle probe thermometer.

The kit also includes:

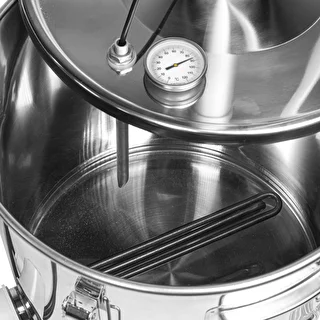

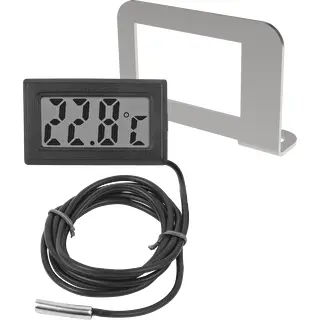

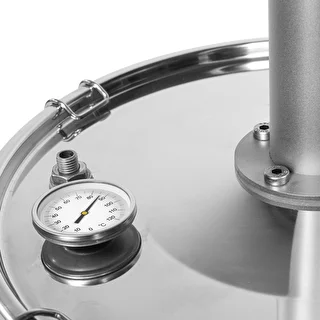

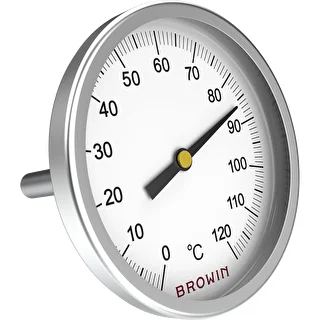

• Two thermometers – an analogue one placed in the container and an electronic one placed in the frame at the top of the column. They enable direct and constant control over the process.

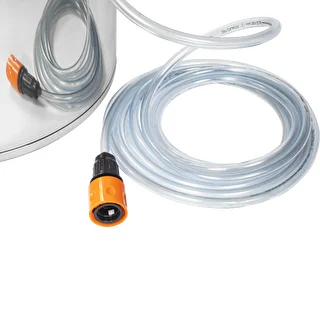

•  Long 5 m plasticized PVC hose – for connecting water, featuring a quick coupling than enables easy connection with a tap.

•  1,5 m silicone hose – for receiving the distillate, safe for use in contact with alcohol.

• 1/8 inch ball valves

• plug connector

• threaded connector - 3 pcs.

• controller probe key

• column attachment cover

• screws for assembling the inspection glass - 4 pcs.

• gaskets - 5 pcs.

• screws and assembly nuts - 12 pcs.

• mesh filling support

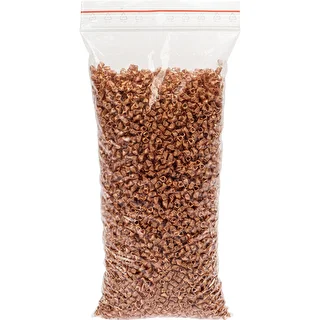

• prismatic copper springs - 1 pc.

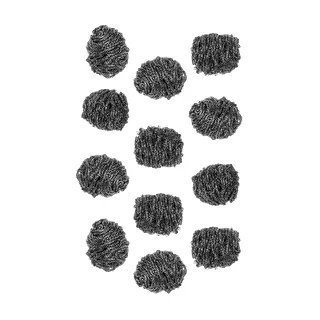

• stainless steel filling - 12 pcs.

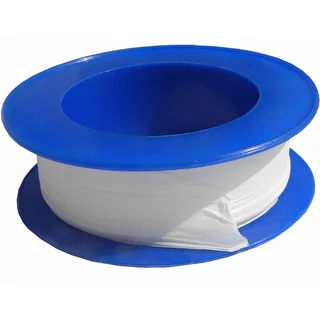

• teflon tape

• user manual.

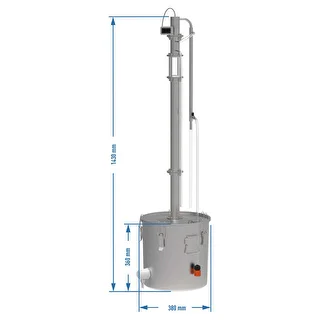

Kit width: about 143 cm

Water consumption during the process: about 30 L / 1 h.

Caution!: The distillation process must be carried out under supervision.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
