Aabratek OLM, 60 L electric buffer tank, WIF thermometer

Discover the secret of perfect distillation delivered by this efficient and practical set, created to meet the high expectations of professionals while providing less experienced users with equipment that is easy to operate and delivers excellent results.

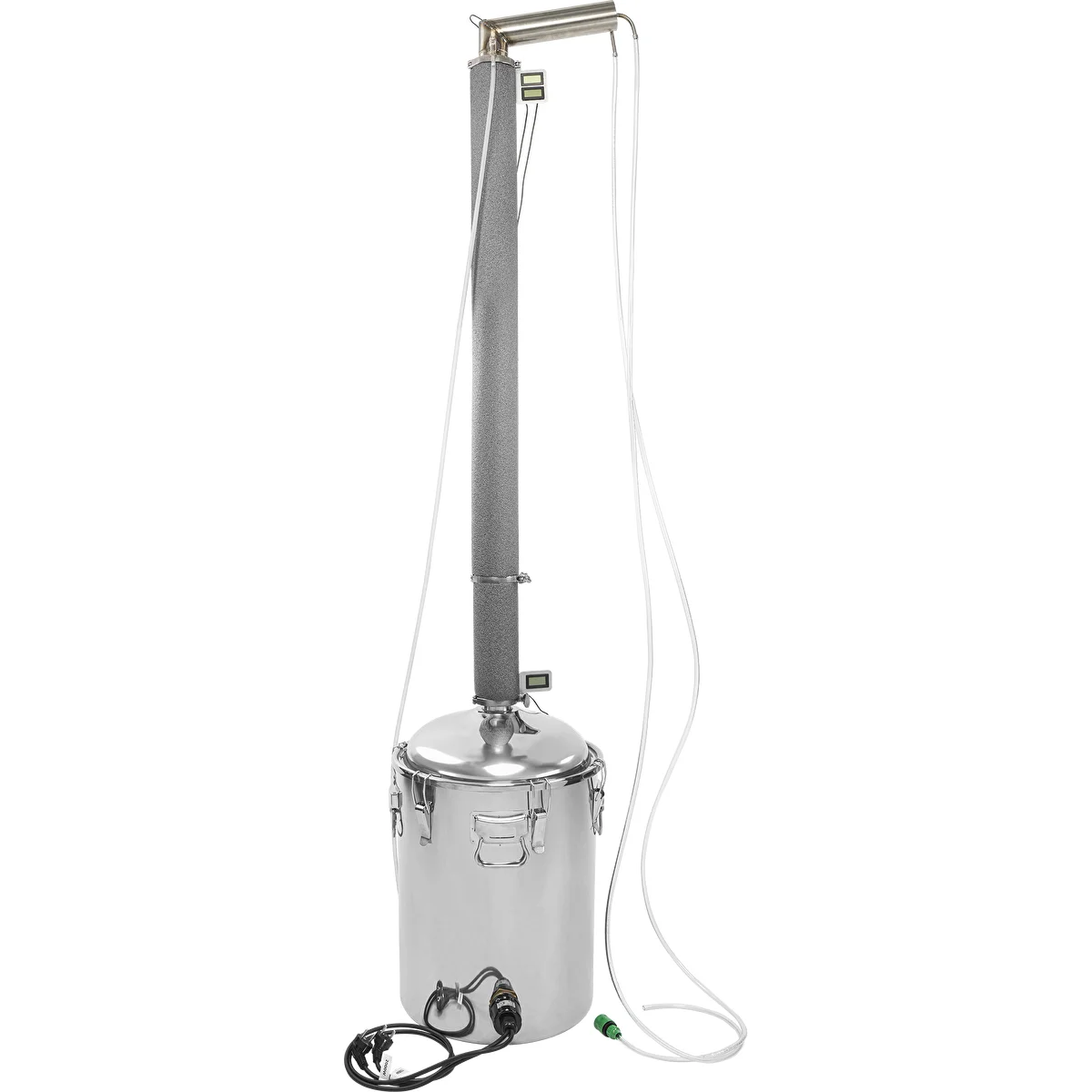

hawkSTILL Aabratek 2.0 distiller with an innovative reservoir design (additional improvement of distillation parameters) is another distiller model with electric modules and a high-performance Ø 60.3 mm column. This professional distiller is equipped, among other things, with a high-capacity vessel (60 L), a reflux system with an Aabratek head (featuring a precision valve and an efficient condenser), thanks to which you can easily control the distillation process. If you are looking for a complete set, components made of high-quality stainless steel, efficient modules that are convenient to use—and you expect an excellent final result—check out hawkSTILL!

Technical data:

• tank capacity: 60 L
• maximum working liquid volume: 50 L
• column diameter: Ø 60.3 mm
• Tri-Clamp connections
• material: stainless steel
• power supply: electric
• heater power: 2000 W + 1500 W
• water consumption: approx. 20–25 L/h
• take-off rate: up to 1.5 L/h

Convenient, opening tank

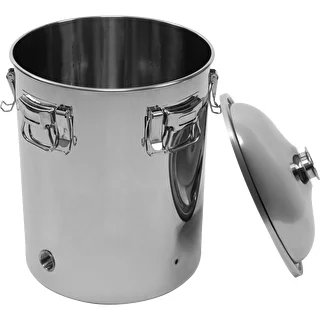

The hawkSTILL AABRATEK 2.0 distiller is equipped with a tank with a removable lid, which significantly increases user comfort. The wide access to the interior enables thorough and convenient cleaning of the vessel.

The opening design also facilitates safe and comfortable pouring of liquids, both before starting the process and after it is completed. This practical solution will be especially appreciated by users who regularly use the device and pay attention to hygiene and ergonomics at work.

Tri-Clamp connections

All column elements are connected with Tri-Clamp fittings, which makes it easy to modify, expand, and reconfigure for different types of distillation, depending on the desired outcome. The use of a high-performance electric module provides comfortable, controlled operation without the need for external heat sources.

What makes our hawkSTILL Aabratek 2.0 distiller stand out?

• Aabratek head with an innovative reservoir design - Aabratek distillers are among the most precise systems, combining ease of operation with a high-quality final result. By introducing an innovative reservoir design, we have further improved the process on devices of this type!
• High throughput - the design of this modular distiller with a 60-liter vessel and a column of appropriate diameter enables efficient distillation of large volumes of liquid (it is recommended not to exceed 90% of capacity).
• High quality - this distiller combines the advantages provided by stainless steel (INOX) and durable polymer, leak-tightness, precision of joints, and durability of the individual components of the set.

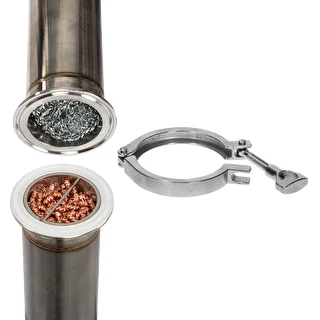

• Column with 60.3 mm OD - optimizes process performance. The column is divided into two modules: a catalyst filled with copper spring packing purifies the distillate of sulfur compounds, and a second section filled with stainless steel scrubbers allows you to achieve higher strength and purity of the distillate.
• Opening vessel with domed (Convex-type) lid - the vessel is closed with a tight domed lid, which allows the safe course of any potential foaming of the wash or mash, increases the stability of the entire column, and has a positive effect on the entire distillation process. The removable lid makes it easier to use and clean the vessel.
• Complete set - the set includes a vessel with a domed lid, a column, an Aabratek-type head, a drain ball valve, 3 electronic thermometers with probes, 2 hoses, a fitting for connecting the water supply, 3 Tri-Clamp clamp sets with gaskets, stainless and copper packing (for the catalyst), PTFE sealing tape, mounting elements, and instructions.

SET COMPONENTS:

• Convex-type vessel with a capacity of 60 L - AISI 304 stainless steel
• column sections (3 pcs.: 240 mm catalyst, 1000 mm column, head)
• LM-type reflux - Aabratek head

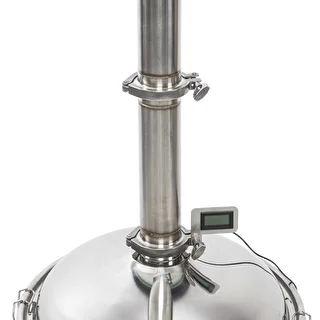

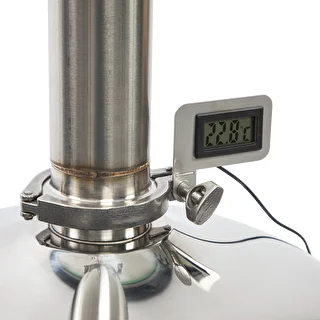

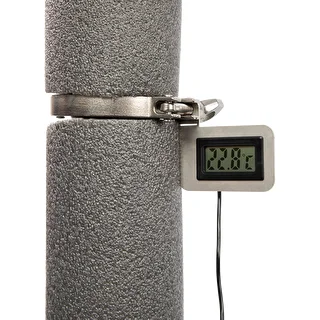

• frame-type electronic thermometer with probe (3 pcs.)
• column insulation, polyethylene (2 pcs.)
• 5 m PVC hose - for water connection, with a quick coupler enabling easy connection to a tap
• 2 m silicone hose - for distillate collection, safe for contact with alcohol
• 1/2-inch drain ball valve - for the 60 L vessel
• Tri-Clamp clamp sets and gaskets (3 pcs.)
• stainless steel packing (24 pcs.)
• copper packing 0.5 L
• PTFE sealing tape
• user manual

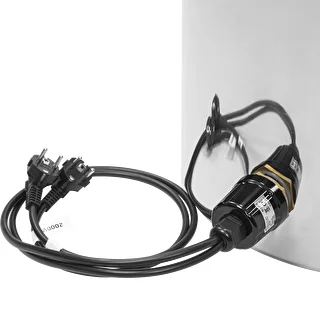

• heating element with a total power of 3500 W, consisting of two heaters powered by independent cables—one rated at 2000 W and the other at 1500 W

Vessel:

• 4 carry handles

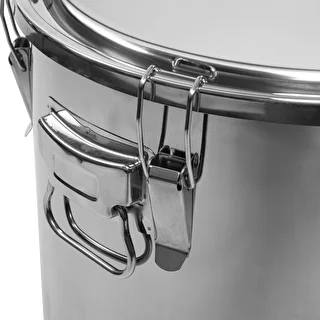

• 6 latch clamps

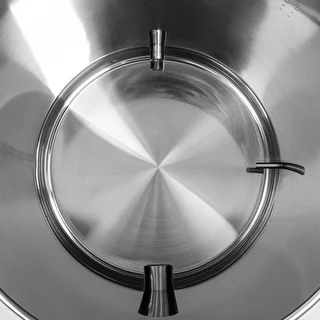

• lid with built-in silicone gasket

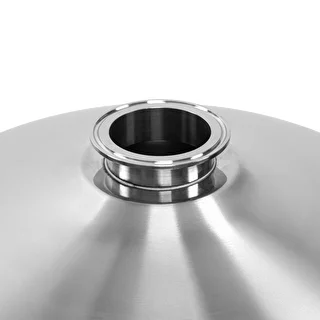

• rigid domed lid with an opening for mounting the column

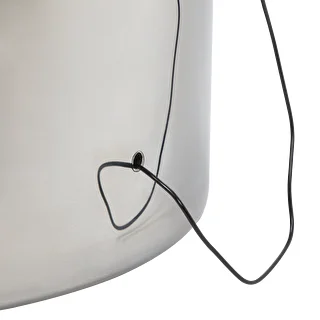

• an opening in the tank wall for a thermometer probe and the heating element

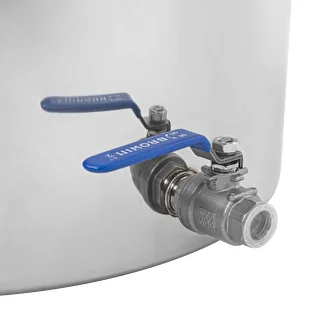

• socket for a drain valve and a matching ball valve for installation

Catalyst:

• module height: 240 mm
• module tube outer diameter: 60.3 mm
• ends with Tri-Clamp connectors
• can be packed
• recommended copper packing
• packing capacity: 0.6 L

Column module:

• height: 1040 mm
• outer tube diameter: 60.3 mm
• terminated with a Tri-Clamp connector
• packing section capacity: 2 L

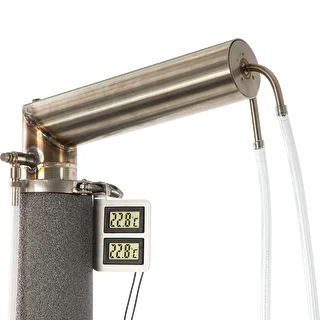

Head with condenser:

• cooling section height: 140 mm
• outer tube diameter: 60.3 mm
• tube connecting the column with the head, diameter: 18 mm
• water connection - tube welded into the condenser: 10 mm
• thermometer port

In the upper part of the head there is a place for the thermometer probe, which allows direct monitoring of vapor temperatures throughout the process.

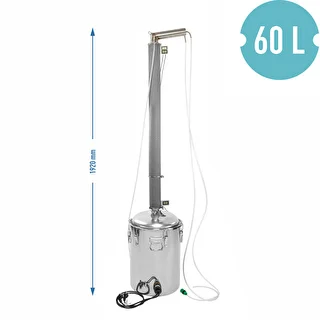

Distiller dimensions (assembled):

• height: 2053 cm
• width at the widest point: 603 mm

Note! Before use, you must read the instructions attached to the product and the rules for its use, cleaning, and maintenance. Observing the given recommendations will ensure appropriately long, effective, and safe use of the distiller.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
