Discover the secret to flawless distillation with this efficient, practical kit—engineered to meet the high expectations of professionals while giving newcomers an easy-to-use setup that delivers outstanding results.

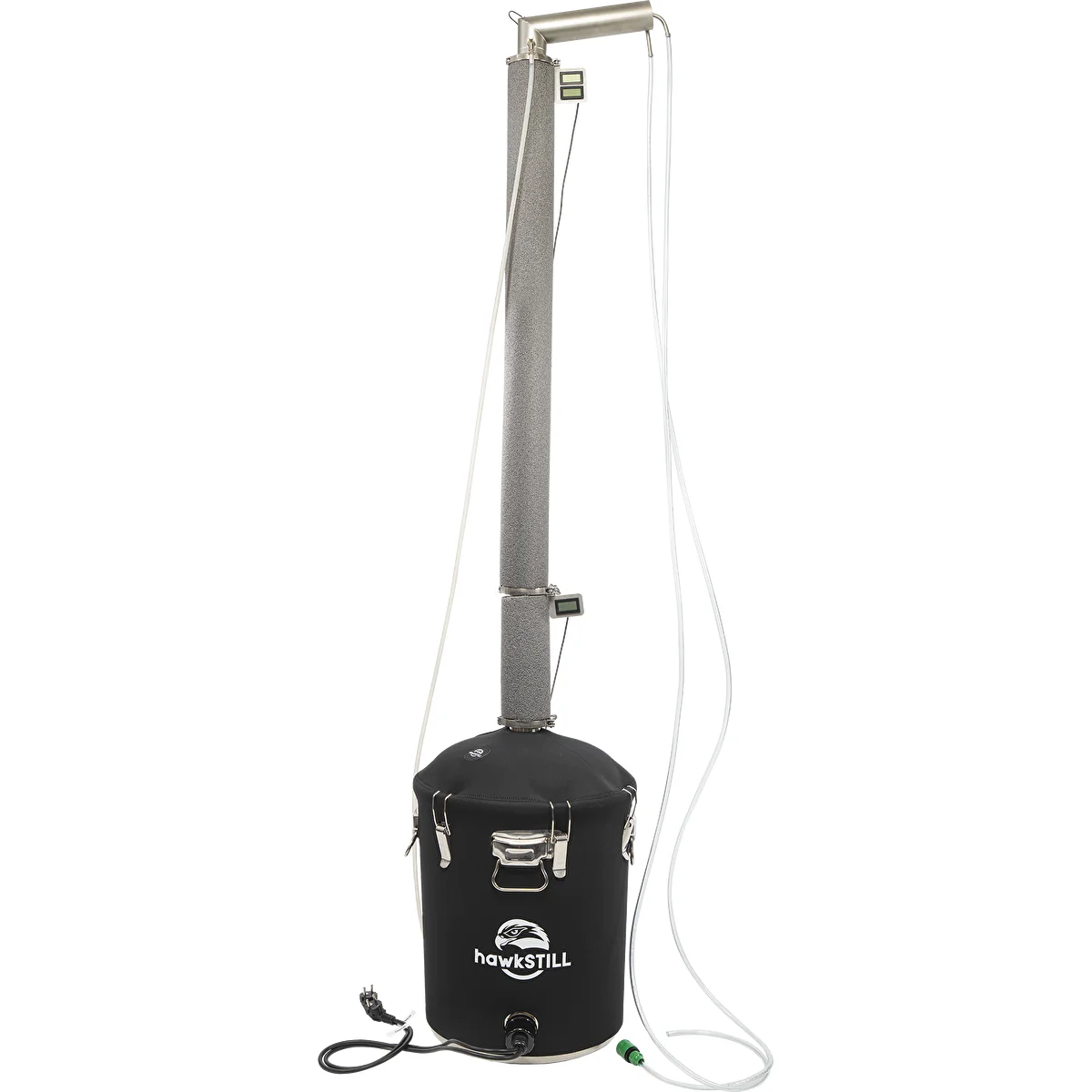

hawkSTILL Aabratek 2.2 PREMIUM Distiller with an innovative collection pool design (for even better distillation performance) is the next evolution of our electric modular still with a high-efficiency column Ø 60.3 mm. This professional-grade unit includes a large-capacity boiler (60 L) and a reflux system with an Aabratek head (fitted with a precision needle valve and a powerful condenser) so you can easily control every run. If you want a complete kit built from high-quality stainless steel, efficient modules that are simple to operate—and you’re aiming for a top-tier final result—choose hawkSTILL!
👉 This version includes:
- Neoprene insulation for the Convex 60 L still boiler with an opening lid. Effective and quick to fit and remove. Easy to clean.
- A glass–bead–blasted column with a deep, satin-matte finish.
Specifications:
- boiler capacity: 60 L
- maximum working volume: 50 L
- column diameter: Ø 60.3 mm
- Tri-Clamp fittings
- material: stainless steel
- power supply: electric
- heating elements: 2000 W + 1500 W
- water consumption: approx. 20–25 L/h
- Takeoff rate: up to 1.5 L/h
- Neoprene insulation (quick to fit and remove)

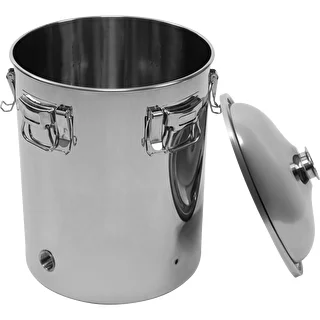

Convenient boiler with removable lid

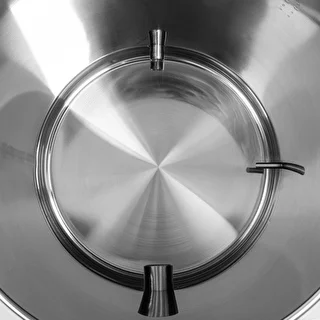

The hawkSTILL AABRATEK 2.0 still features a boiler with a removable lid, greatly improving day-to-day convenience. The wide opening gives you easy, thorough cleaning access.
The opening design also makes transferring liquids safe and comfortable—both before you start and after you finish the run. It’s a practical solution you’ll appreciate if you use the unit regularly and value hygiene and ergonomics.

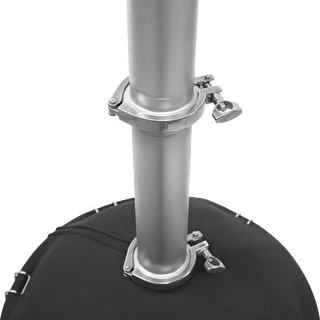

Tri-Clamp connections
All column sections are joined with Tri-Clamp fittings, making it simple to modify, expand, and reconfigure for different types of distillation depending on the result you want. The efficient electric module delivers comfortable, controlled operation with no need for external heat sources.

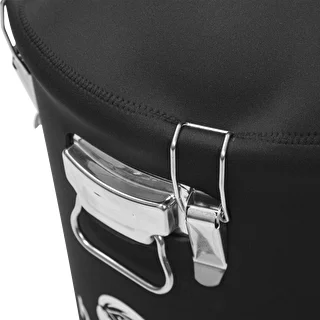

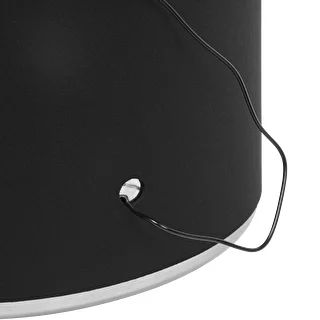

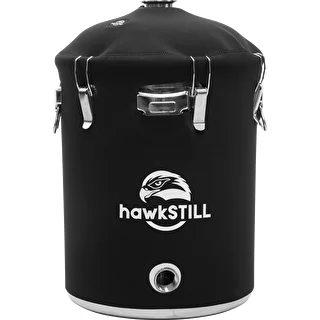

Neoprene insulation for the Convex 60 L boiler
Purpose-built for safety and comfort during distillation. Rugged insulation made from flexible neoprene, designed specifically for the 60 L Convex boiler with a removable lid. Precise cutouts ensure full access to the handles, tap, and thermometer port without compromising functionality. Easy to fit, remove, and clean.
Glass–bead–blasted column
A modern surface treatment that gently smooths the steel with high-pressure micro glass beads. The result? A deep, satin-matte finish that truly stands out!
Benefits of glass–bead blasting:
- No sharp edges or burrs — the process gently smooths the surface, removing sharp ends left after cutting or welding.
- Greater corrosion resistance — a smoother surface reduces micro-crevices and improves stainless steel’s resistance. Ideal for home and professional use!
- Premium aesthetics — the matte column finish gives the unit a professional, modern look.
- Longer service life — the refined surface layer helps the steel retain its properties and appearance through years of intensive use.
What sets our hawkSTILL Aabratek 2.0 apart?
- Aabratek head with an innovative collection pool design — Aabratek reflux stills are among the most precise systems, combining ease of use with exceptional final quality. By redesigning the takeoff reservoir, we’ve further refined performance on this style of still!
- High throughput — this modular setup with a 60-liter boiler and a properly sized column enables efficient distillation of larger volumes (we recommend not exceeding 90% of capacity).
- High quality — the still combines the benefits of stainless steel (INOX) with durable polymer components, offering tightness, precise joints, and long-lasting parts throughout the kit.

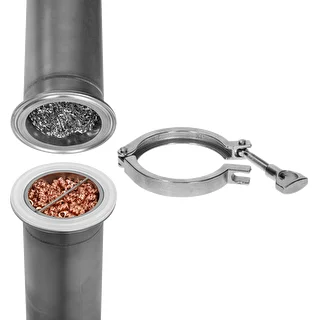

- 60.3 mm OD column — optimizes process performance. The column is split into two modules: a catalyst packed with copper springs that scrub sulfur compounds from the vapor, and a second section packed with stainless scrubbers to achieve higher proof and cleaner product.
- Boiler with domed (Convex) lid — the boiler seals with a tight domed lid that safely handles any foaming of the wash or mash, improves overall column stability, and benefits the entire process. The removable lid makes the boiler easier to use and clean.
- Complete kit — includes the boiler with domed lid, column, Aabratek LM head, drain ball valve, 3 digital thermometers with probes, 2 hoses, a water-supply connector, 3 Tri-Clamp sets with gaskets, stainless and copper packing (for the catalyst), PTFE sealing tape, mounting hardware, and a user manual.
KIT COMPONENTS:
- Convex boiler, 60 L — ASI304 stainless steel
- column sections (3 pcs: 240 mm catalyst, 1000 mm column, head)
- LM reflux — Aabratek head

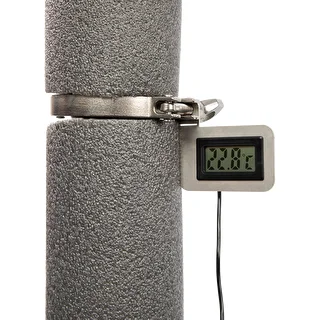

- digital thermometer with probe (3 pcs)
- polyethylene column insulation (2 pcs)
- 5 m PVC hose — for water supply, with a quick connector for easy tap hookup
- 2 m silicone hose — for product takeoff, safe for alcohol contact

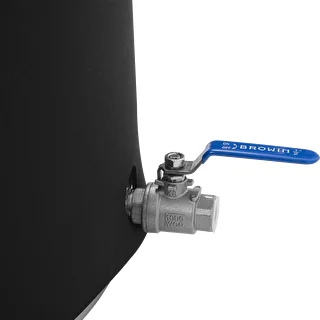

- 1/2-inch drain ball valve — for the 60 L boiler
- Tri-Clamp sets with gaskets (3 pcs)
- stainless packing (24 pcs)
- copper packing 0.5 L
- PTFE sealing tape
- user manual

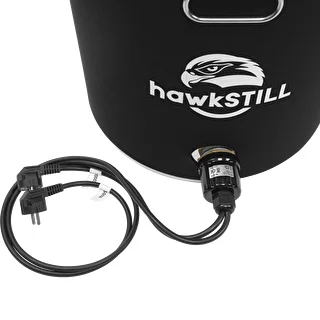

- 3500 W heater comprising two elements on independent power cords — one 2000 W and the other 1500 W
Boiler:
- 4 carry handles
- 6 locking clamps
- lid with integrated silicone gasket
- rigid domed lid with an opening for mounting the column
- an opening in the boiler wall for a thermometer probe and the heater
- welded socket for a drain valve and a matched ball valve for installation

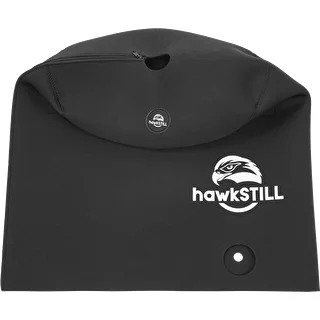

Neoprene insulation for the Convex 60 L boiler
- Made from durable, flexible neoprene
- Precisely fitted for the Convex 60 L boiler with a removable lid
- Cutouts for handles, tap, and thermometer port

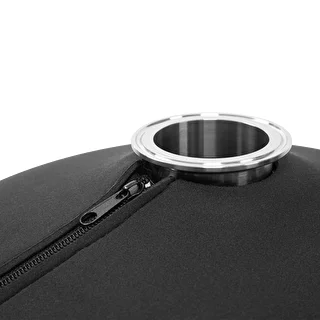

- Zip closure for easy on/off
- Thermal insulation, mechanical protection, and safe handling
Catalyst module:
- module height: 240 mm
- outer tube diameter: 60.3 mm
- Tri-Clamp ends
- suitable for packing
- recommended packing: copper
- packing capacity: 0.6 L
Column module:
- height: 1040 mm
- outer tube diameter: 60.3 mm
- Tri-Clamp end
- packing section capacity: 2 L

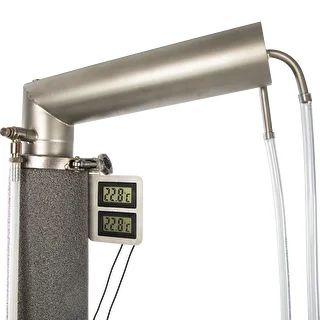

Head with condenser:
- cooling section height: 140 mm
- outer tube diameter: 60.3 mm
- tube connecting the column to the head: 18 mm
- water connection — 10 mm tube welded to the condenser
- thermometer port
The top of the head includes a port for a thermometer probe, allowing you to directly monitor vapor temperatures throughout the run.

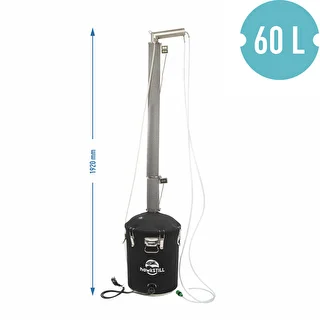

Distiller dimensions (assembled):
- height: 2053 cm
- width at the widest point: 603 mm
Note! Before use, you must read the manual supplied with the product and follow the rules for operation, cleaning, and maintenance. Adhering to these guidelines will ensure long-lasting, efficient, and safe use of the distiller.
CAUTION!
Every country has its own legal regulations governing the
manufacturing of ethyl alcohol, wine products, and spirits,
introducing them onto the market, and regarding sanctions for
non-compliance.
