Funnels for the new stuffer version 311006

Spare funnels for the current version vertical stuffer with capacity of 5 kg (product symbol: 311006) and the premium vertical fillers with a capacity of 3L (311036), 5L (311037), 7L (311038).

• Useful in the kitchen of any producer of homemade charcuterie - if you are preparing delicacies that require stuffing, you can rest assured that the stuffing process will go smoothly and professionally with these funnels.
• A set of funnels with different outlet diameters - thanks to these funnels your household stuffer will always be ready to use and will allow you to make products of various thickness.
• Practical and convenient to use - the funnels enable you to apply even large quantities of filling conveniently, efficiently and hygienically.
• Easy replacement and cleaning - the funnels are easy to install, remove and wash.
• High quality - the funnels are made of high-quality plastic ensuring appropriate product durability.

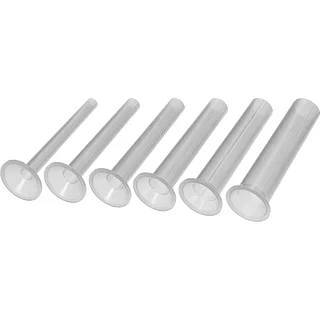

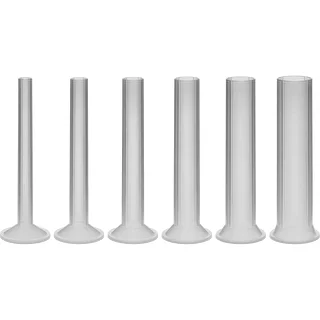

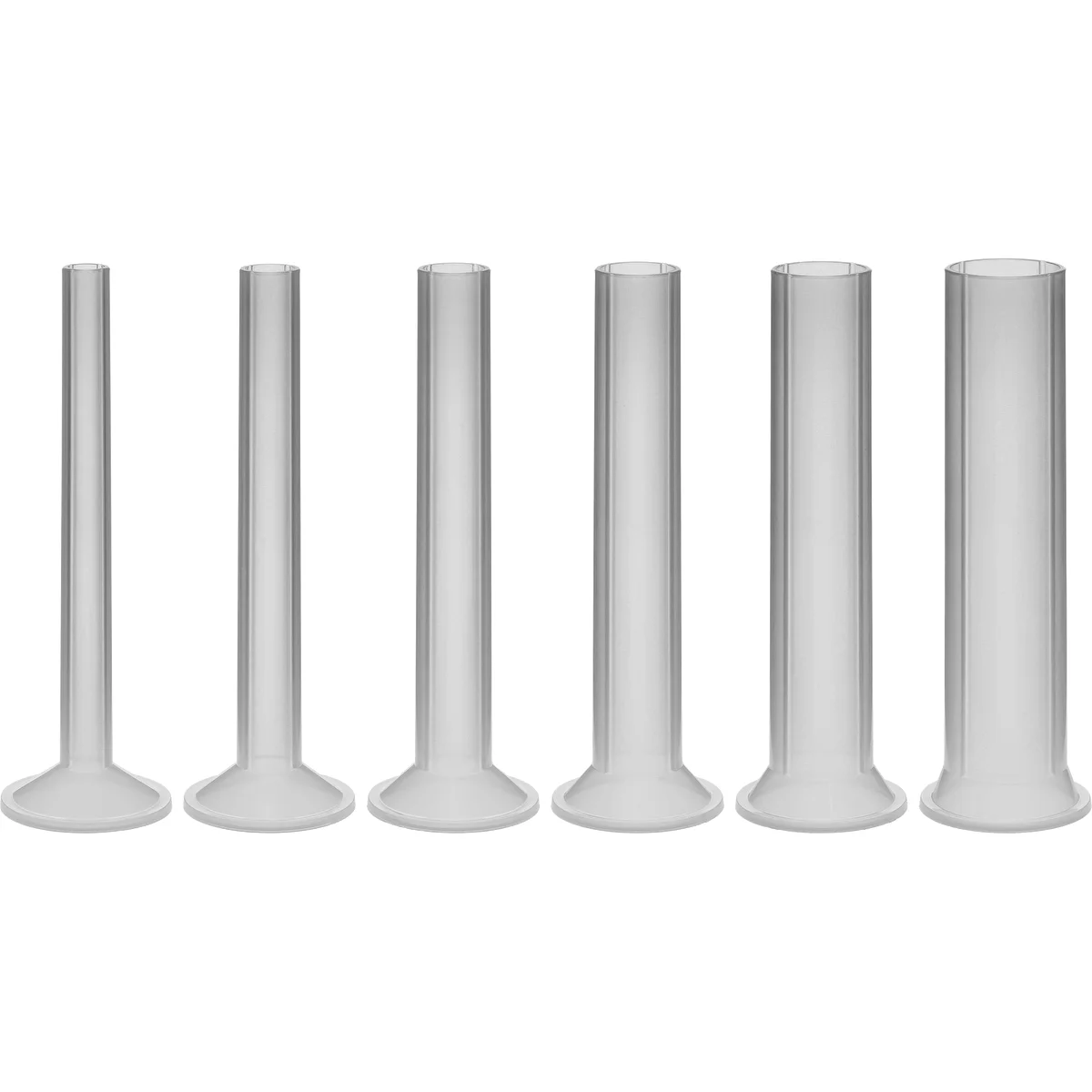

A useful set (6 pcs) of spare funnels dedicated for the current version of Browin’s vertical stuffer with capacity of 5 kg(311006) and the premium vertical fillers with a capacity of 3L (311036), 5L (311037), 7L (311038). Installation of funnels using a threaded nut. Each funnel differs in terms of outlet diameter: 14 mm, 18 mm, 21 mm, 25 mm, 29 mm and 35 mm.

Meanwhile, the sleeve diameters in the inlet are as follows, accordingly: 16 mm, 20 mm, 23 mm, 27 mm, 31 mm and 37 mm. The diameter of flange (without hooks) is the same for all the funnels included in the set - 52 mm.

The funnels are made of high-quality plastic, which provides them with appropriate effectiveness and durability. They enable conducting the stuffing process in a convenient, efficient and hygienic way.

Thanks to the possibility of replacement of funnels worn during intensive use of the stuffers, the lifetime of the equipment is prolonged, which is very important to every producer of homemade processed meat.

The funnel replacement process is simple, same as keeping it clean.

Please note: The funnels are compatible with Browin’s vertical stuffer with capacity of 5 kg (product symbol: 311006) in the current version after design changes - the funnels are attached using a threaded nut.

For the first version of the stuffer, already replaced by the newer, current version on offer, the 311022 funnels (with click&twist fixing) should be used.

Colour: white/ivory

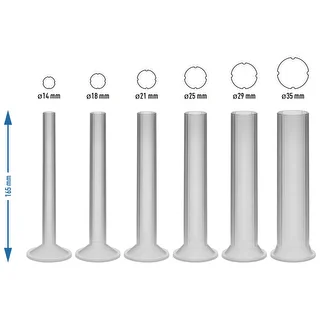

Funnel parameters:

- length: 145 mm

- diameters:

1.   14 mm (outlet), 16 mm (inlet)

2.   18 mm (outlet), 20 mm (inlet)

3.   21 mm (outlet), 23 mm (inlet)

4.   25 mm (outlet), 27 mm (inlet)

5.   29 mm (outlet), 31 mm (inlet)

6.   35 mm (outlet), 37 mm (inlet)

- diameter of the assembly flange: 42 mm
