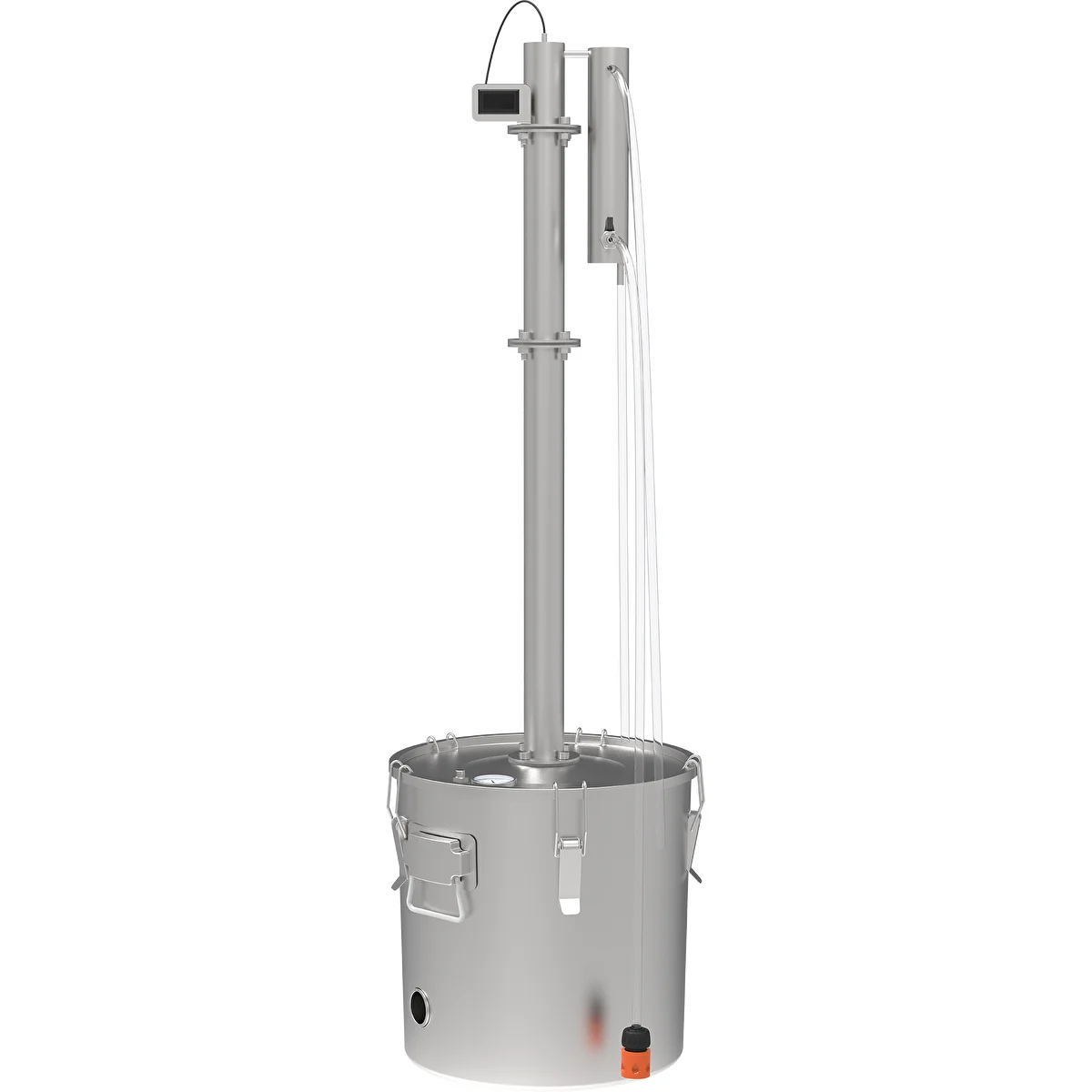

Modular distiller for flavoring distillates 30 L - without heating element

A distiller for flavoring distillates is a device used to impart aroma to various liquids, such as alcohol, water, or essential oils.

• Natural aromas - a distiller for flavoring distillates makes it possible to add natural aromas (herbs, grains, fruits) to liquids, allowing you to avoid artificial additives.
• Saving money - the device enables the production of gin, absinthe, fruit vodkas, or essential oils much more cheaply than the same alcohols available in stores.
• Ease, speed, and efficiency - the flavoring distiller is fast and efficient, making it easy to flavor large quantities of liquids in a short time.
• Possibility of using the module as a catalytic filter - the 250 mm connector, after being filled with prismatic springs, can be used as a catalytic filter.
• Possible modification - the modular distiller is a base that you can expand at any time by purchasing additional modules.

The modular distillation system was created to meet the needs of the most demanding customers. Thanks to standardized connections and innovative system components, you can configure various types of distillers on this basis.

The set includes:

• Container - made of stainless steel

Design features:

- capacity - 30 l

- 2 carrying handles

- 5 latch clamps

- lid with a built-in silicone gasket

- mounting holes in the lid for a thermometer (102700) and distillation modules

- socket for installing an electric heater

• Distiller module - 500 mm column connector – Distiller module installed to increase the height of the distillation column.

Design features:

- module height 500 mm

- outside diameter of the module tube 48 mm

- terminated with screw connections

- possibility of using packing.

• Distiller module for flavoring the distillate - stainless steel distiller module complete with a flavoring basket.

The flavoring basket using the "Bombay method" is an extremely useful module that allows the distillate to be flavored during distillation. The distillate vapors pass through a permeable module containing herbs, fruit, or spices whose unique aroma we want to impart to the distillate.

Thanks to its design and appropriate perforation, the flavoring module does not "choke" the still and does not cause the column to flood during distillation.

The 250 mm connector can also serve as a catalytic filter after being filled with copper springs, allowing the use of packing that increases the purity of the obtained distillate. The best effect is achieved when using prismatic copper springs. Copper is intended to adsorb (absorb) volatile sulfur compounds that give distillates a hydrogen sulfide rotten-egg odor and negatively affect their taste. The connector holds approx. 450 ml of packing, which should be purchased separately.

Design features:

Connector:

- module height 250 mm

- outside diameter of the module tube 48 mm

- terminated with screw connections

- possibility of use as a catalytic filter.

Flavoring basket:

- module height 120 mm

- outside diameter of the module tube 45 mm

- finished with a flange preventing the module from falling into the connector

- made of high-grade stainless steel

The basket is dishwasher safe

• Head - spiral condenser - distiller module made of stainless steel, mounted at the top of the distillation column. The head is to be mounted above the 250 mm module with the extraction basket. Such a solution makes it possible to obtain flavored alcohols. Mounted in a simple pot still system, the head will deliver excellent flavored spirits.

Design features:

- outside diameter of the tube - 48 mm

- height of the cooling section 280 mm

- water connection - 1/8" threaded socket for a fitting/valve for hoses

- port for an electronic thermometer.

The set additionally includes:

• two thermometers - an analog one placed in the container and an electronic one placed in the frame at the top of the column. They enable direct and continuous control of the process.
• frame for the electronic thermometer
• 5 m PVC hose - for connecting water, equipped with a garden quick connector enabling easy connection to a tap.
• 1 m silicone hose - for collecting the distillate, safe for contact with alcohol.
• controller probe port
• 1/8 inch ball valve
• threaded fitting
• column mounting cap
• 3 gaskets
• set of 12 mounting screws and nuts
• Teflon tape
• user manual.

Set height: 131 cm

Warning!: The distillation process should be carried out under supervision.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
