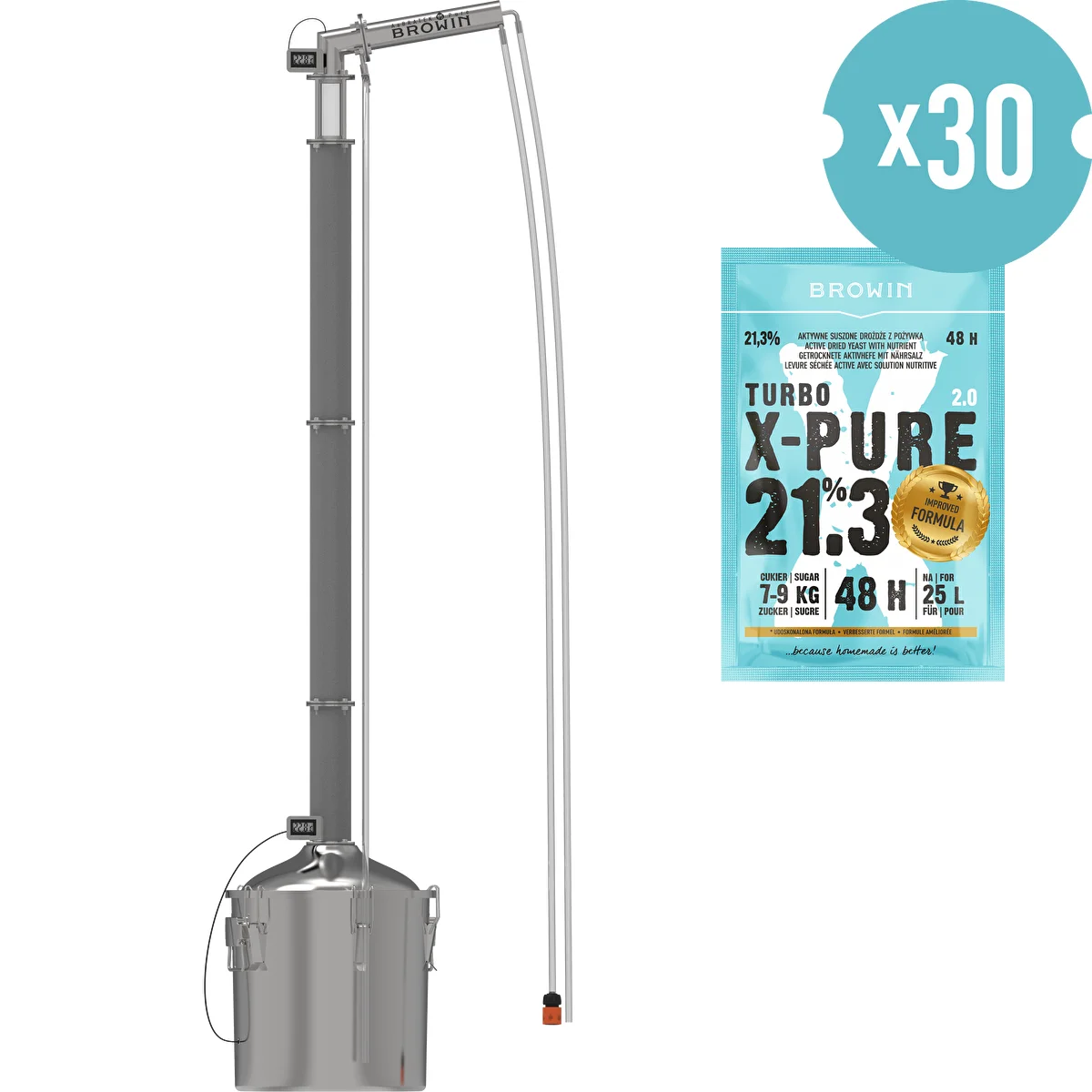

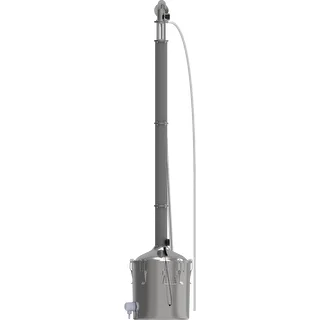

Modular convex still 30 L electric - with Aabratek head

This modular distillation system was created in order to meet the requirements of the most demanding customers. Thanks to the applications of standardising connections and innovative system elements, this system can be used as a basis for configuring various types of stills. The modular assembly allows expansion or different arrangement of the system.

The Aabratek modular convex still is a new version featuring a pot with a dome lid, and revised container temperature readout location.

For a limited time, the still kit comes with terrific bonus - whole 24 sachets of the excellent Turbo X-Pure 21.3% 48 h yeast, free of charge! Such an opportunity is worth taking advantage of as soon as possible!

Browin’s Aabratek convex still is:

• A complete, high-quality kit made of stainless steel - by purchasing the Aabratek Browin still you receive a complete distillation kit that will serve you for many years. High quality confirmed by warranty. No unpleasant smells during the process. A special bonus is included in the kit for a limited time: 24 packs of Turbo X-Pure 21,3% yeast!
• Aabratek head - the appropriate angle of the head - 100° - and the capacity of the pond ensure the high quality of the final product, as well as the capability of obtaining 95% distillate already during the first distillation.
• Precision needle valve - the application of this type of valve facilitates controlling the process and stabilising the column by enabling adjustment of reception rate.
• 360° inspection glass - it is made of boron-silicate glass resistant to high temperature and enables stacking and aromatisation of the distillate.
• Copper and stainless filling are included in the kit - the copper springs absorb sulphur compounds, having a positive impact on the aroma and flavour of the final product of the distillation. The stainless filling is used for filtering the liquid returning from the head and the inspection glass, thanks to which the exchange surface is maximised, thus creation theoretical plates.
• Column cladding reduces heat losses – this enables conducting the process in lower ambient temperature
• Instead of a keg – an airtight container with dome lid and 5 clamps.



CONTAINER:

• easy to pour liquids in and out
• simple removal of the tight cover
• convenient cleaning of the container interior
• the container can be used for storage of majority of the kit elements

KEG:

• difficult to top up and empty
• impossible to open fully
• difficult cleaning process
• cannot be used for any purposes other than distillation and fermentation

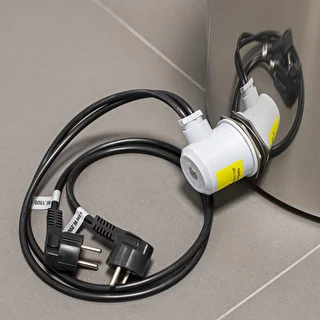

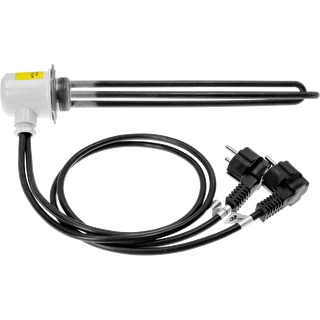

Heater (2000 and 1500 W) free of charge The included heater has an improved design and is easier to use.

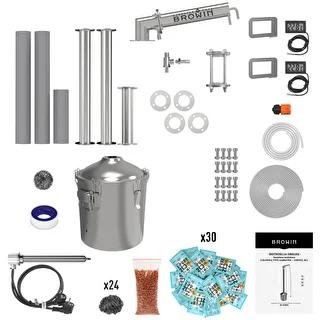

The kit includes:

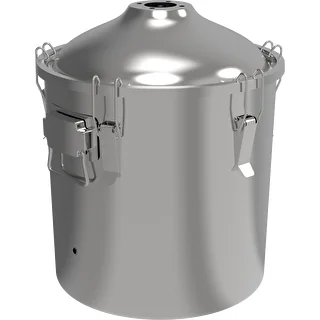

Container- made of stainless steel

Structural characteristics:

• capacity - 30 L
• 2 handles for moving around
• 5 clamping brackets
• cover with a built-in silicone gasket
• rigid dome lid with opening for column installation
• installation openings in the cover, intended for a thermometer, a probe and still modules
• opening intended for a thermometer probe and heater in the container wall.

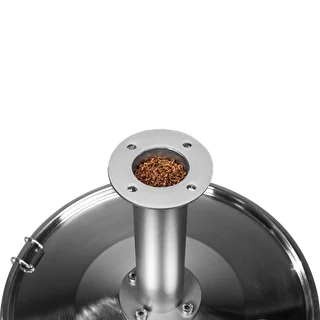

The new conical shape of the container lid allows for potential foaming of the batch or mash, without the risk of contamination of the column and its filling. The dome shape also increases the stability of the entire column, even with tall still, which also translates into increased stability of the entire distillation process. The new lid form is inspired by the classic 'swan-neck' alembics, providing an eye-pleasing detail.

Changing the position of the thermometer opening in the container gives you greater control over the temperature of the substance being cooked inside the pot - this is important not only in the distillation process but also when mashing grain, pasteurising or even heating food.

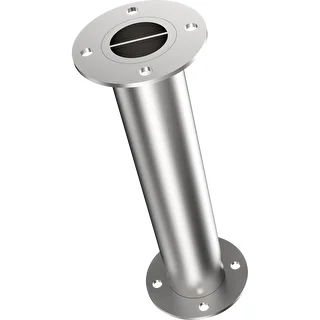

The kit includes:Still module – 250 mm column connector – still module made of stainless steel.

The connector may perform the function of a catalytic filter, as it enables using a filling that increases the purity of the distillate obtained. The best effect is achieved when using prismatic copper springs. The task of the copper is to adsorb volatile sulphur compounds that provide the distillates with unpleasant smell and have a negative impact on their flavour.

Structural characteristics:

• module height - 250 mm
• external diameter of the module pipe - 48 mm
• ending with screw connectors
• possibility of using a filling.

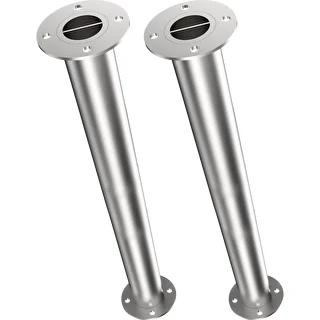

2 x Still module - 500 mm column connector - still module made of stainless steel.

The connector may perform the function of a rectifier, as it enables using a filling that increases the purity of the distillate obtained.

Structural characteristics:

• module height - 500 mm
• external diameter of the module pipe - 48 mm
• ending with screw connectors
• possibility of using a filling.

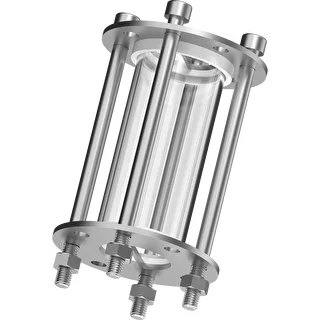

Still module – 100 mm inspection glass – stainless still module, with boron-silicate tempered glass and gaskets (2 pcs) resistant to high temperature and alcohol. Structure based on 4 fastenings and rods.

Structural characteristics:

• module height - 100 mm
• external diameter - 46 mm
• ending with screw connectors
• possibility of using a filling.

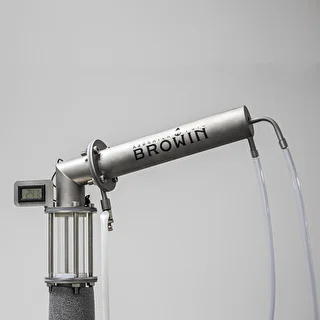

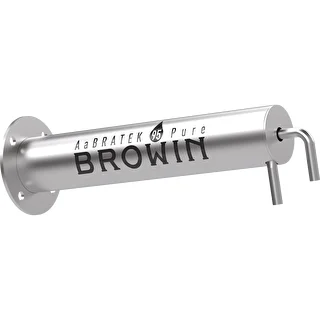

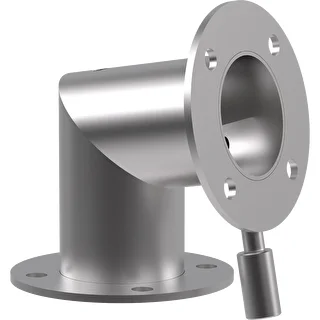

Still module - Aabratek head - still module made of stainless still, consisting of an elbow with a built-in dam, a stub pipe for receiving the distillate and a condenser in an open system. Comes in a complete set with: silicone gaskets (2 pcs), a complete set of bolts and nuts (4 pcs).

When combined with the kit, the appropriate angle of the condenser and the pond capacity enable obtaining pure distillate of very high quality. The precision needle valve facilitates control over the distillation process.

Structural characteristics:

• module height - 135.5 mm head angle - 100°
• module length - 385 mm
• ending with screw connectors.

The kit also includes:

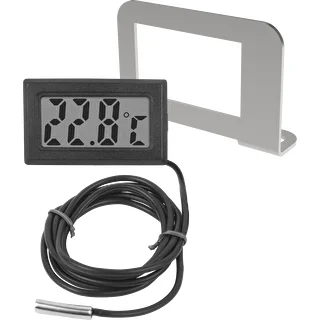

• two electronic thermometers installed in the frame.  They enable direct and constant control over the process

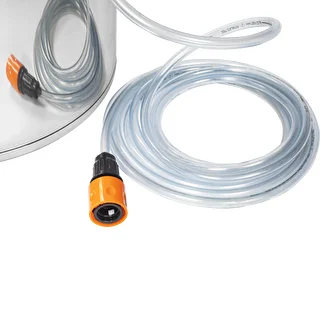

• 5 m plasticised PVC hose - for connecting water, featuring a quick coupling than enables easy connection with a tap
• 1.5 m silicone hose - for receiving the distillate, safe for use in contact with alcohol
• straight threaded connector
• precision throttle check valve
• rods for installing the inspection glass – 4 pcs
• gaskets – 4 pcs
• a set of mounting bolts and nuts
• stainless support for the filling

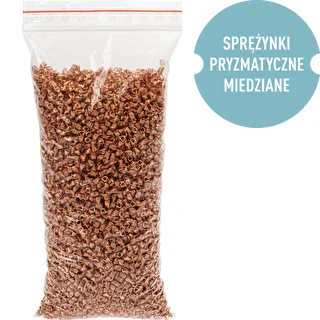

• prismatic copper springs - 0.5 L

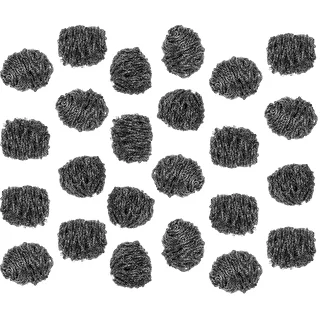

• stainless filling - 24 pcs
• polyethylene lagging of the column

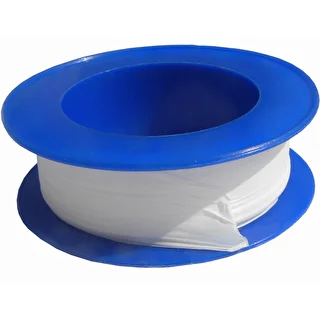

• PTFE tape
• user manual.

When you receive still kit, you will find a surprise that will reinforce your positive attitude: 24 packs of Turbo X-Pure 21,3% yeast, free of charge.

Please note: This offer is available for a limited time only.

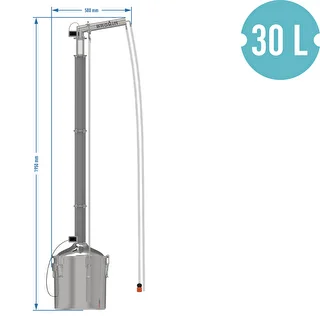

Kit width: about 194.5 cm

Water consumption during the process: about 20-25 L / 1 h.

Please note: The distillation process should be carried out under supervision.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
