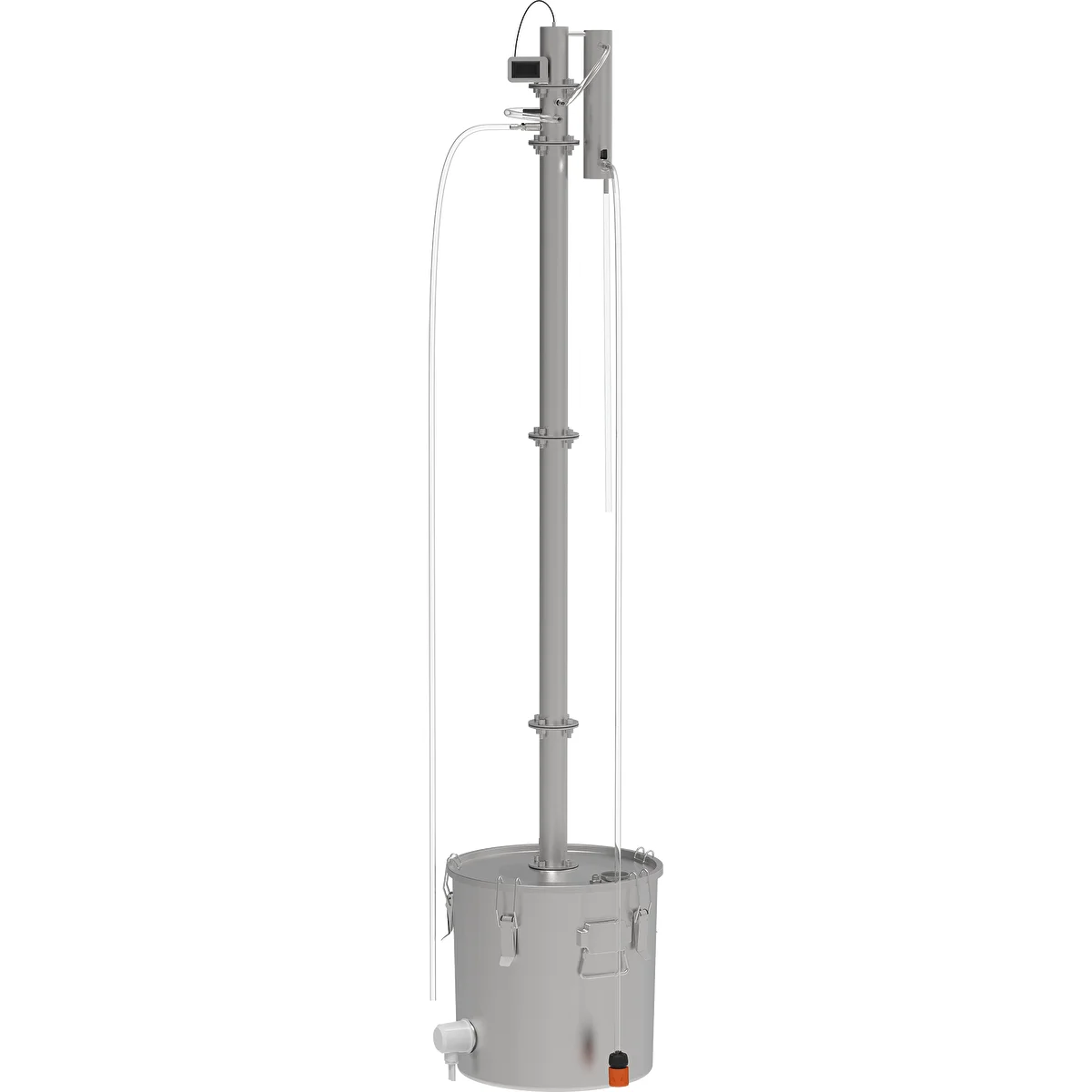

Modular still 30 L Freja – electric

Freja is the goddess of vegetation and magic. Thanks to this strong patroness, the batches will grow like yeast and magic will happen in the still.

Freja's electric modular distiller is:

• Cleaner distillate with higher concentration - reflux offers the possibility of better distillation results than a simple distiller.
• Suitable for sugar-based stills - the Freja distiller will prove useful for obtaining pure, high-quality distillates.
• A complete, high-quality kit made of stainless steel – by purchasing still you receive a complete distillation kit that will serve you for many years.
• Column filling included in the price - the set includes copper prismatic springs and stainless 2 packs steel filling; their use has a beneficial effect on the taste and aroma of the final product.

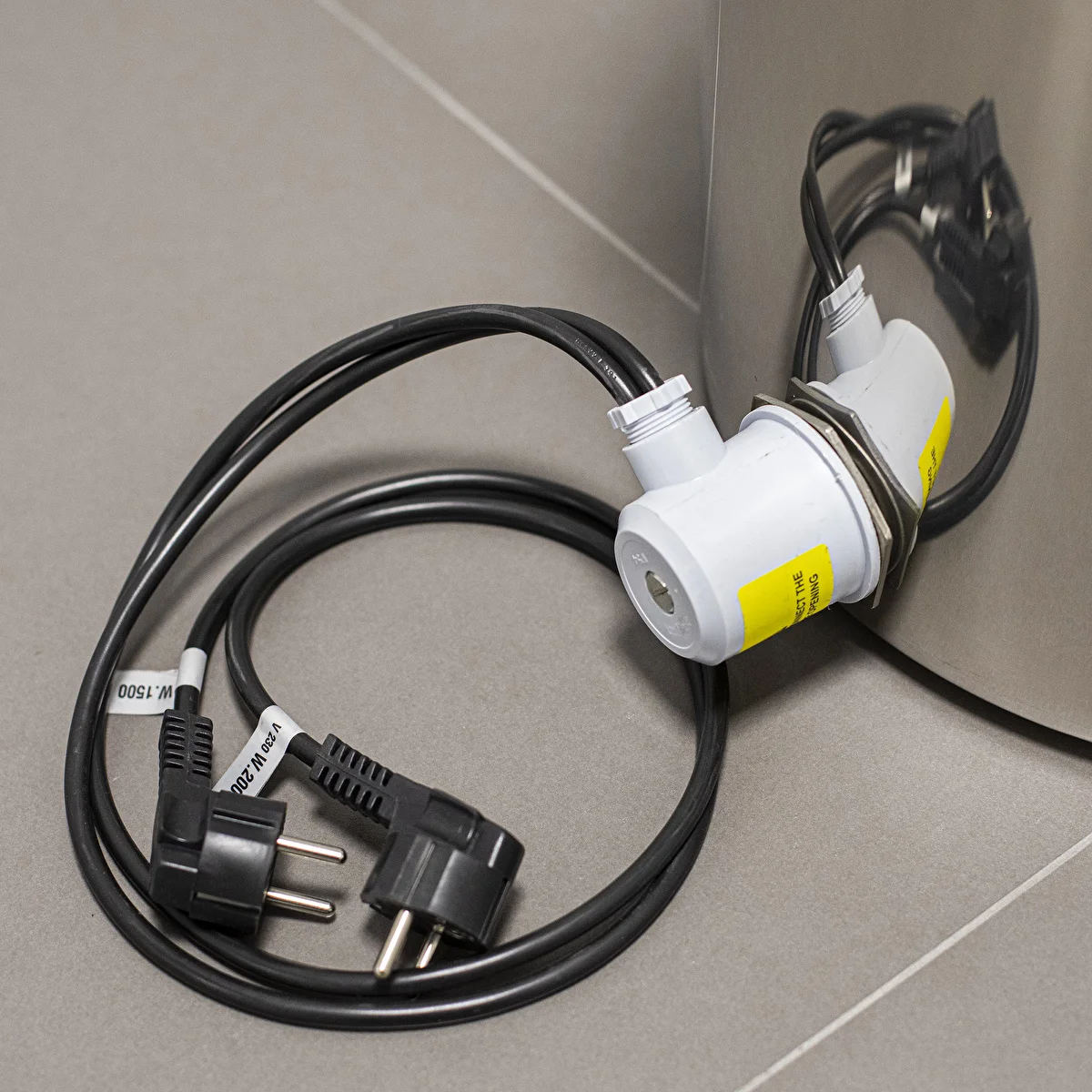

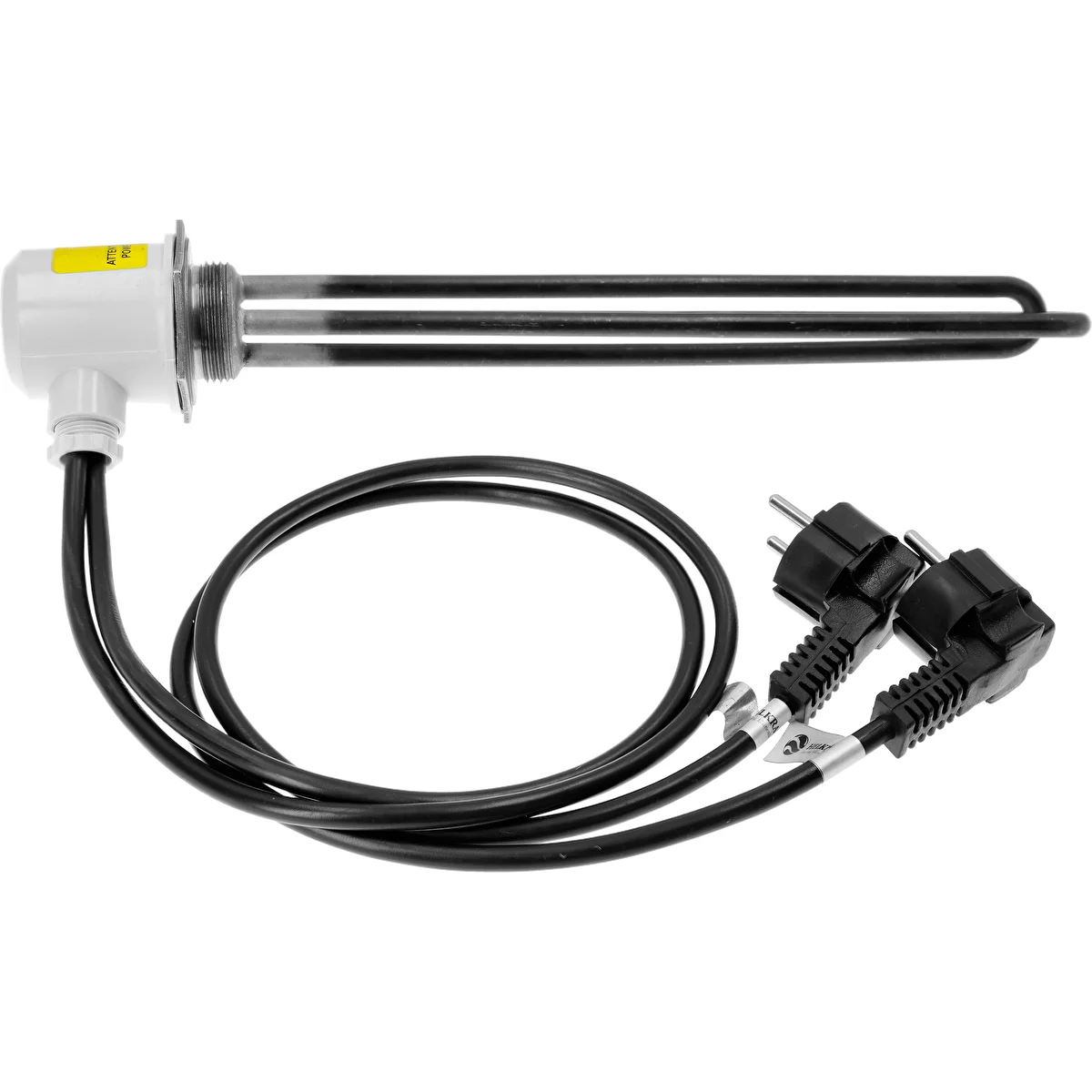

• Heater (2000 i 1500 W) included free of charge – the heater included with the kit features an improved design and is easy to use.

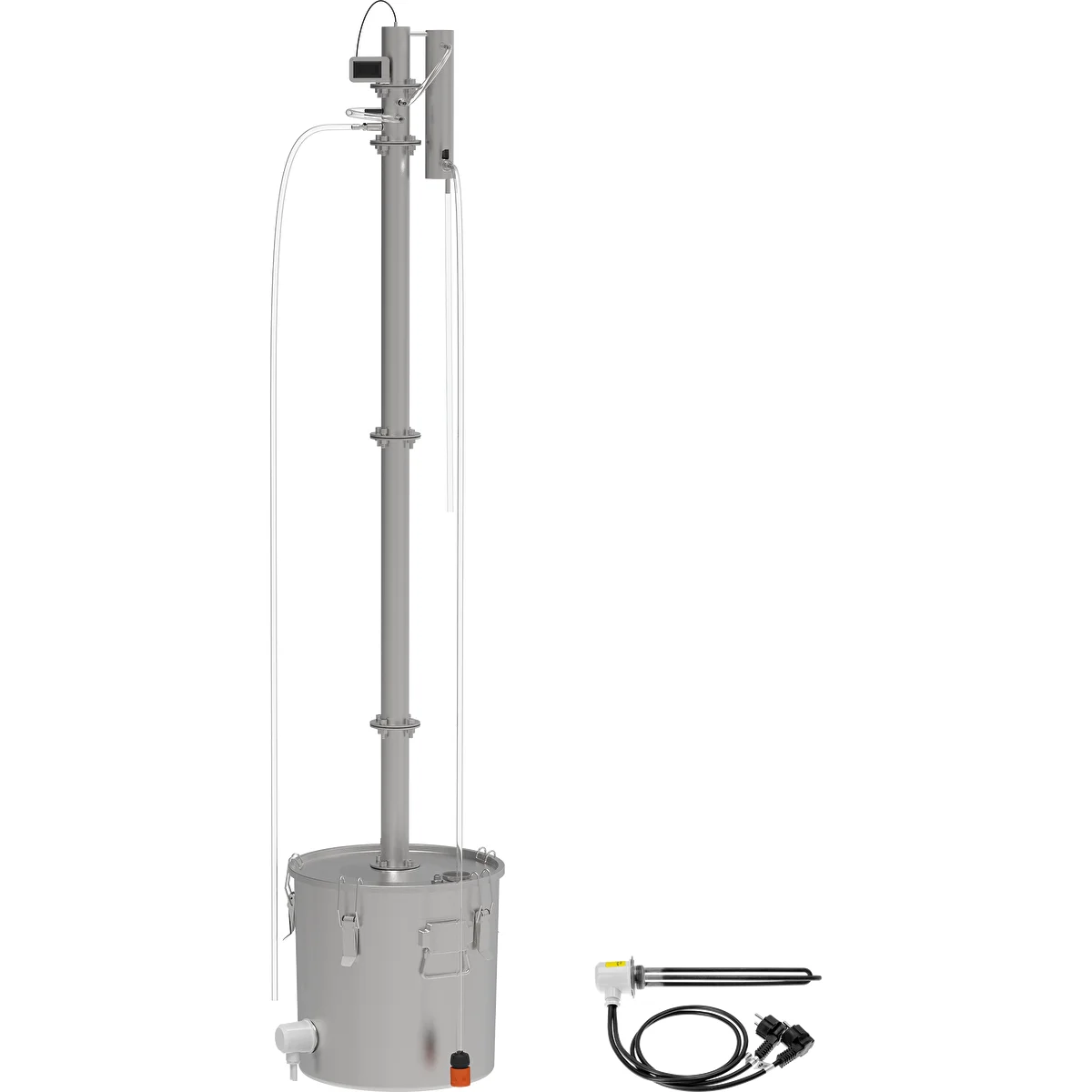

This modular distillation system was created in order to meet the requirements of the most demanding customers. Thanks to the applications of standardising connections and innovative system elements, this system can be used as a basis for configuring various types of stills. The modular assembly allows expansion or different arrangement of the system.

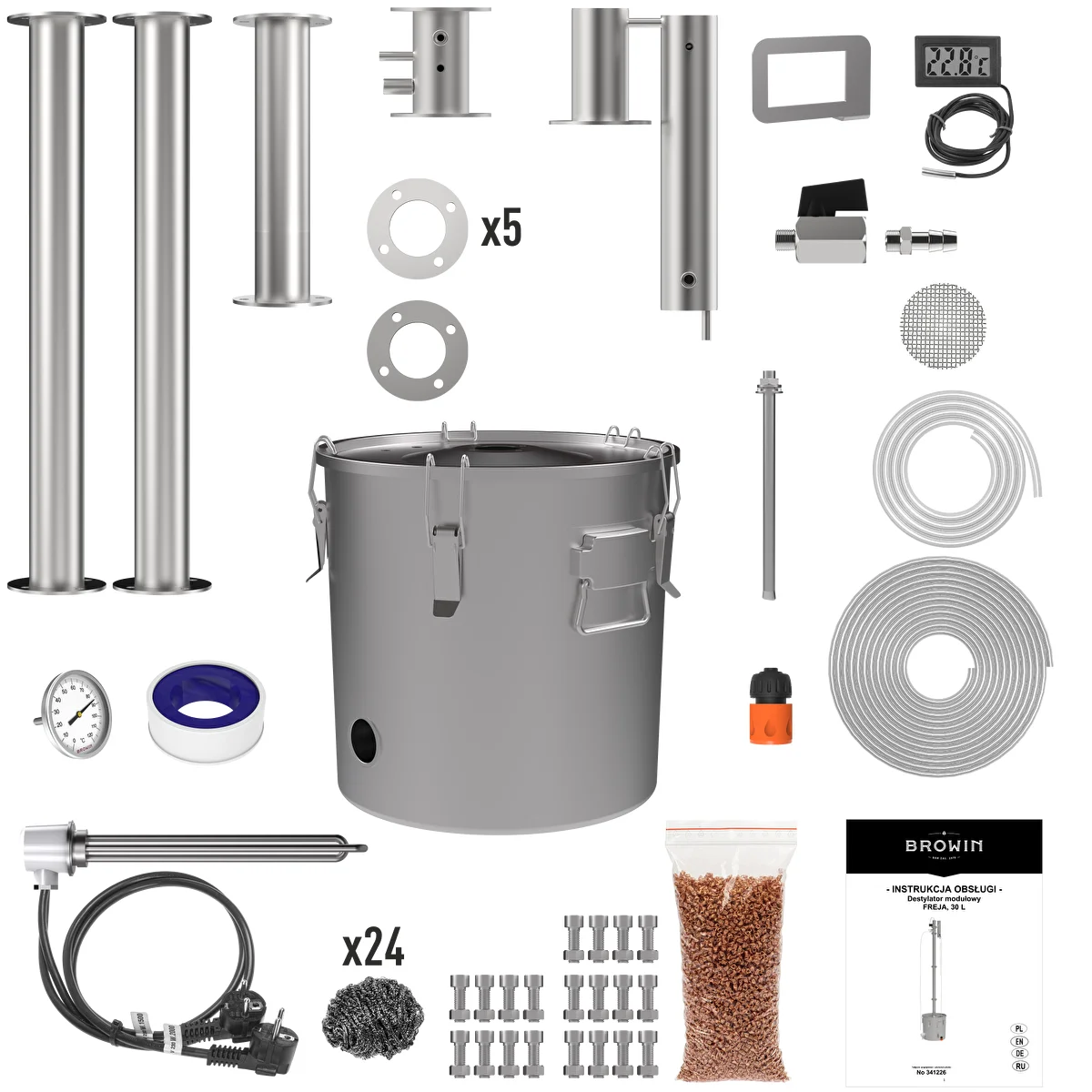

The kit includes:

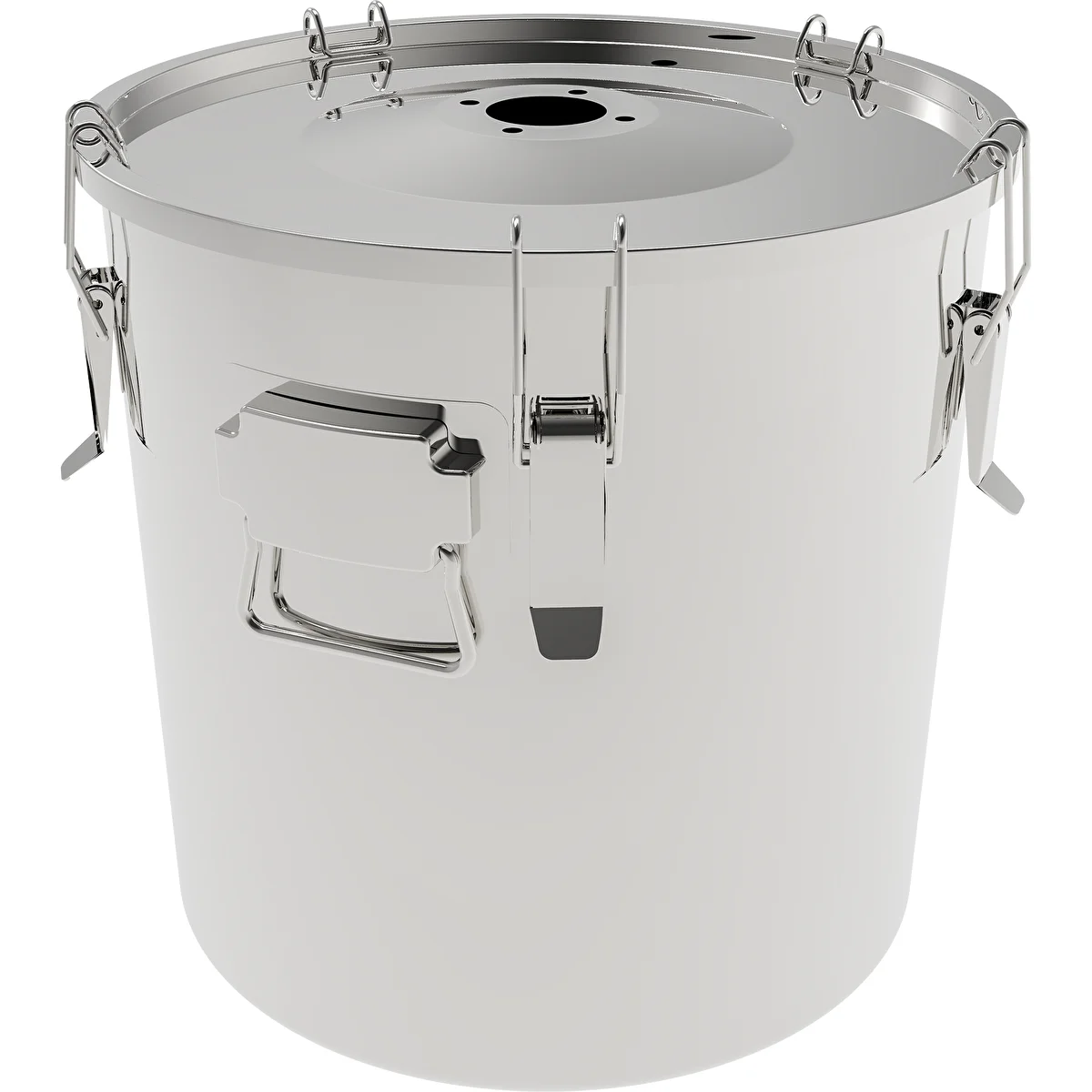

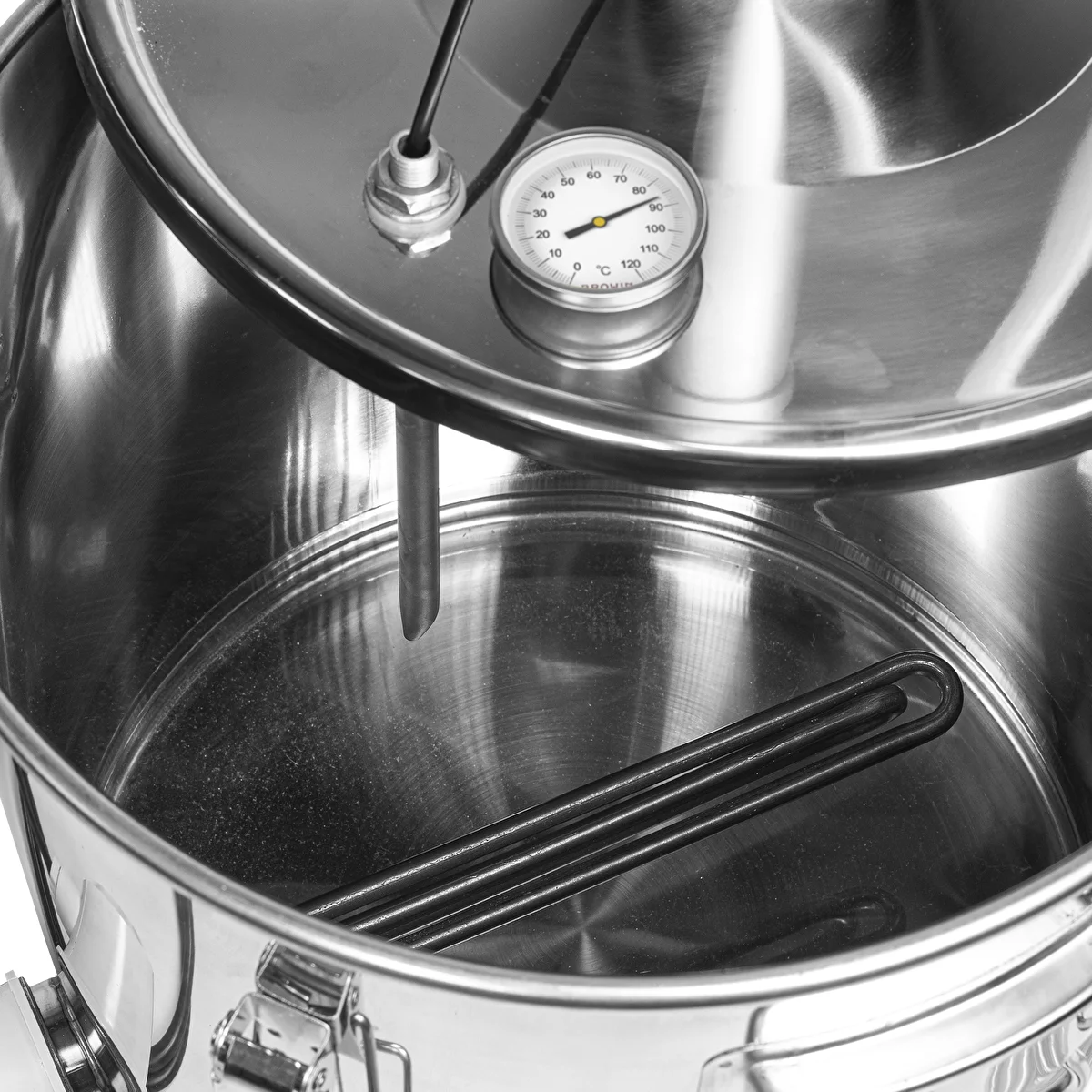

• Container - made of stainless steel.

Structural characteristics:

- capacity - 30 L

- 2 handles for moving around

- 5 clamping brackets

- cover with a built-in silicone gasket

- installation openings in the cover, intended for a thermometer, a probe and still modules

- opening intended for a heater in the container wall.

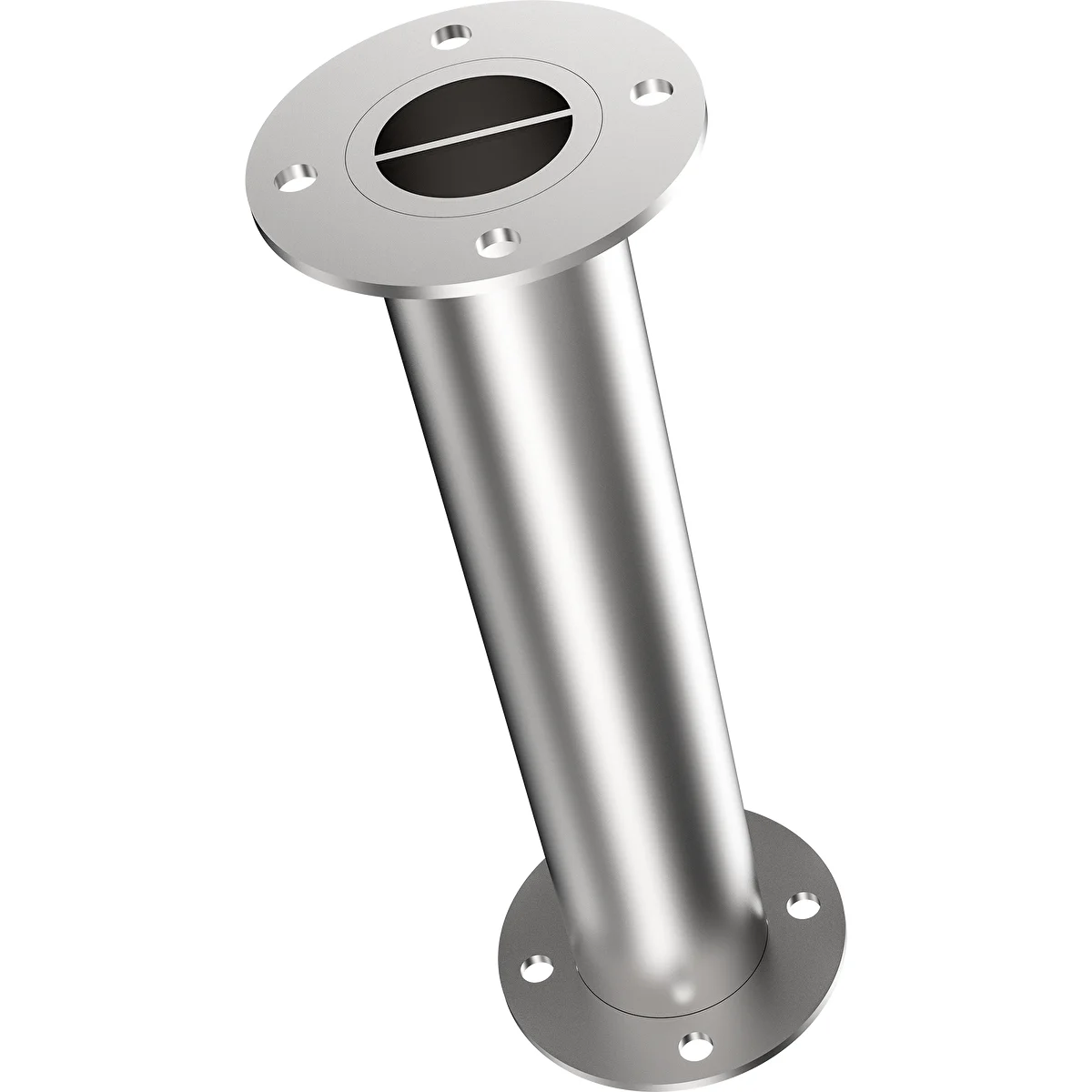

• 250 mm column connector – made of stainless steel.

The connector may perform the function of a catalytic filter, as it enables using a filling that increases the purity of the distillate obtained. The best effect is achieved when using prismatic copper springs. The task of the copper is to adsorb volatile sulphur compounds that provide the distillates with the smell of rotten eggs originating from hydrogen sulphide and have a negative impact on their flavour.

Structural characteristics:

- module height - 250 mm

- external diameter of the module pipe - 48 mm

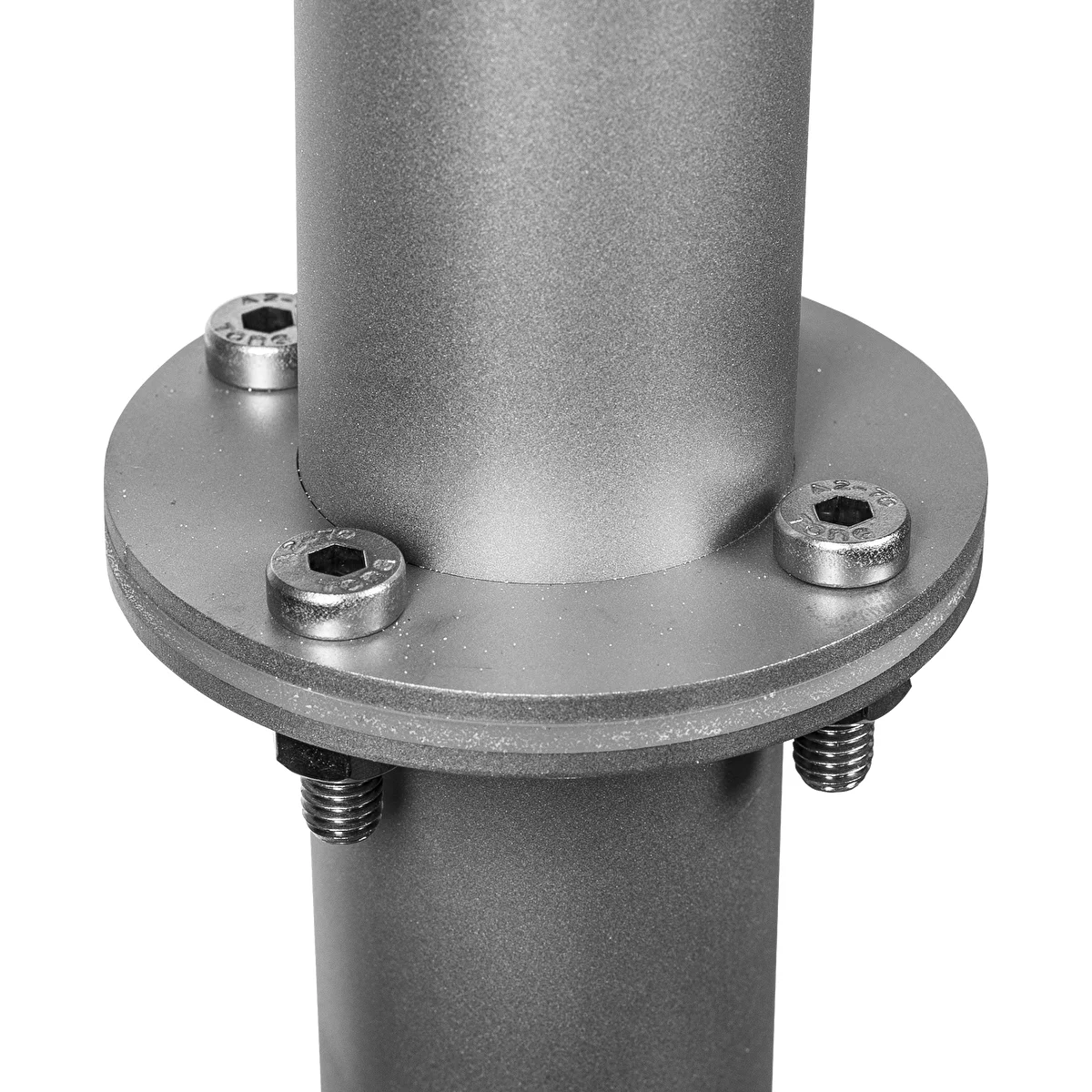

- ending with screw connectors

- possibility of using a filling.

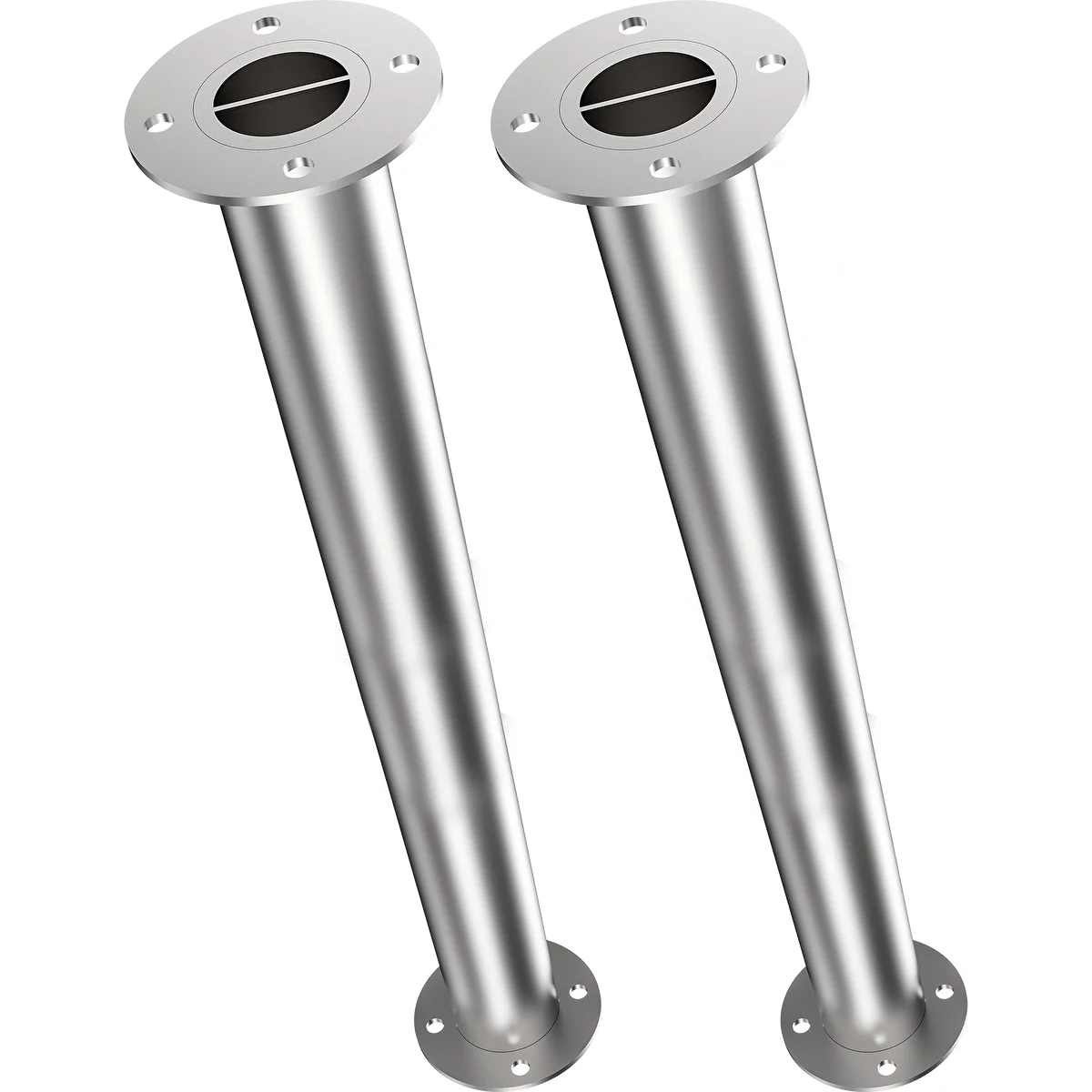

• 2x 500 mm column connector – made of stainless steel.

The connector may perform the function of a rectifier, as it enables using a filling that increases the purity of the distillate obtained.

Structural characteristics:

- module height - 500 mm

- external diameter of the module pipe - 48 mm

- ending with screw connectors

- possibility of using a filling.

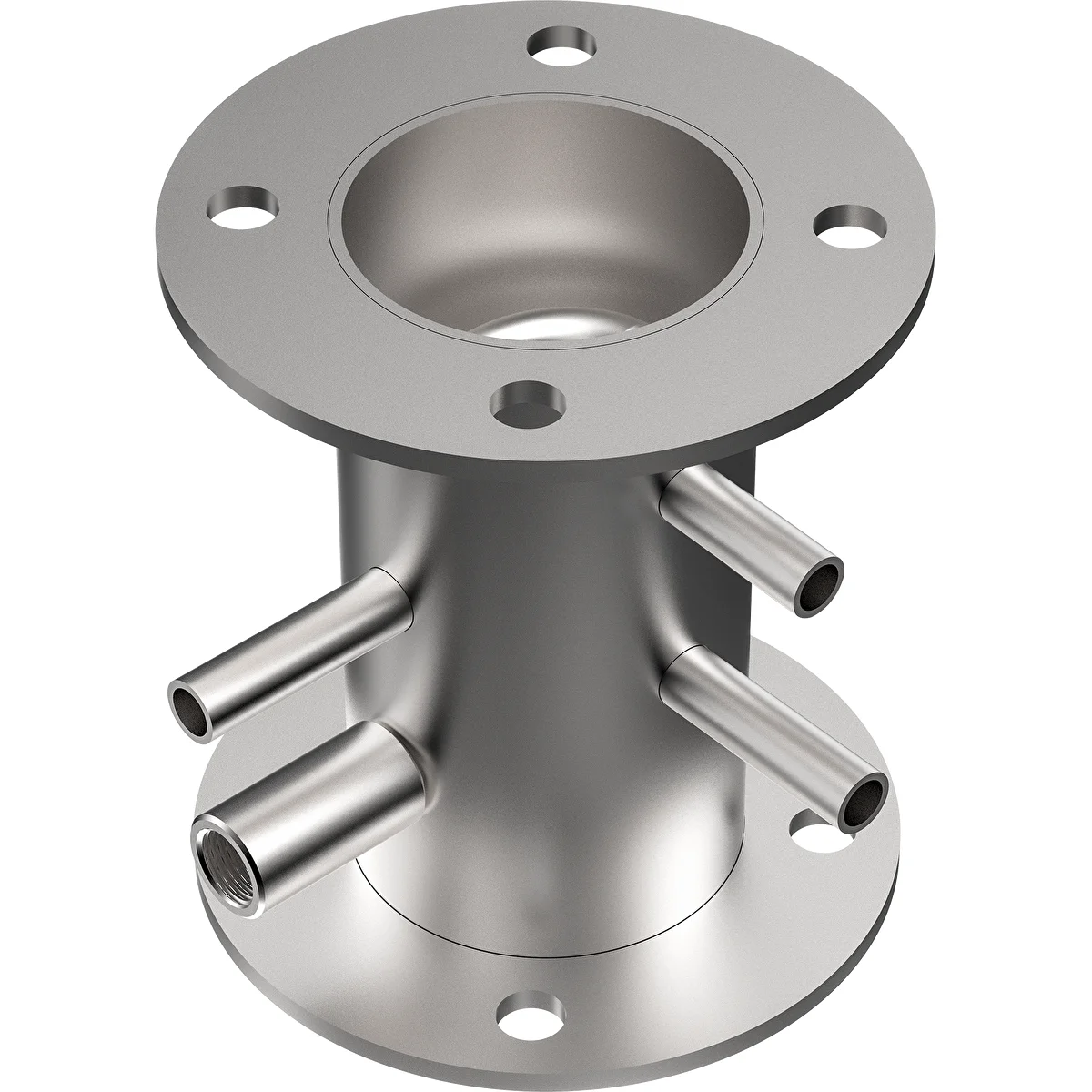

• Reflux - double spiral - made of stainless steel.

It acts as a deflegmator, mounted just below the head of the distillation column.

The module consists of two cooling mini-spirals.

By adjusting the water flow through the reflux, some of the vapours imbued with the most volatile ingredient are let into the main cooler. What becomes condensed in the “reflux” chamber is led to filling for repeated evaporation. With equipment that is set up properly, this enables collecting very pure distillate, having the desired flavour.

Structural characteristics:

- cooling section height - 100 mm

- external pipe diameter - 48 mm

- ending with a screw connector

- 2 cooling mini-spirals, made of 8 mm pipe

- water connection – threaded 1/8” coupler for a hose valve/connector

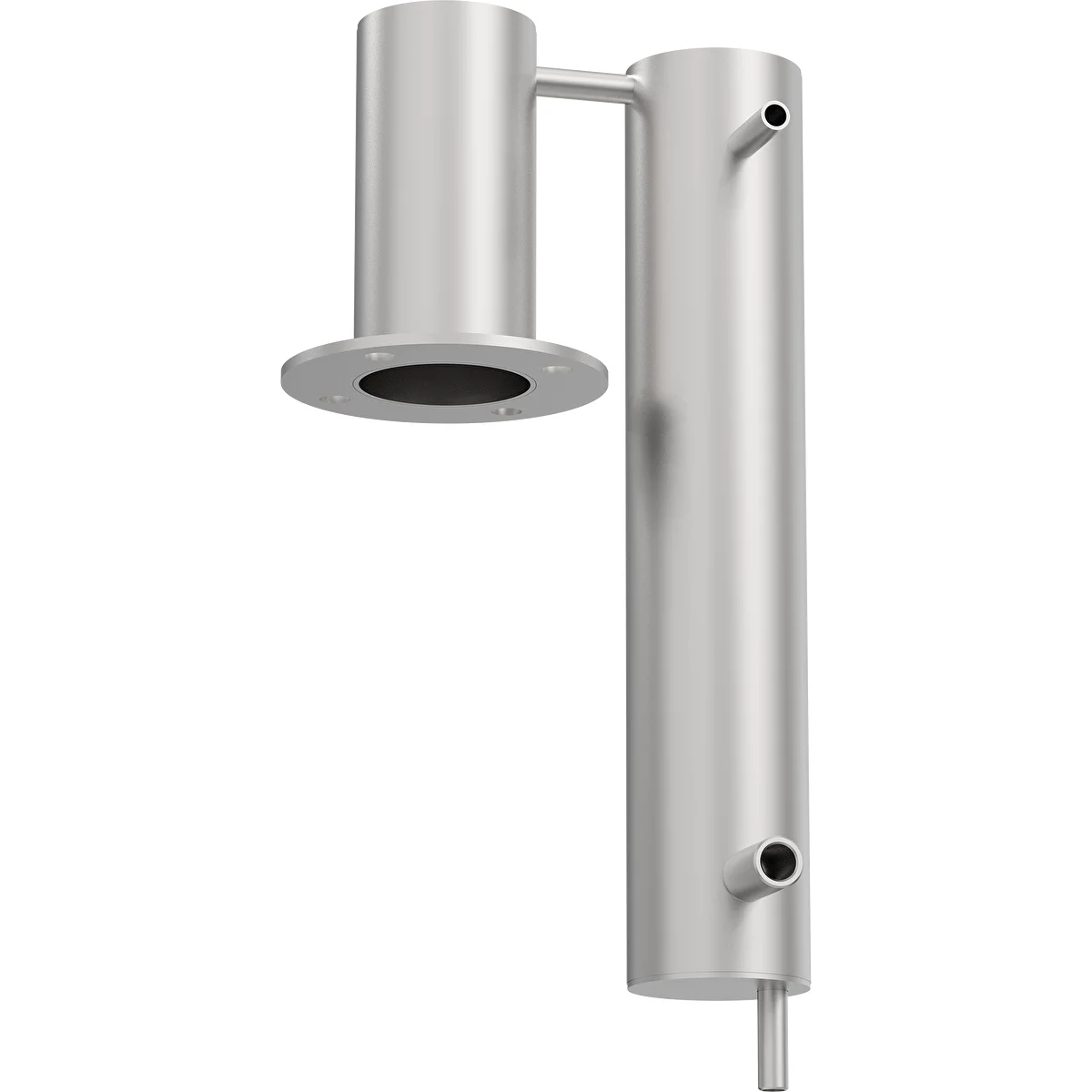

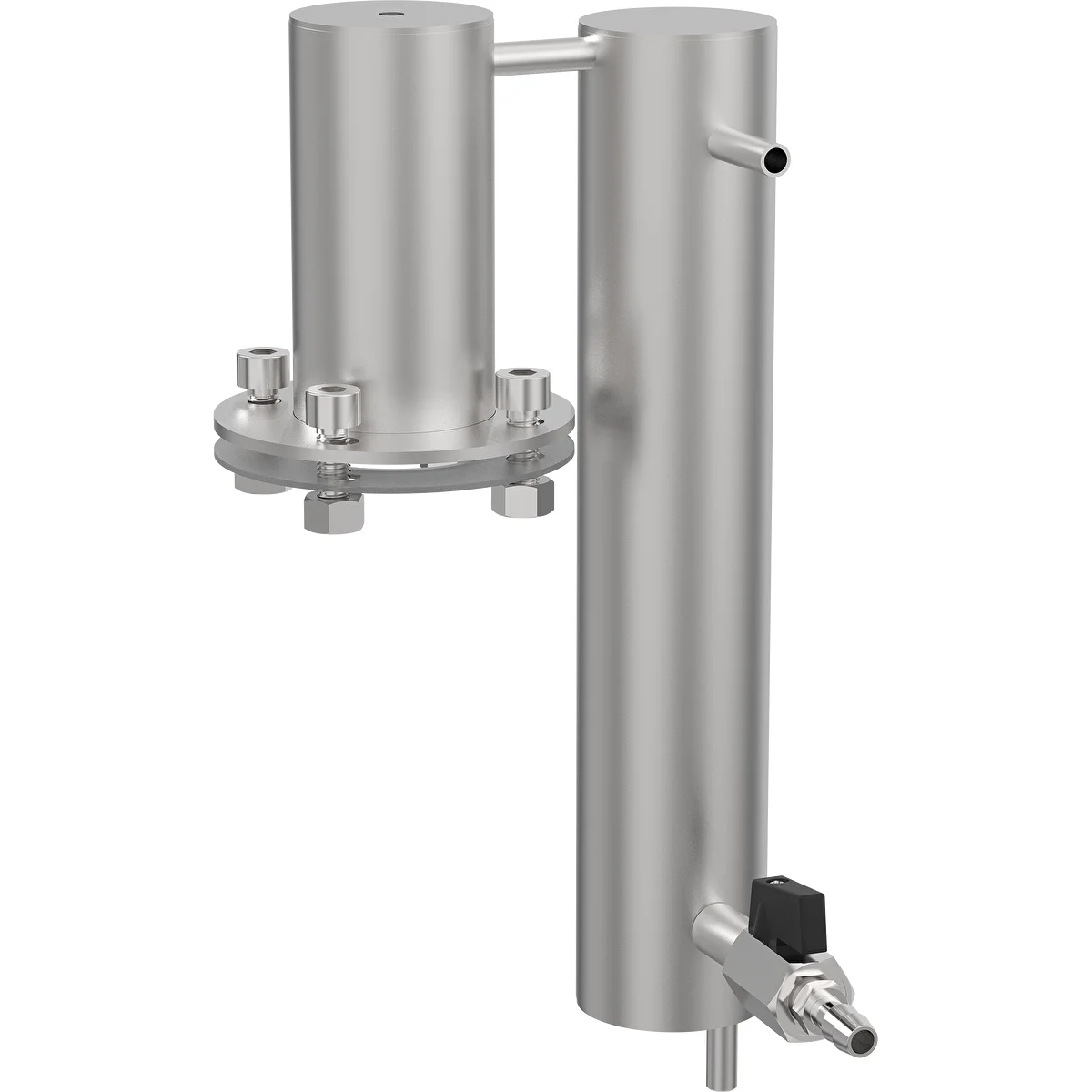

• Head - spiral cooler - made of stainless steel.

Mounted on top of the distillation column.

Thanks to applying a spiral cooler the heat exchange surface is increased, which translates to quicker cooling and lower consumption of cooling water during the process.

Thanks to the valves that enable very precise water flow adjustment and the efficient spiral cooler, it is possible to fully condensate the distillate vapours and cool it down to the collection temperature desired.

Structural characteristics:

- cooling section height - 280 mm

- external pipe diameter - 48 mm

- module ending with a screw connection

- cooler in the form of a spiral, made of 8 mm pipe

- water connection – threaded 1/8” coupler for a hose valve/connector

- slot for a needle probe thermometer.

The kit also includes:

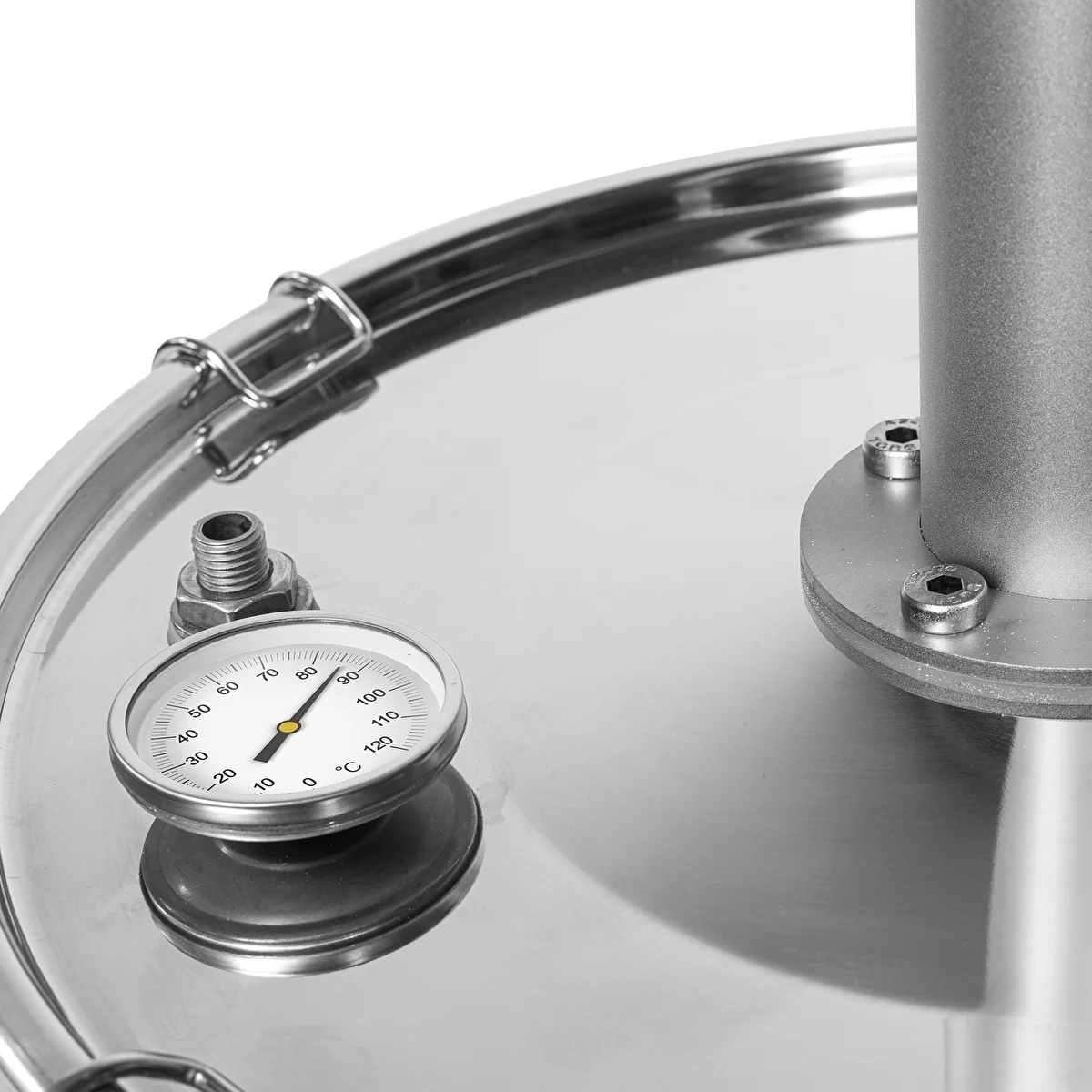

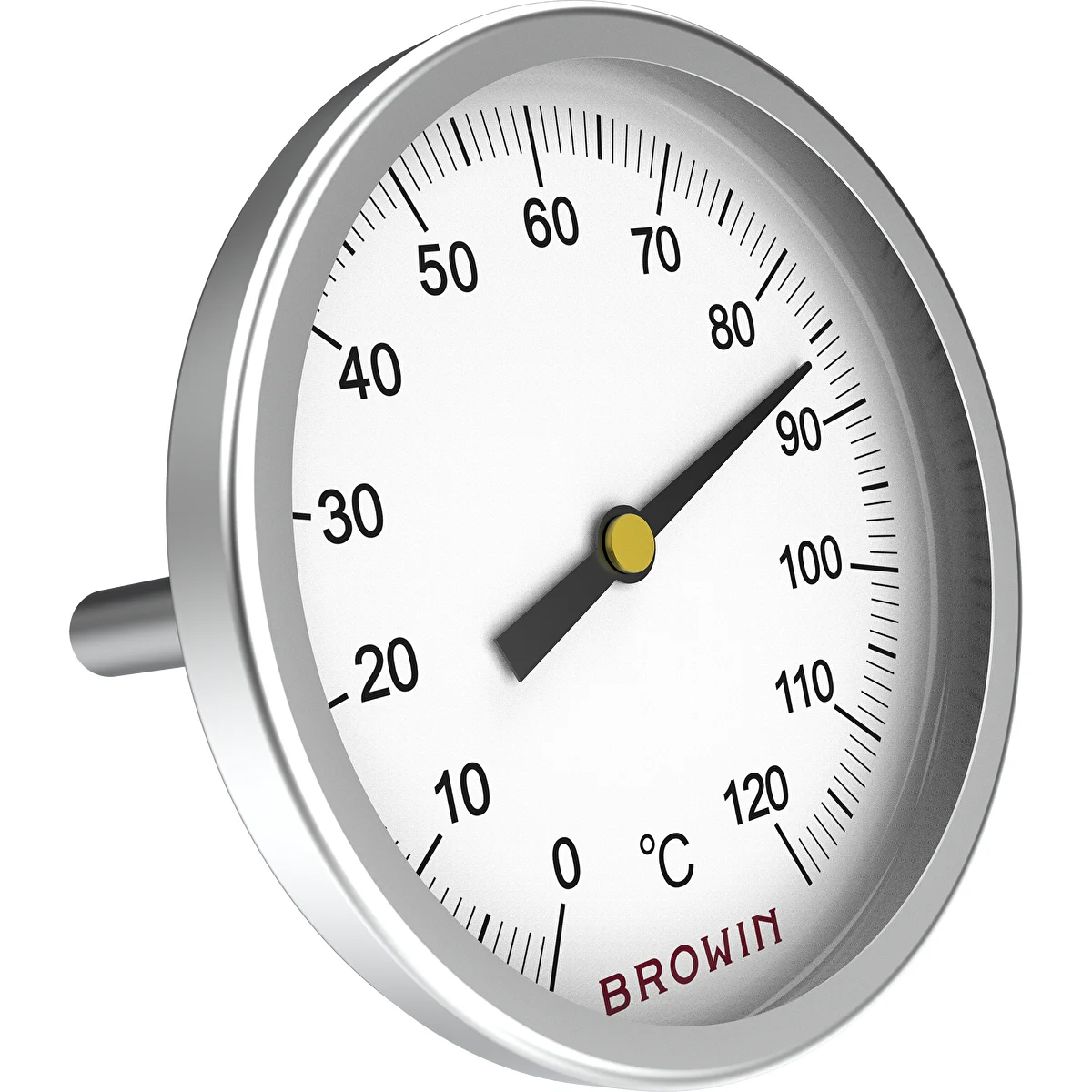

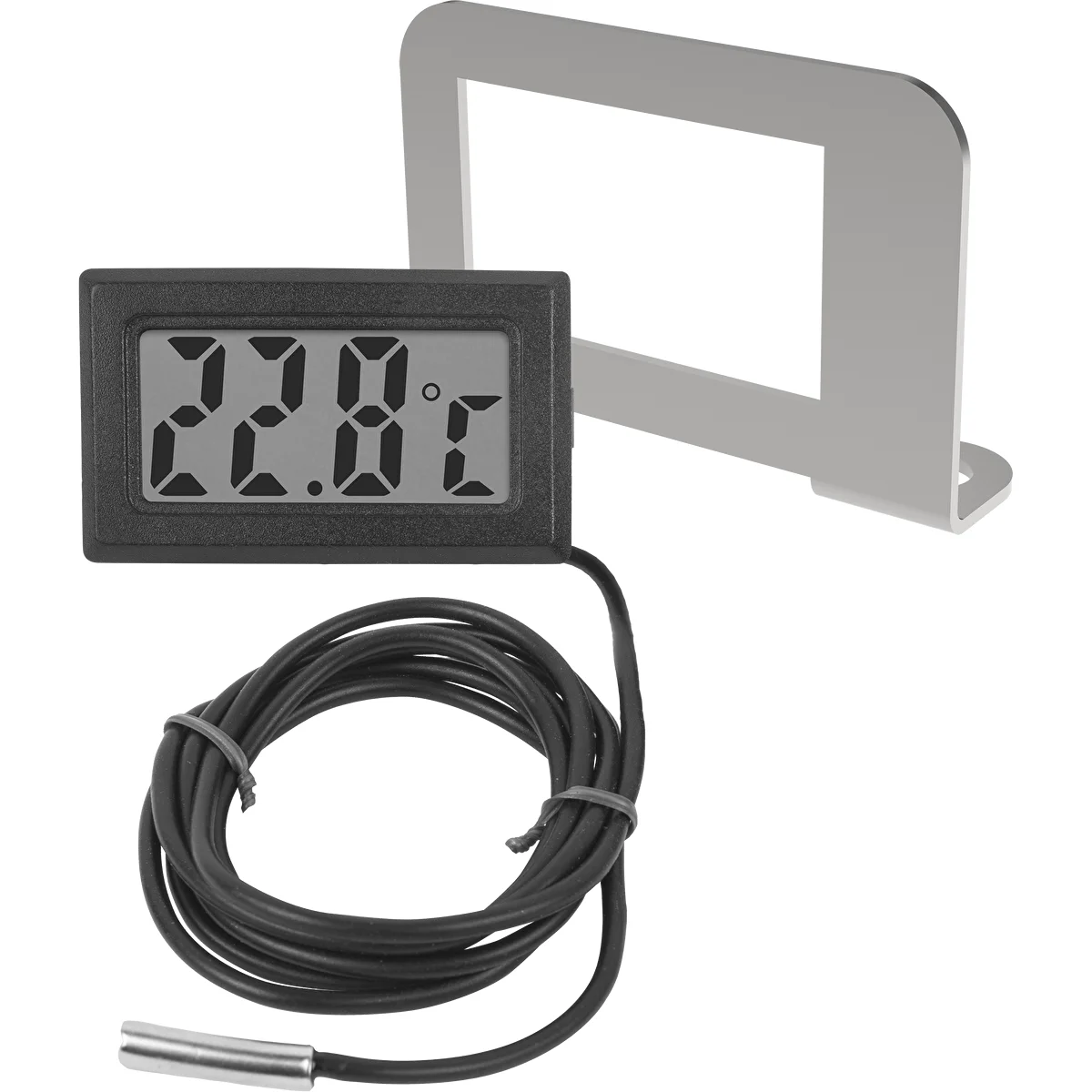

• Two thermometers – an analogue one placed in the container and an electronic one placed in the frame at the top of the column. They enable direct and constant control over the process.

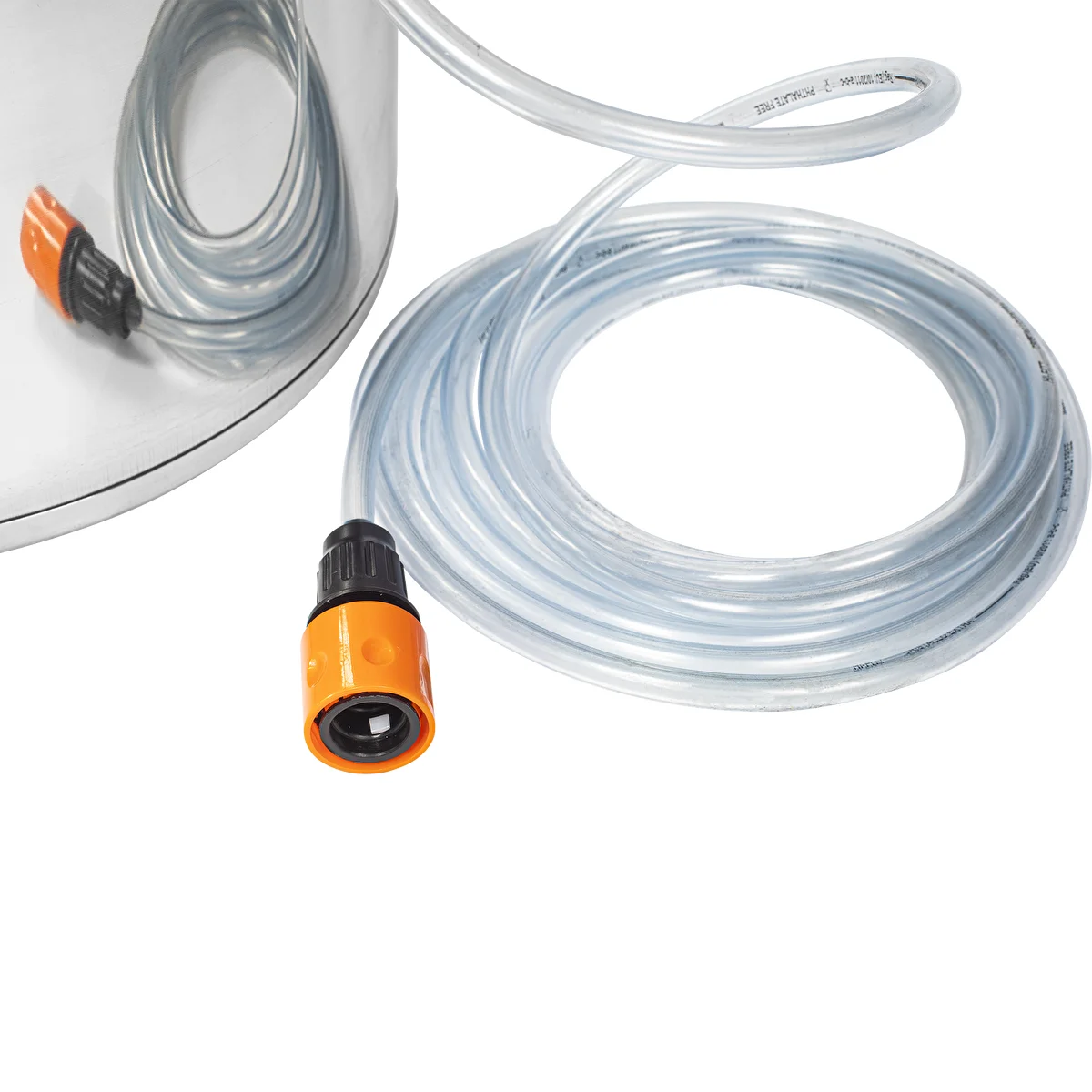

•  Long 5 m plasticized PVC hose – for connecting water, featuring a quick coupling than enables easy connection with a tap.

•  1,5 m silicone hose – for receiving the distillate, safe for use in contact with alcohol.

• 1/8 inch ball valves

• plug connector

• threaded connector - 3 pcs.

• controller probe key

• column attachment cover

• gaskets - 5 pcs.

• screws and assembly nuts - 20 pcs.

• mesh filling support

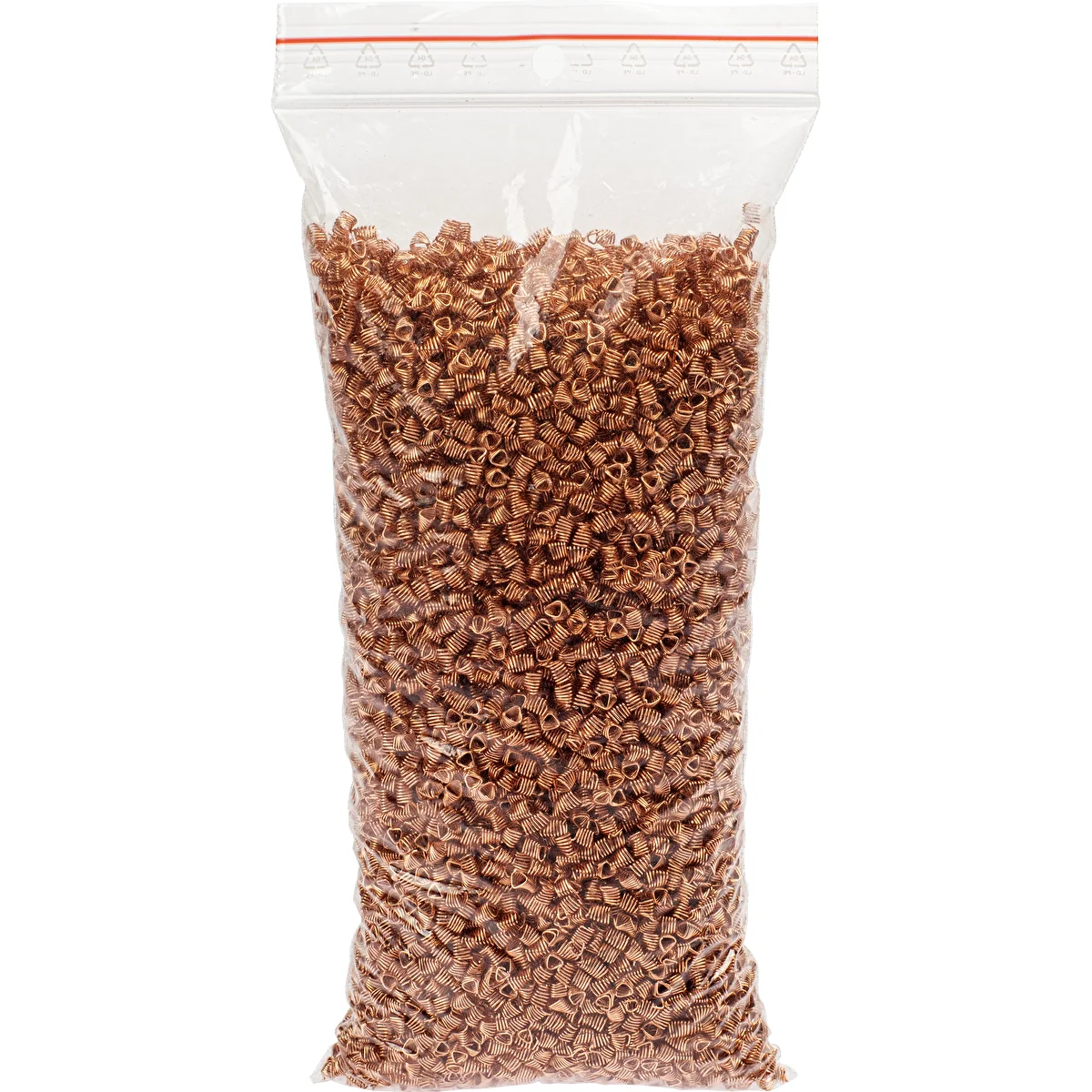

• prismatic copper springs - 1 pc.

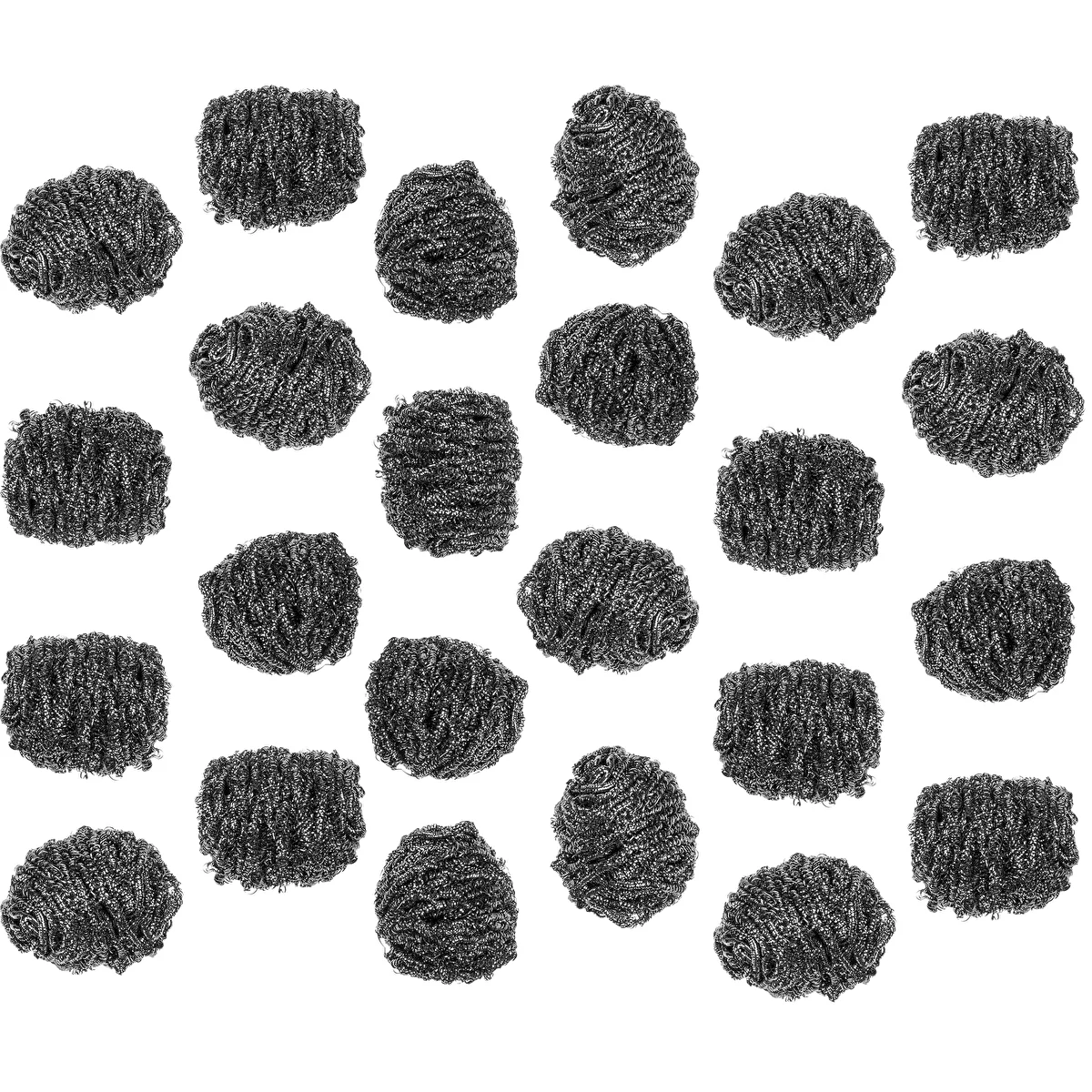

• stainless steel filling - 24 pcs.

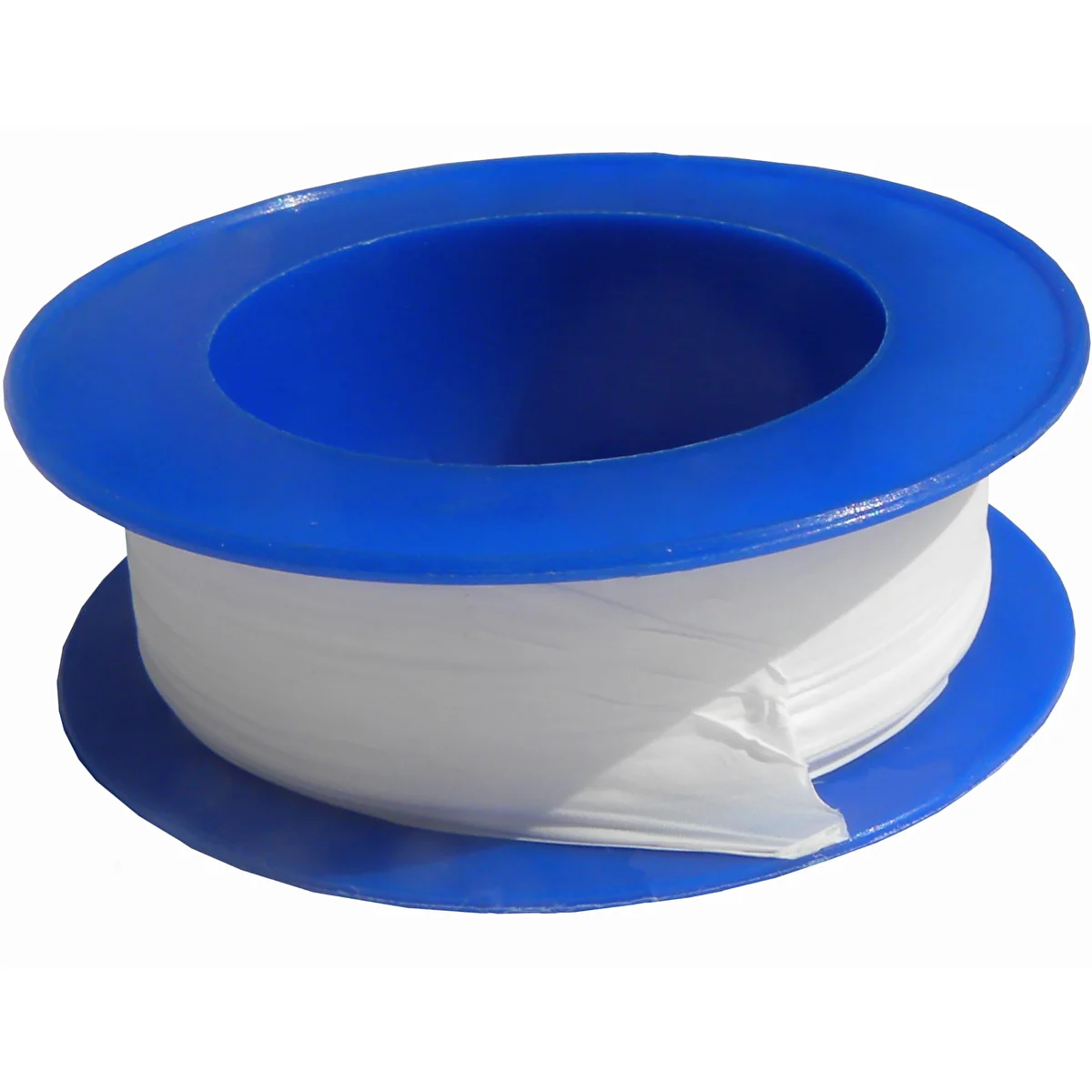

• teflon tape

• user manual.

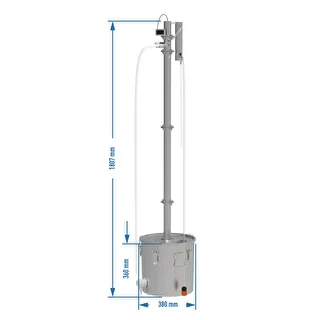

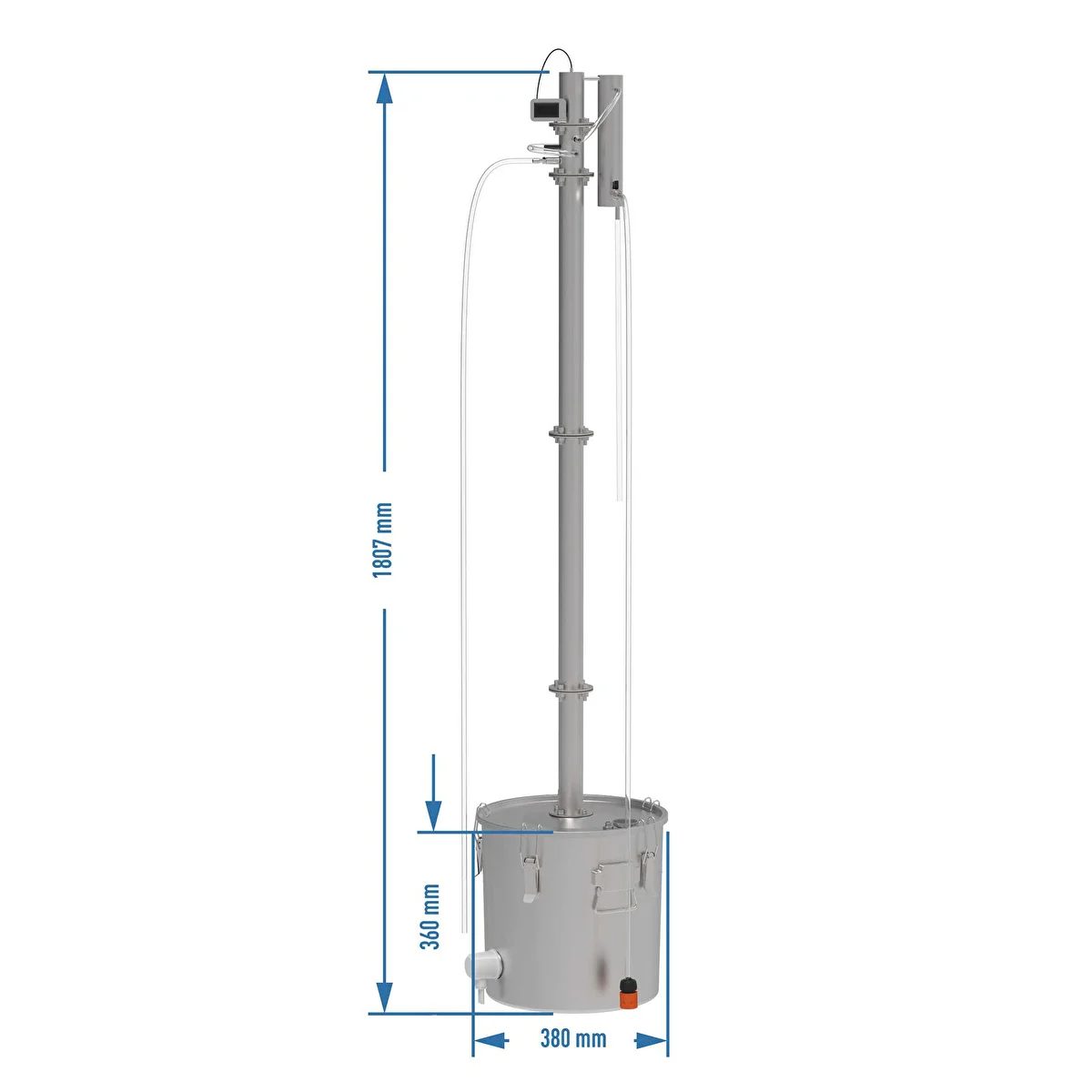

Kit width: about 181 cm

Water consumption during the process: about 30 L / 1 h.

Caution!: The distillation process must be carried out under supervision.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
