30 L modular electric Convex still - Perun

Immerse yourself in the world of fine distilling with our practical convex kit, offering not only exceptional quality and unique style, but also the ability to expand or swap components as your needs change.

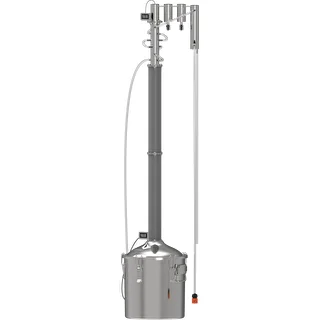

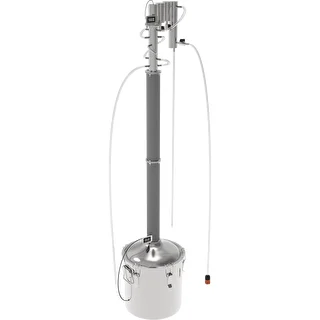

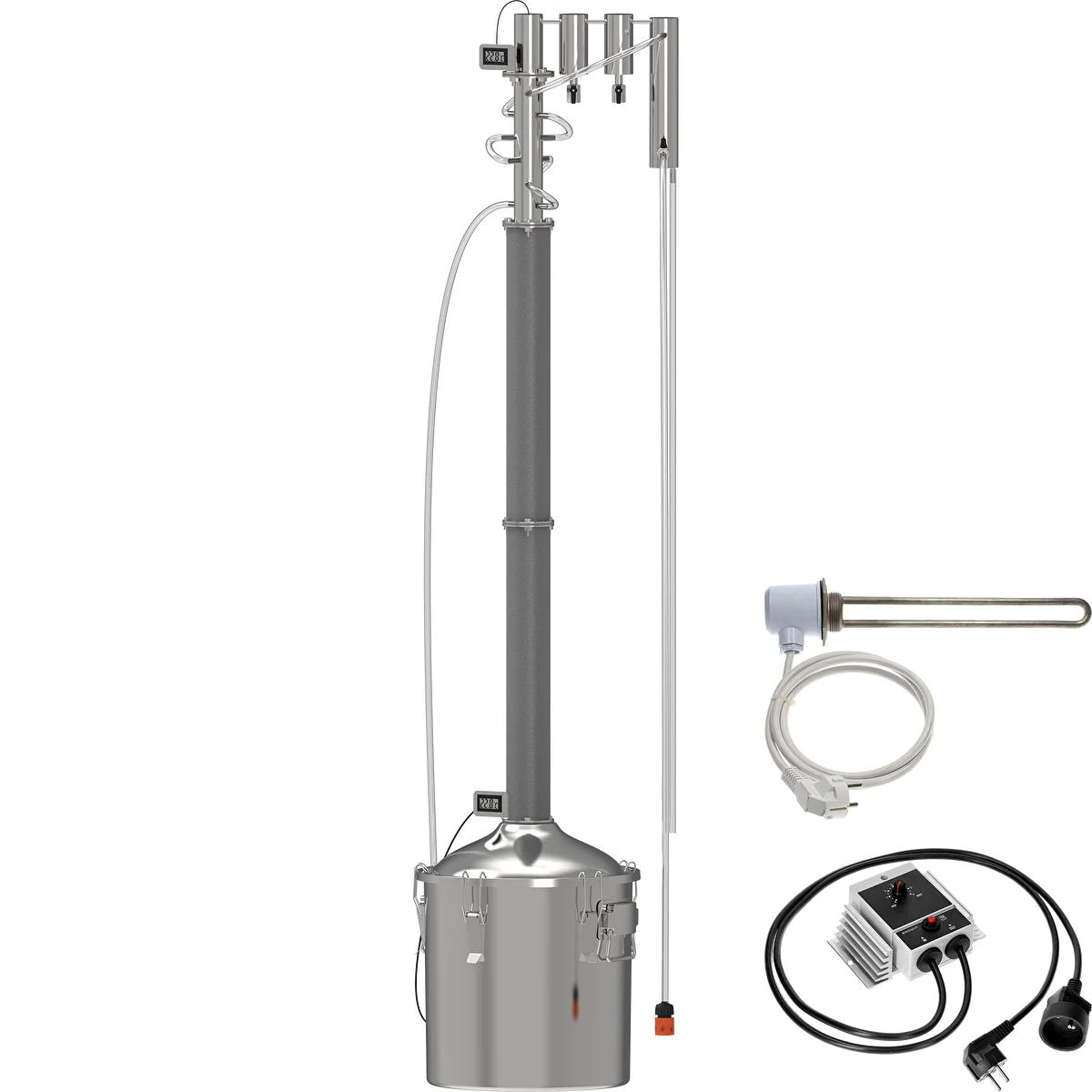

The Perun 30 L modular Convex still is a professional electric still with a 30 L container, a reflux of the ‘Cold Fingers’ type and a head with two clarifiers and a condenser. It is a complete set made of high-quality stainless steel (INOX).

Intended for using with a heater with total power of 3500 W.

The product is distinguished by the following features, among others:

• High quality - made of stainless steel and durable plastic components, airtight featuring precision connections, and characterised by operational efficiency and durability.
• Container of convex type, with dome lid - this airtight dome enables safe presumptive foaming of the batch or mash, improves the stability of the whole column and has a positive impact on the whole distillation process.
• ‘Cold Fingers’ reflux - performs the role of a dephlegmator and is excellent at pre-treatment of distillate vapours thanks the precise adjustment of water flow.
• Head with two clarifiers and a condenser - the purpose of clarifiers is to collect heavier fractions that are undesirable in the final product.
• High efficiency - the container makes it possible to distil a large volume of liquid (however, it is recommended not to exceed 90% of the capacity).
• Complete set - the set includes a container with a convex lid, a column with reflux, a condenser and two clarifiers, two electronic thermometers with batteries included, valves, two hoses, a water supply connector, assembly elements, and a user manual.
• Expandable - the container and lid are compatible with other distillation modules available from BROWIN.

The practicality of the set is also highlighted by the following elements:

• Two column connectors - performing the function of a rectifier and improving the purity of the distillate thanks to their filling.
• Column cladding - reduces heat losses and enables conducting the process in lower ambient temperature.

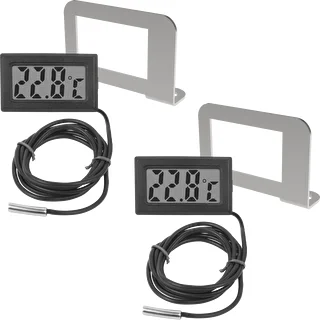

• Two electronic frame thermometers - provide precise temperature measurements during the distillation process and are connected using probes - one to the container and one to the upper part of the head.

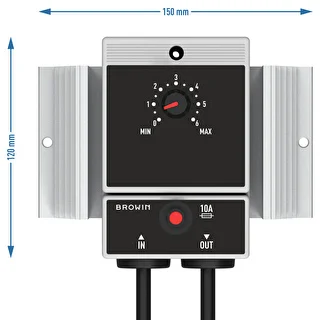

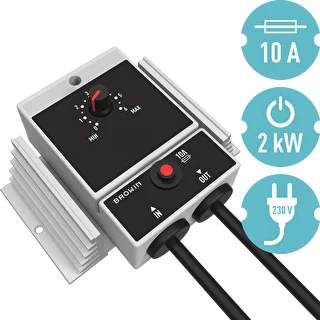

• Heater with total power of 3500 W (1500 and 2000 W) - provides appropriate temperature parameters.

This modular distillation system was created in order to meet the requirements of the most demanding customers. Thanks to the applications of standardising connections and innovative system elements, this system can be used as a basis for configuring any type of still. All the elements are fully compatible with other distillation modules offered by Browin.

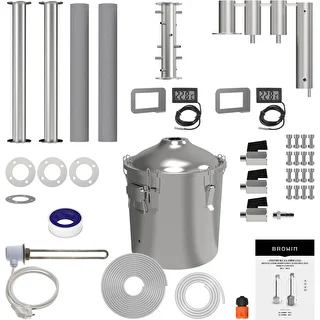

CONTENTS OF THE SET:

• container of the convex type with capacity of 30 L
• column connector (2 pcs, each with length of 500 mm)
• ‘Cold Fingers’ reflux
• head with 2 clarifiers and a condenser
• electronic frame thermometer with a probe (2 pcs)
• column cladding, made of polyethylene (2 pcs)
• 5 m plasticised PVC hose - for connecting water, featuring a quick coupling than enables easy connection to a tap
• 1.5 m silicone hose - for receiving the distillate, safe for use in contact with alcohol
• straight threaded connector
• 1/8” ball valve (3 pcs)
• a set of mounting bolts and nuts (16 pcs)
• silicone gaskets (4 pcs)

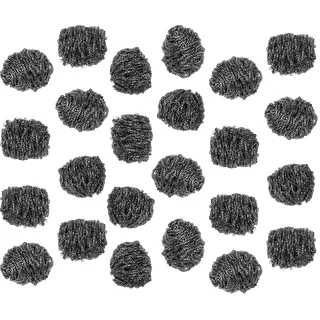

·        stainless filling (24 pcs)

• sealing PTFE tape
• user manual

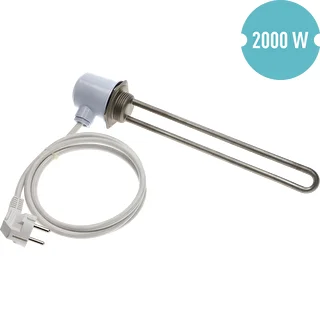

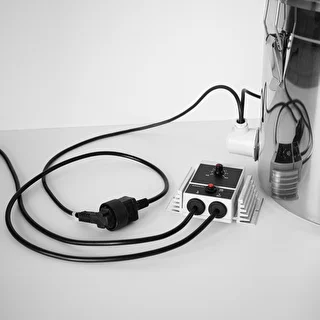

• heating unit with total power of 3500 W, consisting of two heaters powered by independent cables, one with power of 2000 W and second with power of 1500 W.

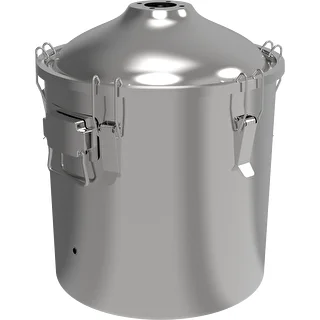

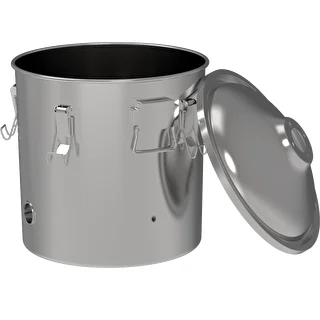

Container:

• 2 handles for moving around
• 5 clamping brackets
• cover with a built-in silicone gasket
• rigid dome lid with opening for column installation
• opening in the container wall, intended for a thermometer probe and heater

The new conical shape of the container lid allows for potential foaming of the batch or mash, without the risk of contaminating the column and its filling. The dome shape also increases the stability of the entire column, even with tall stills, which also translates into increased stability of the entire distillation process. The new lid form is inspired by the classic 'swan-neck' alembics, providing an eye-pleasing detail.

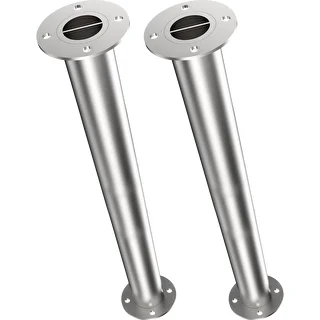

2 column connectors:

• module height: 500 mm.
• external diameter of the module pipe: 48 mm

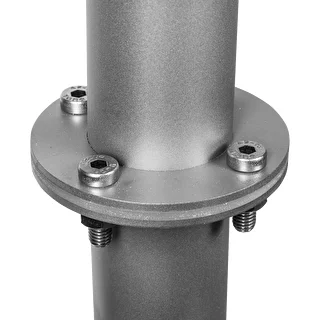

• screw connectors
• possibility of using filling

Column connector - a distiller module installed in order to increase the height of the distillation column, filled with stainless wire scourers, thanks to which it is excellent at increasing the purity of the resulting distillate. The connector can also perform the function of a catalytic filter, while at the same time purifying the distillate excellently without interruption. It is possible as it features a crossbar in its lower part than allows placing a support mesh in the module, enabling filling the column with copper prismatic springs. Available in the product range of Browin.

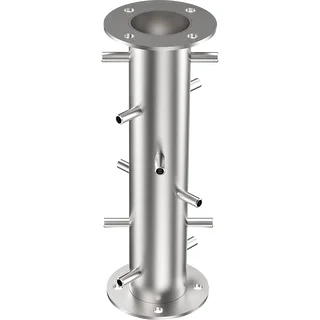

‘Cold Fingers’ reflux:

• cooling section height: 250 mm
• pipe external diameter: 48 mm
• screw connector

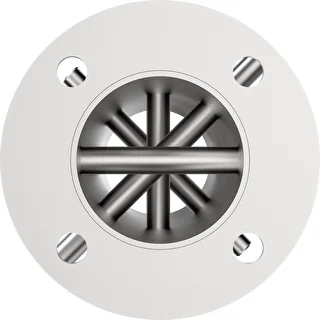

• 6 ‘cold fingers’ (made of 8 mm pipe)

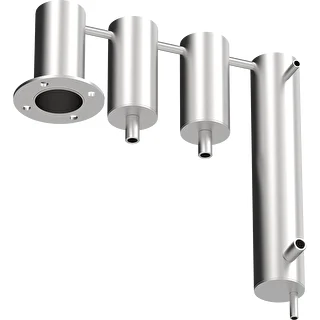

Head with clarifiers and a cooler:

• cooling section height: 250 mm
• pipe external diameter: 48 mm
• 2 clarifiers
• water supply connection
• thermometer slot

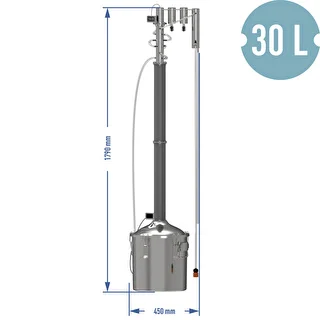

Dimensions of stills:

• height: 1800 mm
• front width: 510 mm
• side width: 420 mm

Please note! Before use, it is essential to read the user manual that comes with the product and the rules for use, cleaning and maintenance. Following the recommendations given will ensure that the still can be used for a sufficiently long time and in an efficient and safe manner.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
