Discover the secret of perfect distillation delivered by this efficient and practical set, designed to meet the high expectations of professionals while providing less experienced users with equipment that is easy to operate and delivers excellent results.

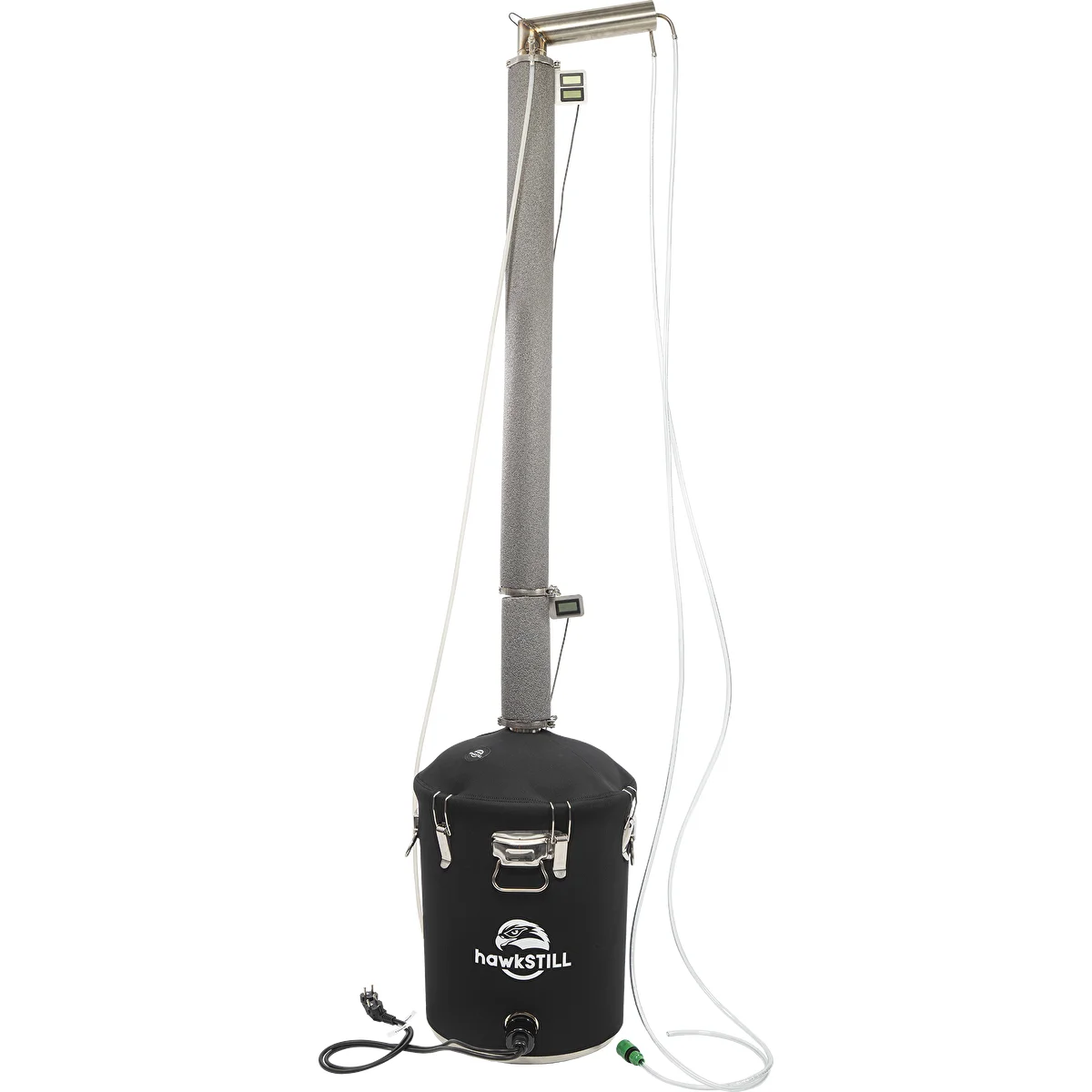

hawkSTILL Aabratek 2.0 still with an innovative pool design (further improving distillation parameters) is another still model with electric modules and a high-efficiency Ø 60.3 mm column. This professional still is equipped, among other things, with a large-capacity vessel (60 L) and a reflux Aabratek head (fitted with a precision valve and an efficient condenser), which lets you easily control the distillation process. If you’re looking for a complete set, components made of high-quality stainless steel, efficient modules that are convenient to use—and you expect an excellent end result—check out hawkSTILL!
👉 Version fitted with:
- Neoprene insulation for the Convex 60 L still pot with an opening lid. Effective and convenient to install and remove. Easy to clean.
Technical data:
- tank capacity: 60 L
- maximum working liquid volume: 50 L
- column diameter: Ø 60.3 mm
- Tri-Clamp connections
- material: stainless steel
- power supply: electric
- heater power: 2000 W + 1500 W
- water consumption: approx. 20–25 L/h
- take-off rate: up to 1.5 L/h
- neoprene insulation (quick assembly and disassembly)

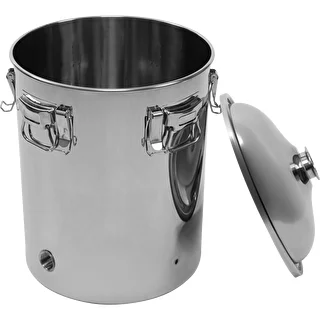

Convenient opening tank
The hawkSTILL AABRATEK 2.0 still is equipped with a tank with a removable lid, which significantly enhances user comfort. Wide access to the interior allows thorough and convenient cleaning of the vessel.
The opening design also makes it easy to pour liquids safely and comfortably, both before starting the process and after it ends. This practical solution will be especially appreciated by users who regularly operate the device and care about hygiene and ergonomics.

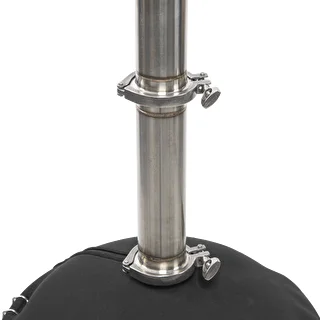

Tri-Clamp connections
All column components are joined with Tri-Clamp connections, which makes it easy to modify, expand and reconfigure for different types of distillation, depending on the desired result. The use of a high-efficiency electric module ensures comfortable, controlled operation without the need for external heat sources.

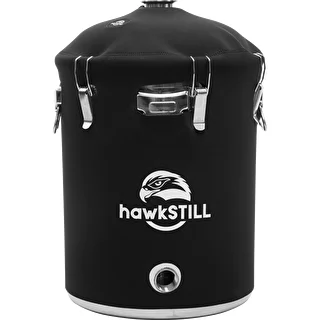

Neoprene insulation for the Convex 60 L still pot
Dedicated solution – safety and comfort during distillation. Robust insulation made of flexible neoprene, designed specifically for the 60 L Convex pot with an opening lid. Precise cutouts ensure full access to the handles, tap and thermometer port without limiting their functionality. Easy to install, remove and clean.
What makes our hawkSTILL Aabratek 2.0 still stand out?
- Aabratek head with an innovative pool design – Aabratek stills are among the most precise systems, combining ease of operation with high end-result quality. By introducing an innovative pool design, we have further refined the process on devices of this type!
- High efficiency – the design of this modular still with a 60-liter vessel and a column of the appropriate diameter enables efficient distillation of large volumes of liquid (it is recommended not to exceed 90% of capacity).
- High quality – this still combines the benefits of stainless steel (INOX) and a durable polymer, tightness, precision of joints and durability of the individual components of the set.

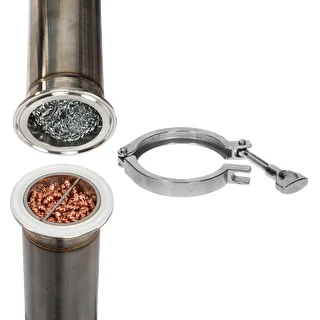

- Column with 60.3 mm OD – optimizes process performance. The column is divided into two modules: the catalyst filled with copper spring packings purifies the distillate from sulfur compounds, and the second section filled with stainless steel scrubbers allows you to achieve higher strength and purity of the distillate.
- Opening vessel with a domed (Convex type) lid – the vessel is closed with a tight domed lid, which allows any potential foaming of the wash or mash to proceed safely, increases the stability of the entire column and positively affects the whole distillation process. The removable lid makes the vessel easier to use and clean.
- Complete set – the kit includes a vessel with a domed lid, a column, an Aabratek head, a drain ball valve, 3 electronic thermometers with probes, 2 hoses, a connector for water supply, 3 sets of Tri-Clamp clamps with gaskets, stainless and copper packing (for the catalyst), PTFE sealing tape, mounting components and a manual.
SET COMPONENTS:
- Convex-type 60 L vessel – AISI 304 stainless steel
- column sections (3 pcs: 240 mm catalyst, 1000 mm column, head)
- LM-type reflux – Aabratek head

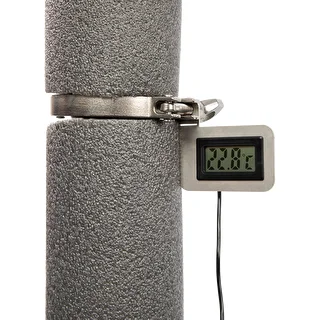

- panel electronic thermometer with probe (3 pcs)
- polyethylene column insulation (2 pcs)
- 5 m PVC hose – for water connection, with a quick connector enabling easy connection to the tap
- 2 m silicone hose – for distillate take-off, safe for contact with alcohol

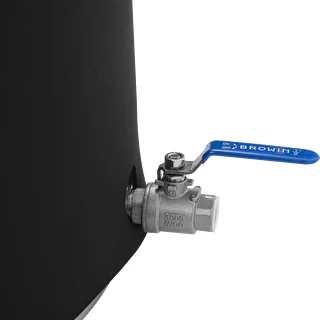

- 1/2-inch drain ball valve – for the 60 L vessel
- Tri-Clamp clamp sets and gaskets (3 sets)
- stainless packing (24 pcs)
- copper packing 0.5 L
- PTFE sealing tape
- user manual

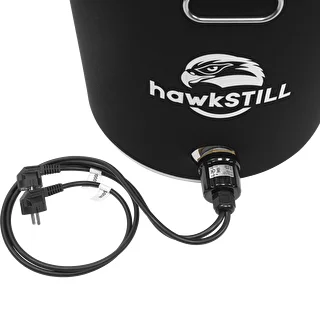

- heater with a total power of 3500 W, consisting of two heating elements powered by separate cords – one with 2000 W and the other 1500 W
Vessel:
- 4 carrying handles

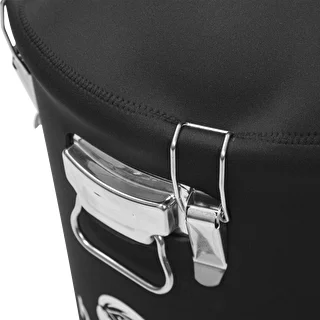

- 6 latch clamps
- lid with an integrated silicone gasket
- rigid domed lid with an opening for column installation

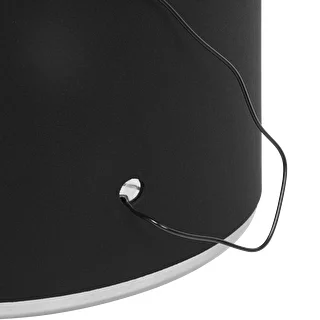

- opening in the vessel wall for the thermometer probe and the heater
- socket for the drain valve and a matching ball valve for installation

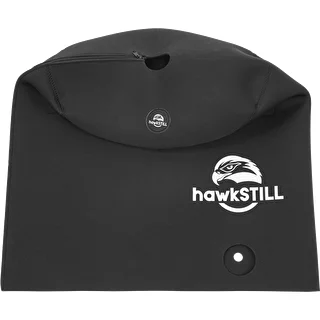

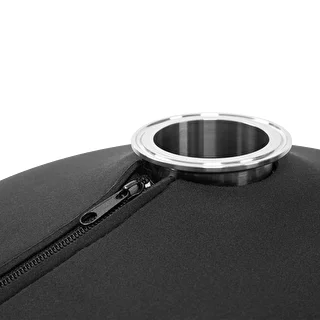

Neoprene insulation for the Convex 60 L still pot
- Made of durable, flexible neoprene
- Precisely matched to the Convex 60 L pot with an opening lid
- Cutouts for handles, tap and thermometer port
- Zipper ensuring convenient installation and removal
- Thermal insulation, mechanical protection and user safety
Catalyst:
- module height: 240 mm
- module tube outside diameter: 60.3 mm
- ended with Tri-Clamp connections
- can be used with packing
- recommended packing: copper
- packing capacity: 0.6 L
Column module:
- height: 1040 mm
- outside tube diameter: 60.3 mm
- ended with a Tri-Clamp connection
- packing section capacity: 2 L

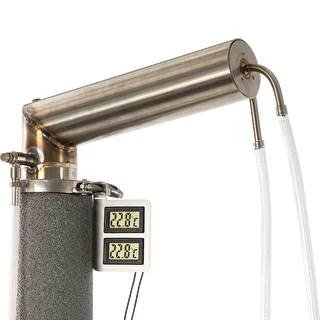

Head with condenser:
- cooling section height: 140 mm
- outside tube diameter: 60.3 mm
- connecting tube between the column and the head diameter: 18 mm
- water connection – tube welded into the condenser: 10 mm
- thermometer port
There is a place for the thermometer probe in the upper part of the head, which allows direct monitoring of vapor temperatures throughout the process.

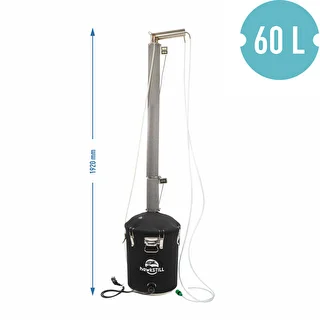

Dimensions of the still (assembled):
- height: 2053 cm
- width at the widest point: 603 mm
Note! Before use, be sure to read the manual included with the product and the principles of its use, cleaning and maintenance. Following the provided recommendations will ensure suitably long, effective and safe use of the still.
CAUTION!
Every country has its own legal regulations governing the
manufacturing of ethyl alcohol, wine products, and spirits,
introducing them onto the market, and regarding sanctions for
non-compliance.
