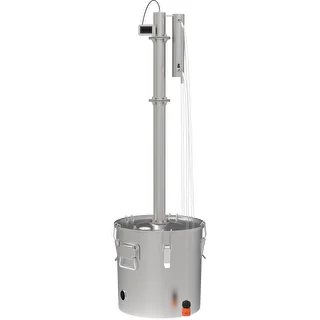

Modular still for flavouring of distillates 30 L - electric

The still for flavouring distillates is a device used for providing aroma to various liquids, such as spirits, water or essential oils.

• Natural aromas - the still for flavouring distillates allows natural aromas (herbs, grains, fruits) to be added to liquids, which enables avoiding artificial additives.
• Money savings - the device makes it possible to produce gin, absinthe, fruit vodkas or essential oils much for less money than it would take to buy the same liquor in a store.
• Easy, fast and efficient - the flavouring still is fast and efficient, allowing you to easily flavour large quantities of liquids in a short time.
• Possibility of using the module as a catalytic filter - once it is filled with with prismatic springs, the 250 mm connector can be used as a catalytic filter.
• Optional modification - a modular still is a foundation that you can expand at any moment by buying more modules.

This modular distillation system was created in order to meet the requirements of the most demanding customers. Thanks to the applications of standardising connections and innovative system elements, this system can be used as a basis for configuring various types of stills. The modular assembly allows expansion or different arrangement of the system.

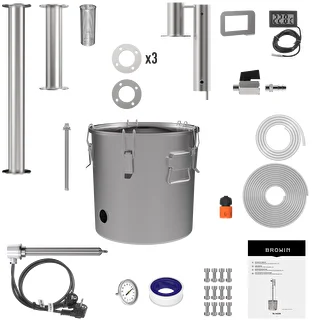

The kit includes:

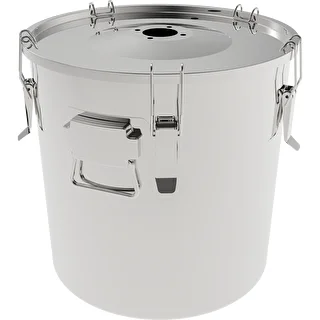

• Container - made of stainless steel.

Structural characteristics:

- capacity - 30 L

- 2 handles for moving around

- 5 clamping brackets, depending on the production batch

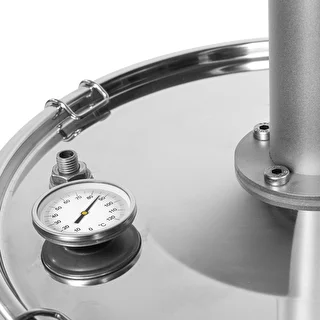

- cover with a built-in silicone gasket

- installation openings in the cover, intended for a thermometer, a probe and still modules

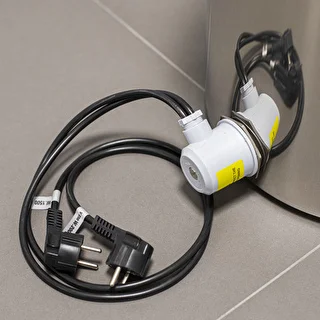

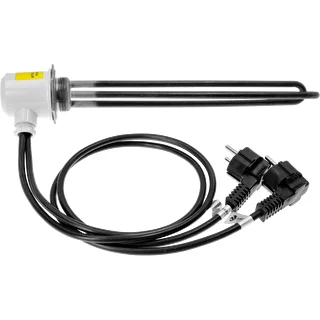

- coupler for installation of electric heater

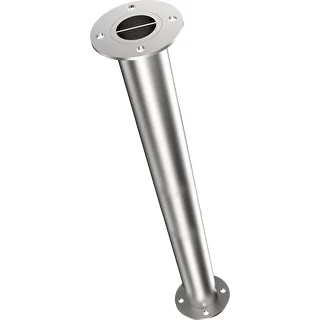

• 500 mm column connector - made of stainless steel.

The connector may perform the function of a rectifier, as it enables using a filling that increases the purity of the distillate obtained.

Structural characteristics:

- module height - 500 mm

- external diameter of the module pipe - 48 mm

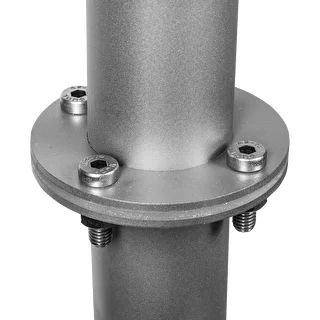

- ending with screw connectors

- possibility of using a filling.

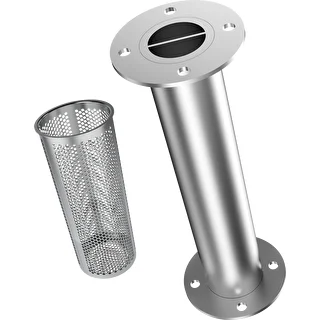

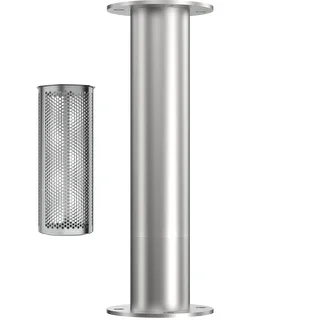

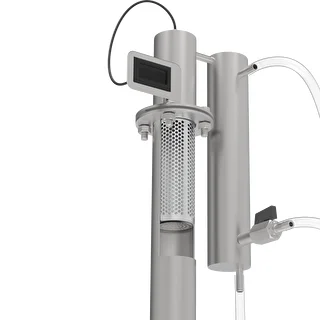

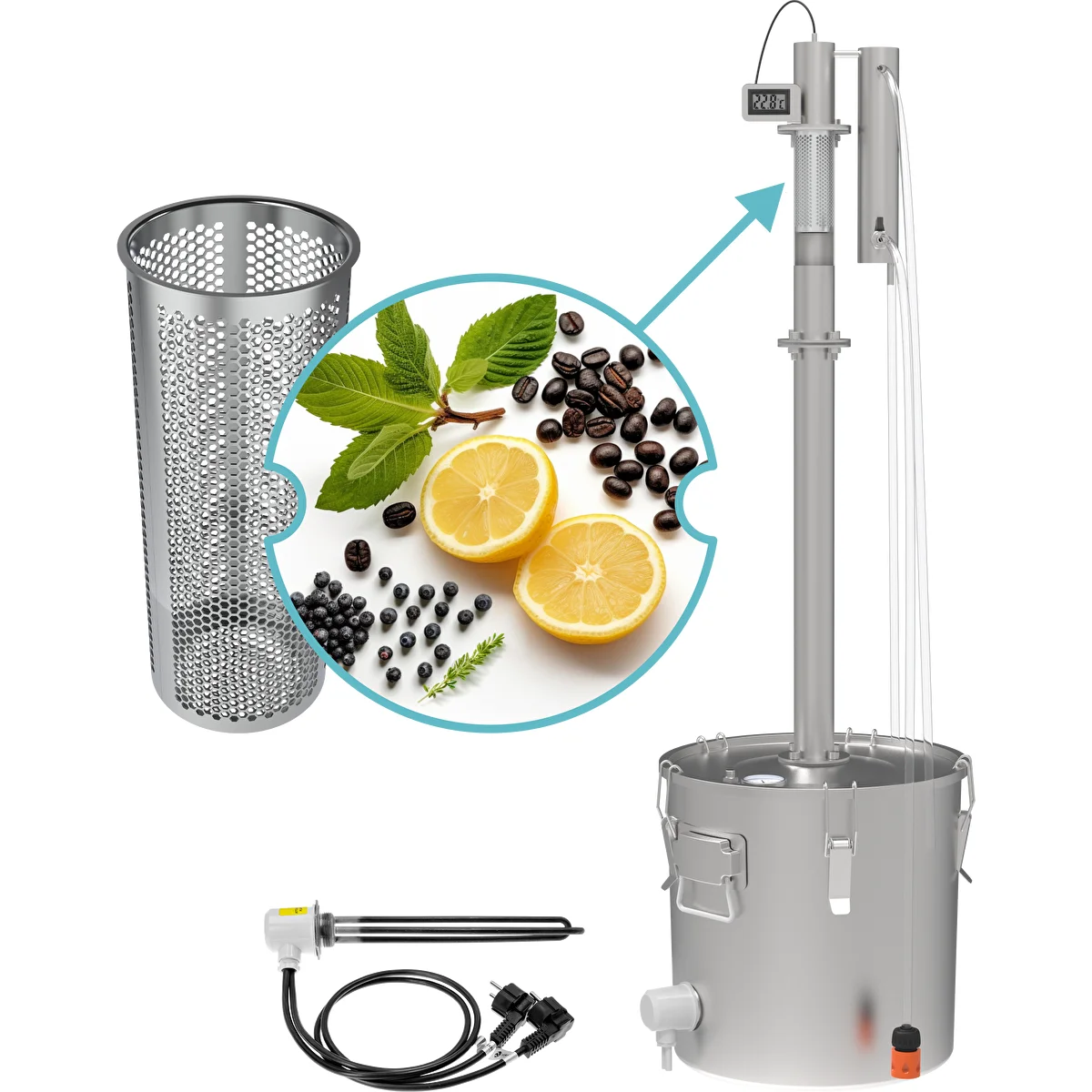

• Still module for distillate flavouring - still module made of stainless steel, complete with basket for flavouring.

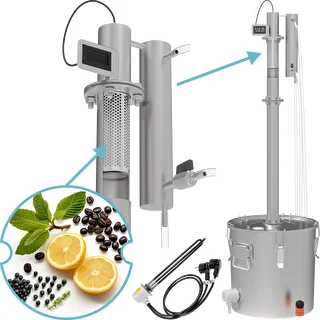

Basket for flavouring by means of the “Bombay method” is an extremely useful module that allows flavouring the distillate during distillation. The distillate vapours pass through the extremely permeable module that contains herbs, fruit and spices, the unique aroma of which we want to impart to the distillate.

Thanks to the unique design and original perforation, the flavouring module does not “choke” the still and does not cause transfers during distillation.

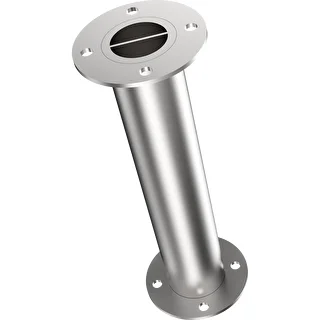

The connector 250 mm may perform the function of a catalytic filter, as it enables using a filling that increases the purity of the distillate obtained. The best effect is achieved when using prismatic copper springs. The task of the copper is to adsorb volatile sulphur compounds that provide the distillates with the smell of rotten eggs originating from hydrogen sulphide and have a negative impact on their flavour. The coupler holds approx. 450 ml of filling, to be purchased separately.

Structural characteristics:

Connector:

- module height - 250 mm.

- external diameter of the module pipe - 48 mm,

- ending with screw connectors

- possibility of using a filling.

Basket for flavouring:

- module height - 120 mm.

- external diameter of the module pipe - 45 mm

- ends with flange that prevents the module from falling into the connector

- made of high quality stainless steel

The basket is dishwasher safe.

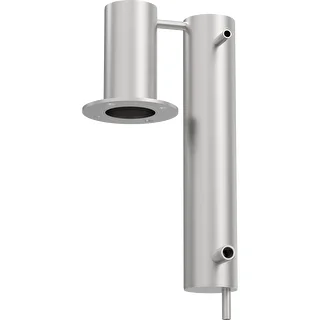

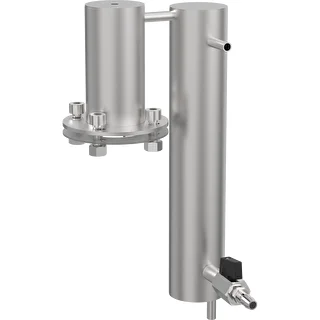

• Head - spiral cooler - made of stainless steel. Mounted on top of the distillation column.

Thanks to applying a spiral cooler the heat exchange surface is increased, which translates to quicker cooling and lower consumption of cooling water during the process.Thanks to the valves that enable very precise water flow adjustment and the efficient spiral cooler, it is possible to fully condensate the distillate vapours and cool it down to the collection temperature desired.

Structural characteristics:

- cooling section height - 280 mm

- external pipe diameter - 48 mm

- module ending with a screw connection

- water connection - threaded 1/8” coupler for a hose valve/connector

- slot for a needle probe thermometer.

The kit also includes:

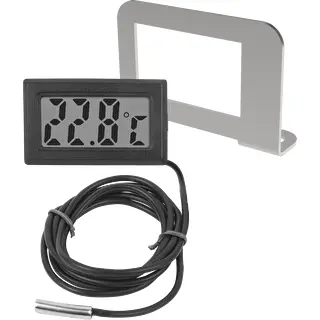

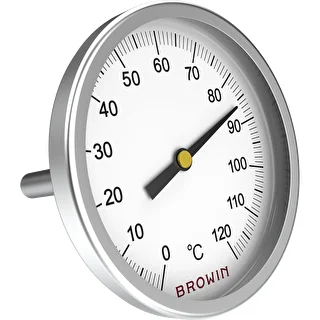

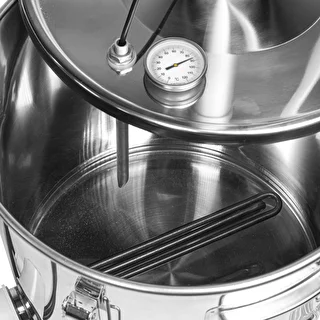

• Two thermometers - an analogue one placed in the container and an electronic one placed in the frame at the top of the column. They enable direct and constant control over the process.

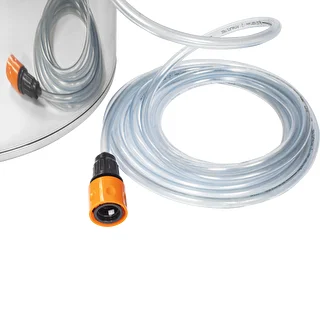

• Long 5 m plasticized PVC hose – for connecting water, featuring a quick coupling than enables easy connection with a tap.

• 1 m silicone hose - for receiving the distillate, safe for use in contact with alcohol.

• controller probe key

• 1/8 inch ball valves

• plug connector

• threaded connector

• column attachment cover

• gaskets - 3 pcs.

• screws and assembly nuts - 12 pcs.

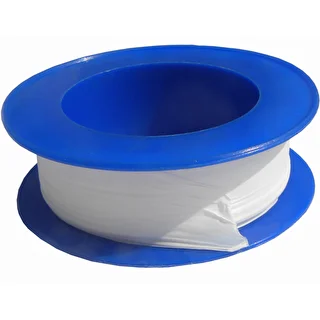

• teflon tape

• user manual.

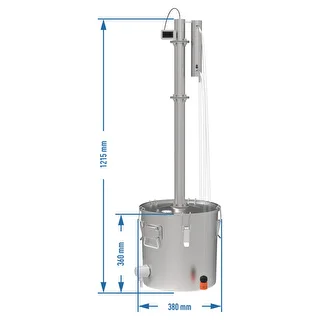

Kit width: about 131 cm

Caution!: The distillation process must be carried out under supervision.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
