Electric Air Pump dragON Air

The dragON Air electric air pump can be used in two main applications - in the smoking process, when connected to a smoke generator, ensuring optimal combustion and smoke distribution and as an aquarium air pump, providing effective aeration for fish tanks.

• Efficient electric pump - dragON Air is an excellent 5 W pump, for use both in the smoking process and in aquaristics.
• Air flow regulation - the pump allows you to set the appropriate level of air distribution to your needs.
• Optimization of the efficiency of smoking wood chips combustion - thanks to the ideal air flow, you can forget about the troublesome suspension of wood chips!
• Efficiency that you will appreciate - the pump is characterized by high efficiency (2x3.5 L / min), which will provide the necessary amount of smoke even in smokehouses with a capacity of up to 300 L.
• Ideal aquarium aeration - thanks to its high efficiency (420 L / h), the pump is perfect for aerating aquariums of various capacities.
• Easy connection and operation of the device - you can prepare the pump for work quickly and easily, both in combination with a smoke generator and with an aquarium.

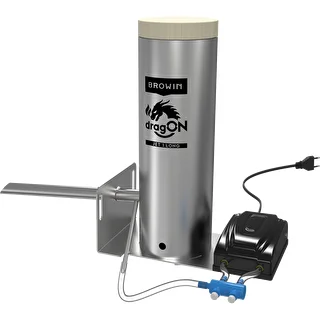

Application in the smoking process: This pump, in combination with a smoke generator connected to the smokehouse, ensures an excellent course of the smoking process in any type of smokehouse - large and small, steel, wooden or brick. Thanks to the pump, air is blown into the generator nozzle in a way that optimizes the suction of smoke into the smoking chamber, ensuring excellent quality of the taste of dishes. The pump provides the necessary amount of smoke even in smokehouses with a capacity of up to 300 L. Efficiency: 2x3.5 L / min.

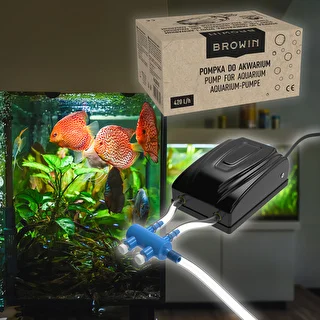

Application in aquariums: Our pump is also an irreplaceable tool for aquarium enthusiasts. The pump is ideal for aerating aquariums of various capacities. The device is characterized by high efficiency (420 L / h). The dragON Air pump will provide the optimal amount of oxygen, which will translate into the health and activity of the inhabitants of your aquarium.

The pump is characterized by very low energy consumption and quiet operation. The modern damping and shock absorption system makes the pump operation virtually inaudible.

The pump is designed for continuous operation. Despite very low energy consumption, the amount of air pumped is very large. The air pumped is clean, without any impurities.

dragON Air is not just a pump - it is a complete set ready for action. The set includes:

• 5 W electric pump with a two-position switch (100% or 50% power)
• Ø 6/4 mm silicone hose, 4 m long
• two-way reduction valve
• anti-return valves (2 pcs.)
• aquarium air stones (2 pcs.)

Basic technical parameters:

• power supply: 230 V
• min current consumption: ~11 mA
• current consumption: 22 mA
• min power: ~2.5 W
• max power: 5 W
• air flow: 2x3.5 L/min

Pump dimensions:

• length 12 cm
• width 8 cm
• height 5.5 cm

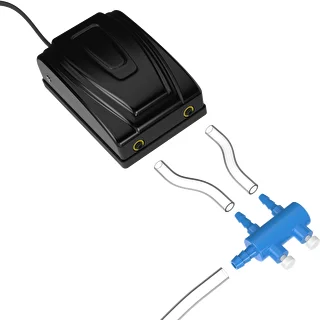

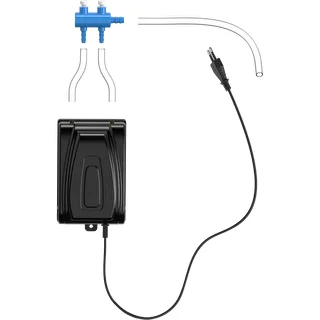

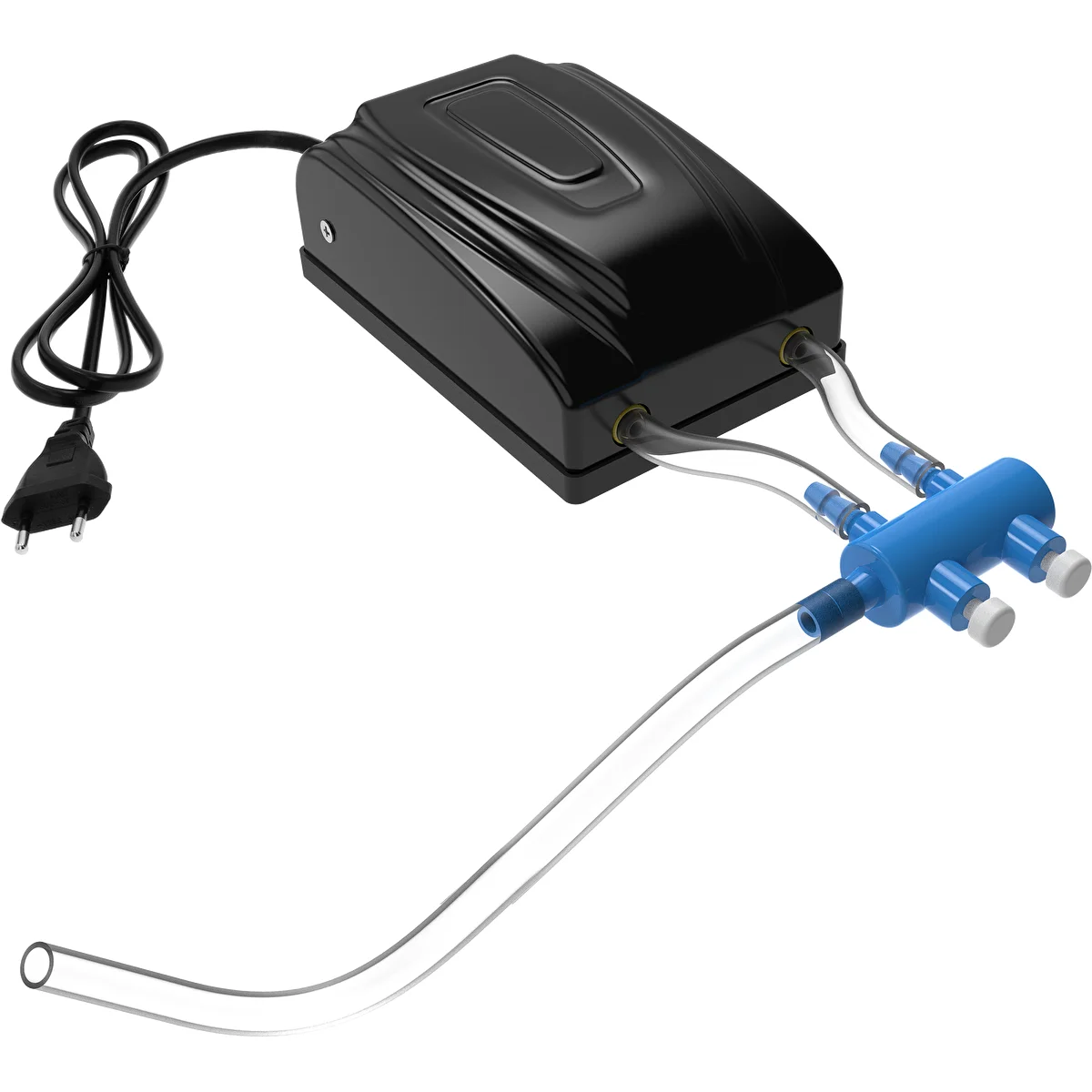

The pump is connected to the target device/devices via a hose (which should be cut to the required length) and a reduction valve.

For connection, a tee can be used instead of a valve, but it is not part of the set.

In the aquarium option, you can also use a direct connection and add non-return valves to each connection, preventing water from flowing back through the hose in the event of a failure.

Follow the rules for using the product given in the instructions and familiarize yourself with the recommendations regarding the general safety of GPSR products, available at: https://browin.com/gpsr
