Immerse yourself in the world of fine distilling with our practical convex kit, offering not only exceptional quality and unique style, but also the ability to expand or swap components as your needs change.

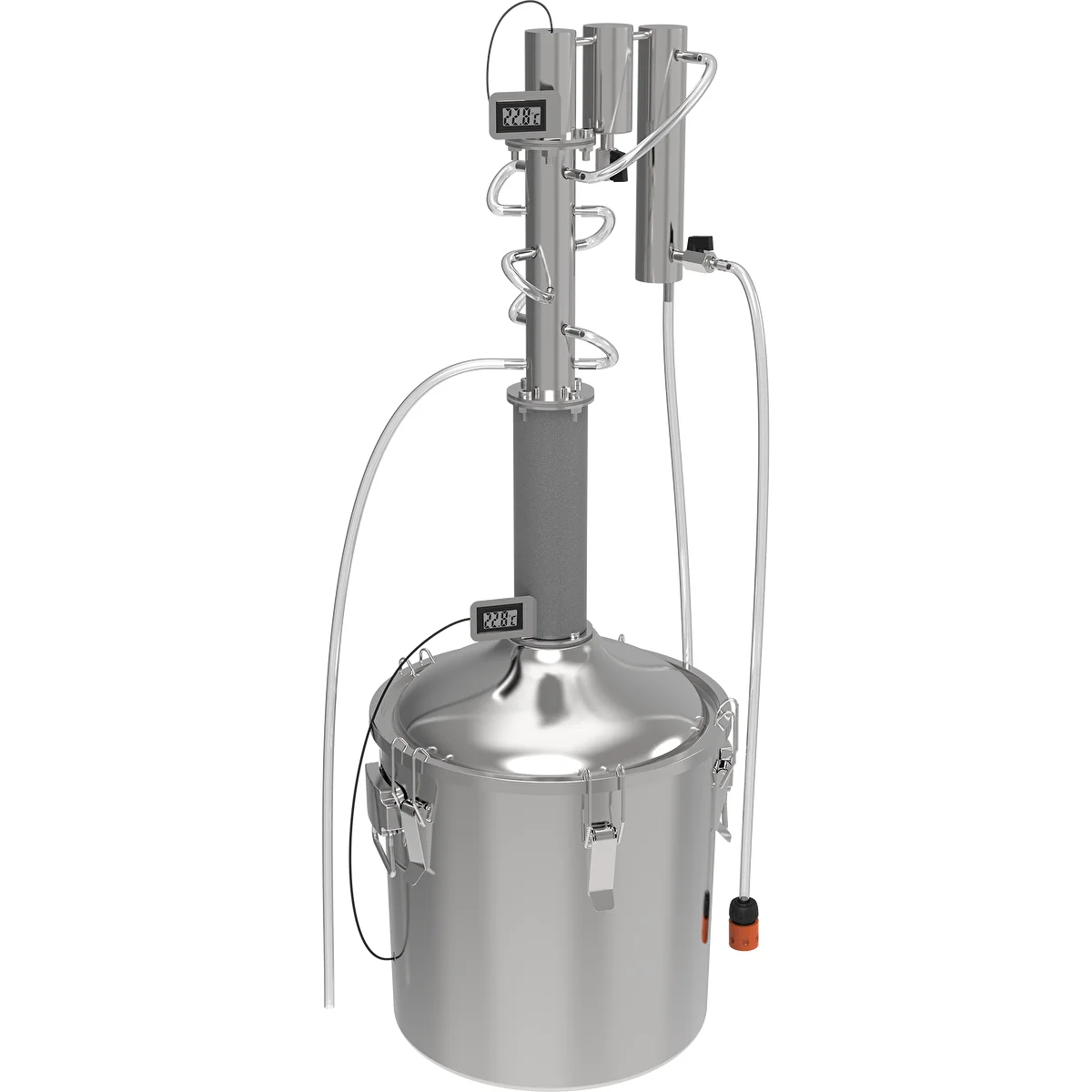

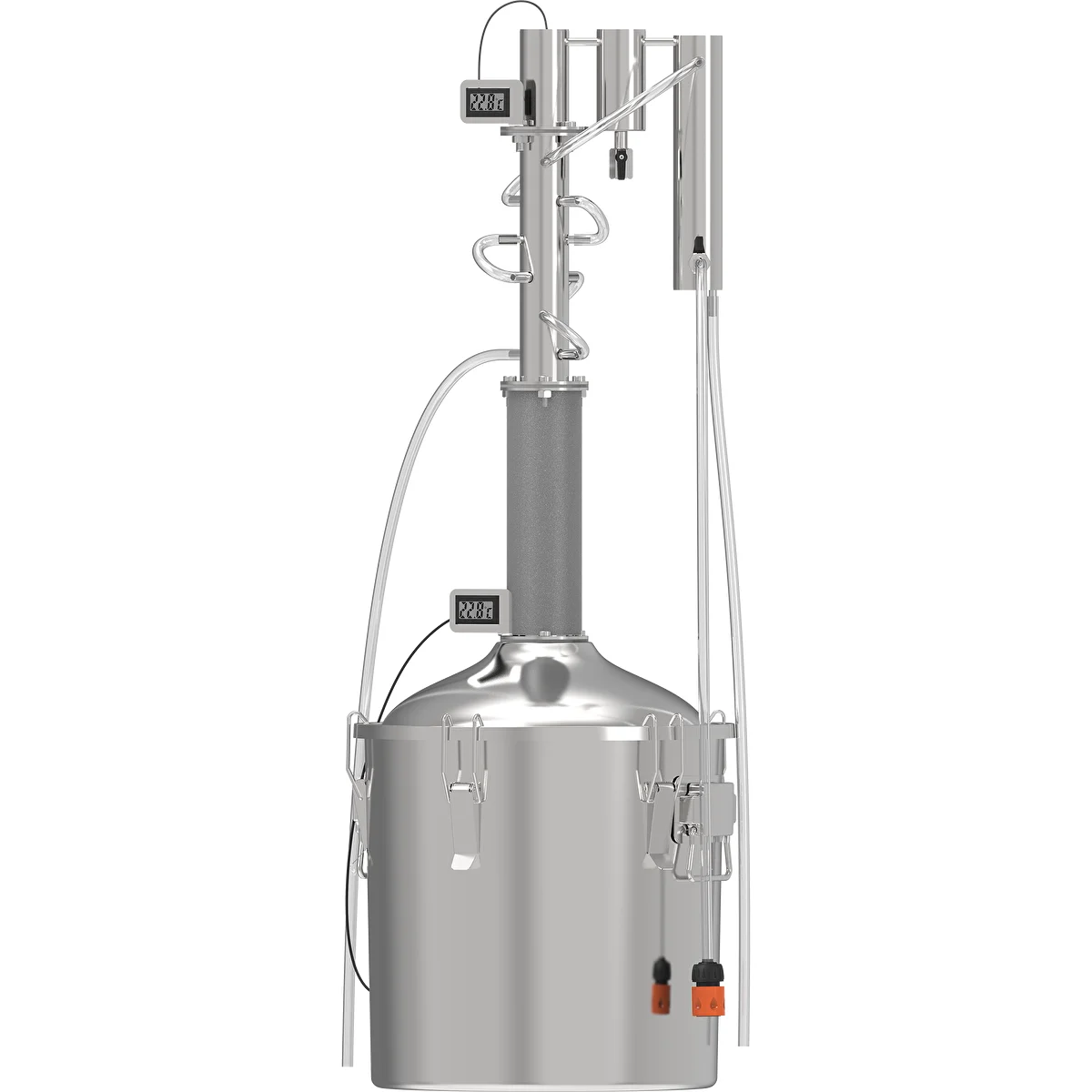

The ‘Torpedo’ 30 L modular Convex still is a professional, modular still with a 30 L container, a reflux of the ‘cold fingers’ type, a clarifier and a condenser. It is a complete set made of high-quality stainless steel (INOX), intended for use on all types of cooktops.

The product is distinguished by the following features, among others:

• High quality - made of stainless steel and durable plastic components, airtight featuring precision connections, and characterised by operational efficiency and durability.
• Can be used on various heat sources - on an electric, induction, ceramic, gas or coil cooktop.
• Purer distillate with higher potency - the distillate from a 'cold fingers' still is purer and has higher potency than that obtained from a basic still.
• Two electronic thermometers included - providing precise temperature measurements during the distillation process.
• High efficiency - the 30 L container makes it possible to distil a large volume of liquid (however, it is recommended not to exceed 90% of the capacity).
• Complete set - the kit includes a container with a convex lid, a column connector with lagging and reflux of the ‘cold fingers’ type, a condenser with a clarifier, 2 electronic thermometers with batteries included, 2 valves for the clarifier, 2 hoses, a water supply connector, assembly elements, and a user manual.
• Expandable kit - the container and lid are compatible with other distillation modules available from BROWIN.

The still is equipped with a 30 L container (with recommended filling level of up to 90% of capacity and not less than 25%), and a condenser with 1 clarifier and 2 thermometers, allowing distillation to be carried out without any additional equipment. The 'cold-fingers' reflux facilitates obtaining a clean distillate of high potency. This kit is suitable for use on various heat sources. Two precision thermometers with probes facilitate temperature control – inside the container and in the clarifier. Plasticised PVC hose with coupling enables quick connection of water supply and drainage. The silicone hose is used for collecting the distillate.

The kit features an airtight container of convex type - with a dome-shaped lid that allows for potential foaming of the batch or mash, without the risk of contamination of the column and its filling. The dome shape, inspired by classic 'swan-neck' alembics, increases the stability of the entire column, even with tall still, which also translates into increased stability of the entire distillation process. The dome lid has only a main hole for mounting the column.

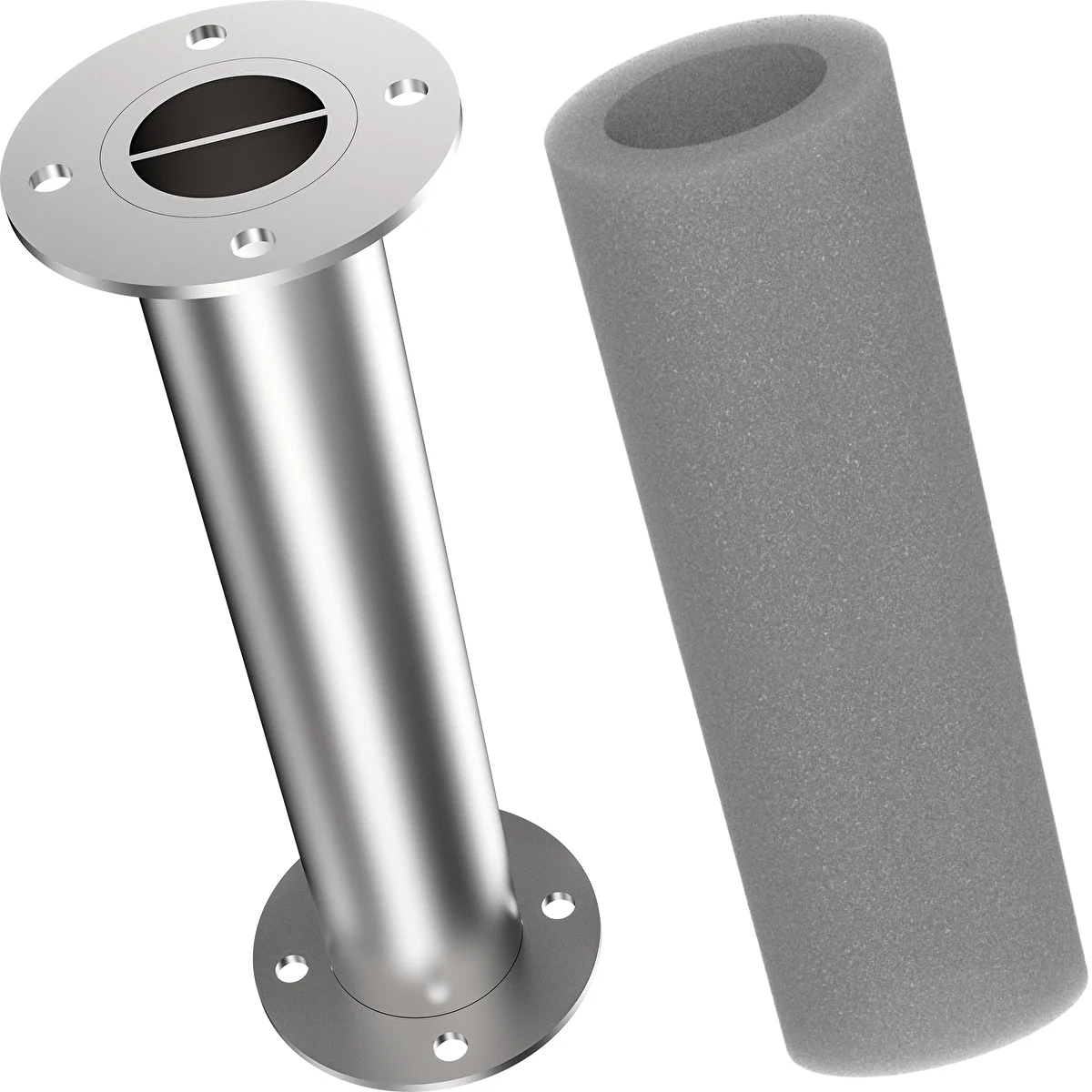

Column connector - a distiller module made of stainless steel, installed in order to increase the height of the distillation column, filled with stainless wire scourers, thanks to which it is excellent at increasing the purity of the resulting distillate.

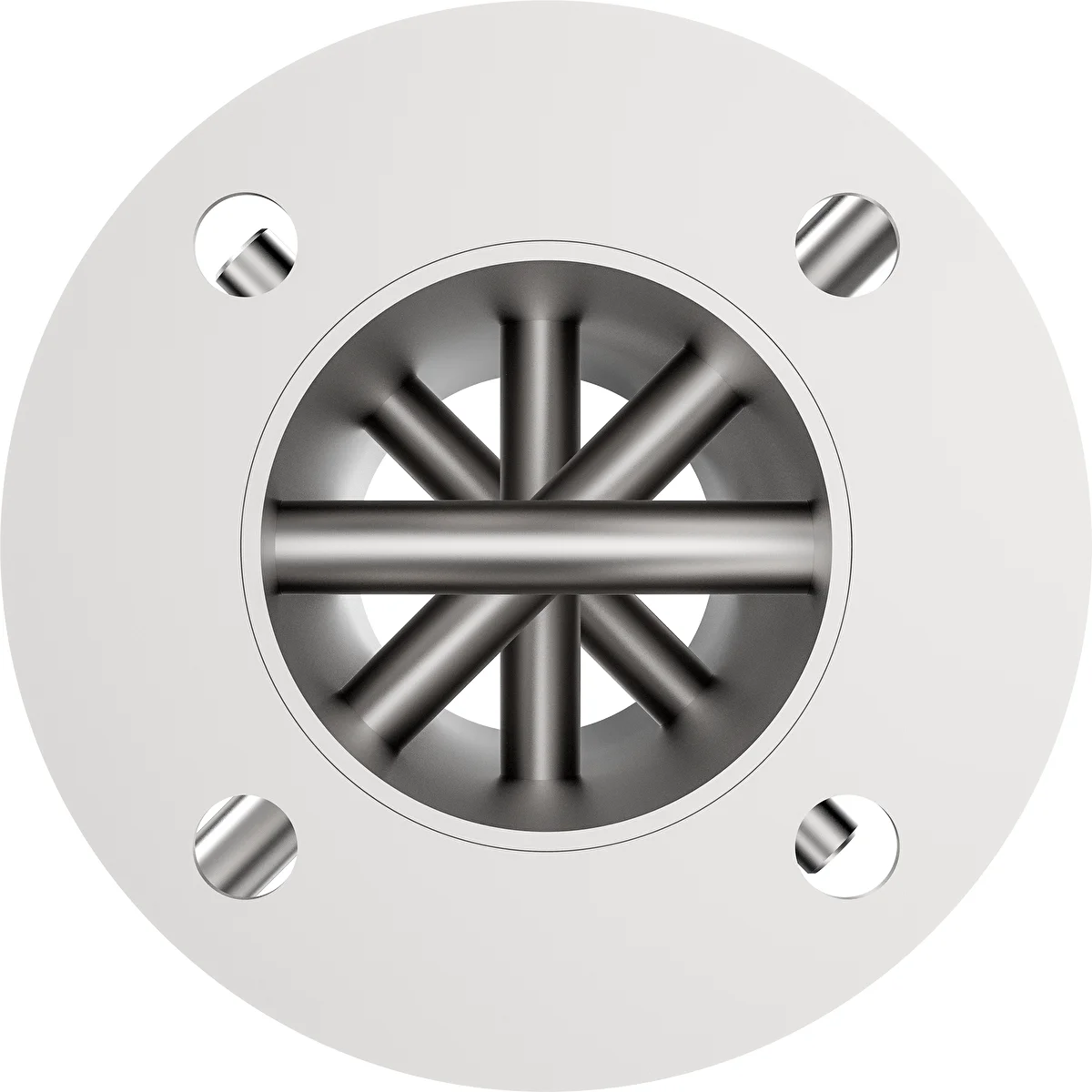

The connector can also perform the function of a catalytic filter, purifying the distillate perfectly. In its lower part, the connector includes a crossbar on which a support grid can be placed, allowing the column to be backfilled with copper prismatic springs (available from Browin).

Column cladding reduces heat losses - this enables conducting the process in lower ambient temperature.

Distilling has never been so easy! Our abundant experience, our drive to look for novel and improved solutions, and our focus on high quality all allows us to offer proven specialist equipment for distilling.

The container and lid are fully compatible with the distillation modules available from BROWIN - when you have this still, you can upgrade it with additional components.

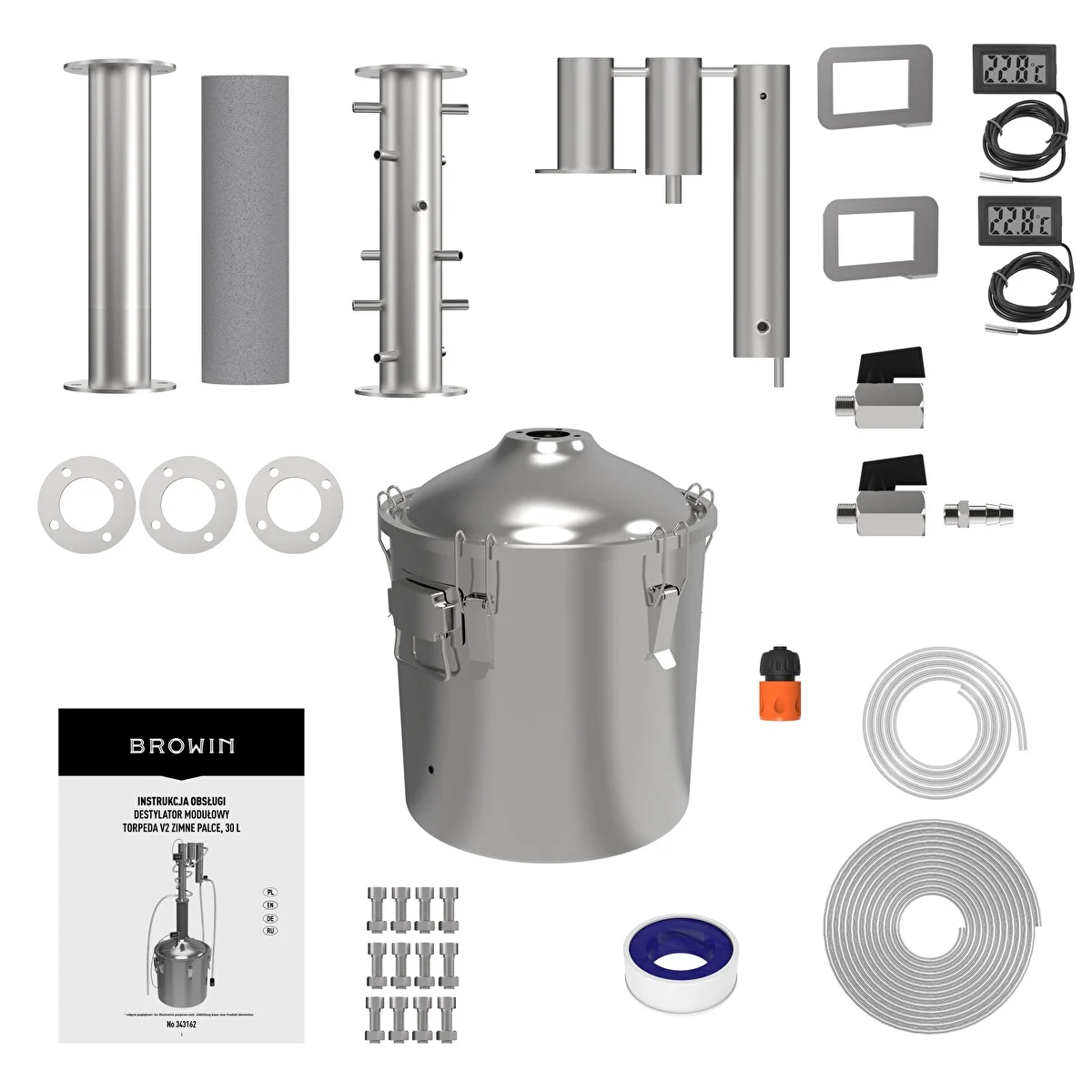

KIT ELEMENTS:

1.   30 L container with a dome lid

2.   Column connector with lagging

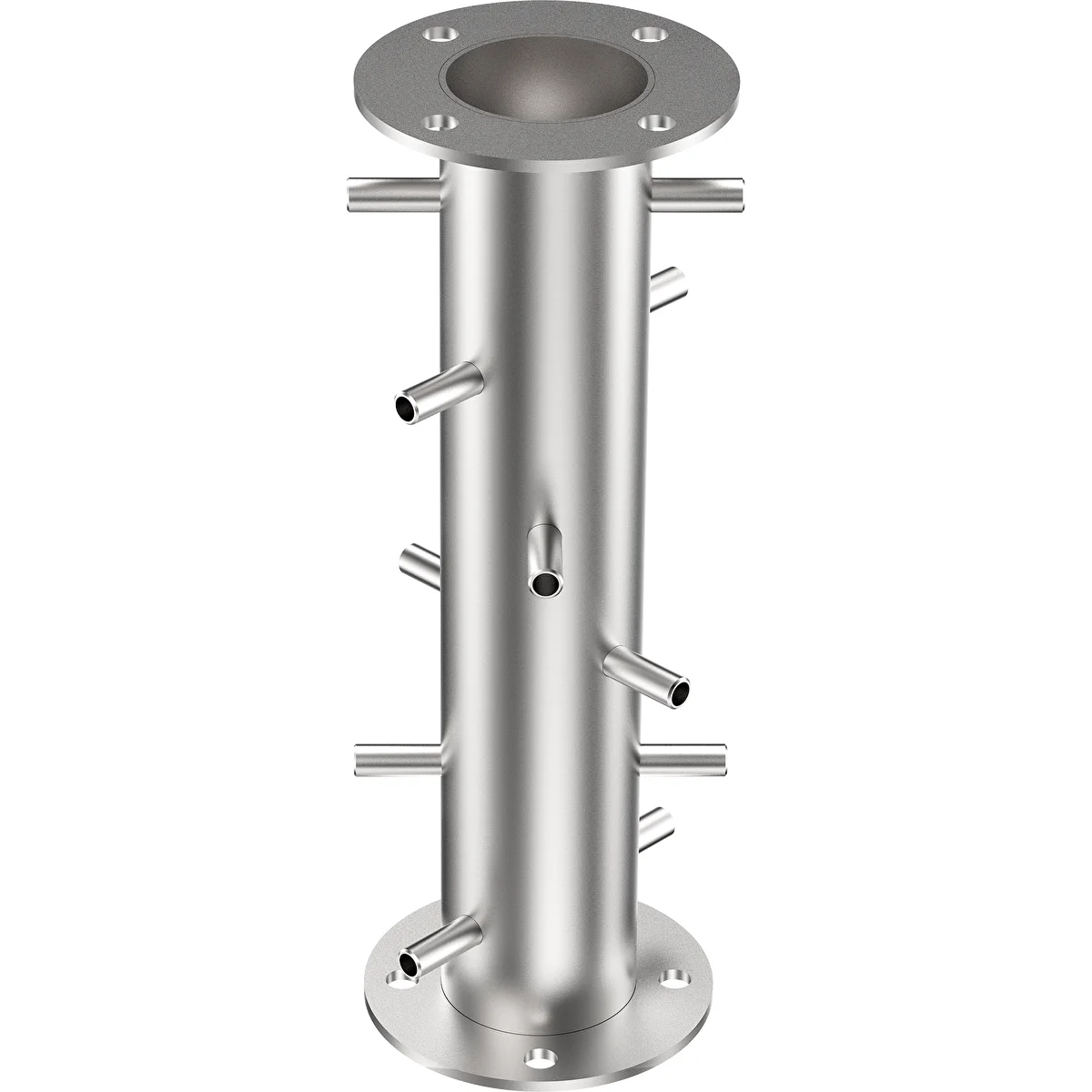

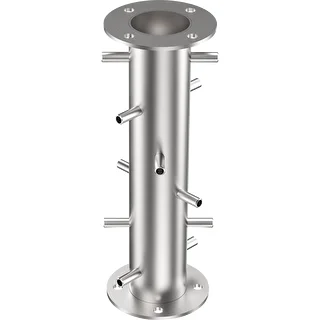

3.   ‘Cold fingers’ reflux

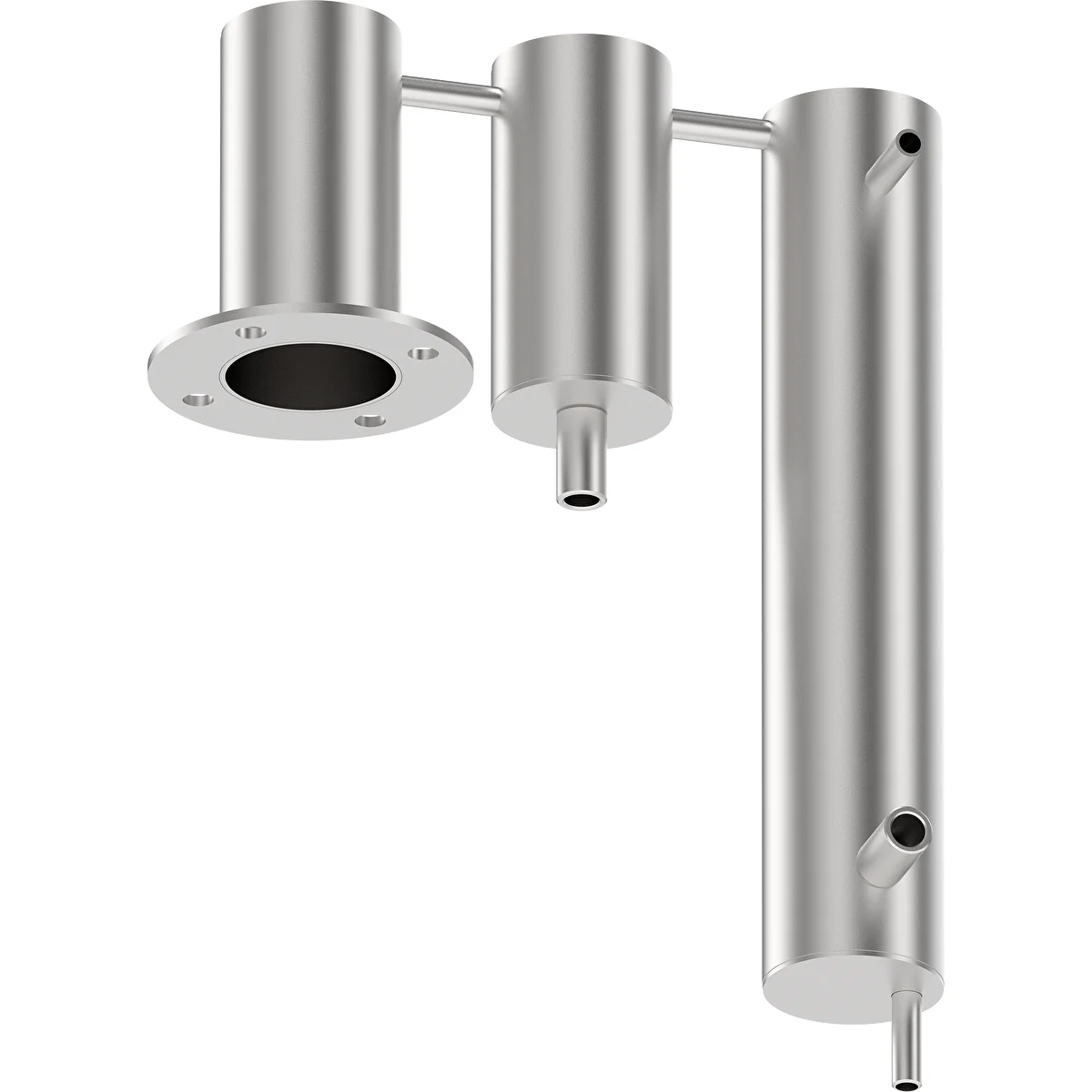

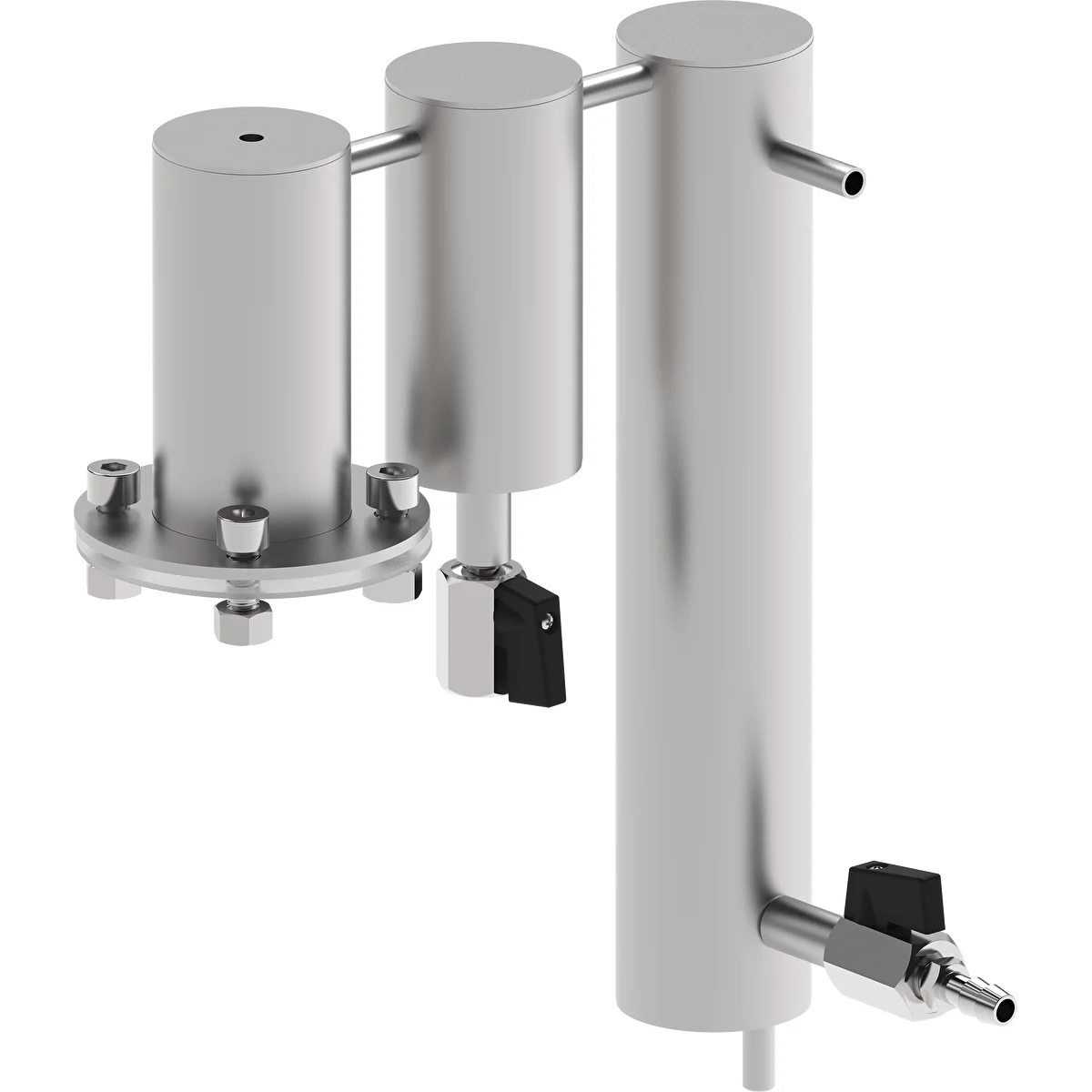

4.   Head - condenser with 1 clarifier

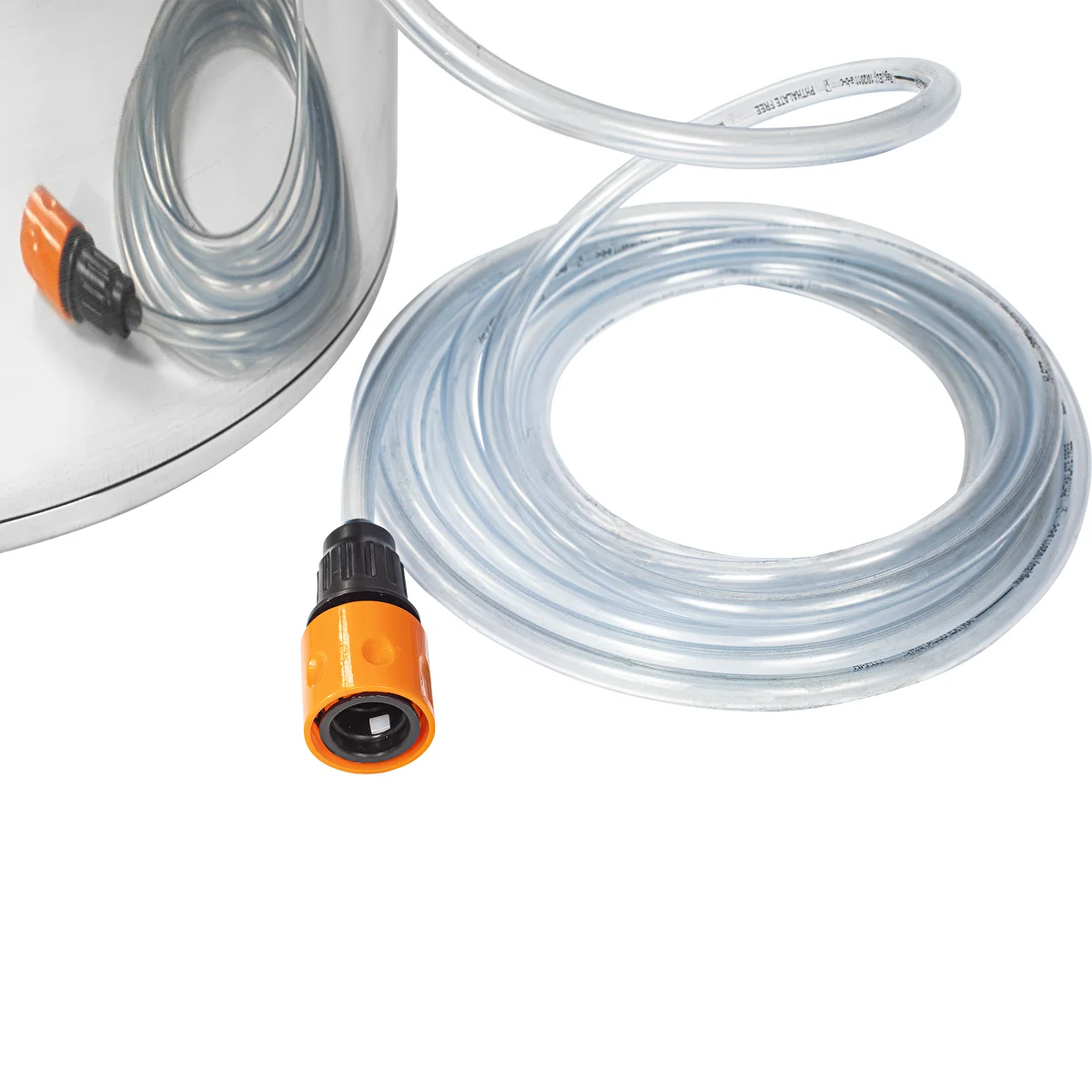

5.   Plasticised PVC hose with quick coupling for connecting water supply

6.   Silicone hose for receiving the distillate

7.   2 valves - 1 for clarifier and 1 for condenser

8.   2 frame-mounted electronic thermometers with probe

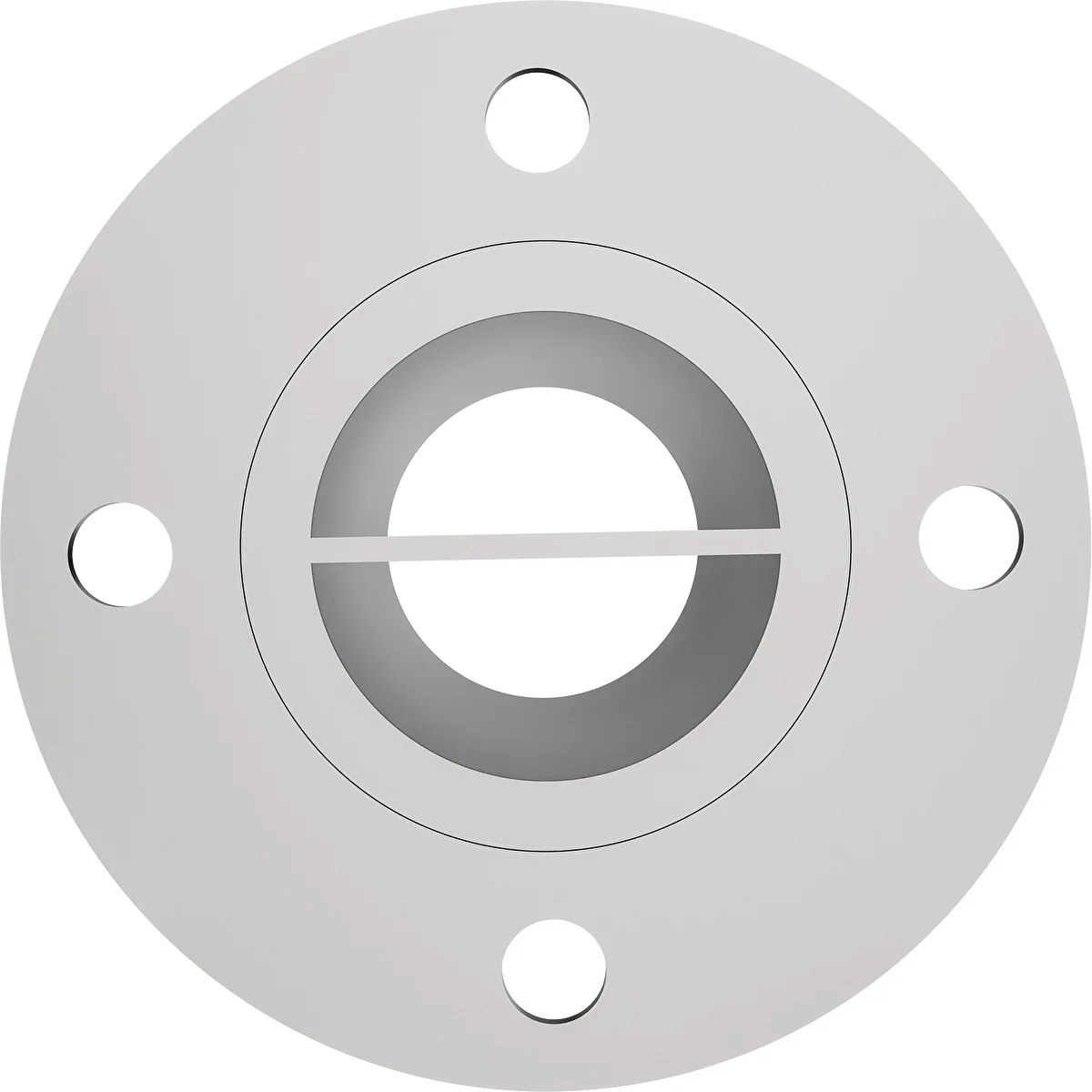

9.   Accessories (gaskets - 3 pcs, bolts and nuts for installation - 12 pcs)

10. User manual

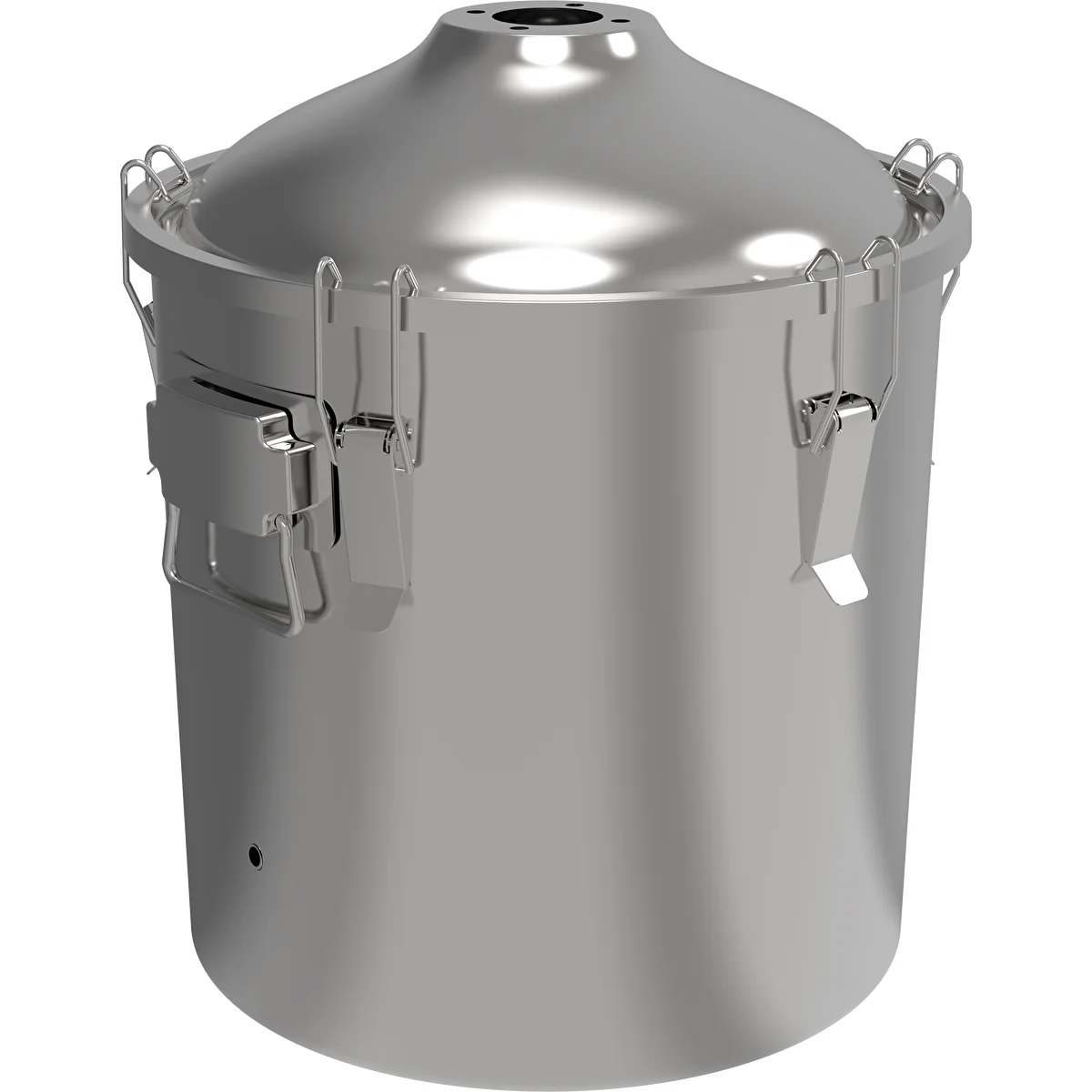

Container

• 30 L container with an opening for the thermometer probe
• (convex) dome lid with a silicone gasket and an opening for column installation (screw connector)
• 2 handles for moving around
• 5 clamping brackets
• material: stainless steel

Heat source: an electric, induction, ceramic, or gas cooker, or a heating coil.

Recommended filling: not more than 90% and not less than 25% of the container volume

Distillation unit

- column connector

- ‘cold fingers’ reflux

- head - a stainless steel condenser featuring a clarifier

- inside the condenser - a spiral, made of 8 mm pipe

- water connection with 1/8" threaded coupler

- two 1/8” ball vales

• plasticised PVC hose: 5 m
• silicone hose: 1 m
• connector lagging

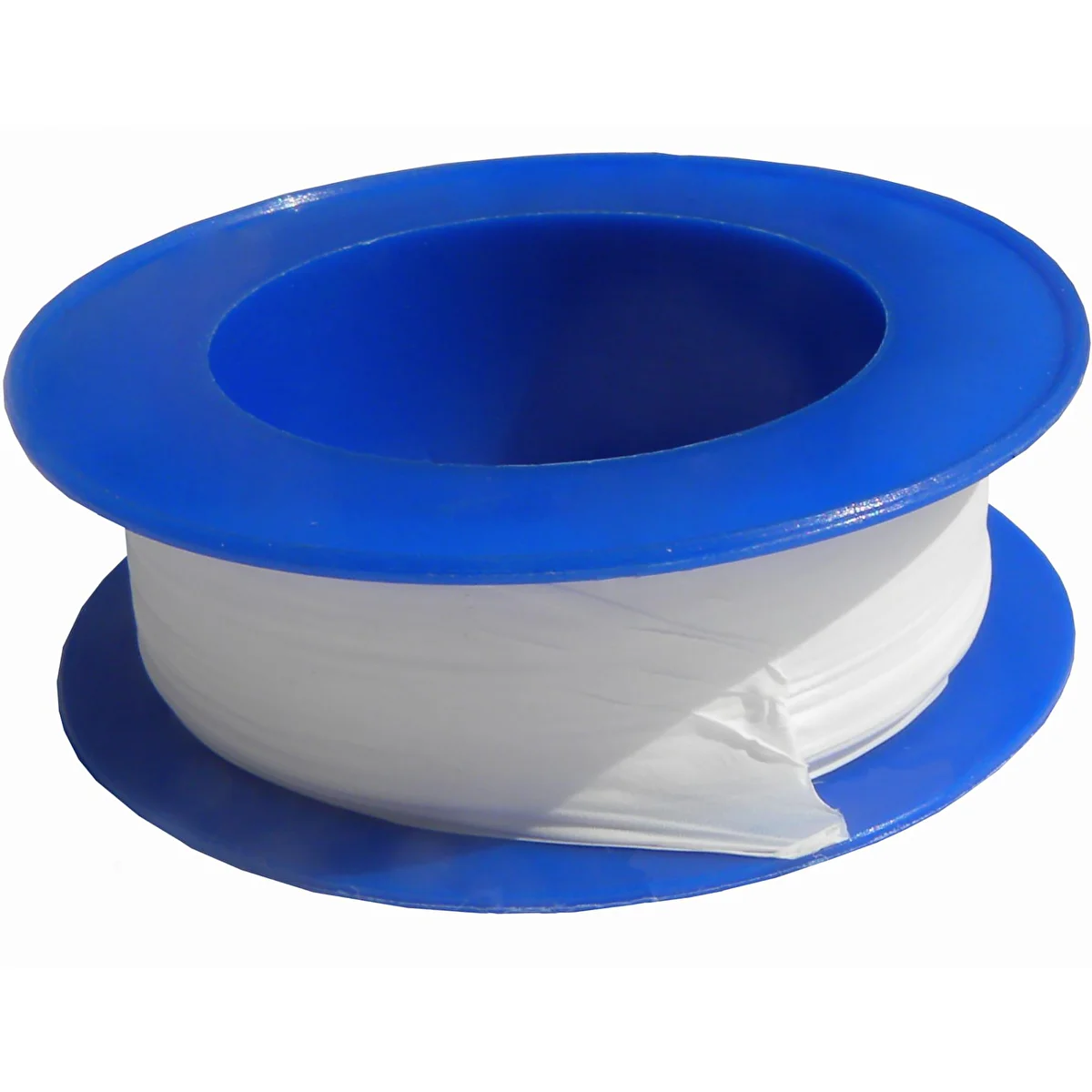

• PTFE tape for installing the valve

Electronic thermometers

• a thermometer for reading the approximate temperature inside the container
• thermometer for measuring the temperature of vapours
• 2 thermometer frames
• 2 stainless steel probes with a 100 cm long cable
• temperature range: from -50^oC to +110^oC Tolerance: +/-1^oC
• precision: 0.1^oC
• batteries for thermometers: 2 x LR44 (included)

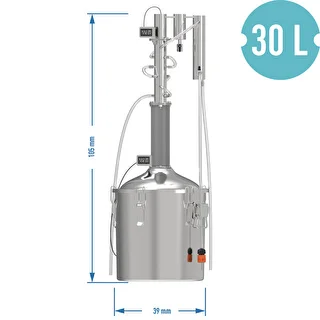

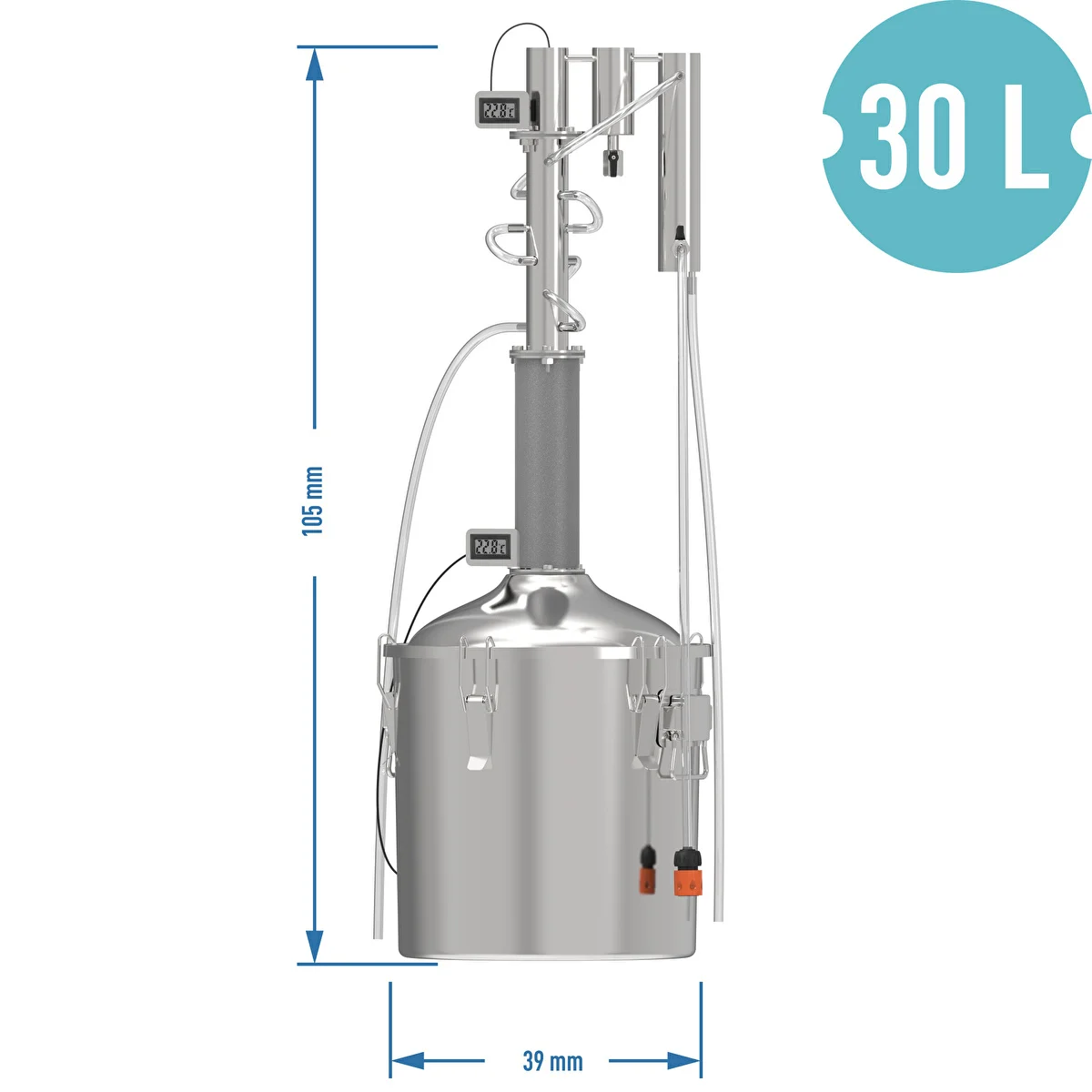

Kit dimensions:

- height: 104 cm

width: 39 cm

- container diameter: 39 cm

Complementary products available in the Browin’s product range, to be purchased separately:

- alcoholmeter for measuring the alcohol content in the distillate

- prismatic copper springs

Water consumption during the process is about 24-27 L / 1 h.

Before assembling the kit and starting to use it, read the accompanying manual carefully and follow the instructions, observing the principles of safe use of the product.

PLEASE NOTE! The device can be used by adults only. Never leave a working device unattended. Make sure that the device storage location is properly secured against access of children and unauthorised persons.

CLEANING AND MAINTENANCE:

Please proceed in line with the recommendations provided in the manual. You should also bear in mind at all times that the container is made of steel. It requires maintenance and drying after each use. Lack of adherence to the recommendations of the manufacturer may result in damage to the product such as appearance of rust or discolorations.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
