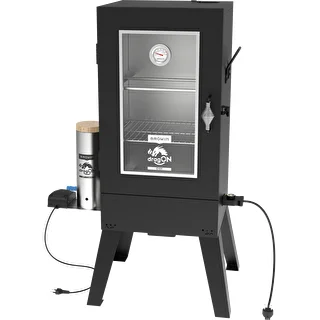

dragON E101 electric smoker with smoke generator , 70 L

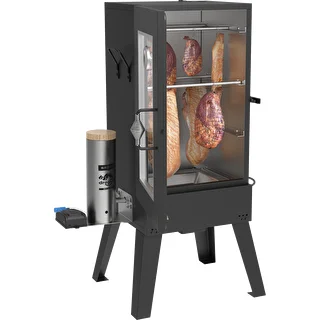

The dragON E101 electric smoker with smoke generator is a high-quality, practical device with an attractive design that is ideal for hot and warm smoking, for cold smoking (without using the heater) and also for roasting. With this 70 L multi-purpose smoker, you will prepare excellent meat products, fish and homemade smoked cheeses - you can successfully place up to 9 kg of input inside of it. Your delicacies will have great aroma and flavour!

In addition to great cooking results, the smoker also ensures ease of use - and all its benefits are best appreciated during long, efficient use!

• Warm and cold smoking - it is a professional backyard smokehouse with a capacity of 70 L, in which you can fit 6-9 kg of input. It is ideal for all smoking options: hot and warm, cold (without turning on the heater, using only the smoke generator) as well as for roasting and drying.
• Well-insulated walls - this solution ensures a stable temperature in the chamber (which you will particularly appreciate in winter) and allows you to reduce electricity consumption - which means that you can smoke very efficiently and save money at the same time! .
• The innovative dragON Jet 1 LONG electric smoke generator - patented by Browin - together with a pump and wood chips ensure optimal smoke distribution.

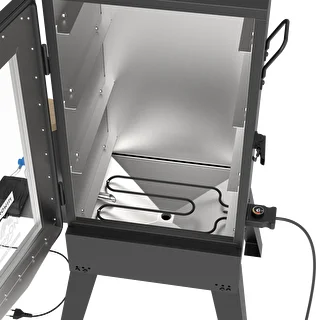

• Internal drip tray - makes it easy to keep the smoker clean and acts as a deflector to evenly distribute smoke throughout the smoker chamber.
• Door equipped with a funnel for drips - this practical design solution ensures that condensation does not drip onto the gasket.
• Additional external tray - ensures that excess condensation can be conveniently drained from inside the smoking chamber.

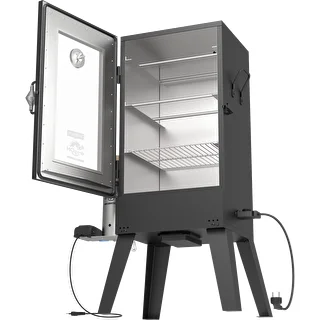

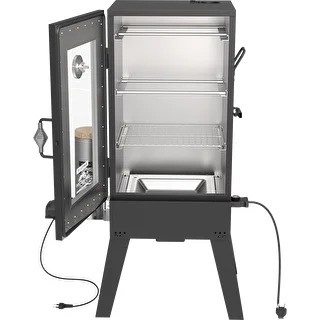

• Excellent control over the smoking process and convenient, simple temperature management - the glass door of the smoker provides a convenient view of the interior, while the thermostat and analogue thermometer allow for easy temperature adjustment and checking.

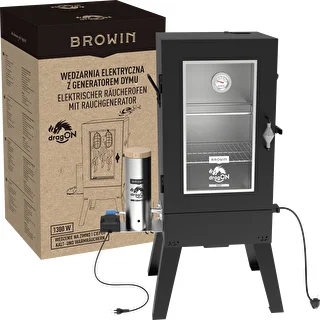

An all-in-one, high-quality set - a steel smoking chamber with a substantial capacity, stable metal legs for convenient access to the inside of the smoker, a glass window, a grill, beams and hooks, wood chips, a precise analogue thermometer, and two drip trays. All of this is accompanied by a super-efficient smoke generator with the Jet 1 LONG electric pump.

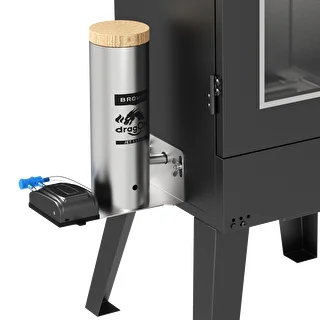

The innovative, patented design of this smoke generator will give you excellent distribution of the smoke produced when burning wood chips. The pump, characterised by adjustable smoke flow rate, is positioned on the base so that its vibrations are transmitted to the cylinder. This ensures that the wood chips do not get hung up while being burnt. A special adapter allows the smoke generator to be easily and quickly connected to the smoker. The generator outlet tube here is an extended version and is located just above the drip hole in the bottom of the smoker. This means that your smoking will run cleanly and subsequent cleaning will be quicker and easier. The smoke generator holds approx. 450 g of wood chips. This amount provides approximately 3-4 hours of operation (depending on the airflow setting of the pump regulator) without having to add wood chips.

The Jet 1 generator enables cold smoking without the need to purchase and install any additional structural components!

You can carry out cold smoking, without the heater on, using only the smoke generator. Using this method, the smoking process is possible to carry out at an outside temperature of between 12 and 25°C. This will enable a temperature range of 16-30°C to be achieved inside the chamber. When adhering to these values, the total smoking time is between 1 and 14 days, depending on the desired effect and the type of product. When choosing the cold smoking option, remember not to place the smoker in location exposed to sun.

You will also appreciate the other qualities of this smokehouse in practice:

• adjustable air supply (openings on the front of the smoker)
• safe handle (for opening the door) which does not heat up
• sturdy side handles for carrying / transporting
• a gasket in the door and the possibility of adjusting the door pressure
• the design of the door that prevents plasma (released during smoking) from leaking through the door.
• steel structure coated in matt black paint, resistant to high temperatures.

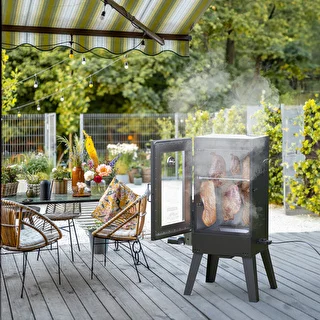

Harness the power of the dragon! With the dragON E101 electric smoker set, you will see that smoking in the backyard or in the allotment garden can be very easy and produce fully professional results.

PLEASE NOTE! Before using the smoker and smoke generator with pump, read the manual carefully, including the installation information, warnings and instructions for preparing the equipment for operation and for its operation - and then follow these instructions, strictly adhering to the safety rules given.

The smoker is intended for outdoor use only.

Follow the instructions given in the manual, both the instructions before the first use and the requirements for each subsequent use.

Clean the smoker after each use, as recommended in the manual. The dedicated liquid cleaner for smokers and grills - Browin brand liquid spray - will work great for that.

Store the unit in a dry place after use.

Caution: always make sure the appliance is unplugged and cool to the touch before cleaning and storing it.

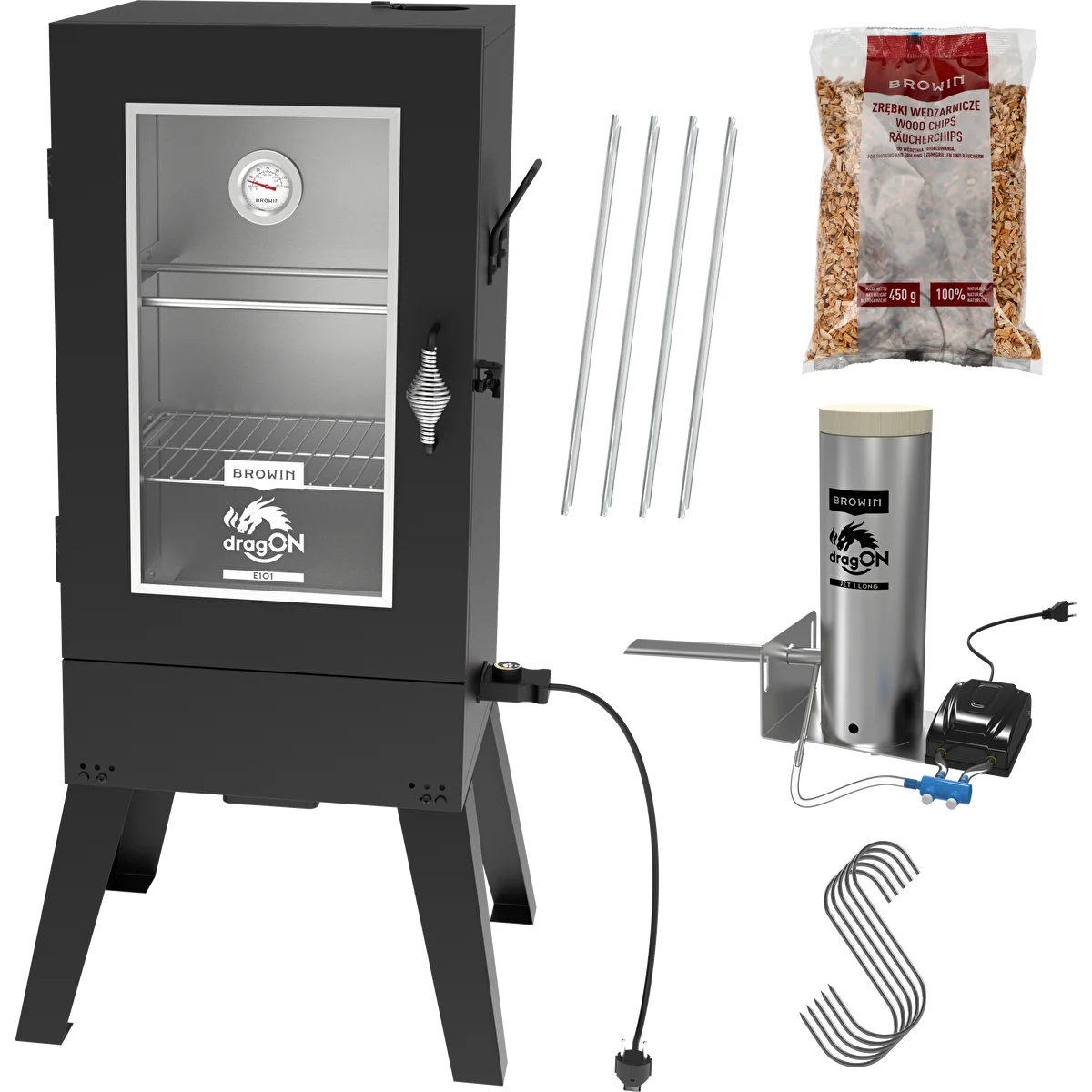

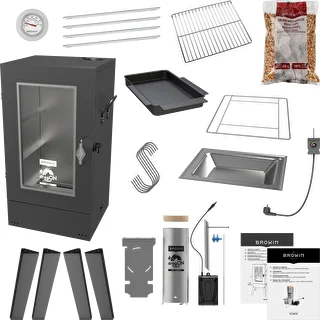

Contents of the kit:

• smoker body
• internal drip tray / deflector
• internal drip tray rack
• external drip tray
• grill
• steel beams (4 pcs)
• S-type hooks (5 pcs)

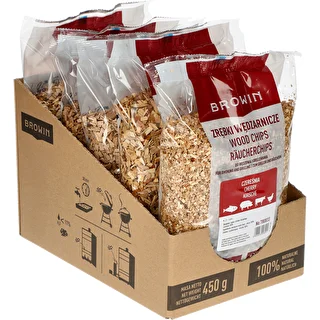

• wood chips for smoking (1 pack)
• dragON Jet 1 LONG smoke generator with a pump, hoses and adapter for mounting in the smoker wall
• legs (4 pcs)

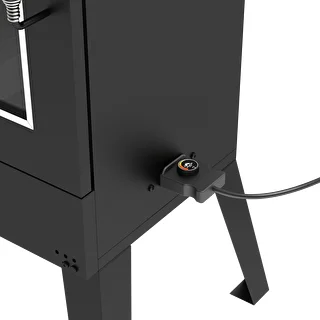

• power supply cable with thermostat
• analogue thermometer
• side handles, door handle,

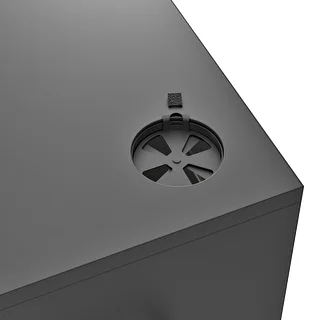

• chimney opening shaft
• drip tray rails
• set of mounting bolts and a nut
• user manual
• manuals: for the smoker and for the smoke generator with pump

Parameters:

• capacity: 70 L (3 levels) for 6-9 kg of input

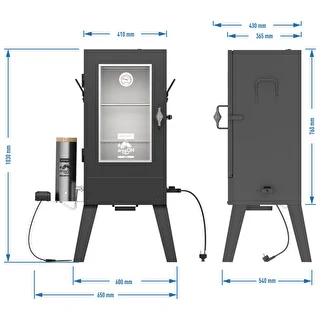

Product dimensions (without generator):

• total height: 103 cm (including legs: 27 cm)
• smoking chamber height: 76 cm
• width: 41 cm
• depth: 37 cm

Heater temperature range: from +38 to +130⁰C

Heater power: 1300 W, 50 Hz, 230 V

Smoke generator pump power: 5 W

Length of the power supply cable: 180 cm

Weight (without generator): 25 kg
