Head - spiral cooler

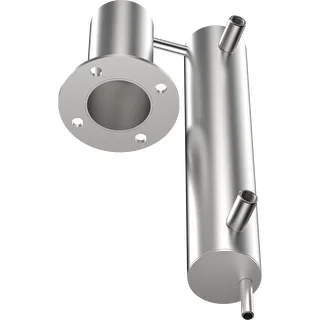

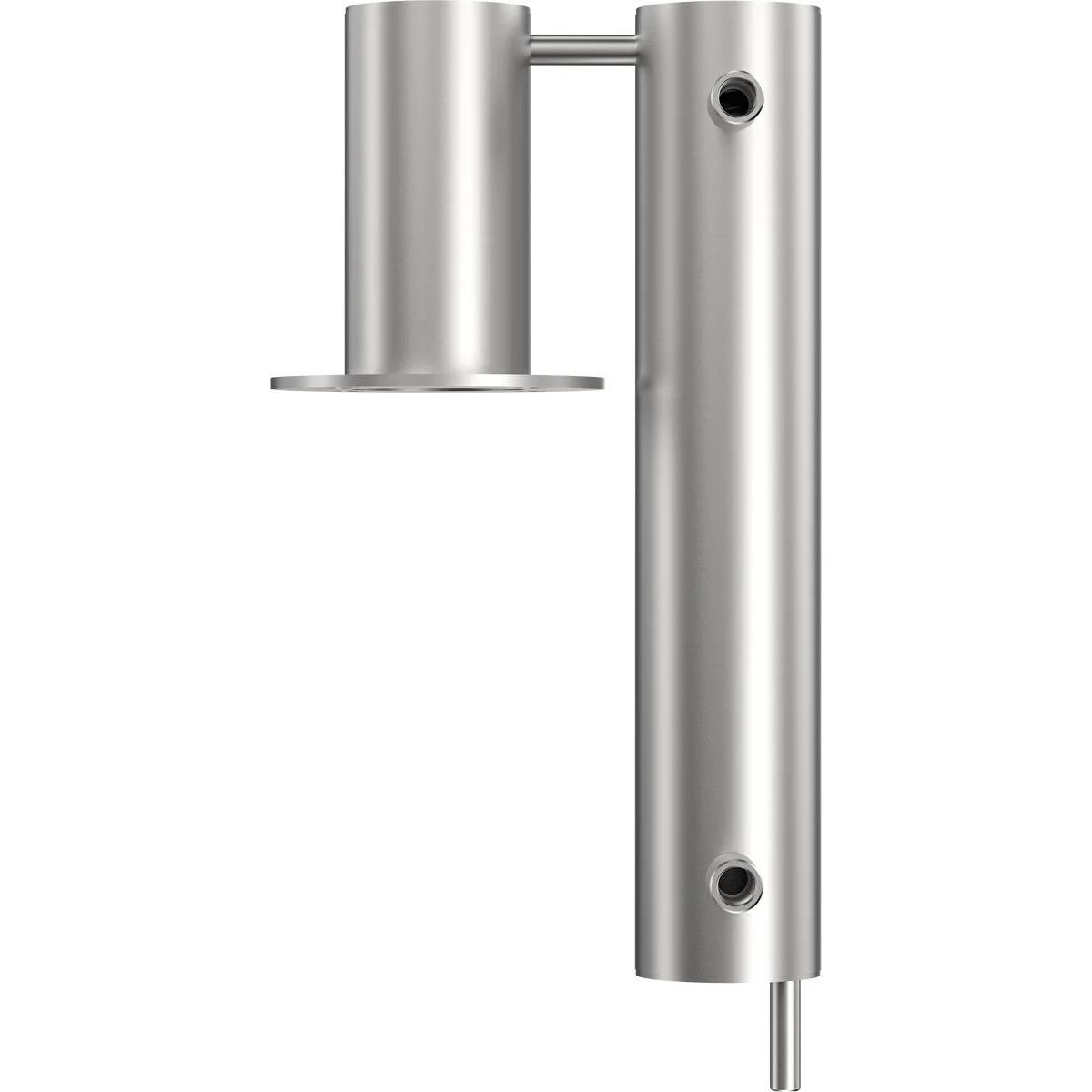

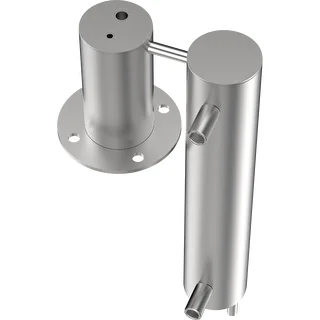

Head - spiral cooler – distiller module made of stainless steel, installed at the top of the distillation column. This product is fully compatible with other distillation modules included in the offer of BROWIN.

Thanks to applying a spiral cooler the heat exchange surface is increased, which translates to quicker cooling and lower consumption of cooling water during the process.

The head, installed in a simple pot-still system, will ensure obtaining exquisite liquor, also flavoured, either fruit-based or grain-based.

The module will be perfect for building a distiller in the Cooling Management (CM) system, i.e. precise control over cooling, with application of reflux, cold fingers, or rectification. Thanks to the valves that enable very precise water flow adjustment and the efficient spiral cooler, it is possible to fully condensate the distillate vapours and cool it down to the collection temperature desired.

Structural characteristics:

•    external pipe diameter - 48 mm,

•  cooling section height - 280 mm,

•    water connection – threaded 1/8” coupler for a hose valve/connector,

•  slot for a thermometer (220309).

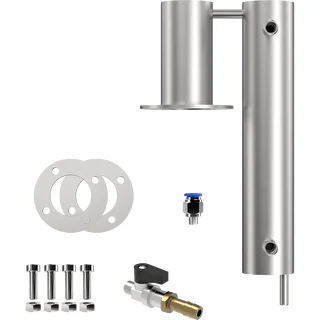

The set includes:

•   silicone gasket,

•    a complete set of bolts and nuts (4 pcs),

•  ball valve + stub pipe to be installed in the cooler (set).

To be purchased separately:

•    polymerised PVC hose - 5 linear metres + quick connect fitting (353120)

•    silicone hose (353100)

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
