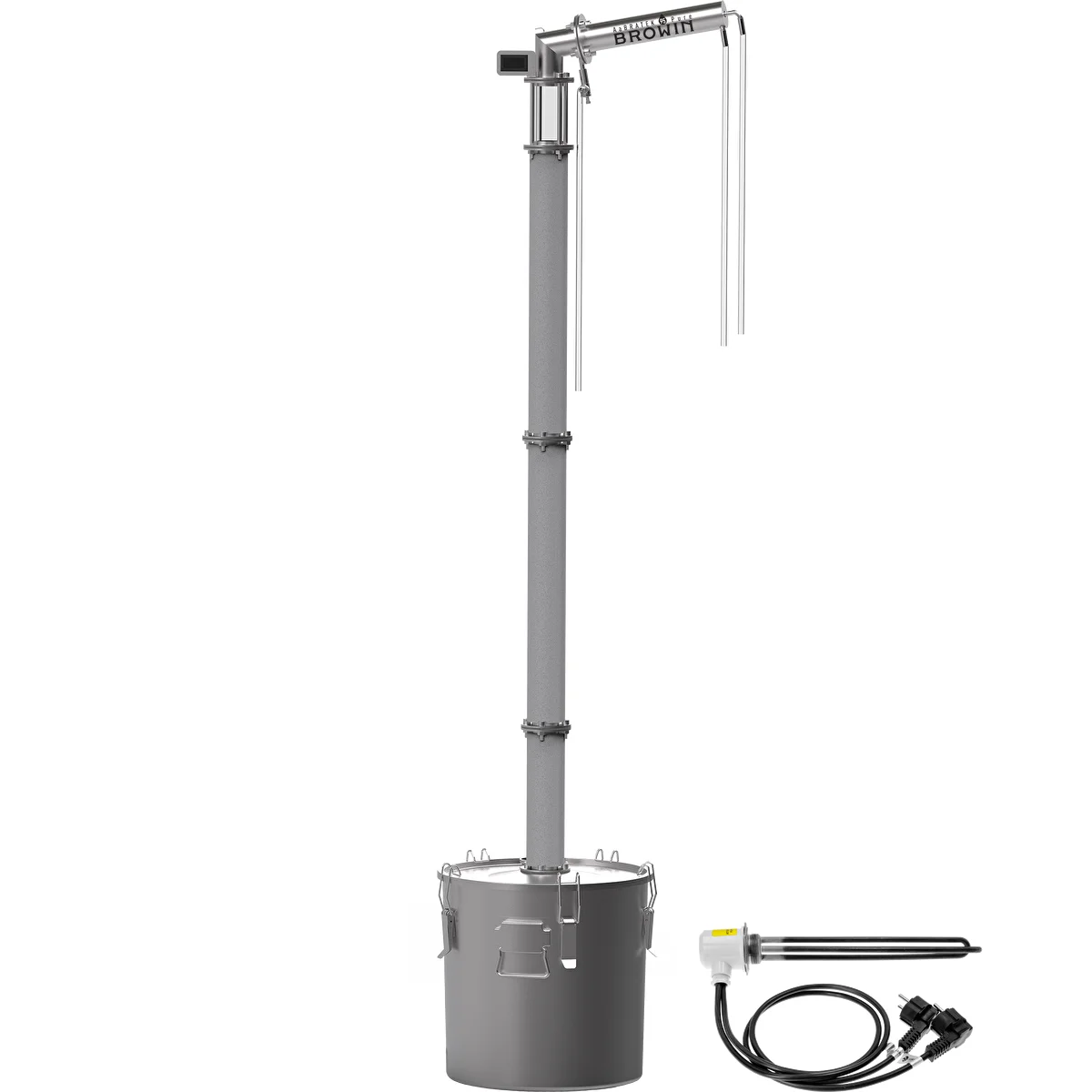

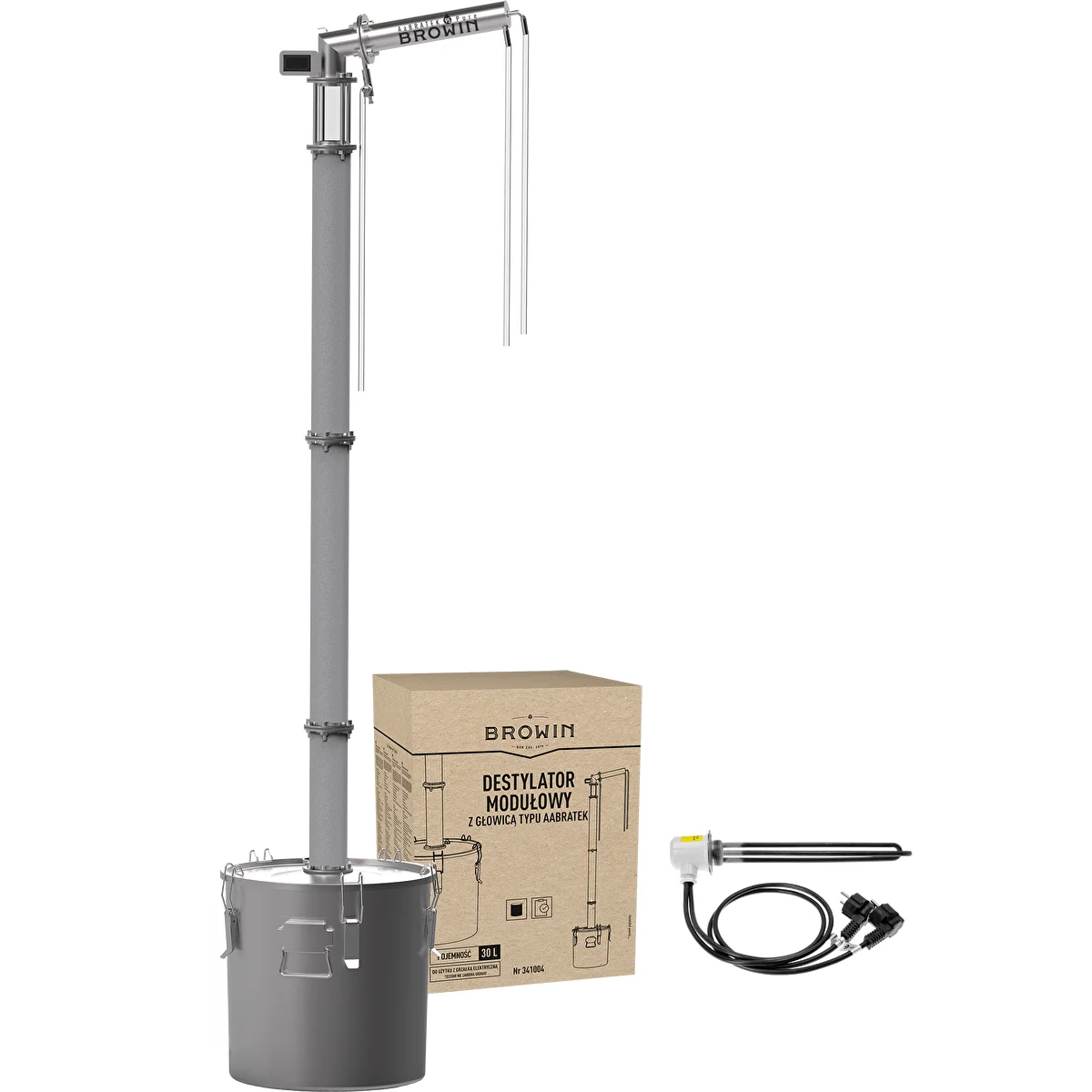

Modular still 30 L with Aabratek head - electric

This modular distillation system was created in order to meet the requirements of the most demanding customers. Thanks to the applications of standardising connections and innovative system elements, this system can be used as a basis for configuring various types of stills. The modular assembly allows expansion or different arrangement of the system.

The Aabratek 95 Pure Browin still is:

• A complete, high-quality kit made of stainless steel – by purchasing the Aabratek 95 Pure Browin still you receive a complete distillation kit that will serve you for many years. High quality confirmed by warranty. No unpleasant smells during the process.
• Aabratek head – the appropriate angle of the head – 100° – and the capacity of the pond ensure the high quality of the final product, as well as the capability of obtaining 95% distillate already during the first distillation.
• Precision needle valve – the application of this type of valve facilitates controlling the process and stabilising the column by enabling adjustment of reception rate.
• 360° inspection glass - it is made of boron-silicate glass resistant to high temperature and enables stacking and aromatisation of the distillate.
• Copper and stainless filling are included in the kit – the copper springs absorb sulphur compounds, having a positive impact on the aroma and flavour of the final product of the distillation. The stainless filling is used for filtering the liquid returning from the head and the inspection glass, thanks to which the exchange surface is maximised, thus creation theoretical plates.
• Column cladding reduces heat losses – this enables conducting the process in a lower ambient temperature.
• Instead of a keg - an airtight container with gasket and 5 clamps

Container	Keg
easy to pour liquids in and out	difficult to top up and empty
easy removal of the tight cover	impossible to open fully
convenient cleaning of the container interior	difficult cleaning process
the container can be used for storage of majority of the kit elements	cannot be used for any purposes other than distillation

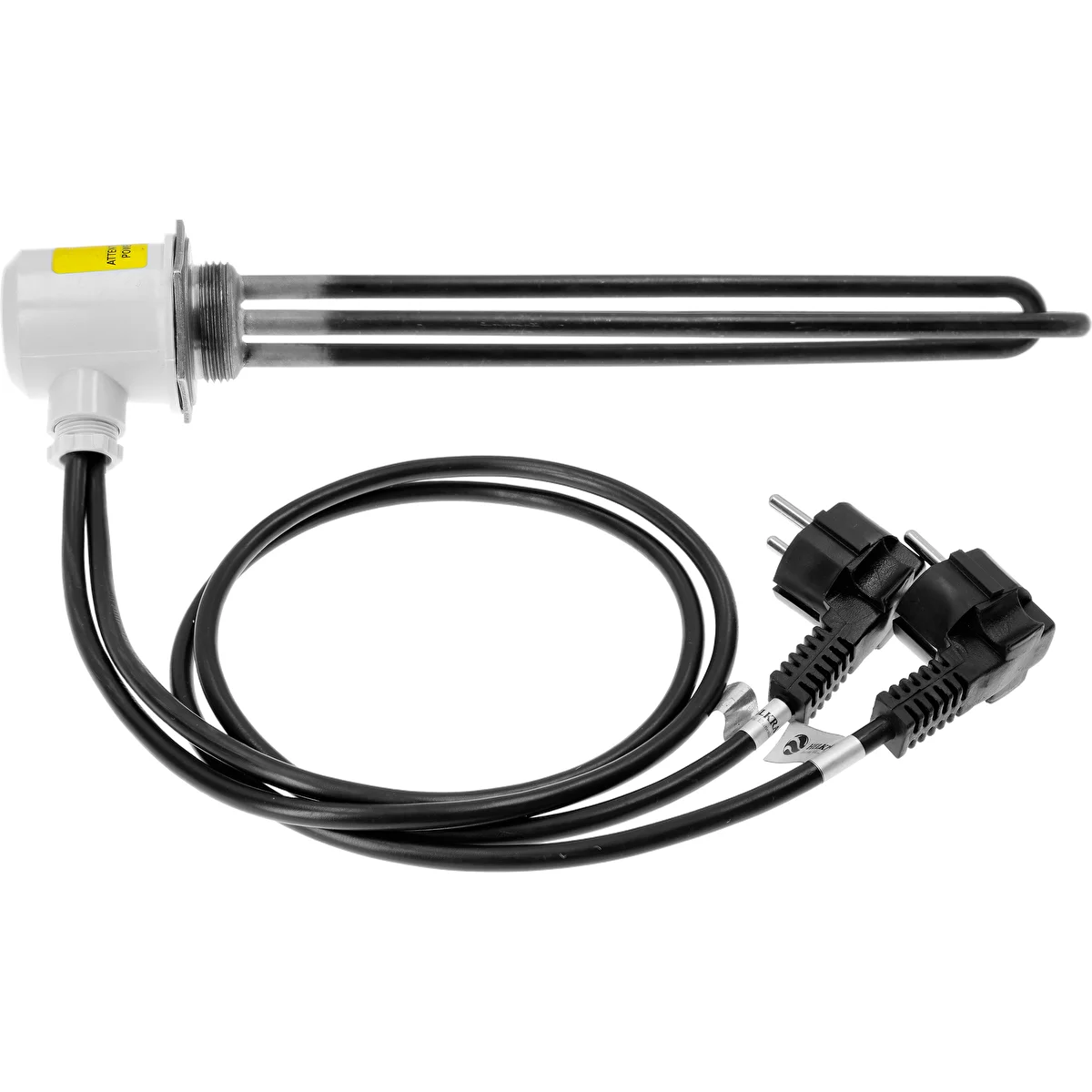

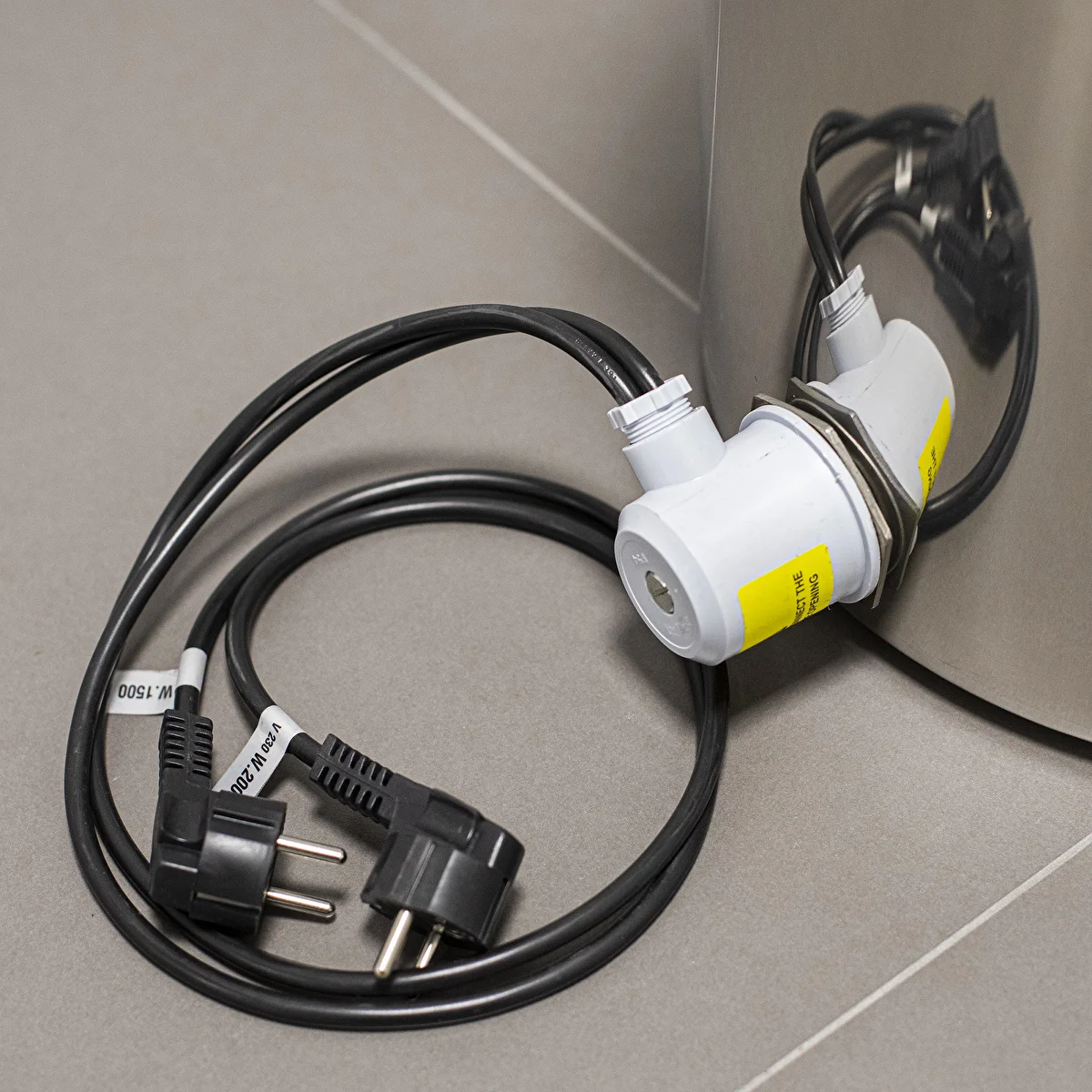

• ​Heater (2000 i 1500 W) included free of charge – the heater included with the kit features an improved design and is easy to use.

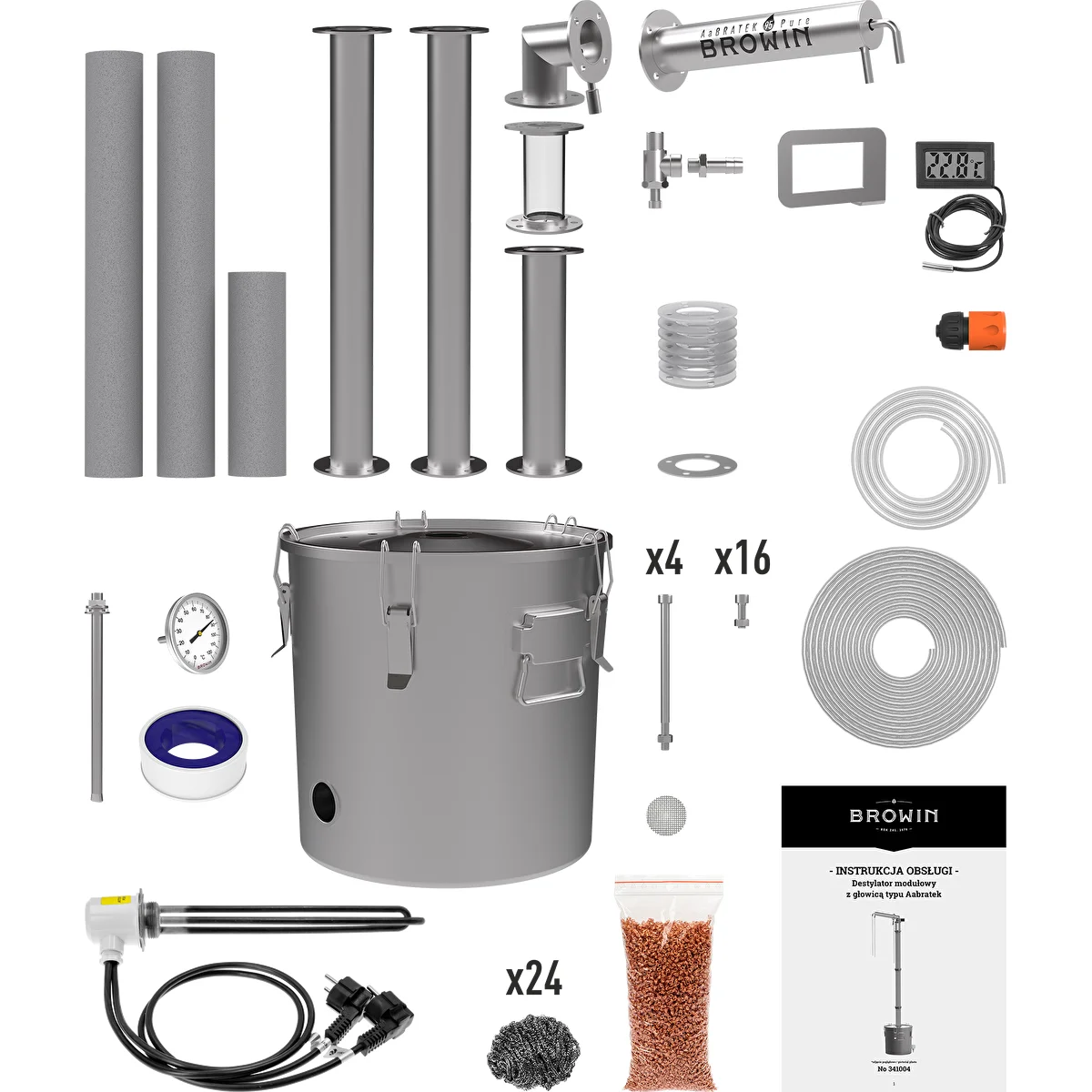

The kit includes:

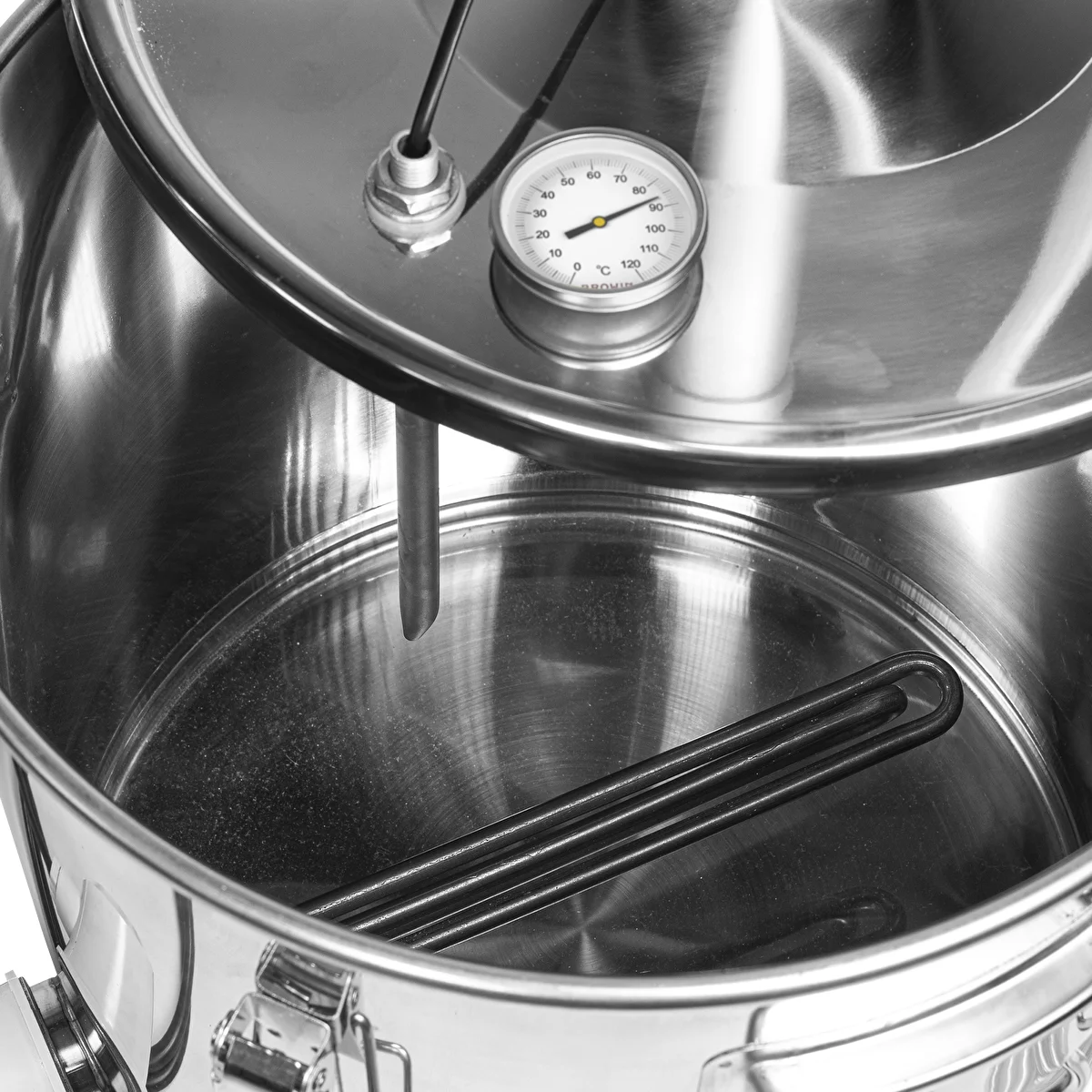

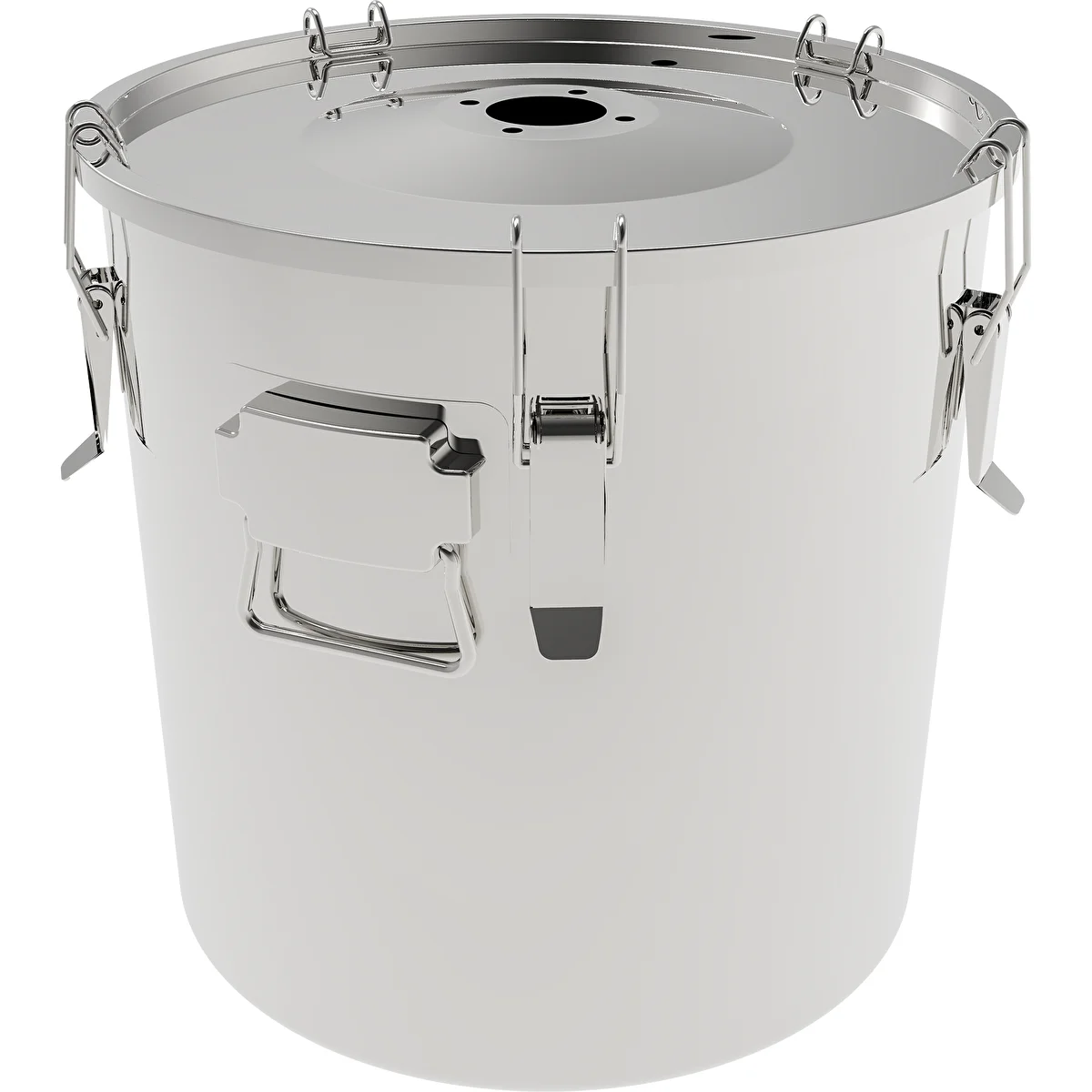

• Container - made of stainless steel

Structural characteristics:

- capacity - 30 L

- 2 handles for moving around

- 5 clamping brackets

- cover with a built-in silicone gasket

- installation openings in the cover, intended for a thermometer, a probe and still modules

- opening intended for a heater in the container wall.

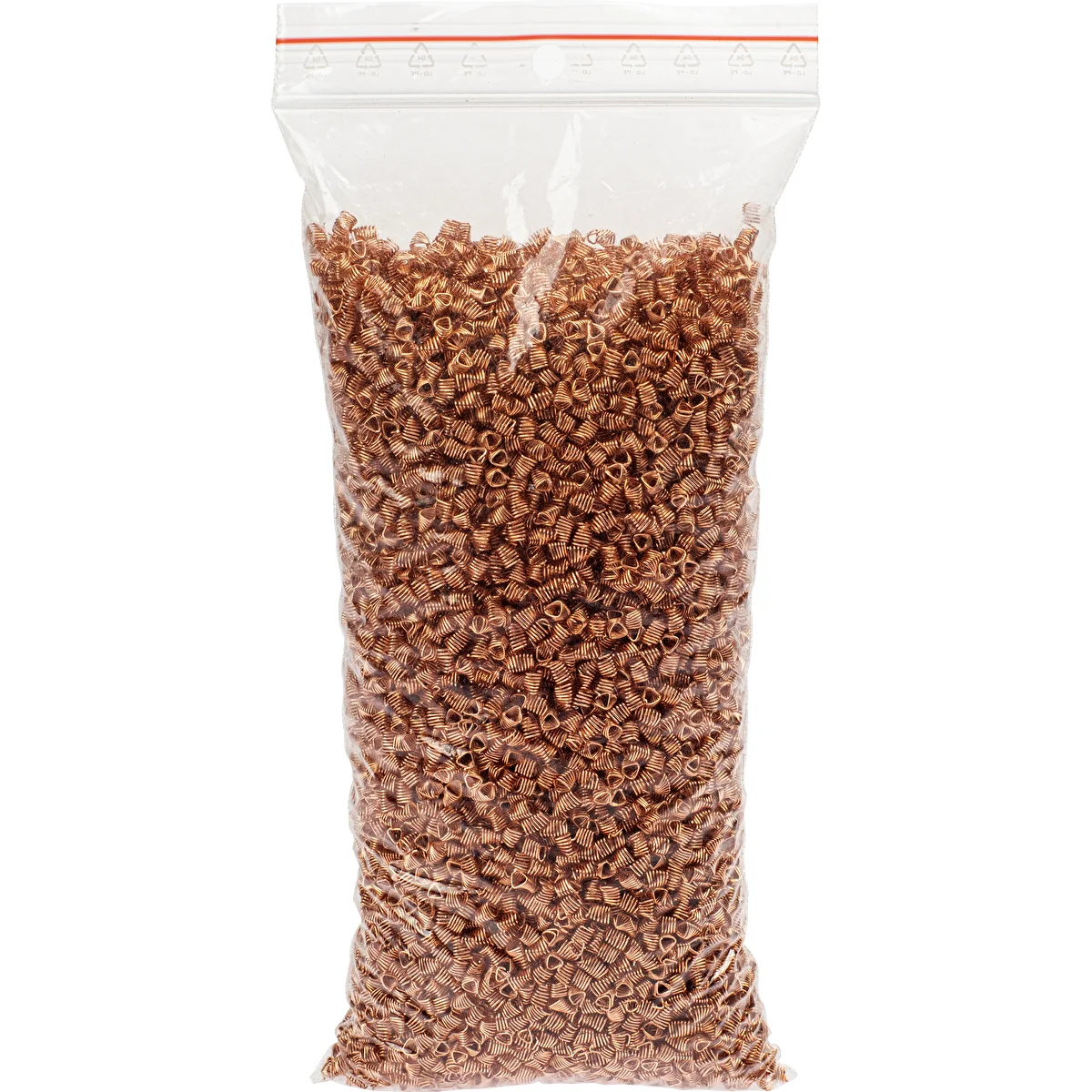

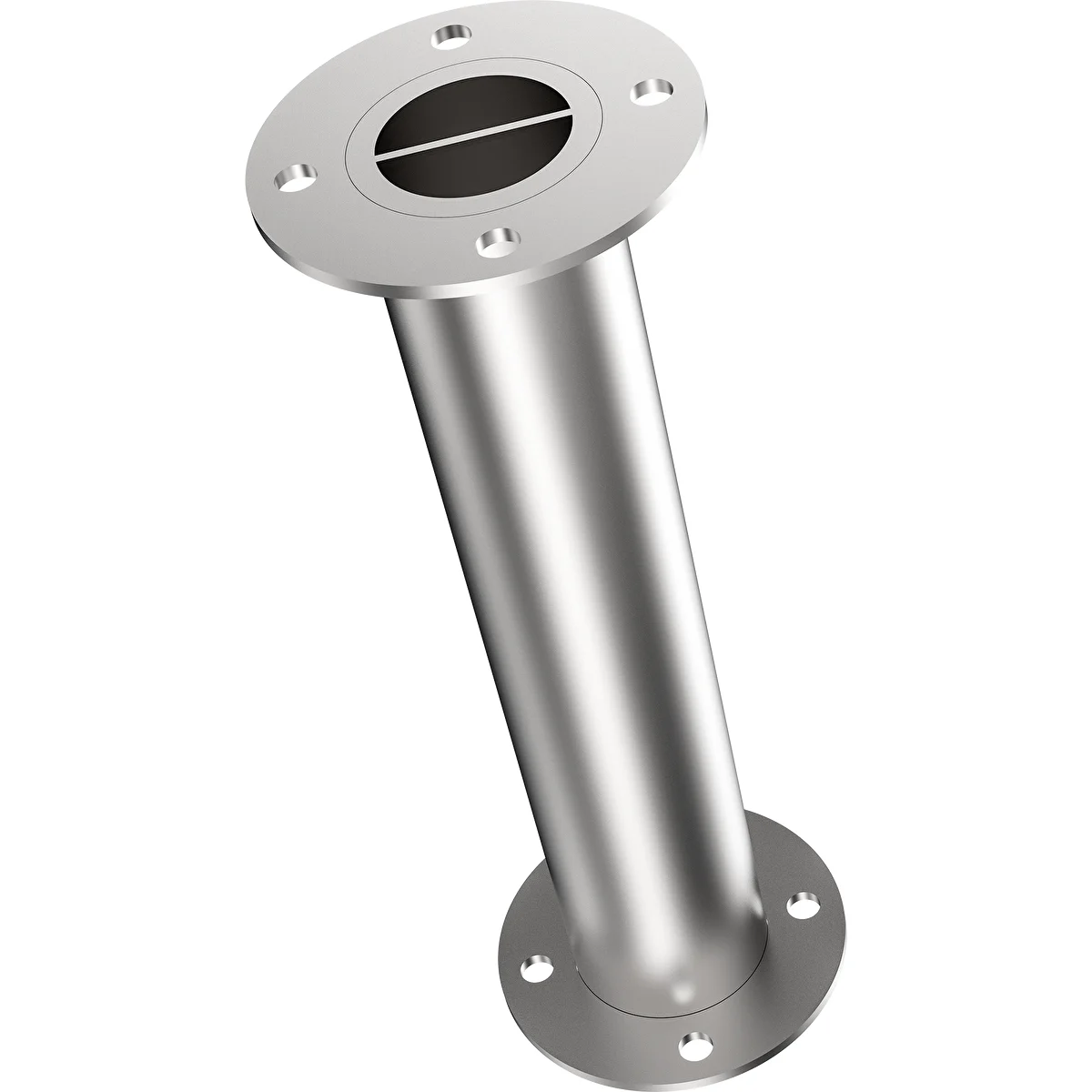

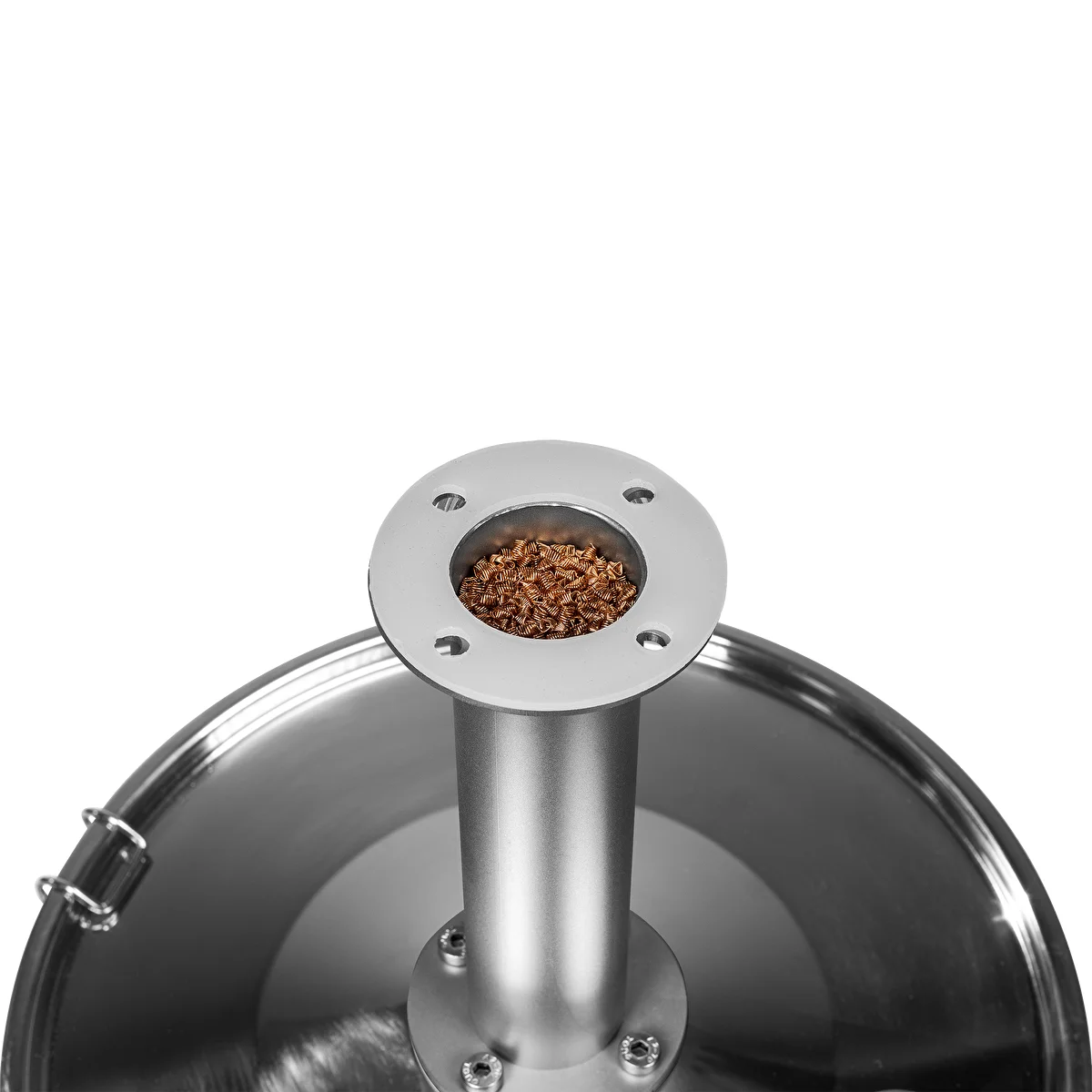

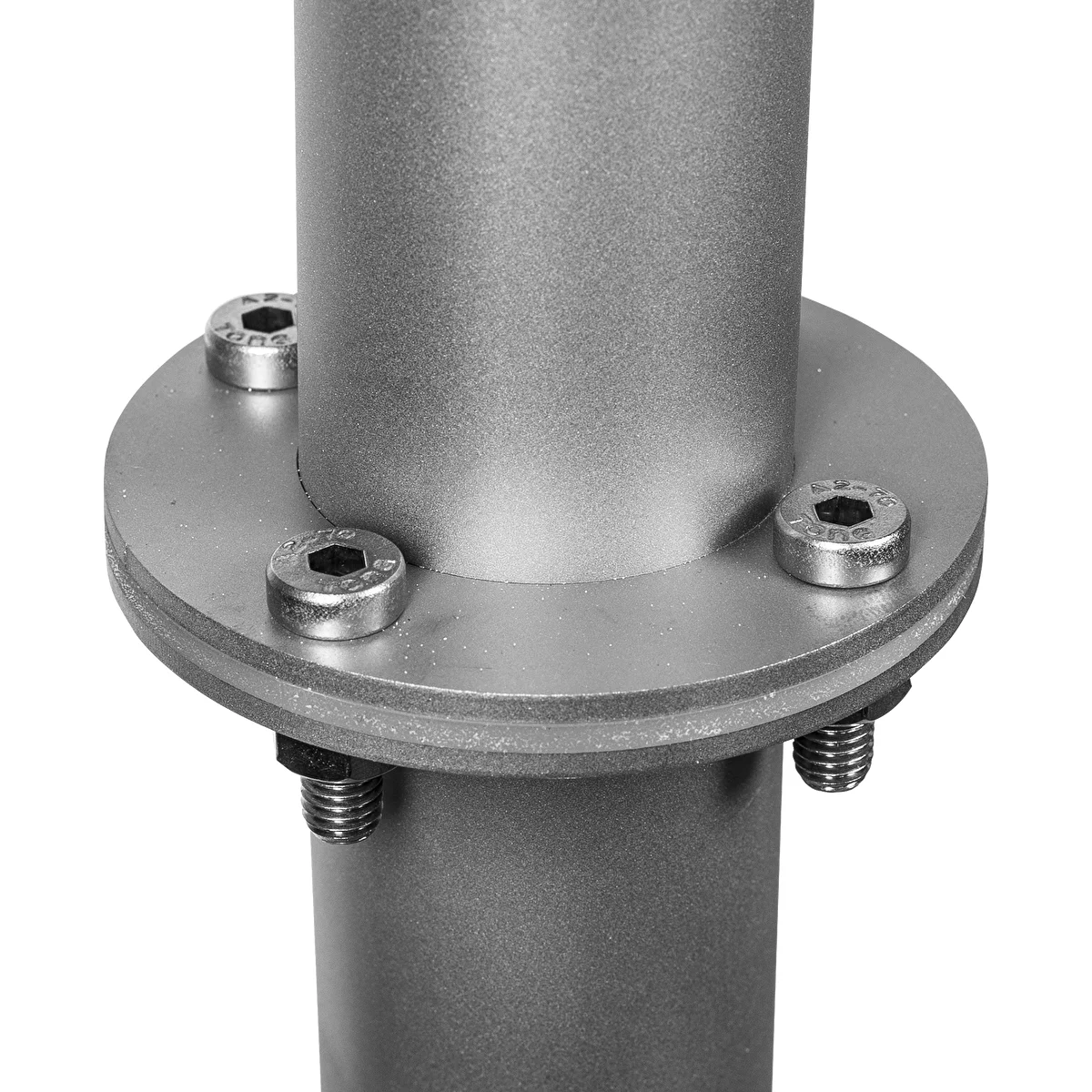

• Still module - 250 mm column connector – made of stainless steel, in a kit containing: silicone gaskets (2 pcs), a complete set of bolts and nuts (4 pcs), mesh support for the filling (1 pc) and 0.5 L of prismatic copper springs.

The connector may perform the function of a catalytic filter, as it enables using a filling that increases the purity of the distillate obtained. The best effect is achieved when using prismatic copper springs. The task of the copper is to adsorb volatile sulphur compounds that provide the distillates with the smell of rotten eggs originating from hydrogen sulphide and have a negative impact on their flavour.

Structural characteristics:

- module height - 250 mm.

- external diameter of the module pipe - 48 mm,

- ending with screw connectors

- possibility of using a filling.

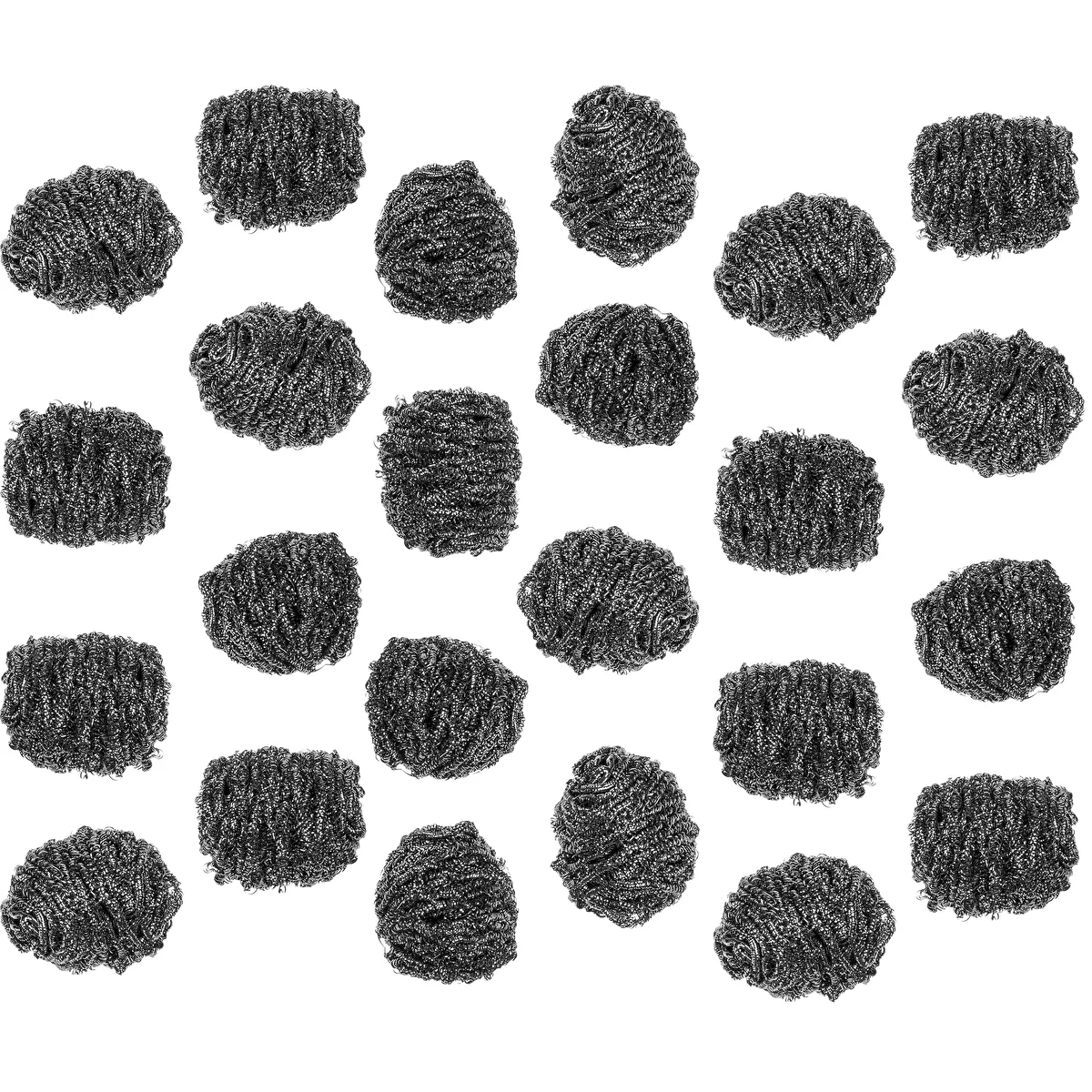

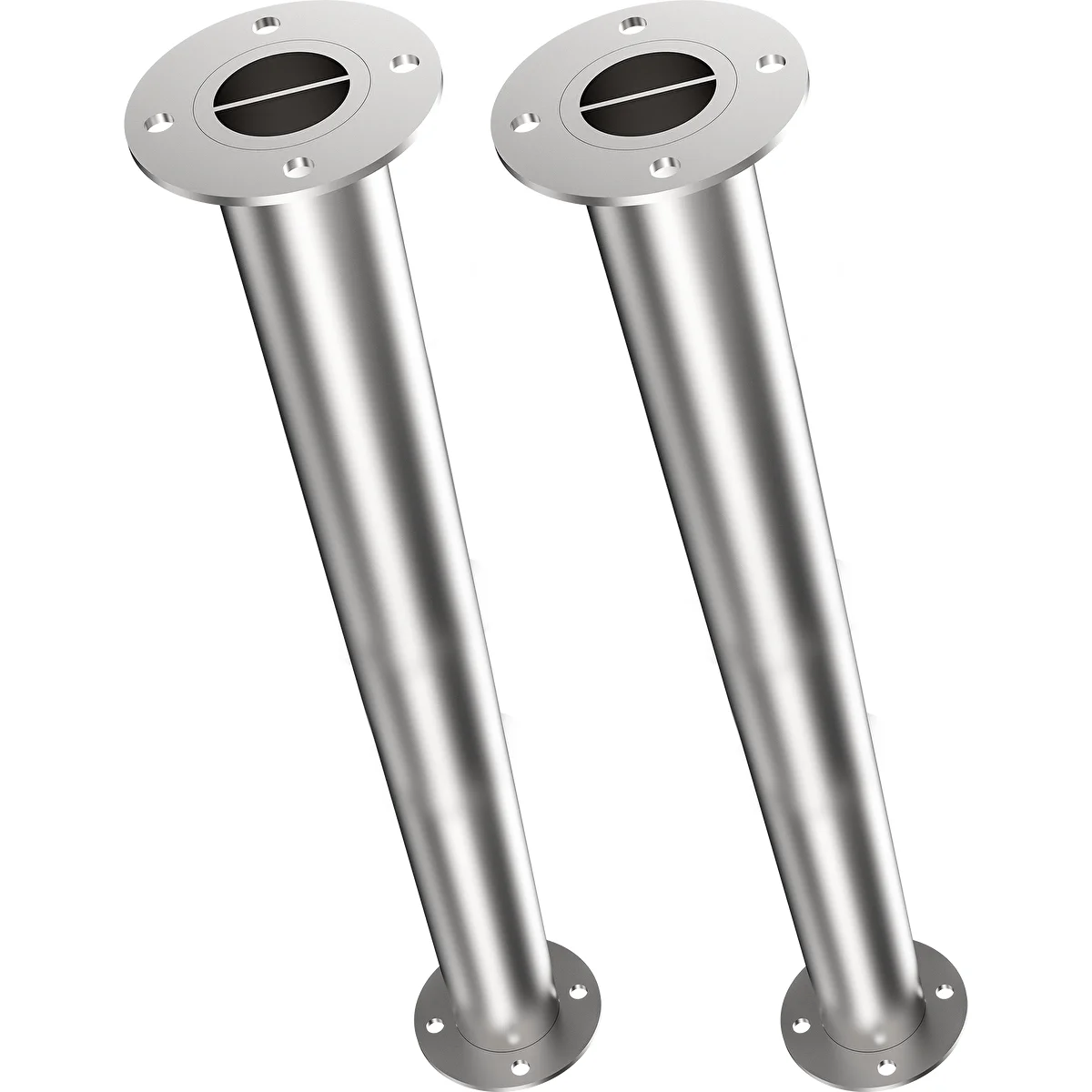

• 2 x Still module - 500 mm column connector – made of stainless steel, in a kit containing: silicone gaskets (2 pcs), a complete set of bolts and nuts (4 pcs) and stainless filling – steel wool (2 packs - 24 pcs)

The connector may perform the function of a rectifier, as it enables using a filling that increases the purity of the distillate obtained.

Structural characteristics:

- module height - 500 mm.

- external diameter of the module pipe - 48 mm

- ending with screw connectors

- possibility of using a filling.

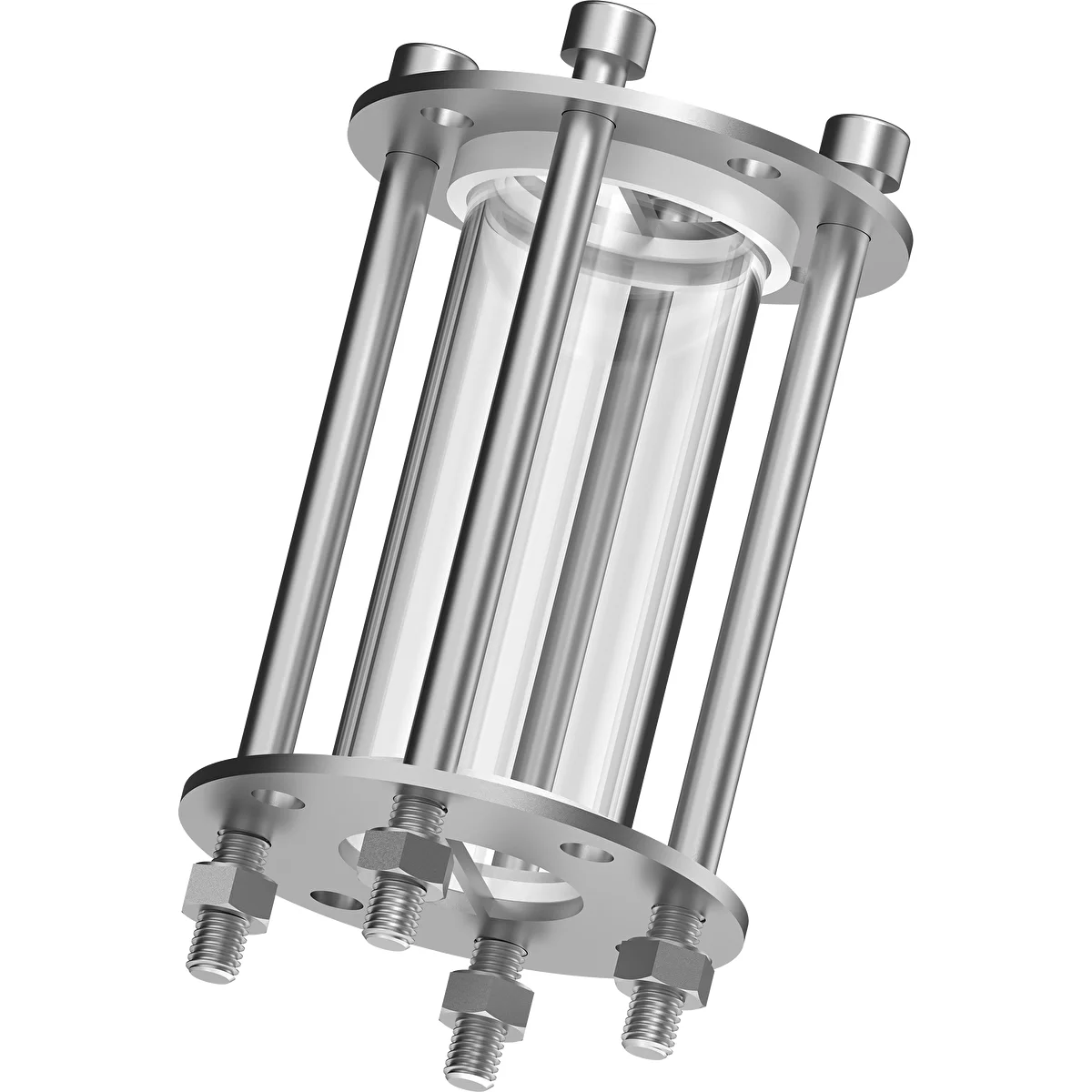

•    Still module – 100 mm inspection glass – stainless still module, with boron-silicate tempered glass and gaskets (2 pcs) resistant to high temperature and alcohol. Structure based on 4 fastenings and rods.

Structural characteristics:

- module height - 100 mm

- external diameter - 46 cm

- ending with screw connectors

- possibility of using a filling.

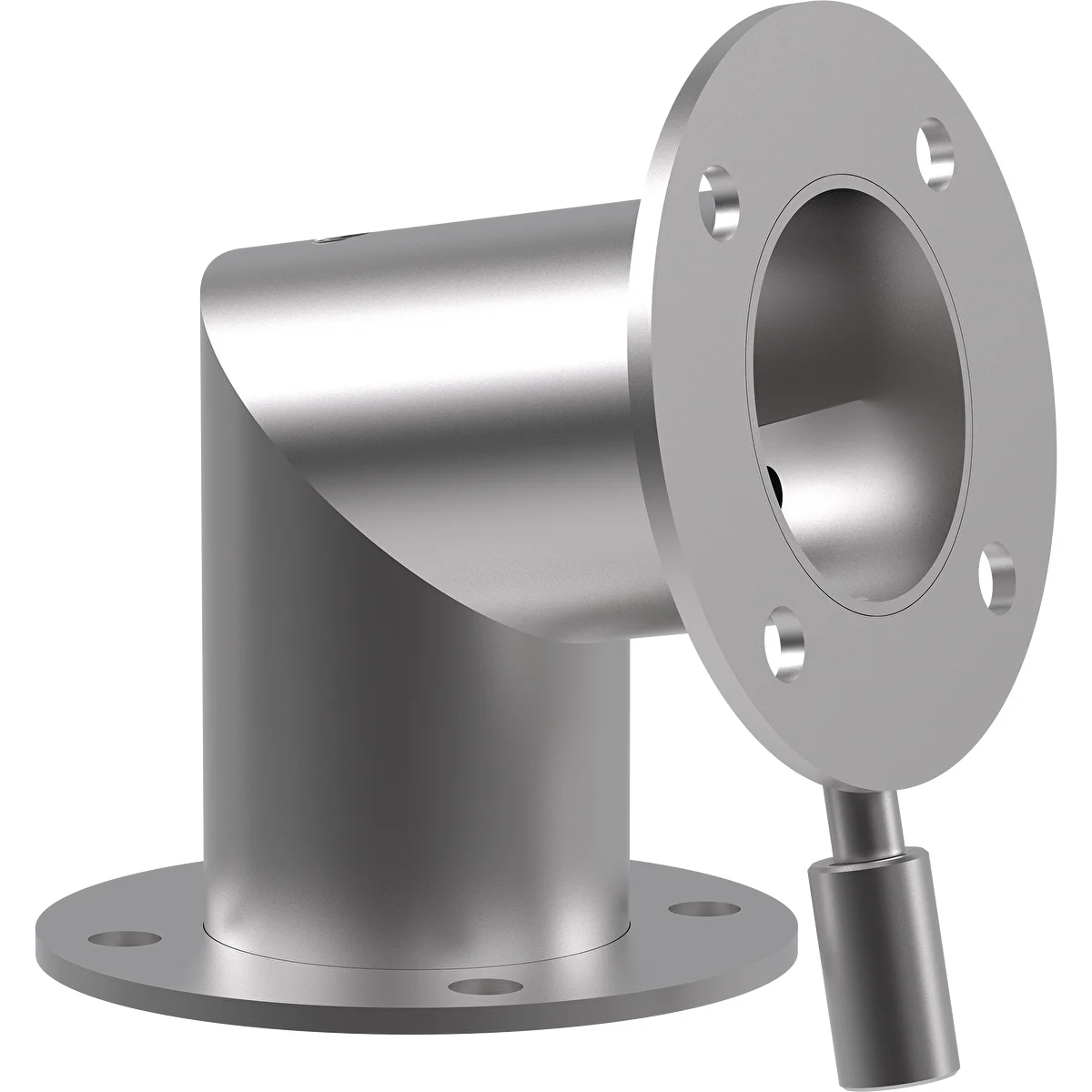

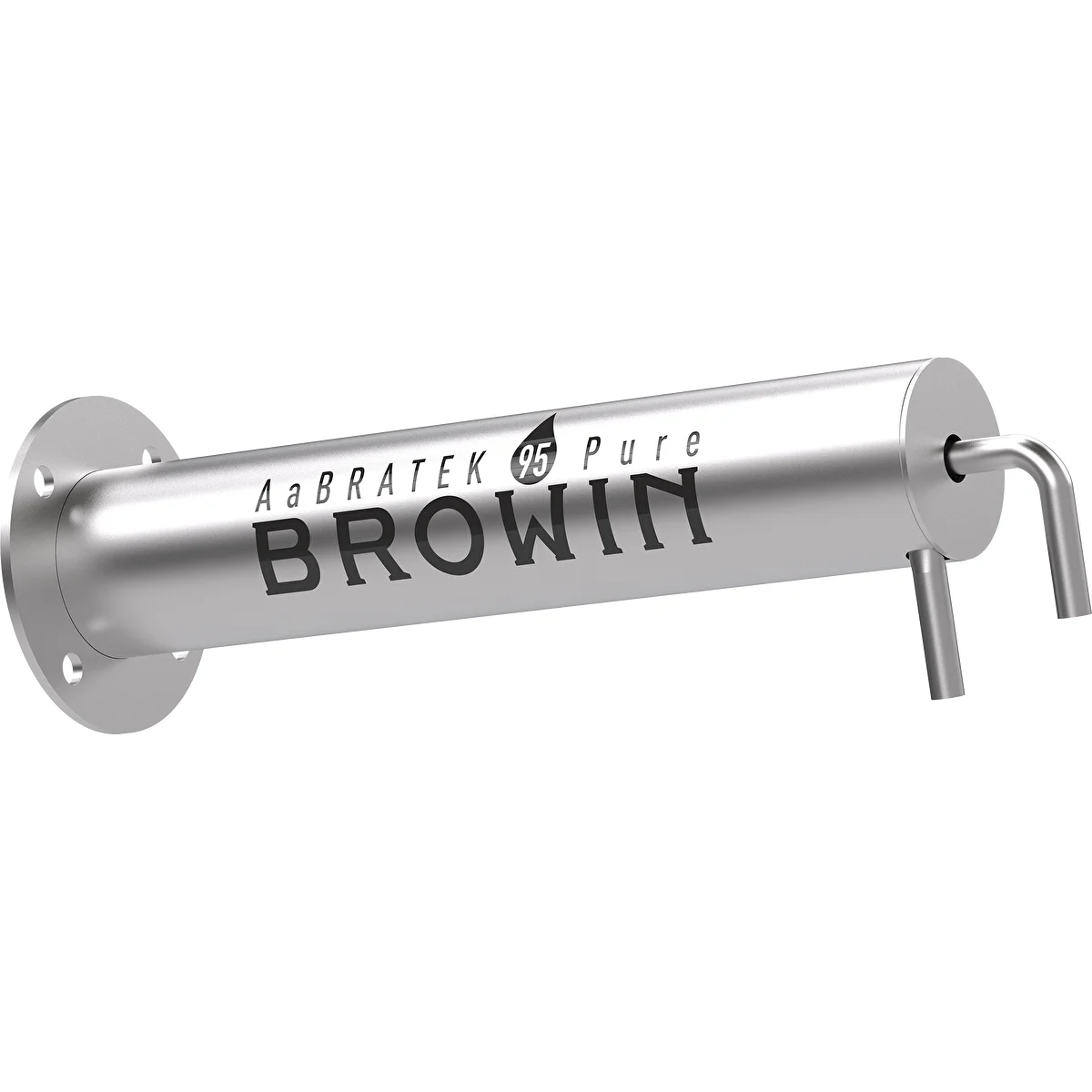

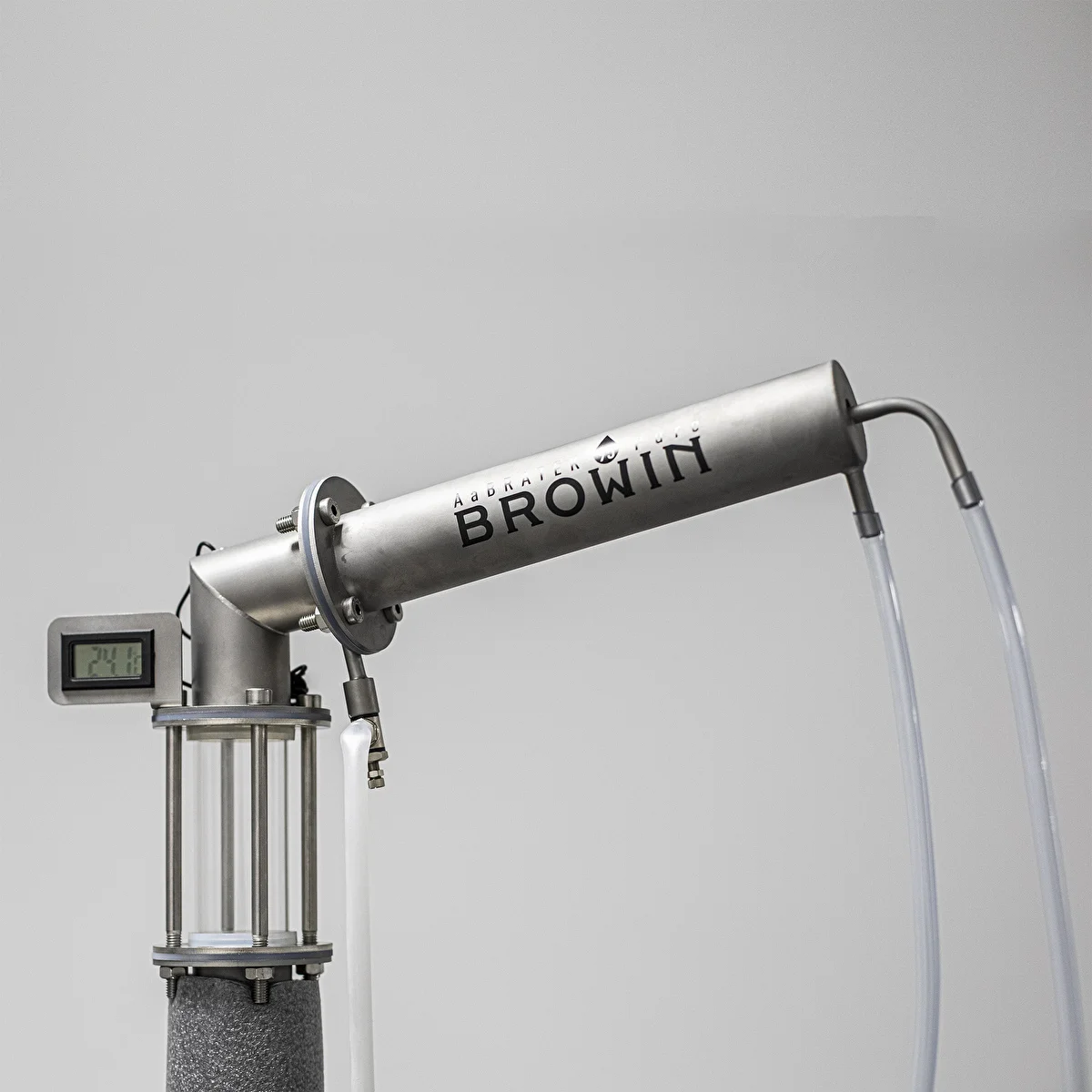

•    Still module – Aabratek head – still module made of stainless still, consisting of an elbow with a built-in dam, a stub pipe for receiving the distillate and a cooler in an open system. Comes in a complete set with: silicone gaskets (2 pcs), a complete set of bolts and nuts (4 pcs). When combined with the kit, the appropriate angle of the cooler and the pond capacity enable obtaining pure distillate of very high quality. The precision needle valve facilitates control over the distillation process.

Structural characteristics:

- module height - 135.5 mm

- head angle - 100o

- module length - 385 mm

- ending with screw connectors

The kit also includes:

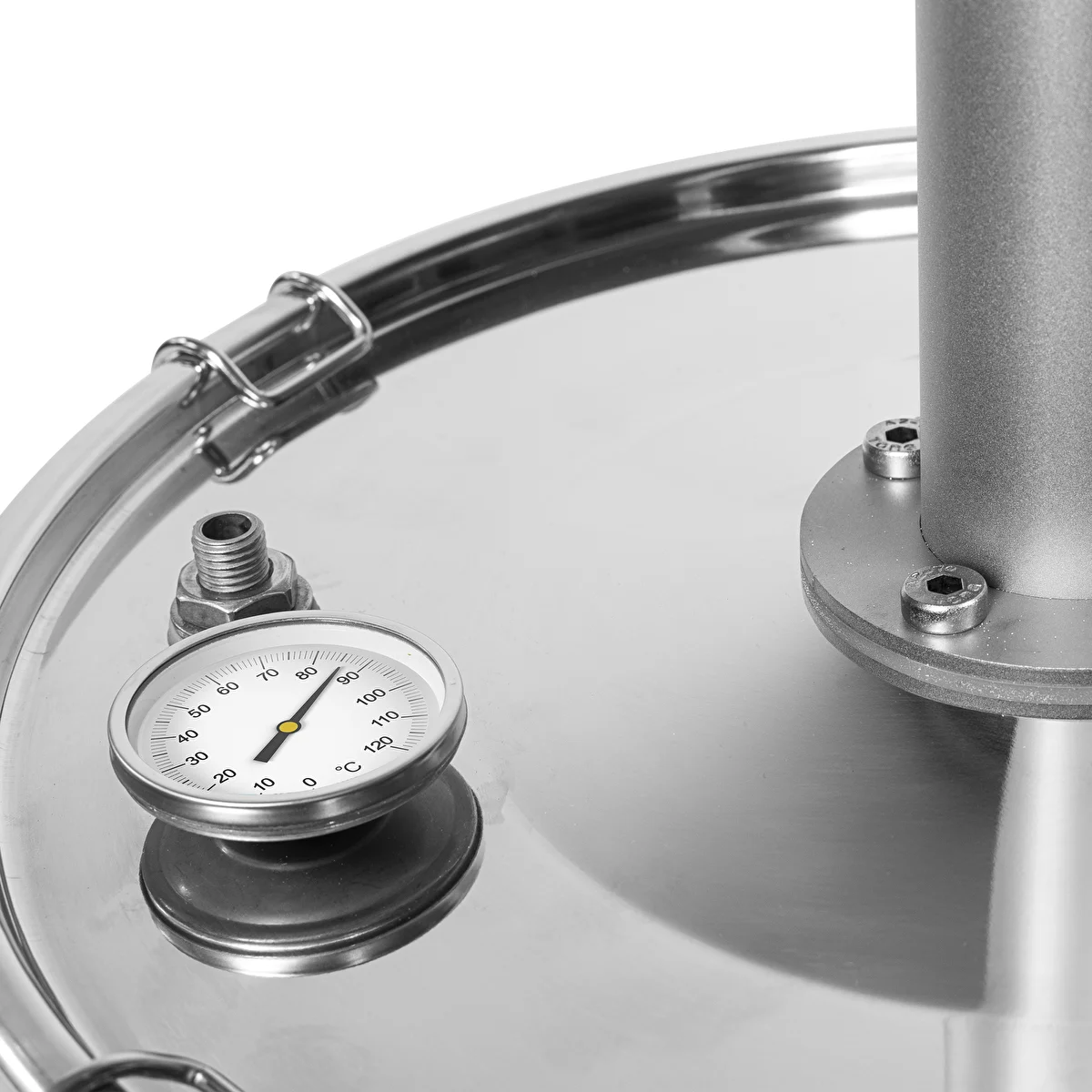

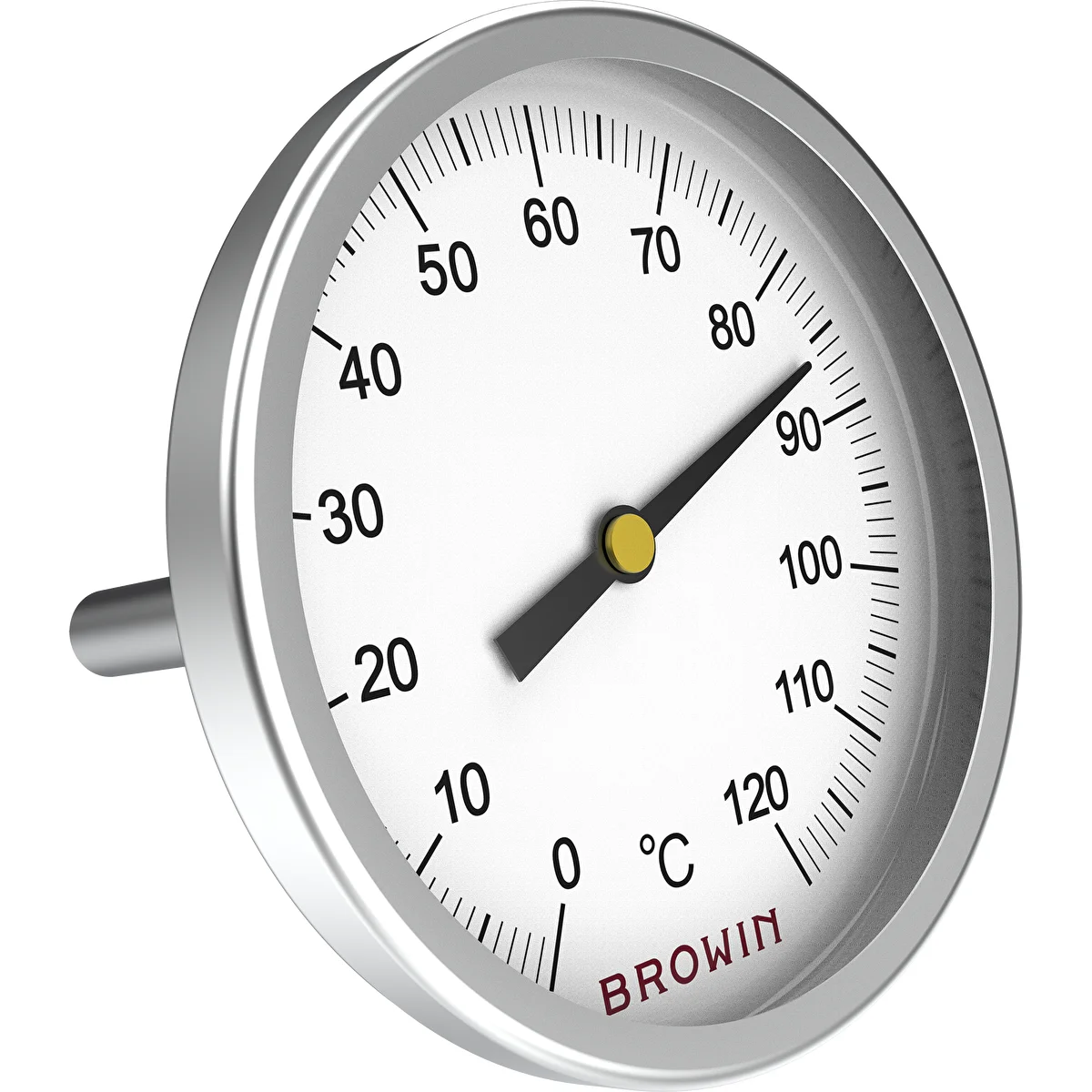

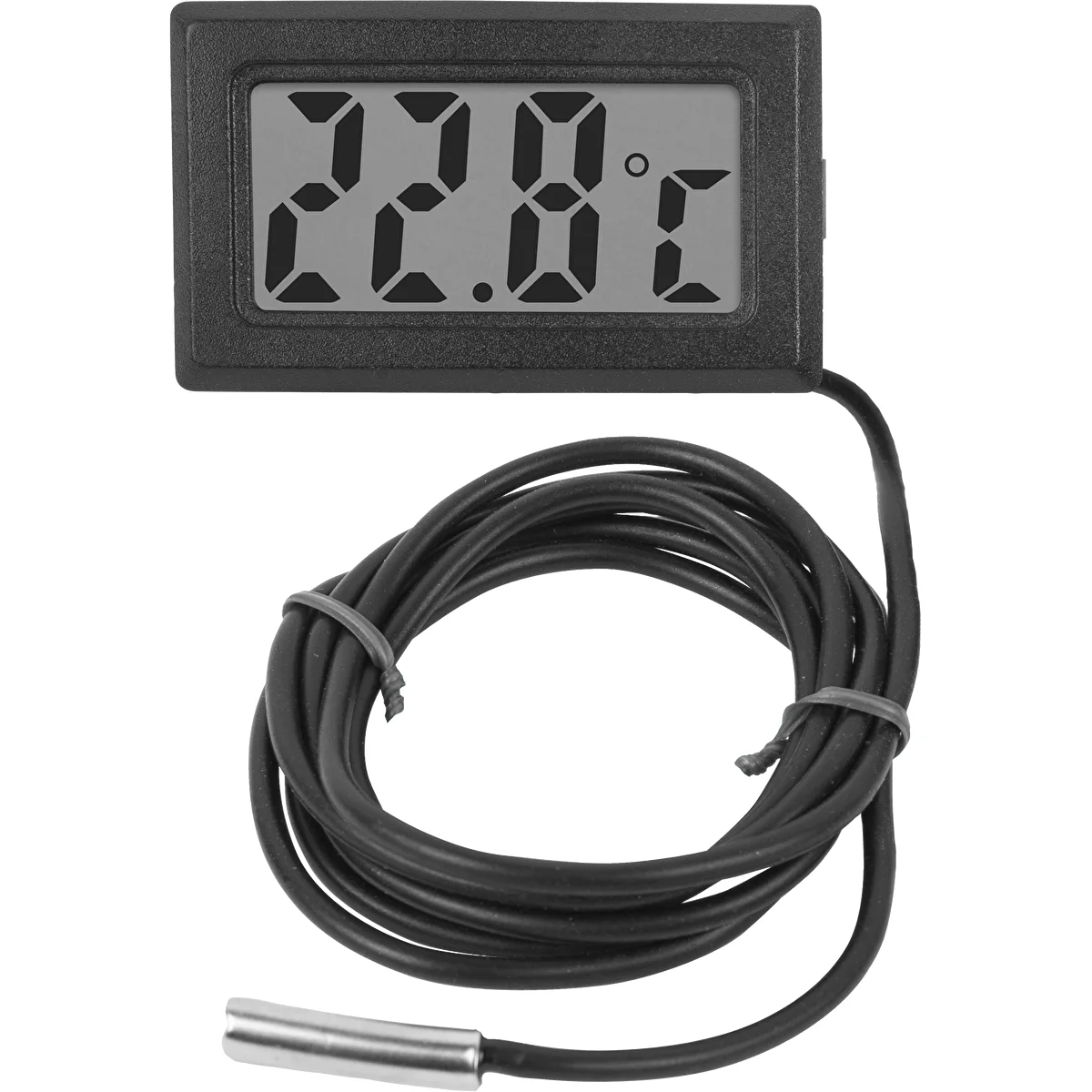

•    Two thermometers – an analogue one placed in the container and an electronic one placed in the frame at the top of the column. They enable direct and constant control over the process.

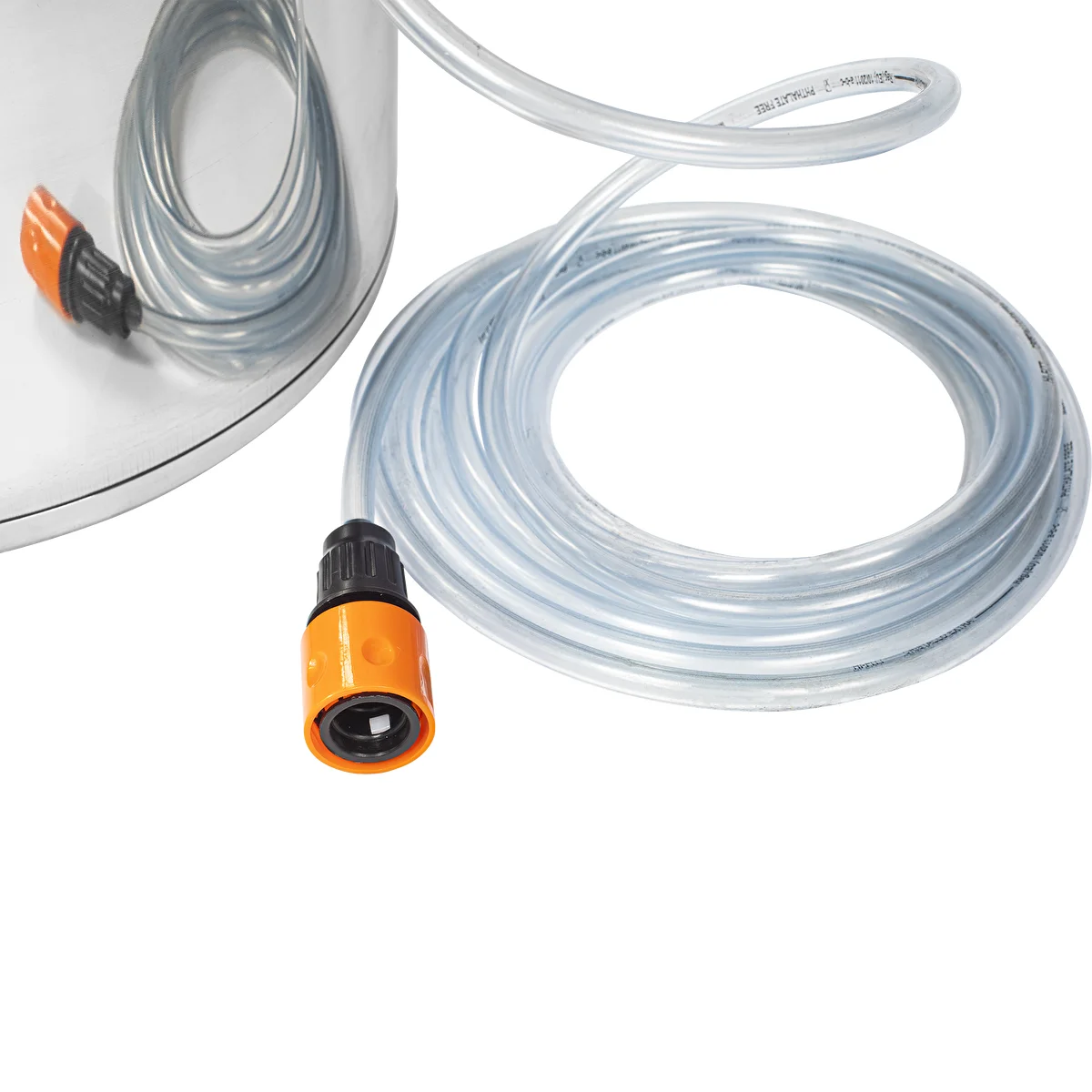

•    Long (5 m) plasticized PVC hose – for connecting water, featuring a quick coupling than enables easy connection with a tap.

•    1.5 m silicone hose – for receiving the distillate, safe for use in contact with alcohol.

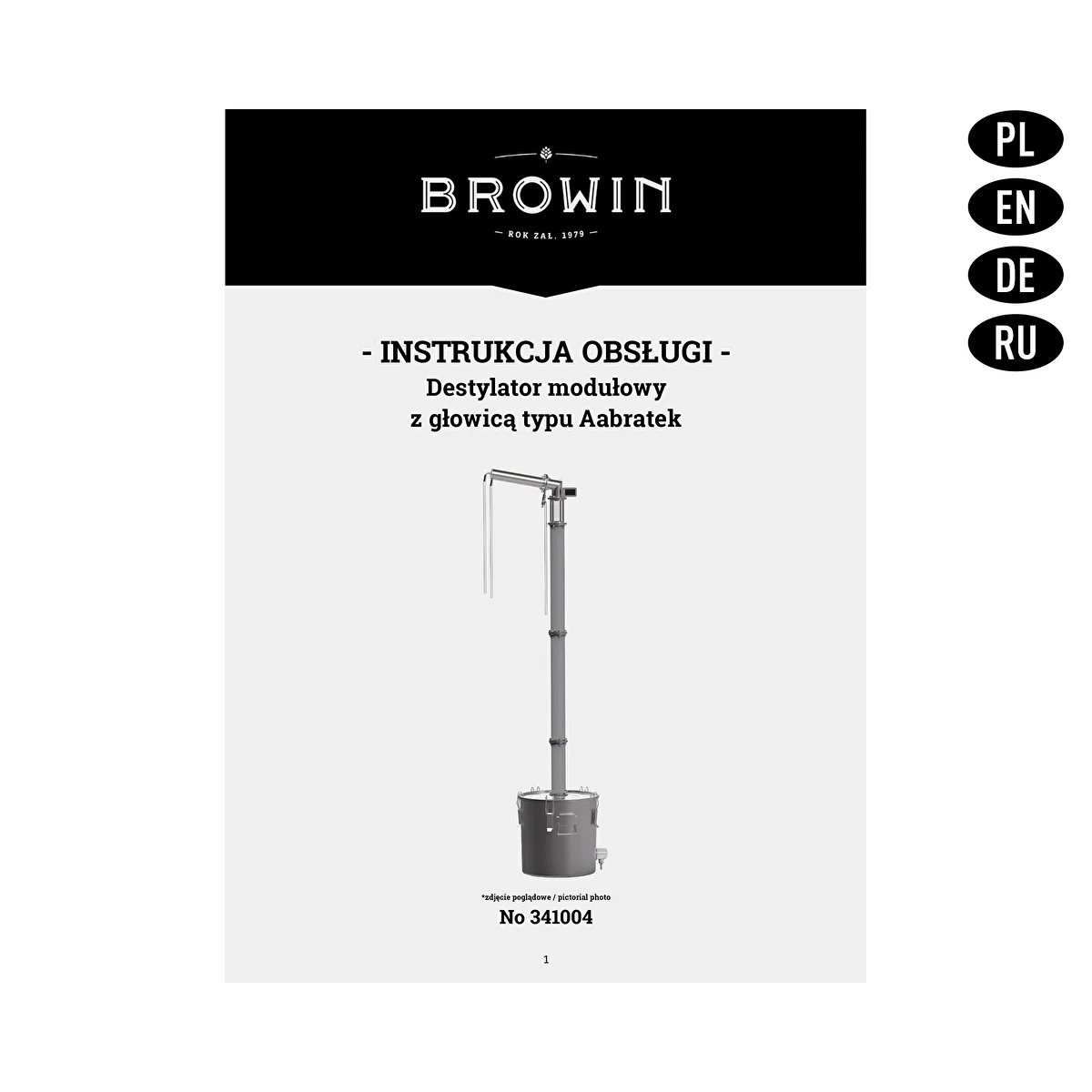

•    User manual.

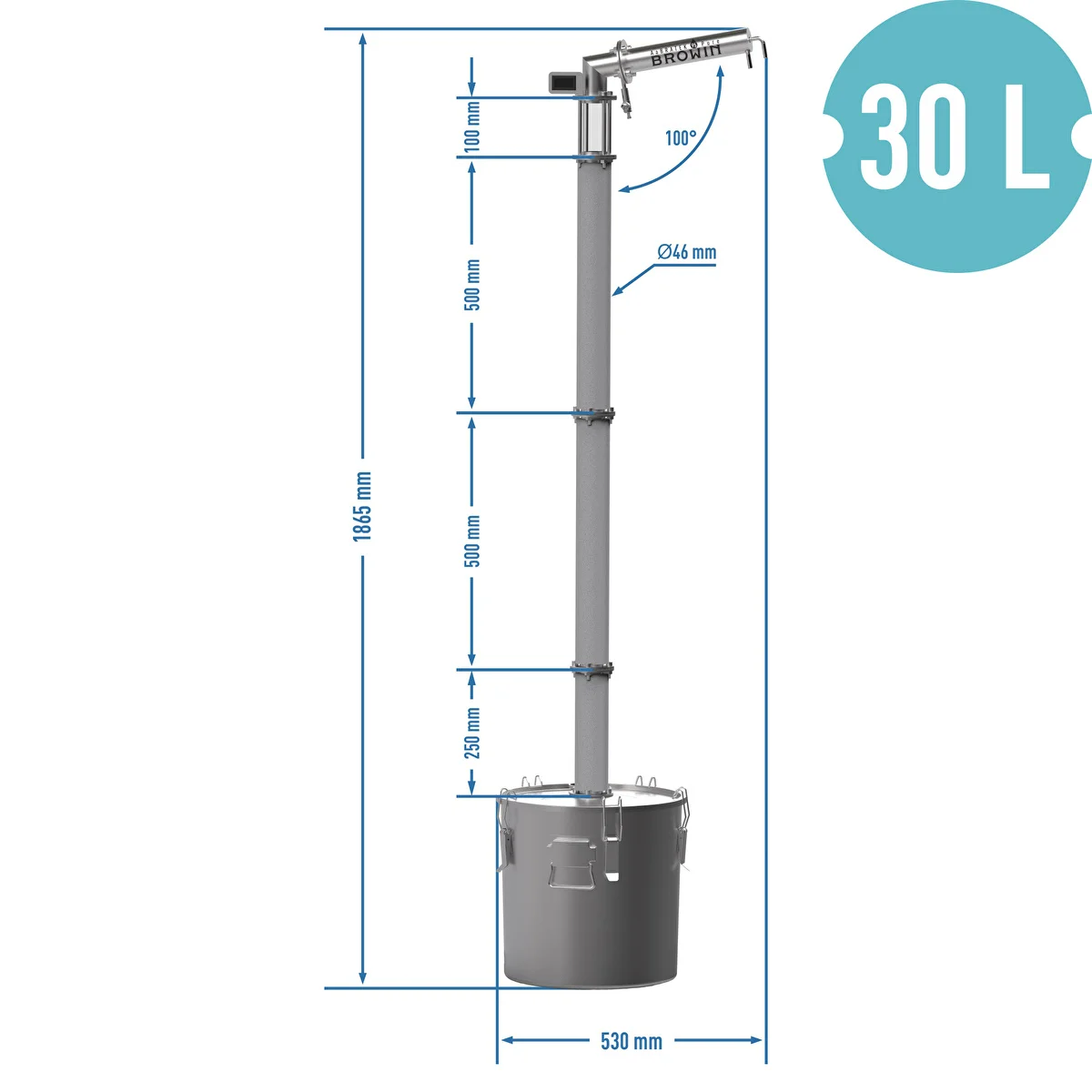

Kit width: about 186.5 cm

Water consumption during the process: about 20-25 L / 1 h.

Caution!: The distillation process must be carried out under supervision.

CAUTION!

Every country has its own legal regulations governing the manufacturing of ethyl alcohol, wine products, and spirits, introducing them onto the market, and regarding sanctions for non-compliance.
